Description
TS 700 14In 95.5cc CutQuick Saw TS 700 14In 95.5cc CutQuick Saw

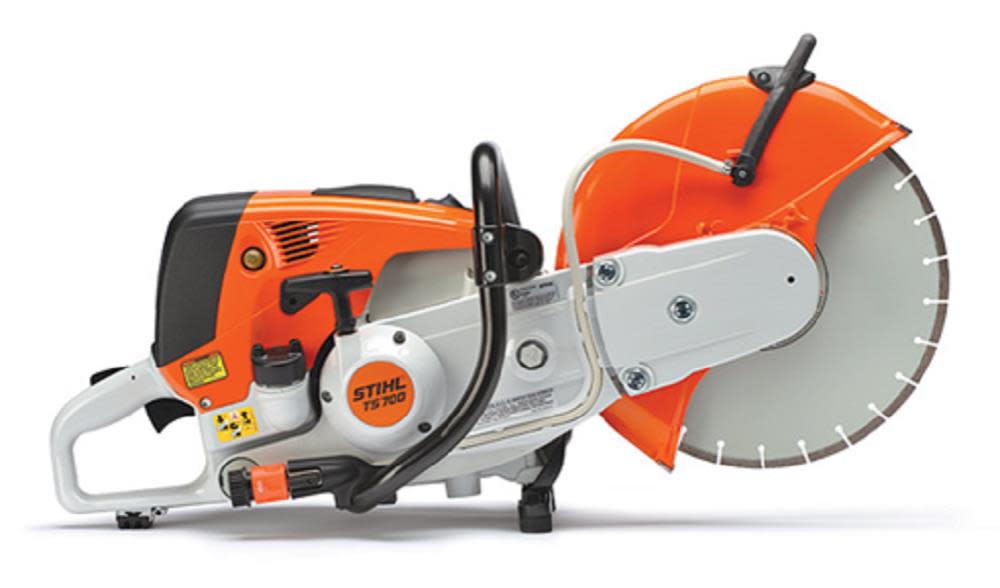

The 14 In. STIHL TS 700 Cut-off Machine is the powerhouse of the STIHL line. Designed for superior handling during the toughest jobs, this machine features a powerful, high-speed engine, large fuel capacity, five-point dual element vibration control system built right into the handle, and a semi-automatic belt tensioner with an innovative ribbed belt. Its X2 filtration system is low maintenance and cleans airflow with nearly 100 percent efficiency, reducing downtime for filter maintenance. Each component on this machine was meticulously engineered with demanding professionals in mind.
Features
The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.
The IntelliCarb™ compensating carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. A
The X2 air filtration system revolutionizes the Cut-off Machine industry by allowing air filters to last up to a year, based on cutting conditions.
With consistent, semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings.
STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment, which helps reduce operator fatigue and provides a more comfortable working experience.
The Elastostart™ starter handle is a starting GRIP with a built-in shock absorber that helps reduce the effort when pulling on the starter cord, which noticeably reduces the sudden peak forces (compression) normally felt during cranking.

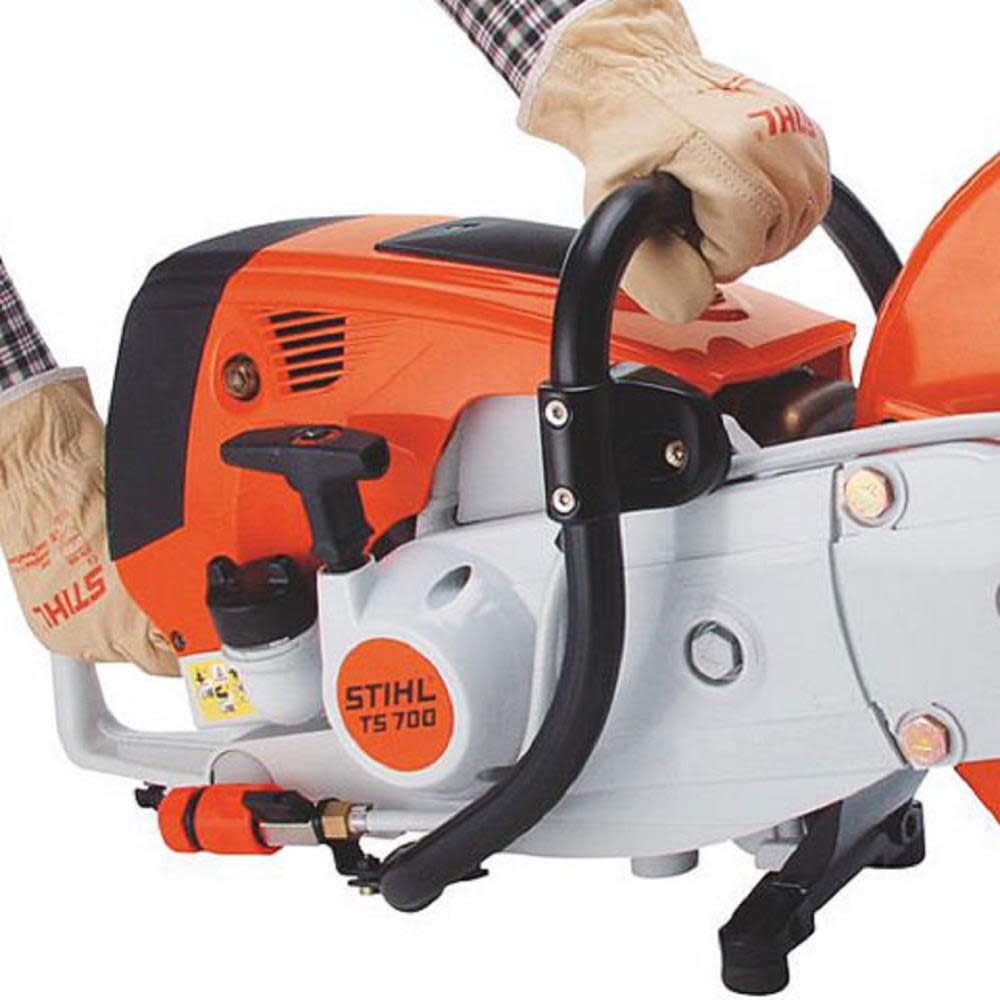

The ergonomic top-handle bar design provides an optimal comfortable GRIP in any working position
Specifications
Acme Tools Brand Name
STIHL
Acme Tools Part Number
4224 011 2801 US
Acme Tools Supplier Bullet 1
Stihl products cannot be shipped and are In Store Release only.
Arbor Size (in)
0.787
Assembled Weight (lbs)
25.6
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 40.6 Oz
Case Included
No
Color / Finish
white, orange, black
Country of Origin
Austria
Depth Of Cut Range
0-4.9in
Engine Displacement (cc)
6.0
ETL Listed
No
Fuel Capacity (fl oz)
40.6
globalTradeItemNumber (GTIN)
00795711266103
Horsepower (hp)
6.7
Housing Material
high-tech polymer
Internal Supplier Part #
TS 700
Internet Product Code (IPC)
D40017B5D8C
Manufacturer Warranty
3 months for professional use, no warranty for personal/homeowner use
Maximum RPM
9300
Net Tool Weight (lbs)
25.6
Package Contents
Cut-off saw, abrasive wheel and manual included. Diamond wheel sold separately.
Package Weight
27.5
Package Weight (lbs)
27.5
Power Source
Gasoline
Size
0.787 in
Spindle Lock
Yes
UL Listed
Yes
UPC
795711266103
