Description

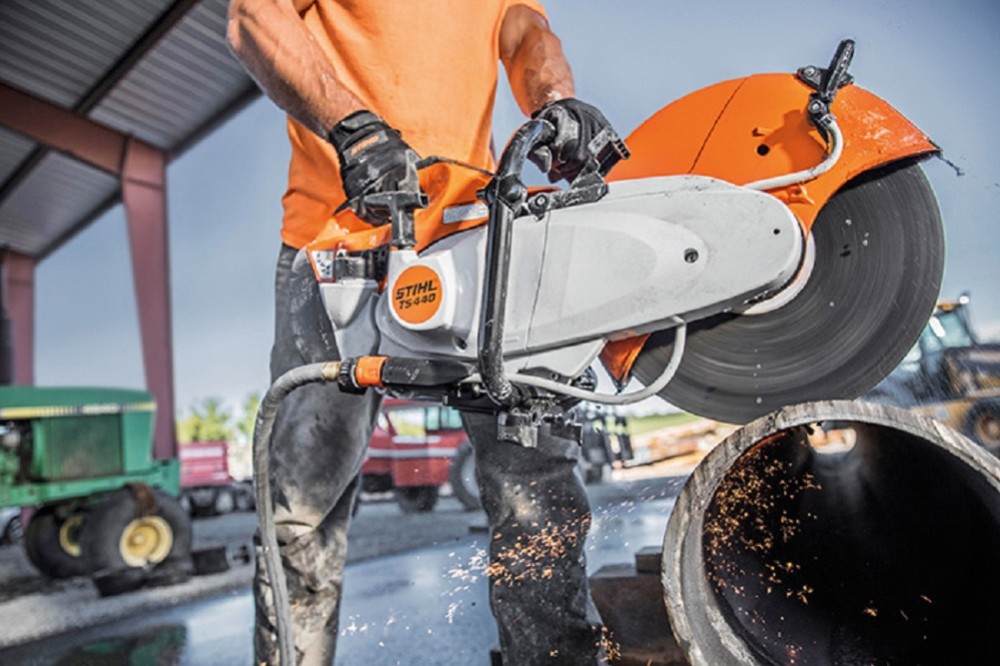

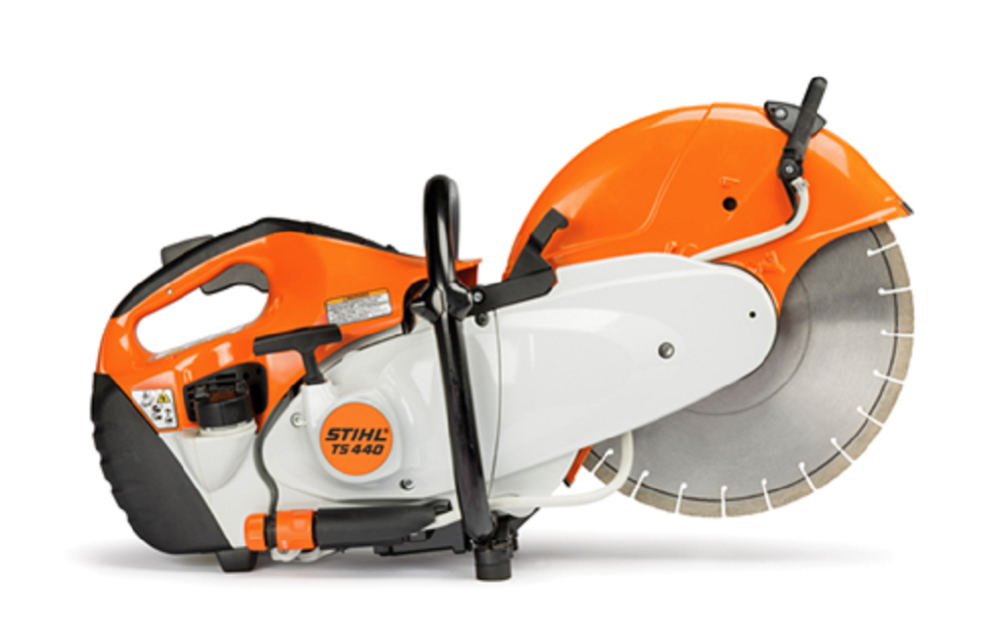

TS 440 Cutquik 14″ Saw with Quickstop Wheel Brake Technology

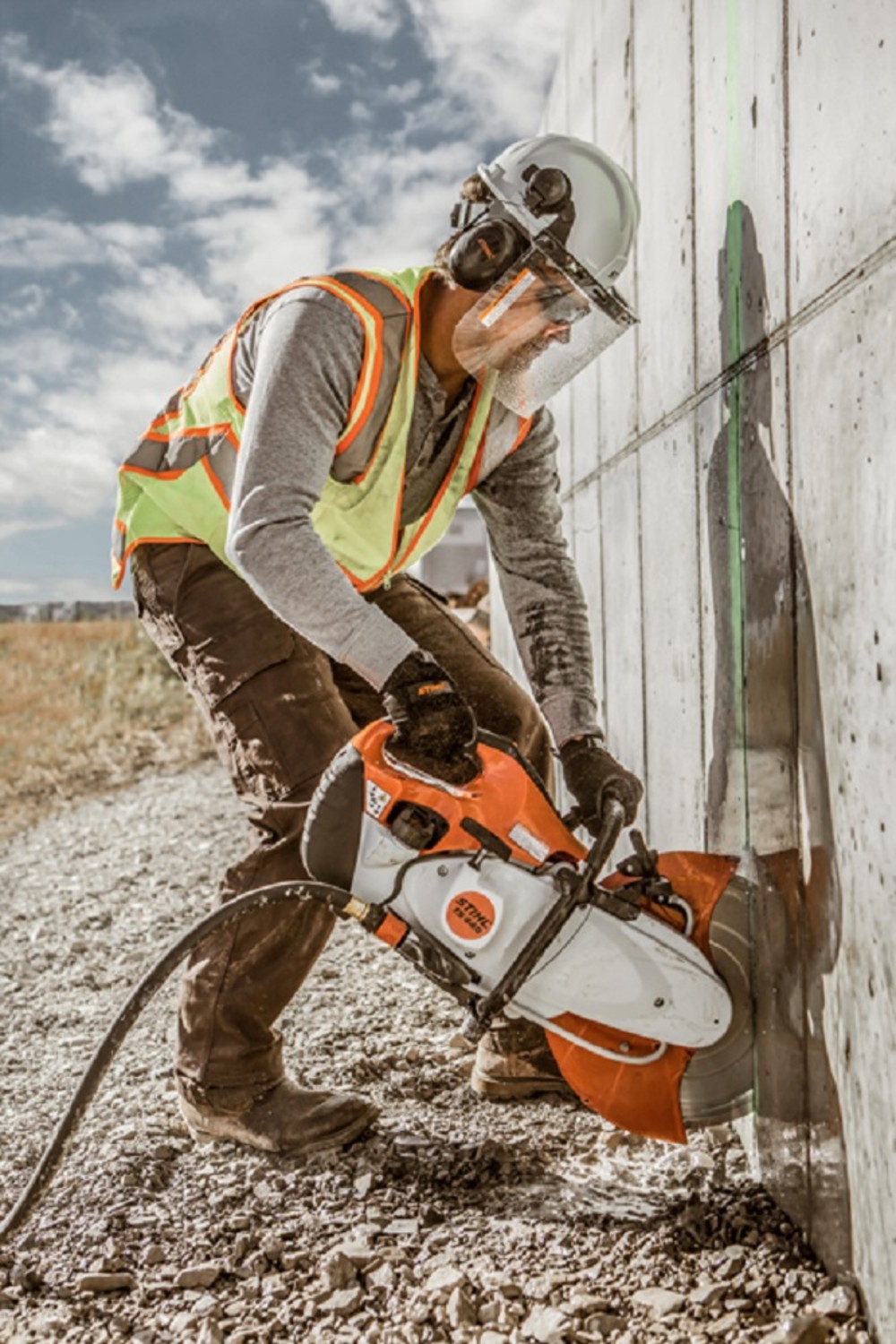

Versatile enough for general construction applications, but well suited for limited access cuts, the TS 440 represents the latest in professional cutting solutions from STIHL. The extended guard adjustment range of the TS 440 allows greater access in challenging cuts such as the bottom portions of walls, cutting in corners and cutting the underside of in-ground pipes. This expanded guard adjustability is made possible due to the sensor-activated STIHL Quickstop® wheel brake technology. The first cut-off machine in the world equipped with the technology capable of stopping the rotation of the cutting wheel in fractions of a second if kickback occurs.
Features
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM
Electronic Water Control allows the operator to easily adjust the flow of water while cutting and stops the water flow when the machine is at idle
Reduced-Emission Engine Technology – Caring for Nature
The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions
Bayonet-Style fuel cap
Anti-Vibration system
STIHL ElastoStart™
Ergonomic grip
Water connection & wheel guard
Specifications
Accessories Included
No
Acme Tools Brand Name
STIHL
Acme Tools Part Number
4238 011 2828 US
Application
Yes
Arbor Hole Size
20 mm
Arbor Size
1 in-20 mm
Arbor Size (in)
.78
Assembled Weight (lbs)
24.7
Blade Diameter (in)
14
Blade Size (in)
14
California Proposition 65 Warning Required
Yes
Capacity
Fuel: .19 Gal
CARB Compliant
Yes
Country of Origin
Austria
Cuts Ceramic
Yes
Cuts Natural Stone
Yes
Engine Displacement (cc)
66.7
Engine Horsepower (hp)
4.4
Fuel Capacity (fl oz)
24
Fuel Mix Ratio
50:1
Fuel Tank Capacity (gal)
.19
globalTradeItemNumber (GTIN)
00886661162222
Horsepower (hp)
4.4
Integrated Laser Guide
No
Maximum Cutting Depth (in)
4.9
Maximum Flow Rate (gpm)
.16
Maximum RPM
9000
Maximum RPM (No Load)
9000
Package Contents
Cut-off saw, abrasive wheel and owner’s manual
Package Depth
32
Package Height
18
Package Weight
27
Package Weight (lbs)
27
Start Type
Manual
UPC
886661162222
Wet Cutting Capable
Yes
