Description

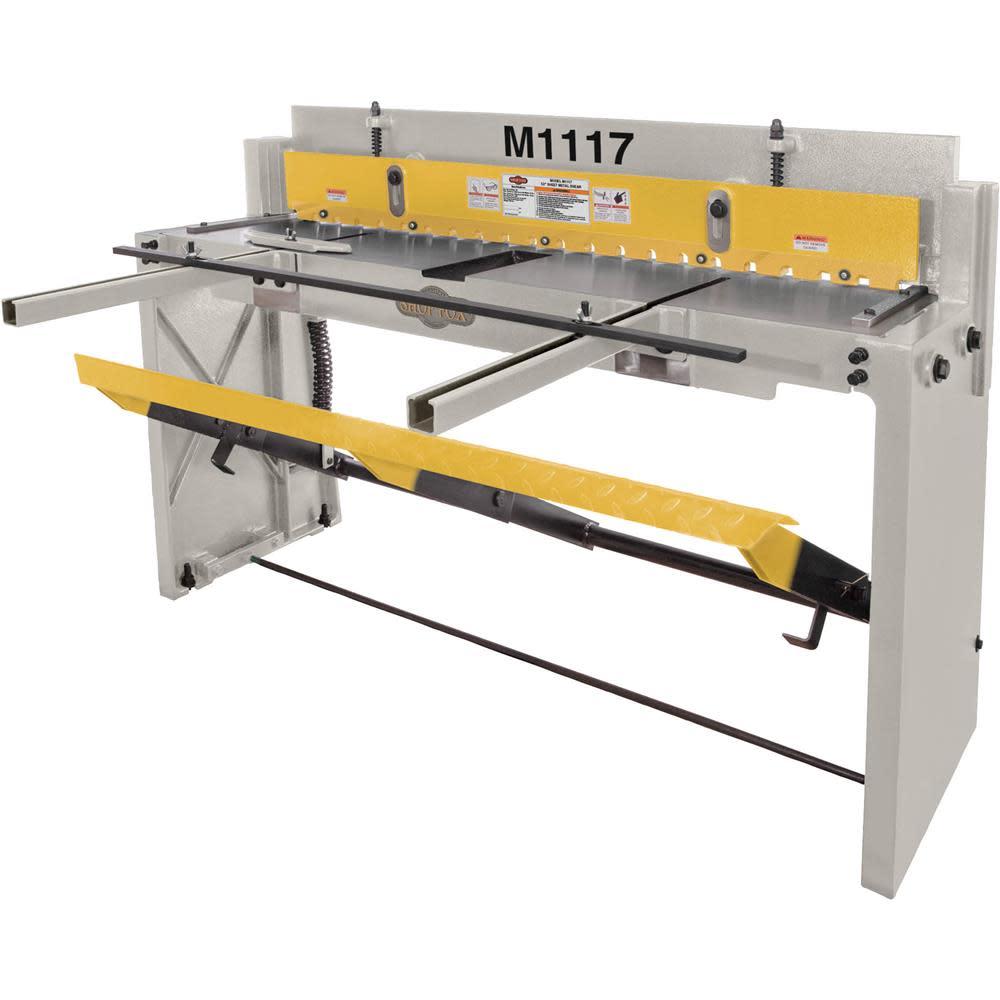

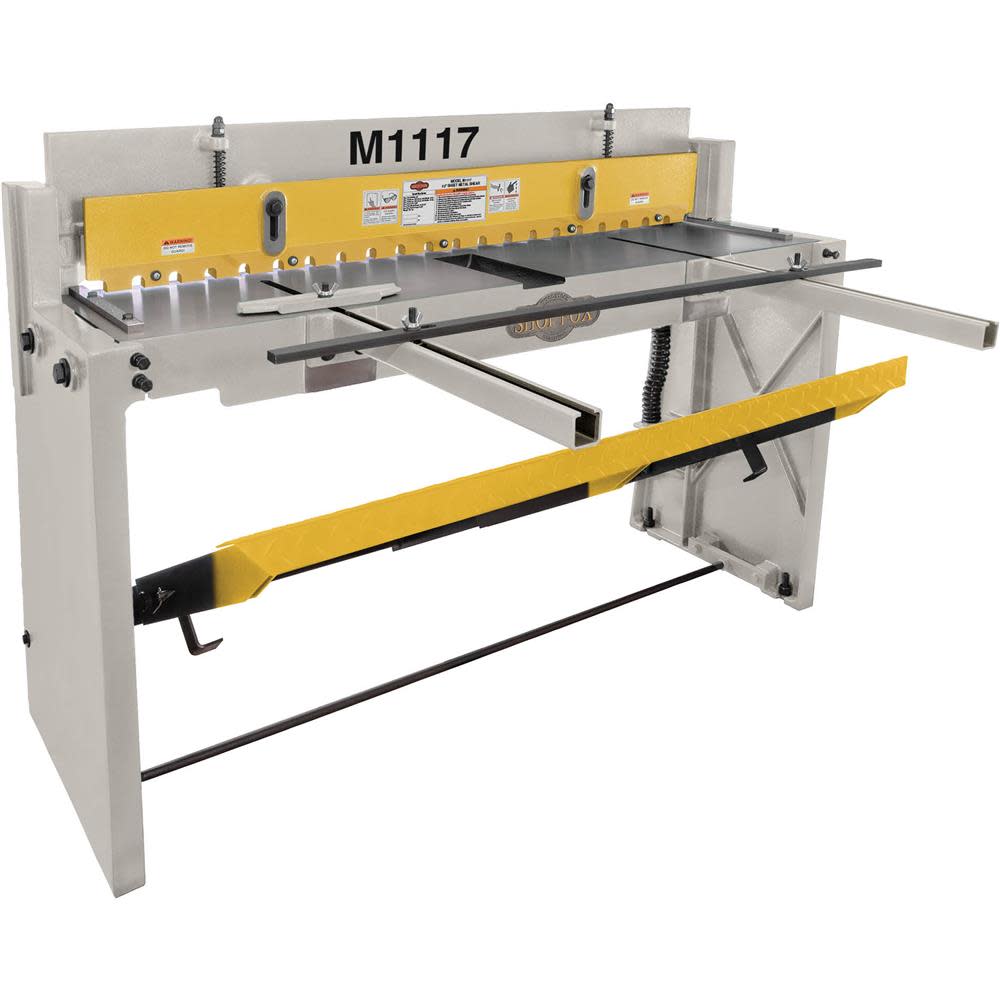

Shop Fox Sheet Metal Shear 52″ 16 Ga
Cut your work down to size with this heavy-duty shear. The M1117 sheet metal shear cuts up to 52 In. wide with all the stability and precision you would expect from a machine this size. The front stop and angle guide are quickly adjusted by wing nuts on the top of the stops. The rear extension arms have micro-adjusting stops that allow you to fine tune your cut length. For those really large sheet metal jobs this shear includes table gauges and front extension arms. Additional features include a heavy cast-iron body with foot control, precision ground blade, spring activated hold down, and a safety guard.
Features
Adjustable front stop & micro-adjustable rear stop
Reversible upper blade with two cutting edges
Adjustable bevel gauge
Steel foot pedal that extends full width of machine
Blade guard doubles as hold-down
Infeed and outfeed scales
Adjustable blade bow
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
M1117
Assembled Weight (lbs)
1120
Blade Count
1
Color/Finish
Multi
Country of Origin
China
Gauge Cutting Capacity
16
globalTradeItemNumber (GTIN)
00754001018655
Package Contents
Sheet Metal Shear
Package Depth
67
Package Height
46
Package Weight
1120
UPC
754001018655
