Description

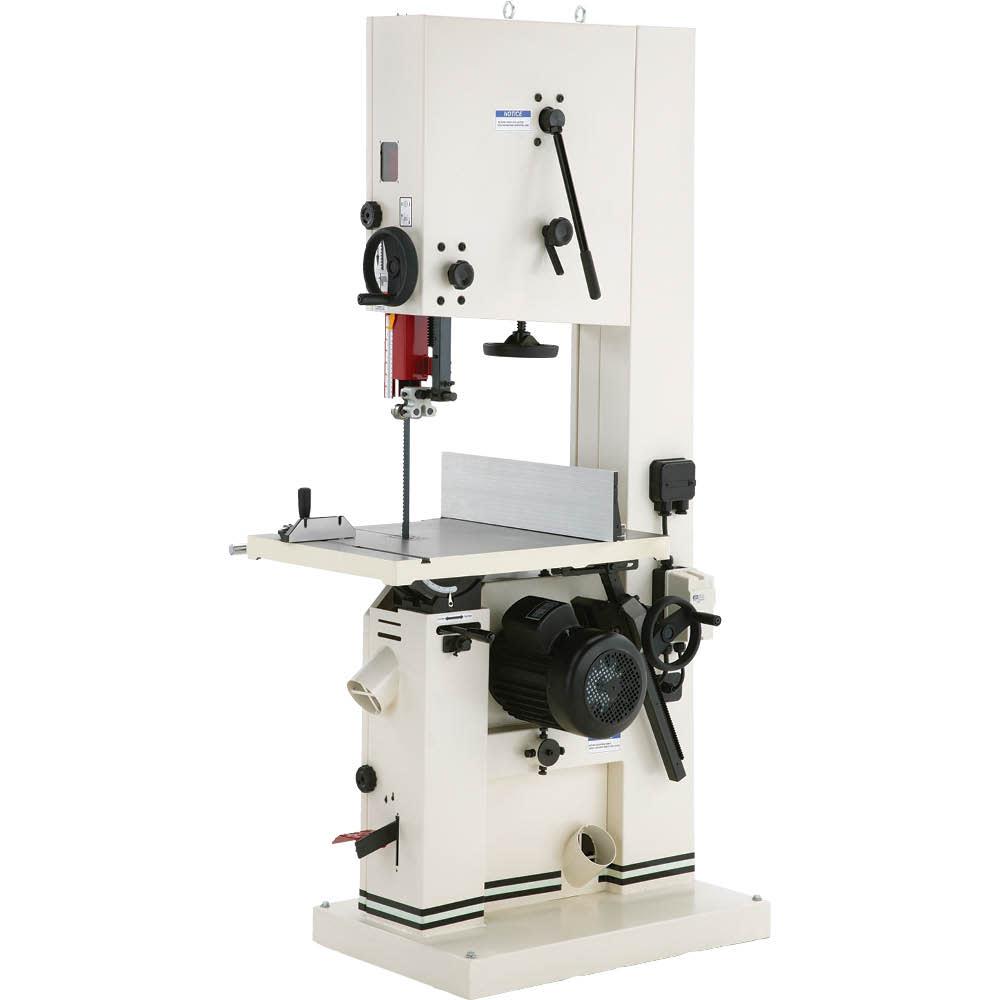

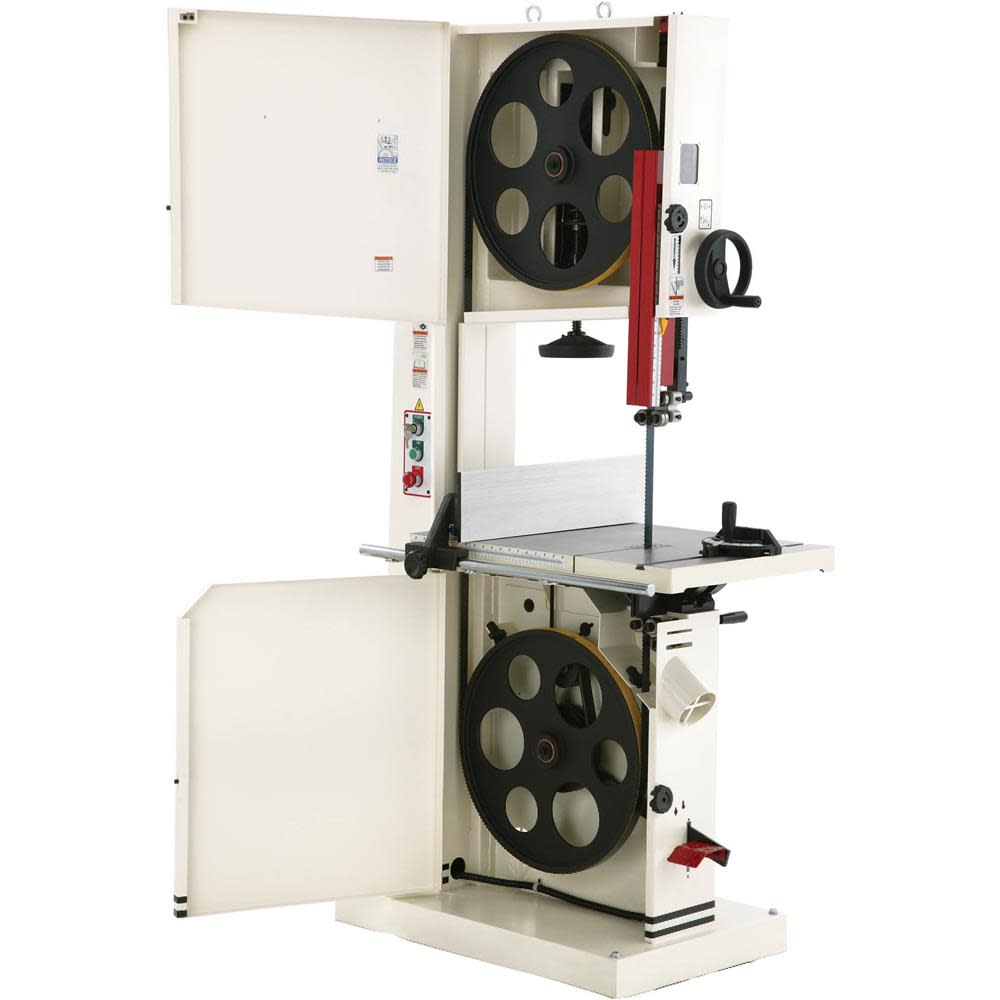

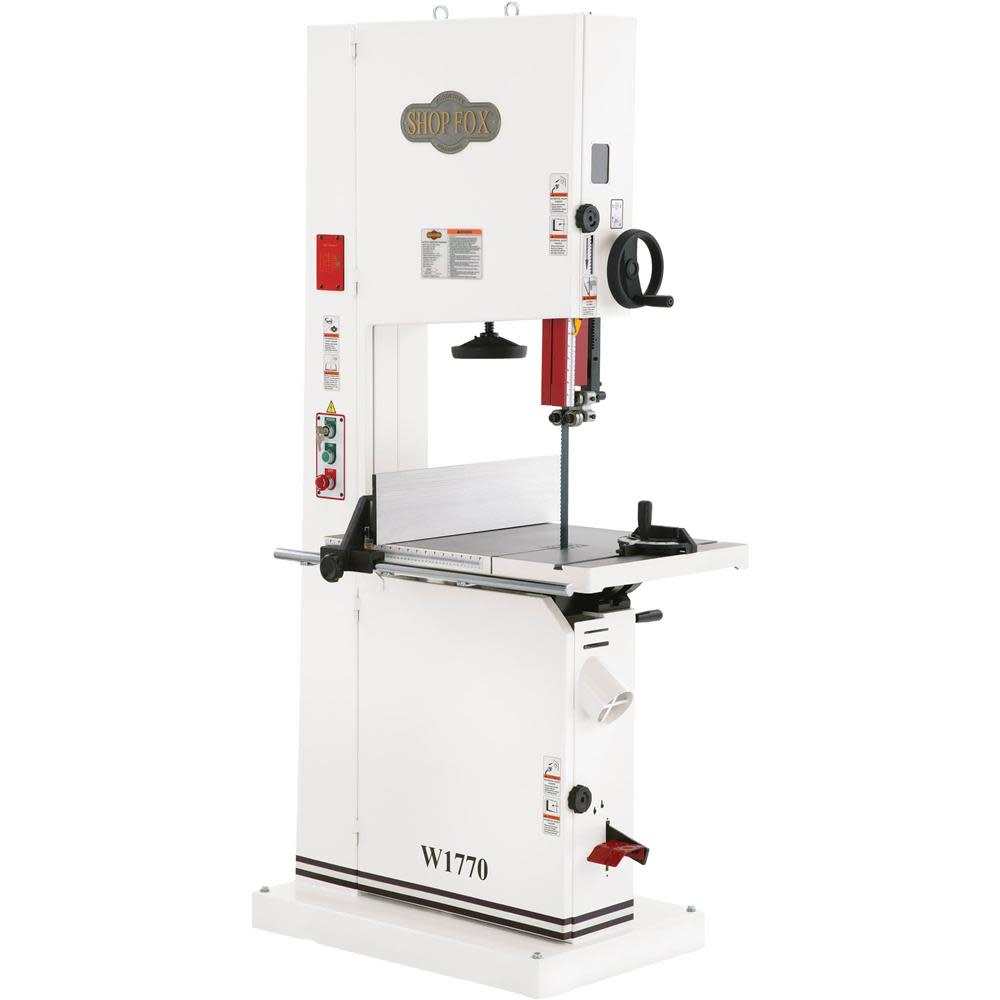

Shop Fox Bandsaw 230V 5HP 1 Phase
This 21 In. bandsaw has the power and capacity to handle any bandsaw cutting operation with ease. Its 5HP motor powers blades up to 1-3/8 In. wide through the hardest wood up to 14 In. tall. Rigidly constructed to tension the widest blades, this bandsaw eats through wood like a mini saw mill. Features include micro-adjusting rack-and-pinion table tilt, ball bearing blade guides, blade tension indicator, foot brake, deluxe fence with 2-position resaw fence attachment, and precision-ground cast-iron table. You couldn’t ask for more.
Features
Foot brake stop
Deluxe cast‐iron fence with extruded aluminum resaw fence attachment
Ball bearing blade guides
Quick change blade release/tensioner
Micro‐adjusting rack & pinion table tilt and quick lock table
Rack & pinion upper blade guide height adjustment
Blade tension indicator
Height scale measurement
Blade tracking window
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1770
Amperage (A)
22
Assembled Weight (lbs)
594
Band Saw Type
Stationary
Blade Guide Type
Bearings
California Proposition 65 Warning Required
Yes
Color/Finish
White
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
14
Diameter
1/4 in
Fence Included
Yes
globalTradeItemNumber (GTIN)
00754001007703
Horsepower (hp)
5
Material
Cast Iron
Maximum Blade Length (In)
165.5
Maximum Blade Width (In)
1.38
Maximum Feet Per Minute
4600
Maximum RPM
1725
Minimum Blade Length (in)
164
Minimum Blade Width (in)
0.25
Motor Type
TEFC Capacitor‐Start Induction
Package Contents
Bandsaw, Deluxe Extruded-Aluminum Fence with Scale, Magnifying Window, 3/4 In. Blade, and Miter Gauge
Package Depth
38
Package Height
85
Package Weight
693
Package Weight (lbs)
693
Phase
1
Saw Type
Stationary
Table Length (in)
29.5
Table Material
Cast Iron
Table Tilt Left (Deg)
5
Table Tilt Right (Deg)
45
Table Width (in)
2.75
UL Listed
Yes
UPC
754001007703
Variable Speed
No
