Description

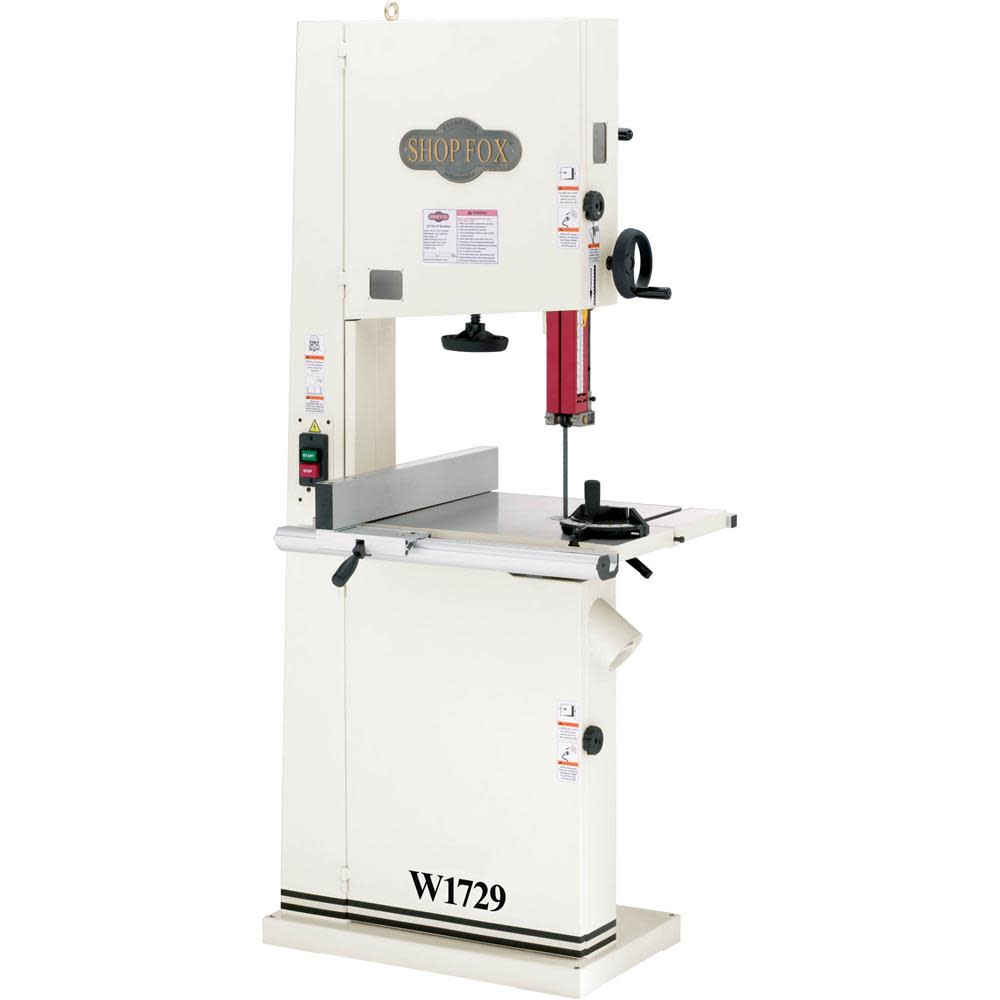

Shop Fox Bandsaw 115V/230V 2HP 1 Phase
When extra cutting capacity and heavy-duty construction are required for big jobs, this 19 In. bandsaw has all the features you need. Its 2HP, single-phase motor has plenty of power to drive blades from 1/8 In. to 1 In. wide through the toughest wood, and its 12 In. maximum cutting height, two blade speeds, and deluxe fence make resawing as easy as it gets. Other features include computer-balanced cast-iron wheels, a micro-adjusting geared table tilt, rack-and-pinion upper guide adjustment, Euro-disc style blade guides, and blade tension indicator for accurate cuts and longer blade life. CSA certified meeting CSA and UL standards.
Features
Hinged wheel covers with safety lock
Quick change blade release/tensioner
Magnifying window on fence scale
Height scale measurement
Miter gauge
Blade tension indicator

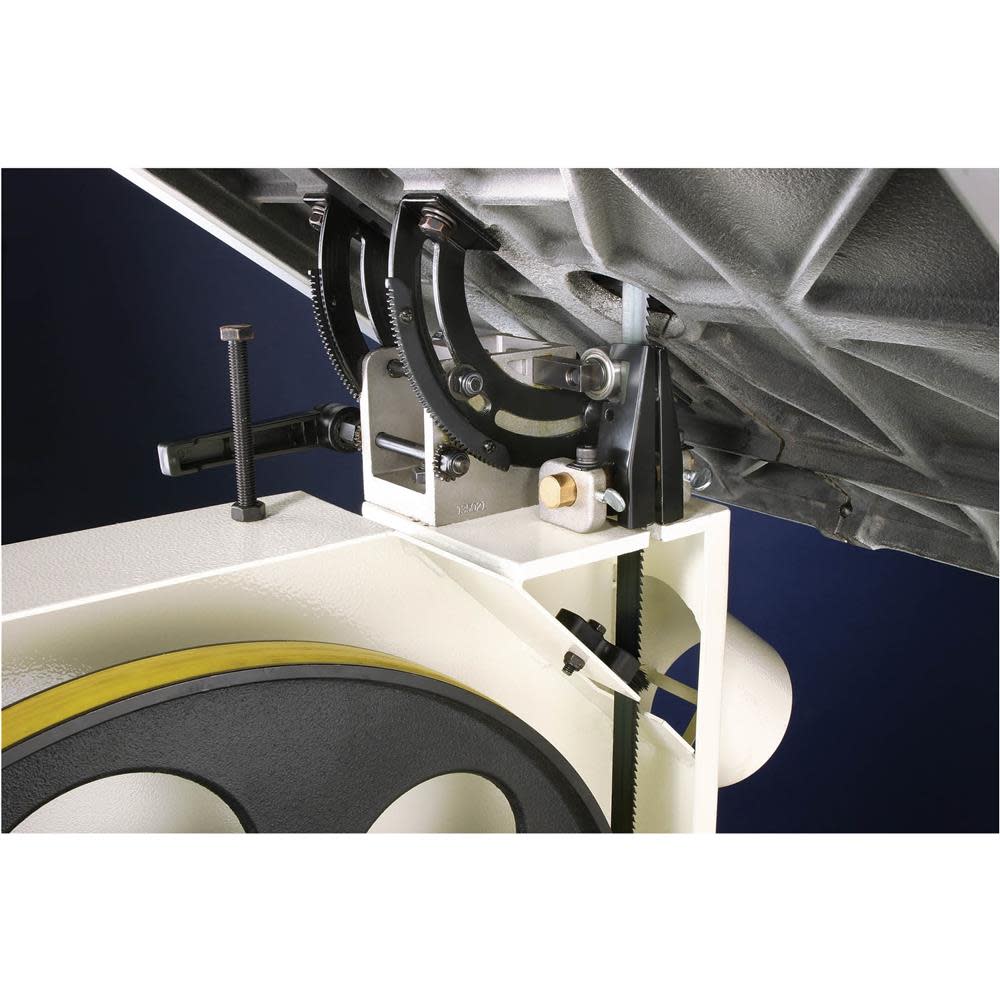

Rack and pinion upper guide adjustment
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1729
Amperage (A)
20/10
Assembled Weight (lbs)
367
Band Saw Type
Stationary
Blade Guide Type
Bearings
California Proposition 65 Warning Required
Yes
Color/Finish
White
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
12
Diameter
1 in
Dust Port Outside Diameter (in)
4
Fence Included
Yes
globalTradeItemNumber (GTIN)
00754001007291
Horsepower (hp)
2
Material
Cast Iron
Maximum Blade Length (In)
143
Maximum Blade Width (In)
1
Maximum Feet Per Minute
3500
Maximum RPM
1725
Minimum Blade Length (in)
141.5
Minimum Blade Width (in)
0.13
Minimum Feet Per Minute
1700
Motor Type
TEFC Capacitor‐Start Induction
Package Depth
21
Package Height
84
Package Weight
436
Package Weight (lbs)
436
Phase
1
Saw Type
Stationary
Table Height (in)
37.25
Table Height From Floor (In)
37.25
Table Length (in)
26.75
Table Material
Cast Iron
Table Tilt Left (Deg)
5
Table Tilt Right (Deg)
45
Table Width (in)
36
UL Listed
Yes
UPC
754001007291
Variable Speed
Yes
