Description

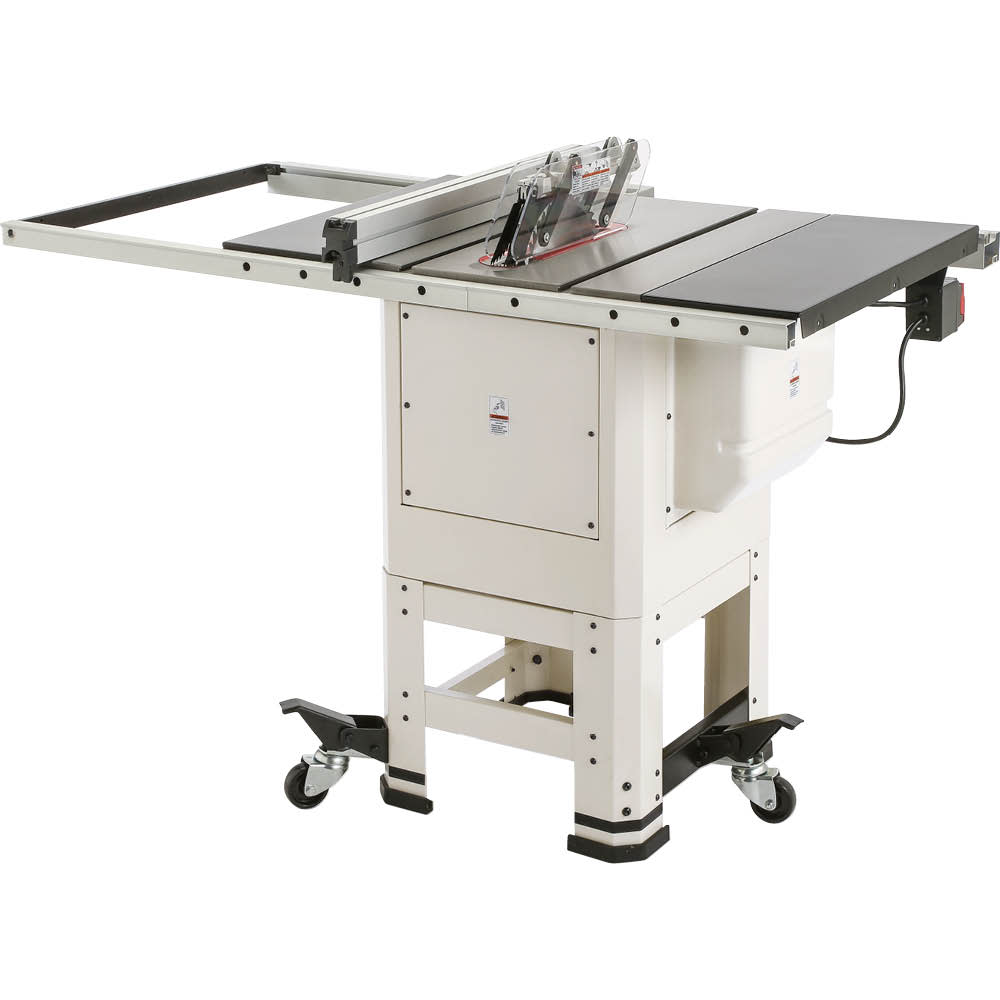

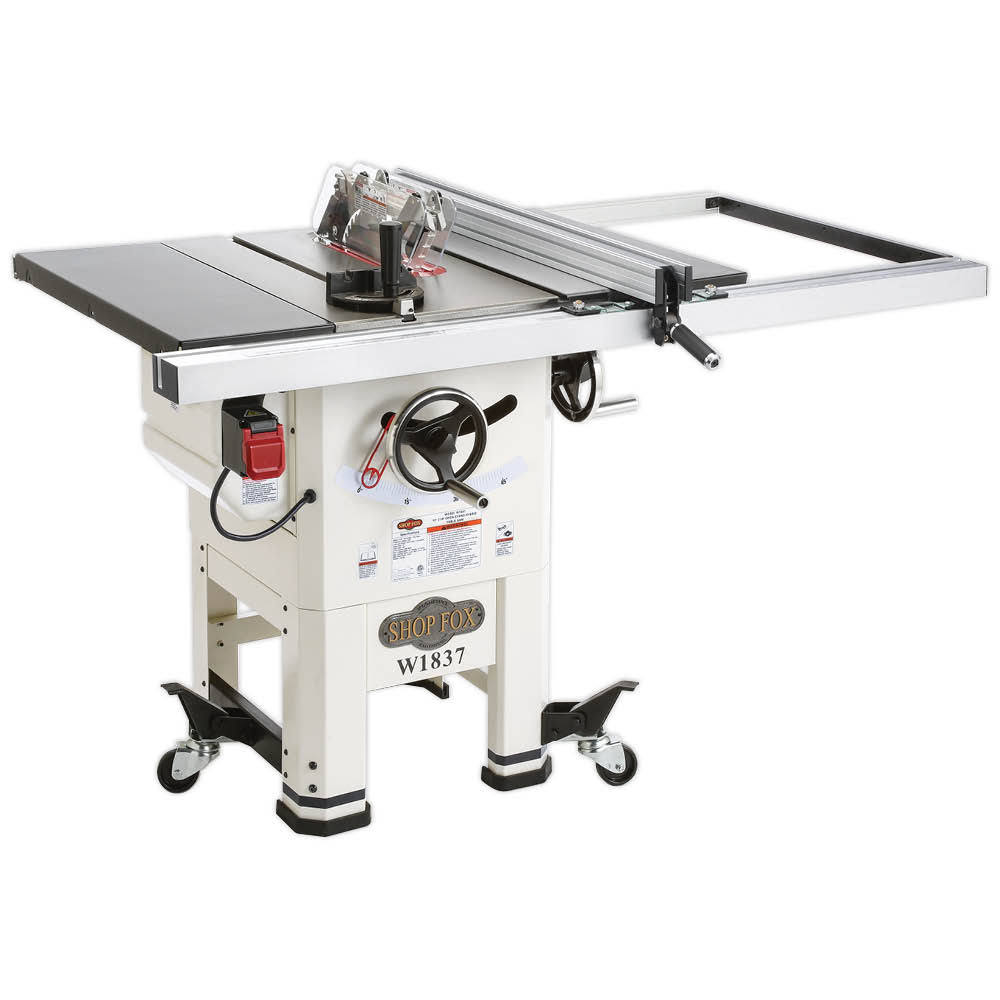

SHOP FOX® 2 HP 10″ Hybrid Open Stand Table Saw
A feature-packed Table Saw for shop owners who don’t need all the heft and horsepower (and extra cost) of a true cabinet saw. This Hybrid Table Saw features cabinet-mounted trunnions and an enclosed steel upper-stand for maximum dust containment. Despite its hybrid design, cutting capacities stand toe-to-toe with the most expensive cabinet saws in the market and the interchangeable riving knife offers protection for non-through cutting operations that require removal of the blade guard. Also features a serpentine belt and pulley system for smooth and quiet operation with better power transfer than a standard V-belt drive system. This saw is sure to be the envy at any shop or worksite.
Features
2 HP, 120V/240V, single-phase (prewired for 120V)
Motor Amps: 15A at 120V, 7.5A at 240V

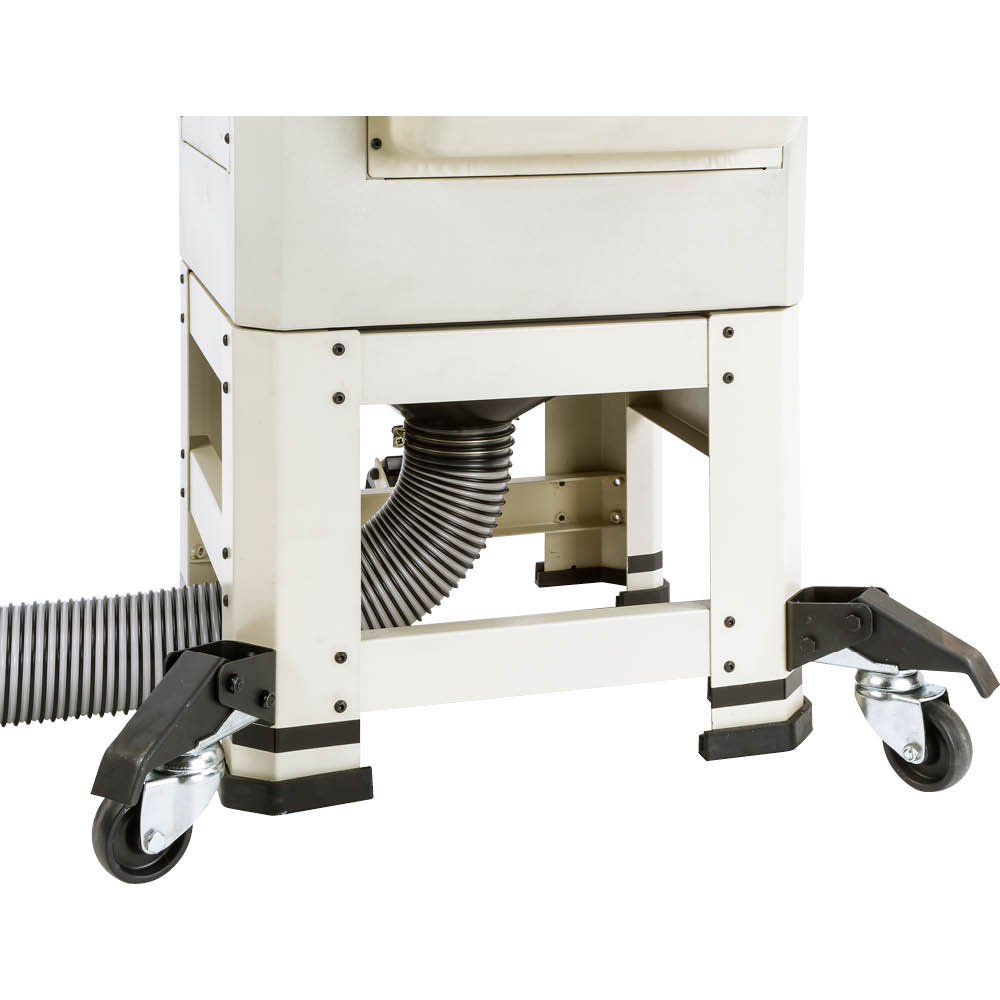

Enclosed cabinet bottom with 4″ dust port
Precision-ground cast-iron table with steel wings measures 40-1/4″ x 27″
Rip capacity: 30″ to right, 15″ to left

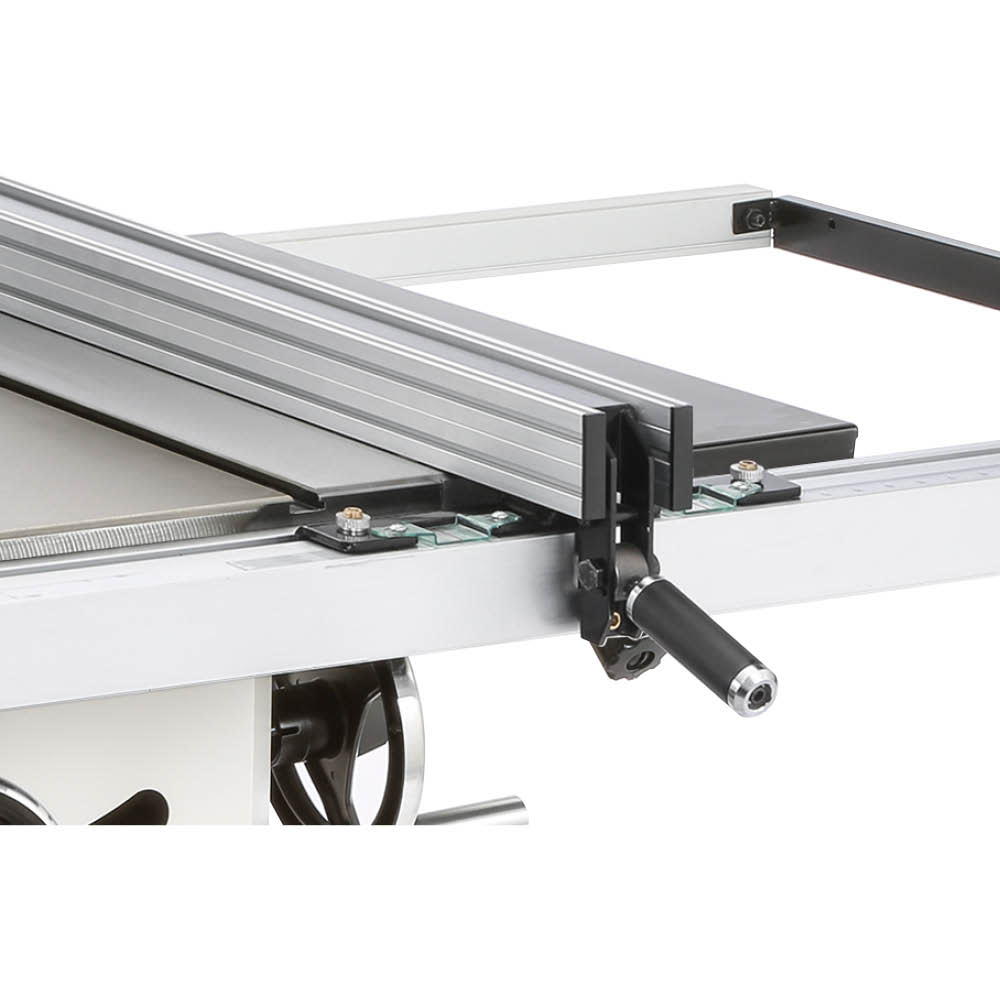

Lift-off fence with front/rear locking ability and T-slots for mounting accessories, such as Board Buddies or Featherboards

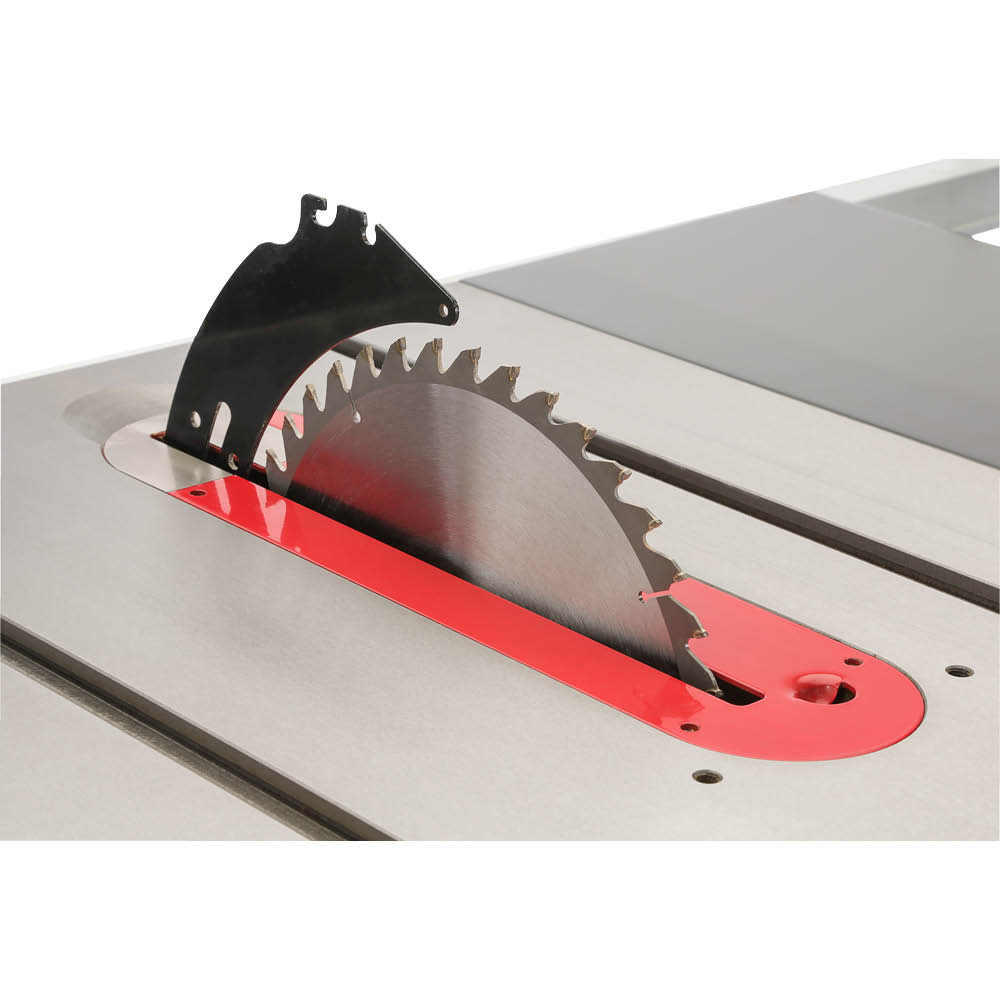

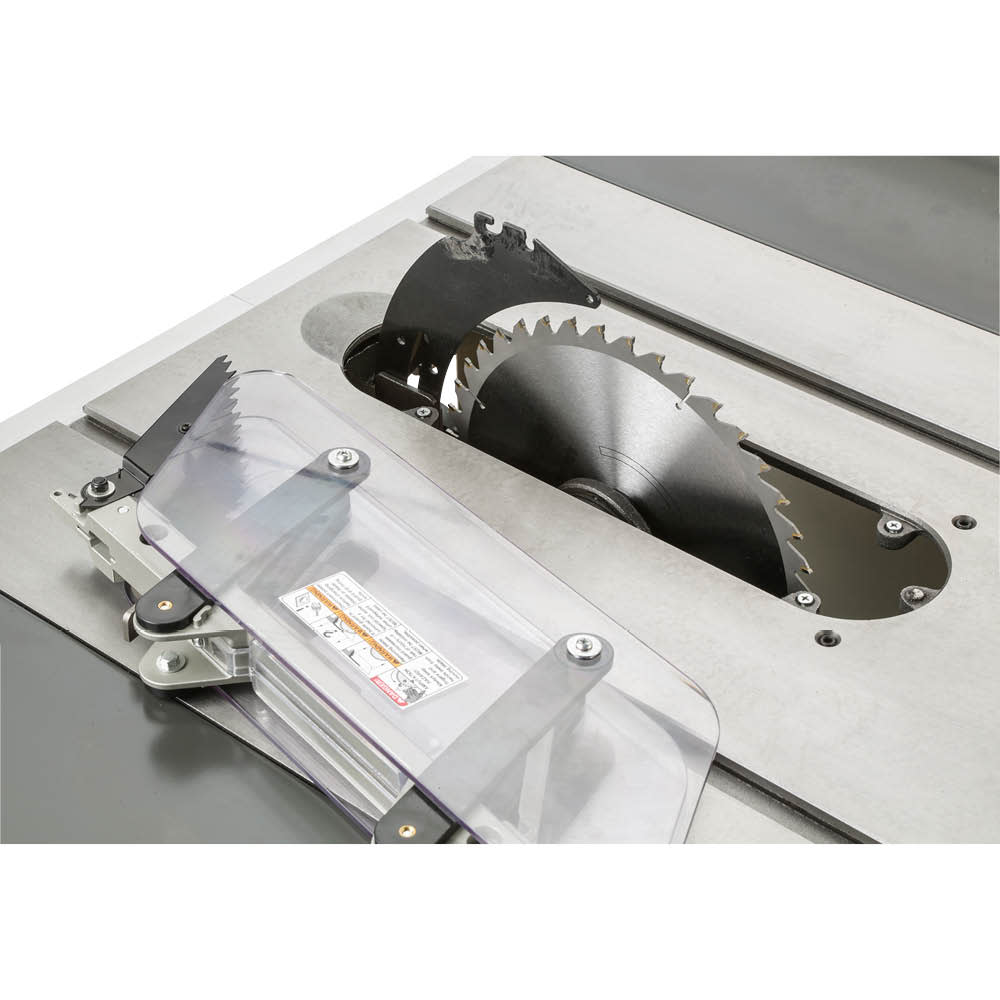

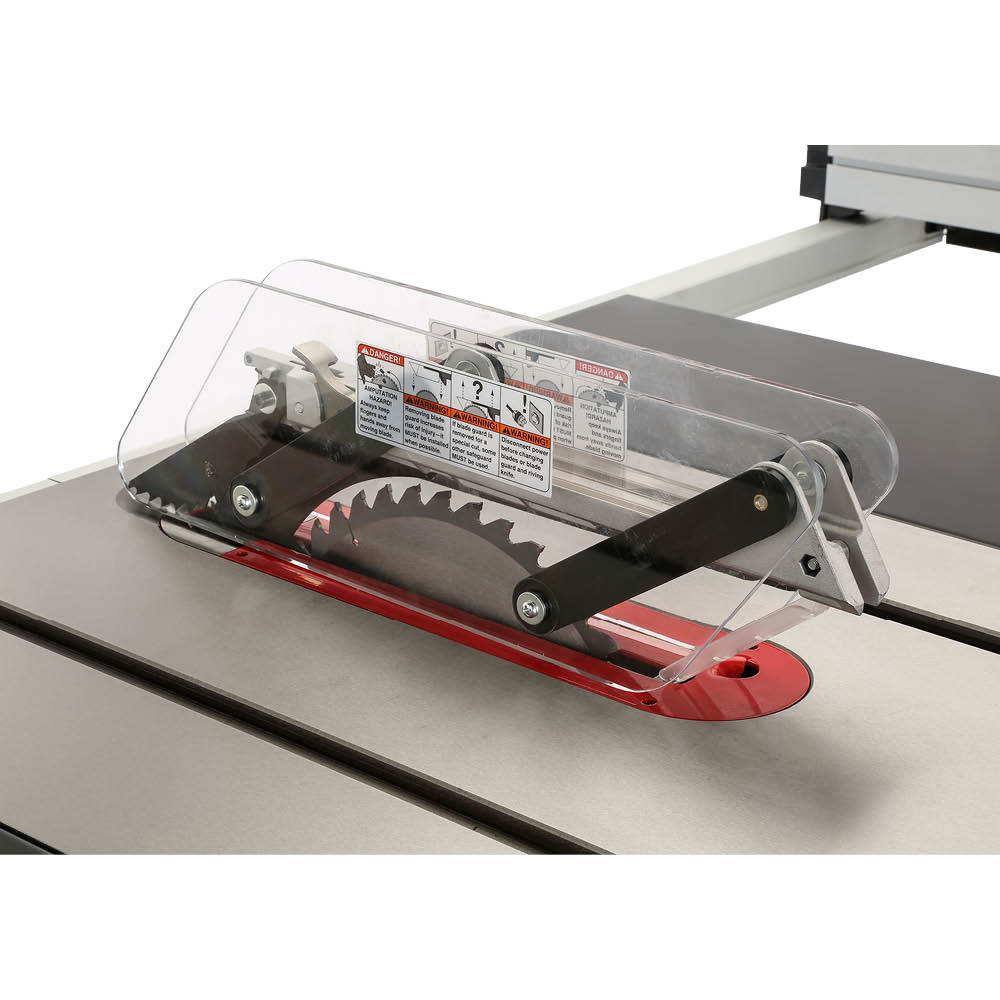

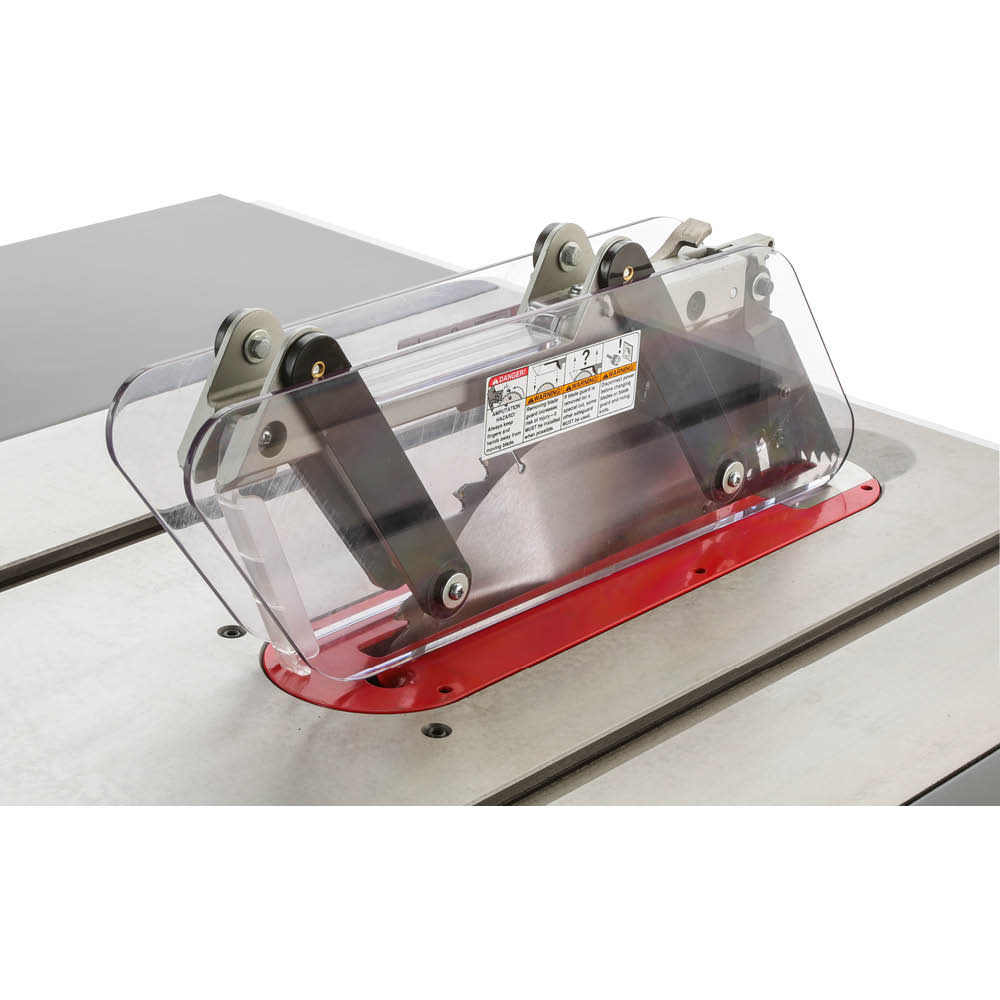

Quick removal/replacement system for blade guard and riving knife
Weight: 243 lbs
Includes a 10″ x 40-tooth carbide-tipped blade, standard and dado table inserts, miter gauge, push stick, casters, and arbor wrenches
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1837
Amperage (A)
15A at 120V, 7.5A at 240V
Assembled Weight (lbs)
243
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
China
globalTradeItemNumber (GTIN)
17540010129815
Horsepower (hp)
2
Maximum Dado Diameter (In)
0.8125
Package Contents
Table Saw with Blade
Package Depth
43.00
Package Height
23.00
Package Weight
244
Package Weight (lbs)
244
UPC
754001012981
