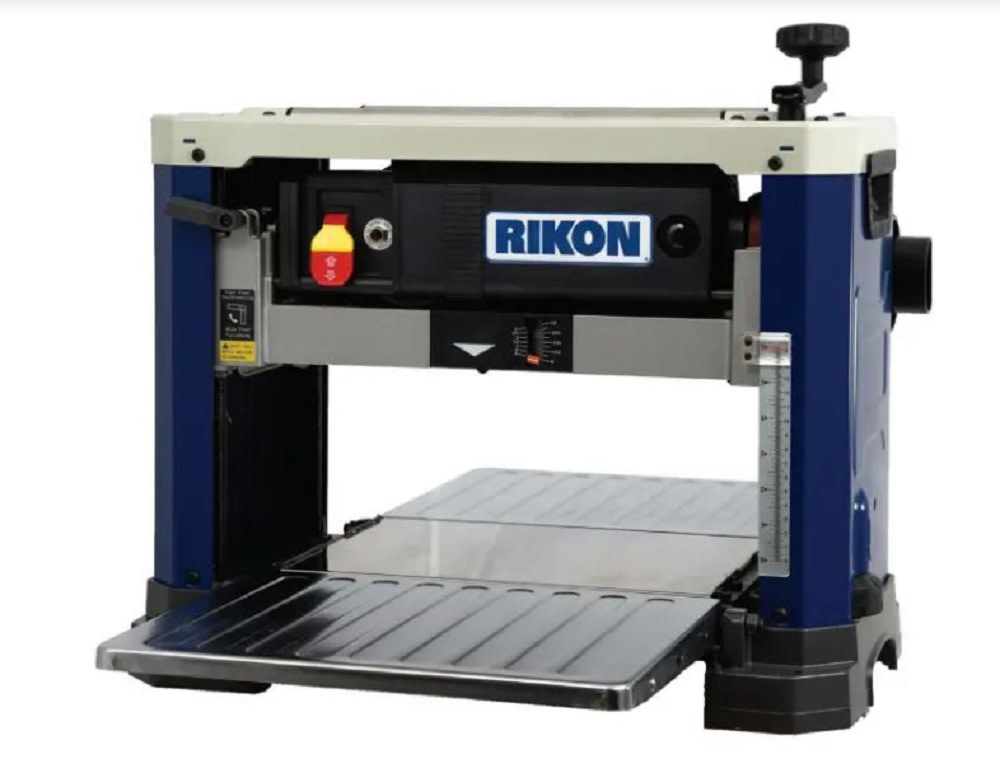

Rikon Planer Portable 13″ with Helical Style Cutterhead

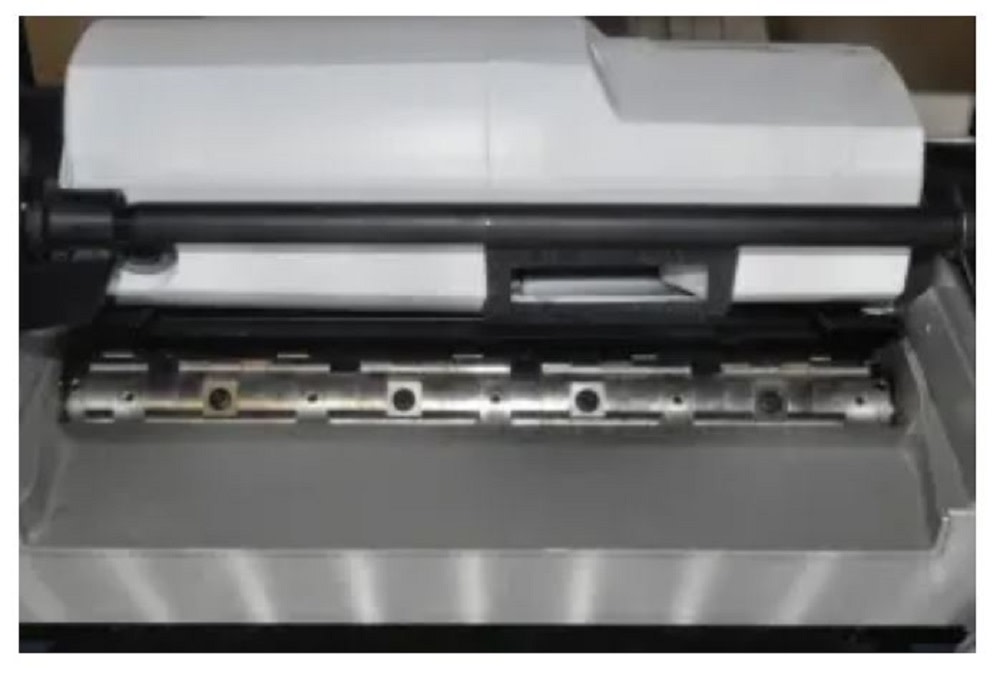

13″ Portable Planer features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or worn – just loosen, rotate and retighten. The alternating cutter pattern in the cutter head is super-efficient, and with a two-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post threaded housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning, and side carry handles.
Features
Powerful 15 amp motor
Helical style cutterhead
Two-speed feed rate
All steel construction
Easy blade access
Infeed/outfeed table extensions
Specifications
Acme Tools Brand Name
RIKON
Acme Tools Part Number
25-135H
Amperage (A)
15
Assembled Depth (in)
34.25
Assembled Height (in)
19.25
Assembled Weight (lbs)
68
Assembled Width (in)
22
Bench or Stationary
Bench
Blade Count
26
Blade Cutting Material
Carbide
Blade Length (in)
0.56
Blade Thickness (in)
0.078
Blade Type
Helical
Color/Finish
Blue
Compatibility
Rikon
Cordless / Corded
Corded
Country of Origin
China
CSA Certified
No
Cuts Per Minute
10000
Depth Of Cut Range
1/16 to 1/8
Drive Motor System
Electric
ETL Listed
No
Feed Rate/s (Ft/Min)
16 & 26 SF/MIN
globalTradeItemNumber (GTIN)
00814463015330
Height (in)
19.25
Housing Material
Steel
Integrated Chip Management
Yes
Lock-on Switch
No
Material Cut
Wood
Maximum Board Thickness (in)
6
Maximum RPM
10000
Maximum Width Cutting Capacity (in)
13 in
Motor Horsepower (hp)
Universal Motor
Package Contents
Planer
Package Depth
36
Package Height
22
Package Weight
68
Reversible
Yes
Set / Individual
Individual
Sharpenable
No
UL Listed
No
UPC
814463015330
Variable Speed
Yes
