Description

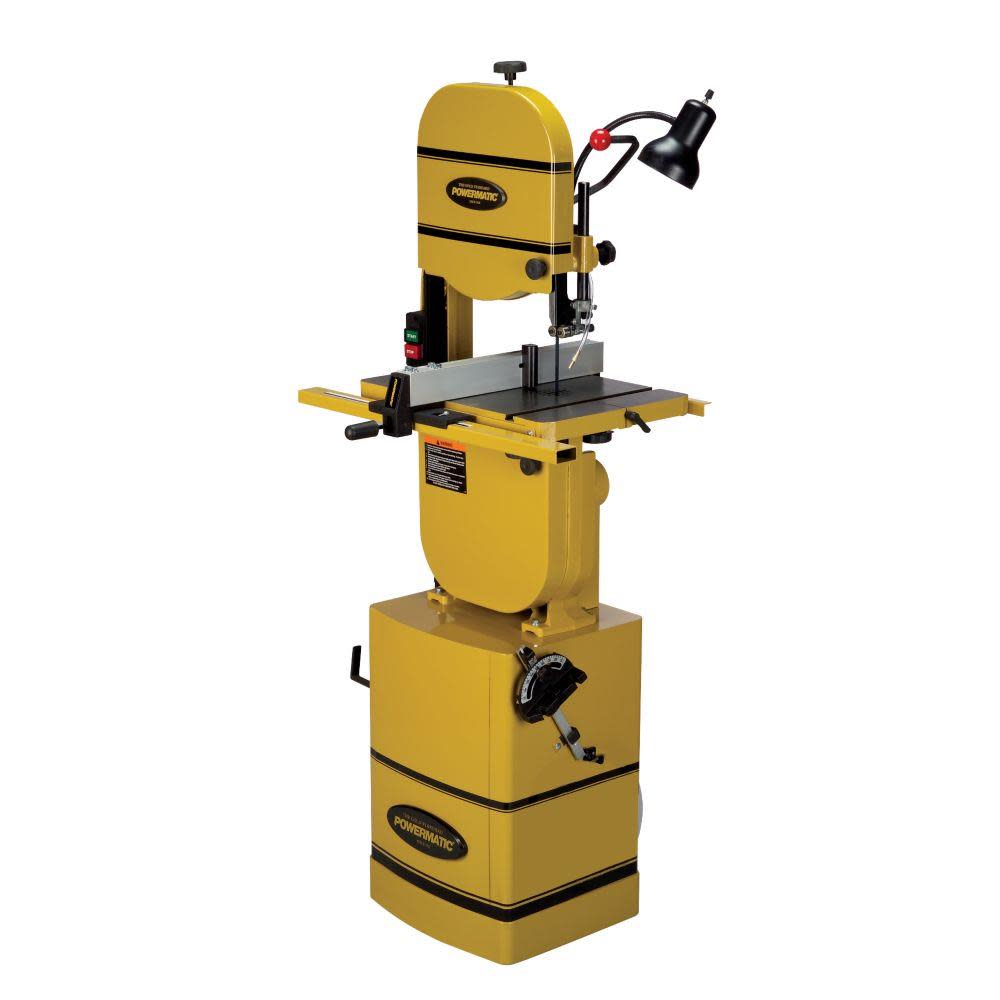

Powermatic PWBS-14CS 14″ Bandsaw Closed Stand

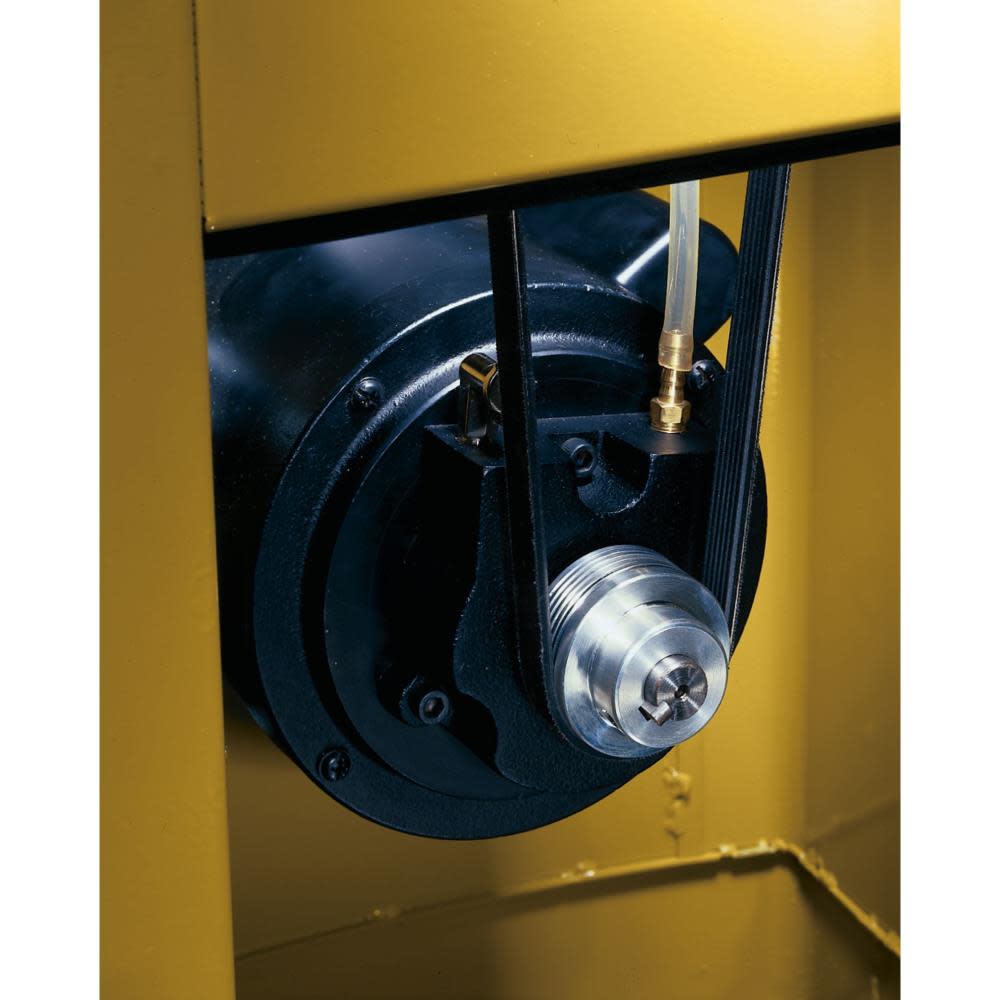

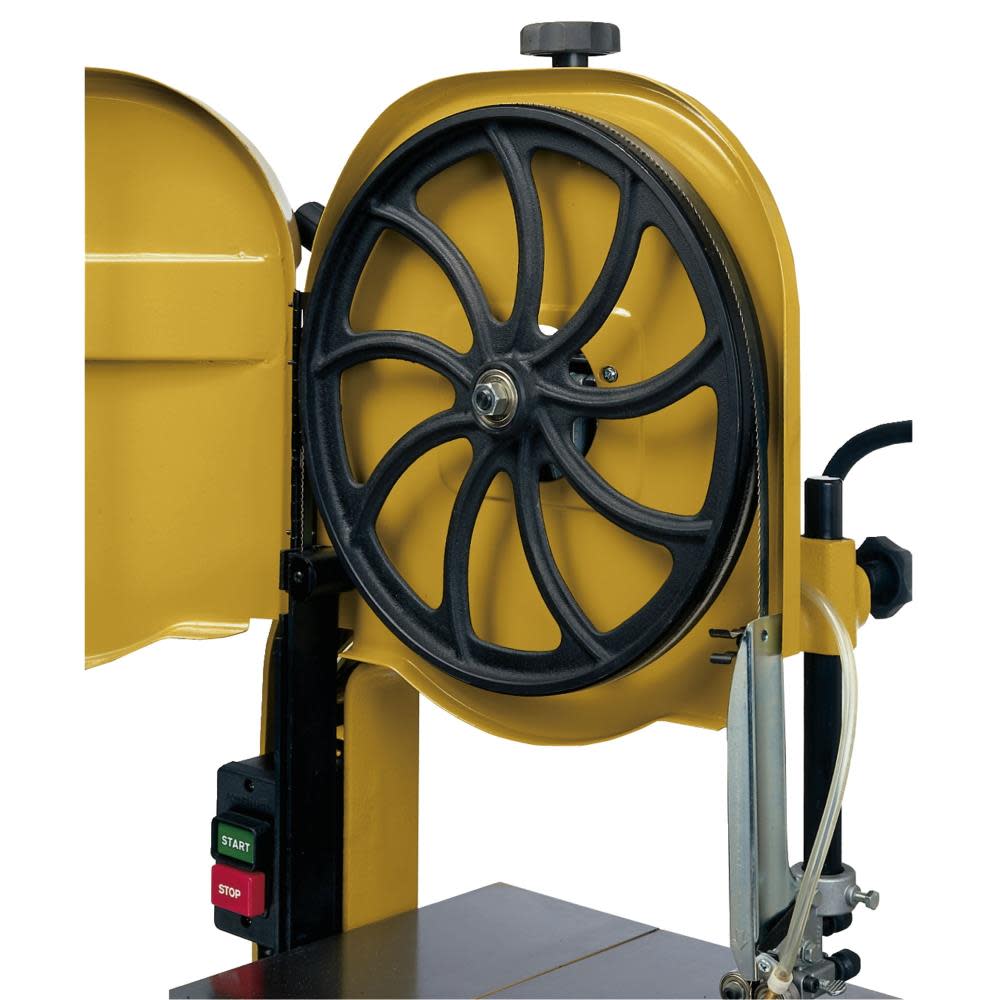

The PWBS-14CS handsaw has an extra large, two-piece cast iron table. It consists of a 15 In. x 15 In. tilting section and a fixed 15 In. x 5 In. extension for a total working surface area of 15 In. x 20 In. A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6 In. under guide capacity with 13-1/2 In. frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
Features
Upper and lower dual ball bearing guides for accurate cuts

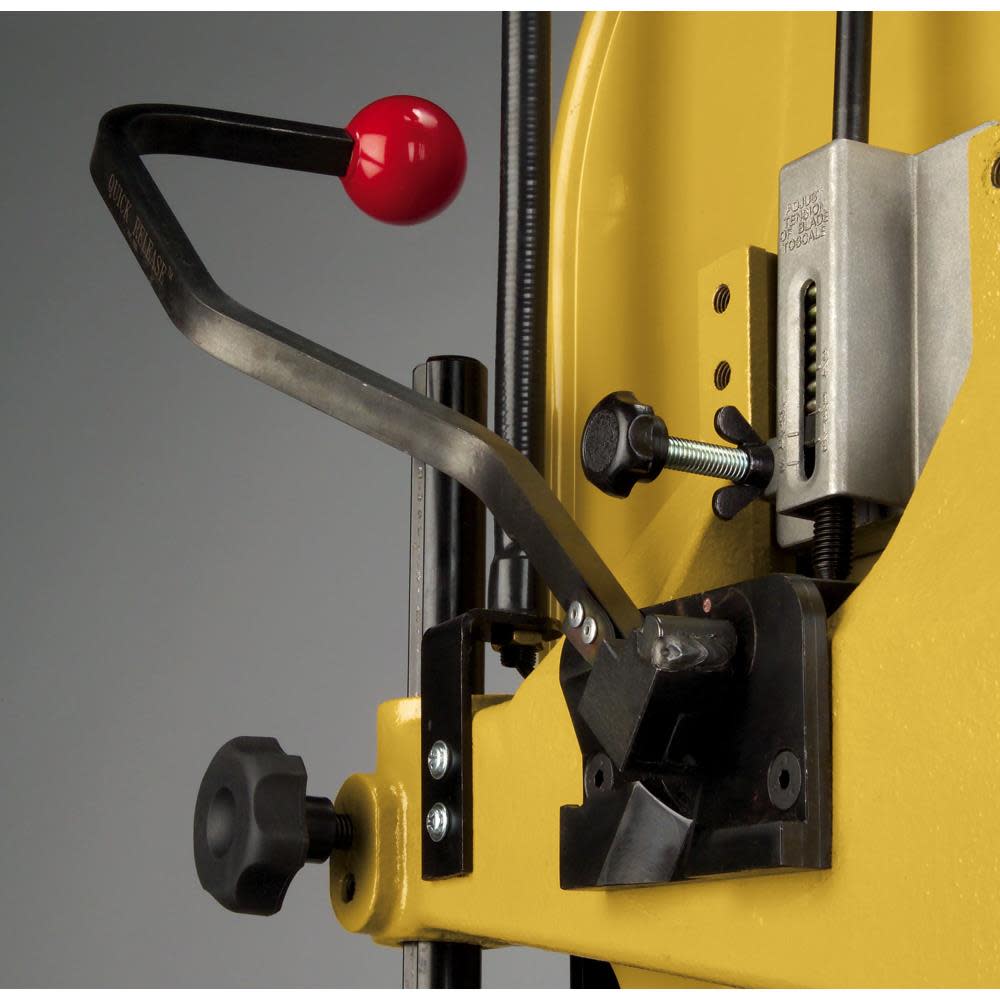

Carter™ quick tension lever speeds blade changes, and the de-tension setting extends blade life during non-use
Chip blower ensures a clean, visible cut line

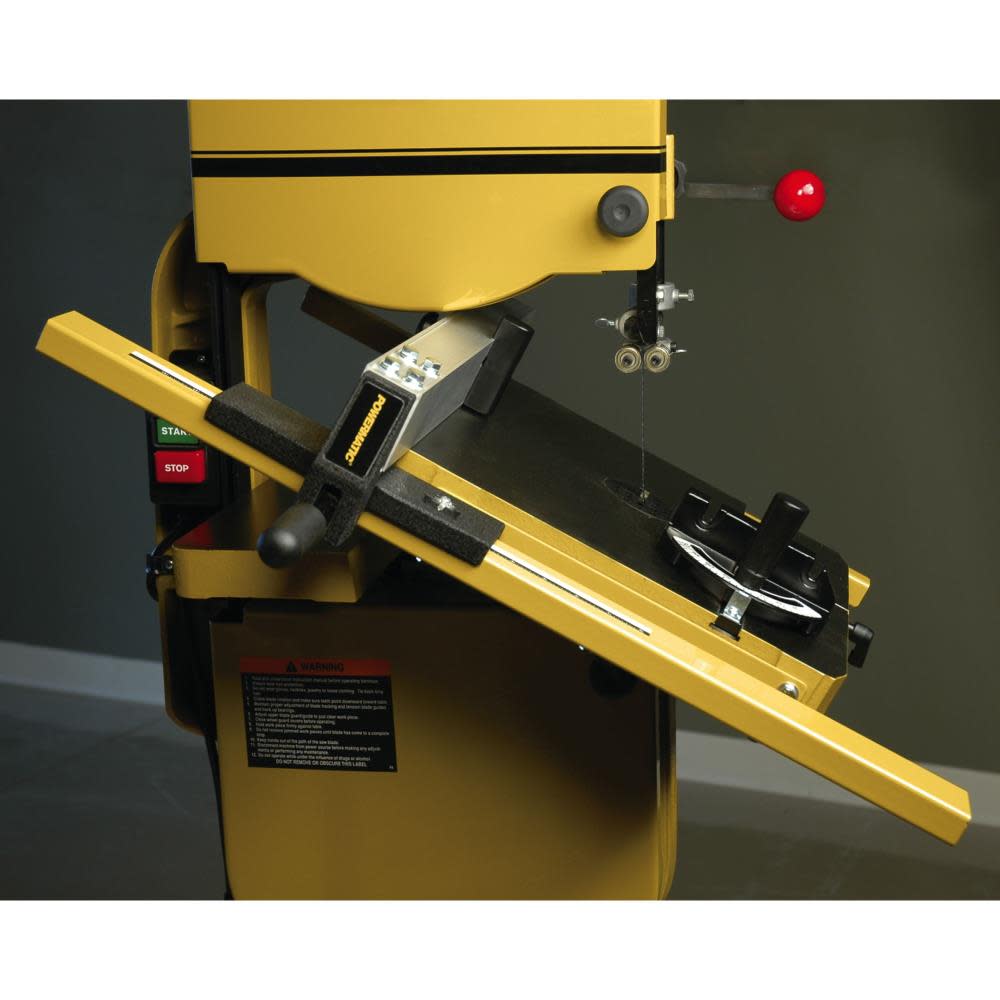

Exclusively designed, quick-release precision T-square style rip fence with 4 in resaw attachment
60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
Easy to read tensioning gauge settings indicated in “blade width” increments

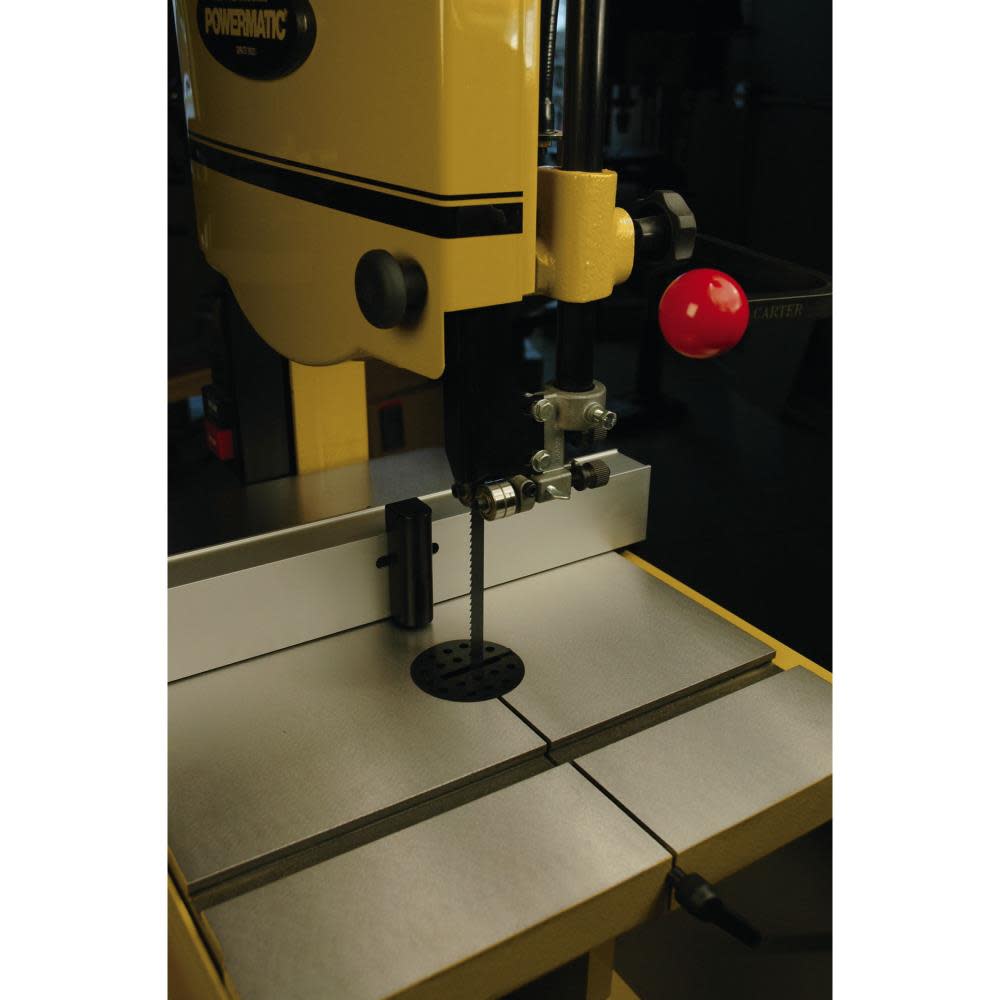

Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
Rigid one-piece welded stand requires no assembly
Includes 6 inch riser block
Specifications
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1791216K
Amperage (A)
11
Application
Re sawing, scrolling, crosscutting, ripping
Assembled Weight (lbs)
250
Band Saw Frame Material
Steel
Band Saw Type
Stationary
California Proposition 65 Warning Required
Yes
Color / Finish
See Photo
Cord Length (ft)
8
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Cutting Capacity Height (in)
6
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
No
Fence Included
Yes
globalTradeItemNumber (GTIN)
00662755489372
Horsepower (hp)
1.5
Internal Supplier Part #
PWBS-14CS
Internet Product Code (IPC)
78878313A7C
Manufacturer Warranty
5 Year
Material
Cast Iron
Maximum Blade Length (In)
93.5
Maximum Blade Width (In)
0.75
Maximum RPM
0
Motor Type
Varies
Package Depth
20
Package Height
68
Package Weight
266
Package Weight (lbs)
266
Speeds
1
Stand Included
Yes
Table Height (in)
44
Table Height From Floor (In)
44
Table Length (in)
15
Table Material
Cast Iron
Table Width (in)
15
Tire Cleaning Brush
Yes
UL Listed
No
UPC
662755489372
Variable Speed
No
Voltage
110 Volts
Work Light
No
