Description

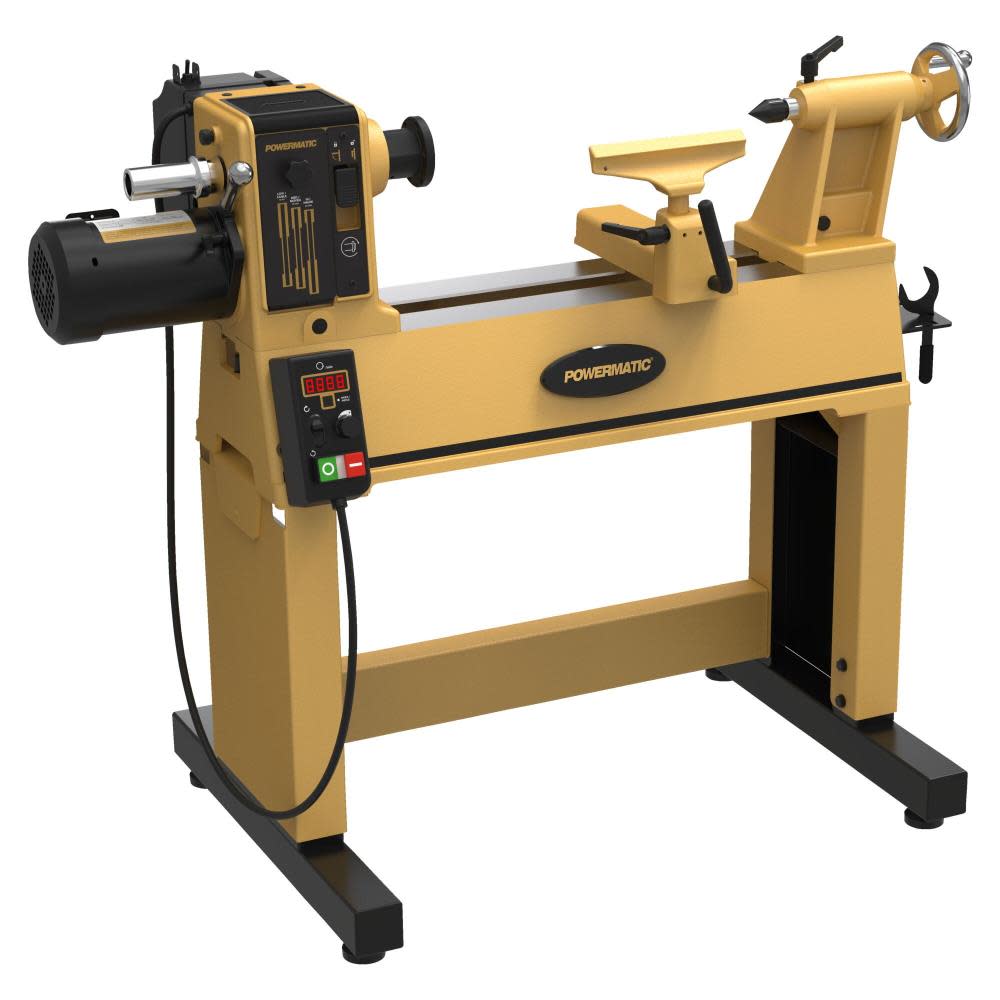

PM2014 Lathe with Stand Kit
For nearly one hundred years Powermatic has been dedicated to woodworkers. As a market leader in wood turning Powermatic is proud to offer the powerful PM2014 model lathe.
Features
Motor only requires a 115 volt single phase input while providing a consistent torque with 1 horse power, 230 volt, and 3 phase output using an inverter

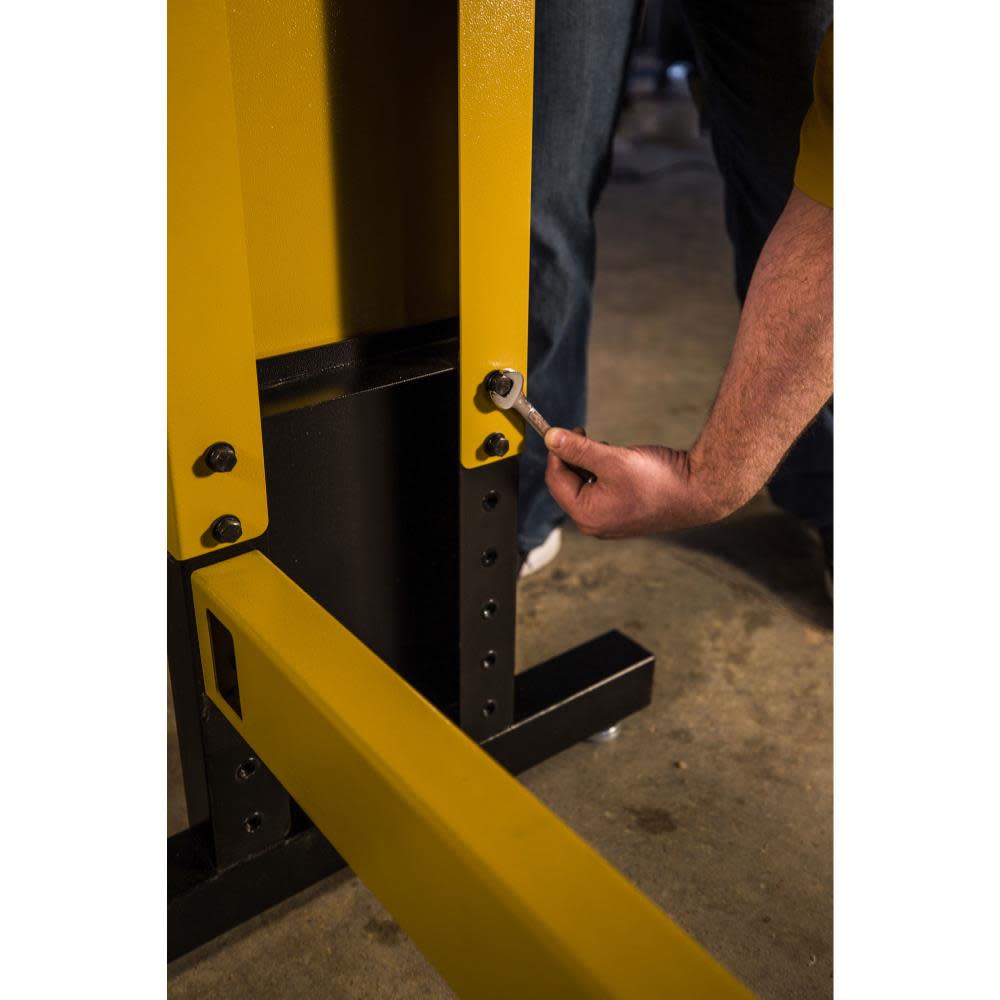

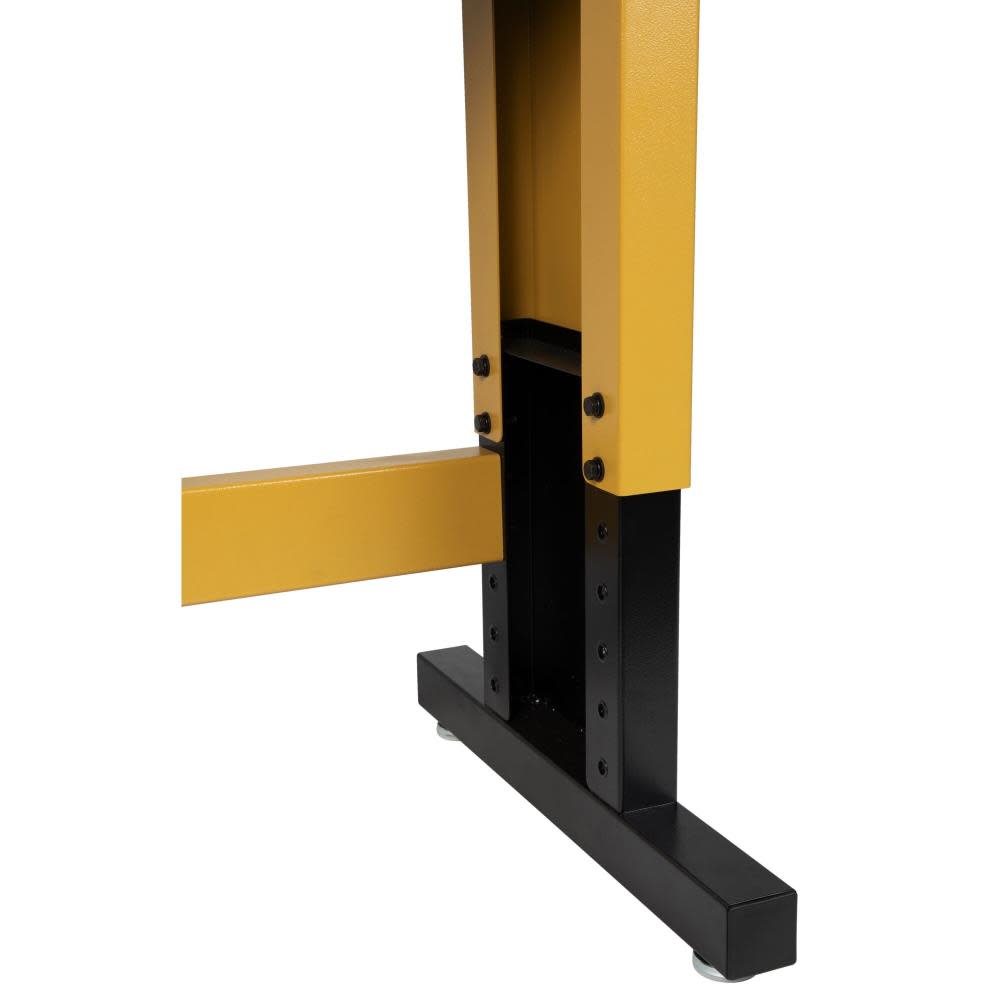

Stand adjust centerline to floor from 34 inches to 46 inches for maximum control and comfort

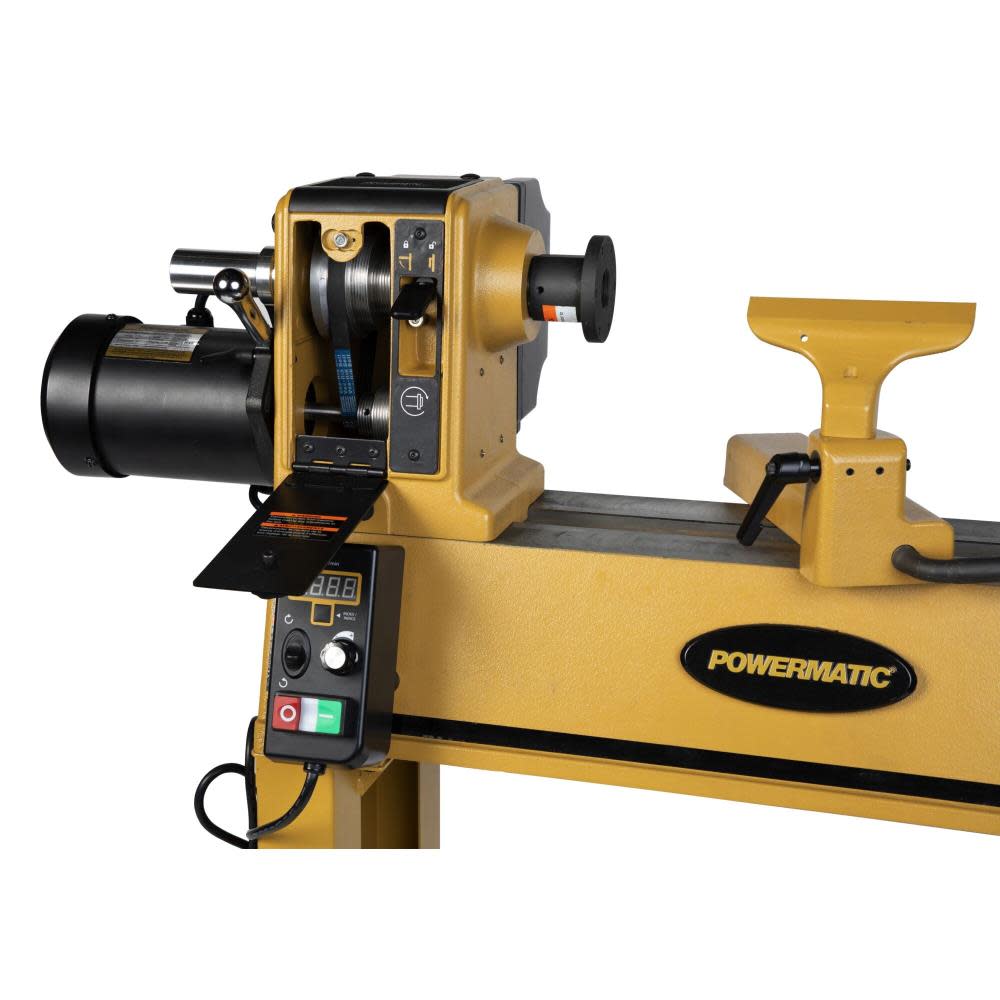

Magnetic control box displays both digital speed and indexing and can be relocated for convenience and safety

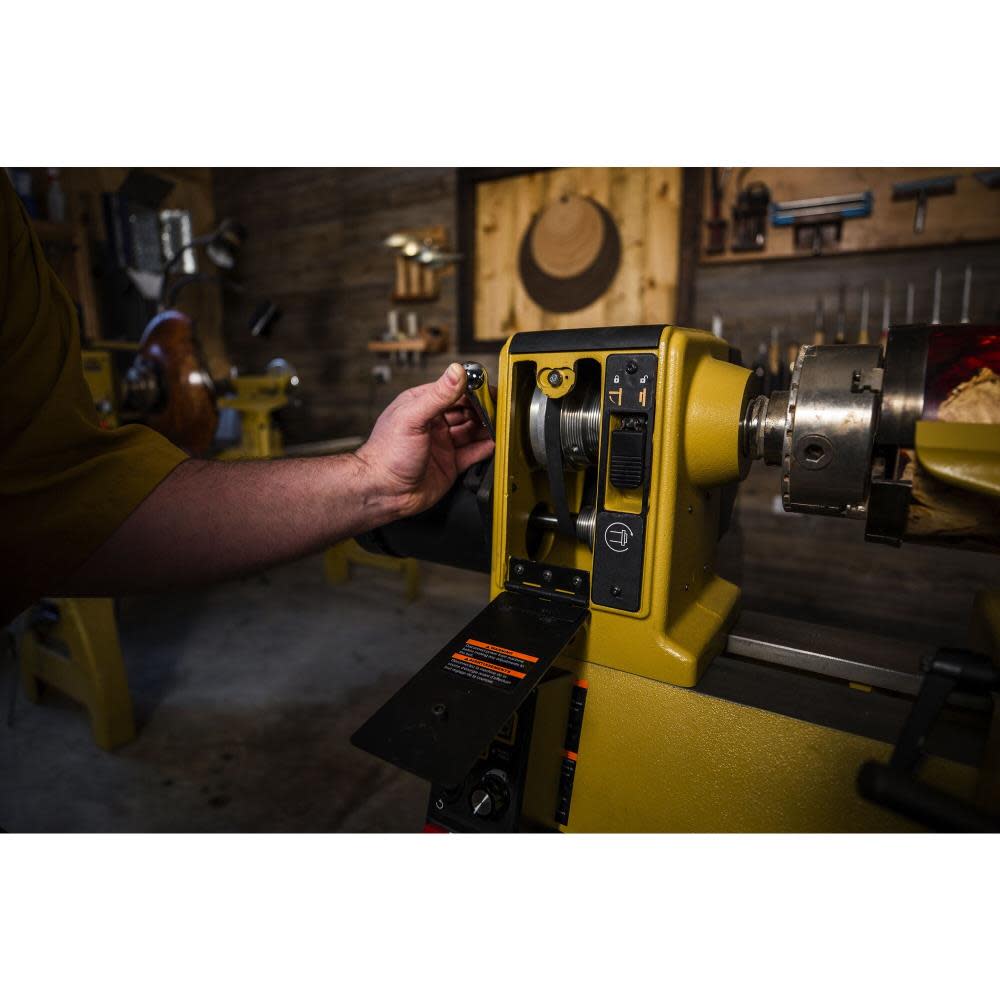

Twenty four positive locking indexing position, displayed on the repositionable magnetic control box, simplifies the indexing process

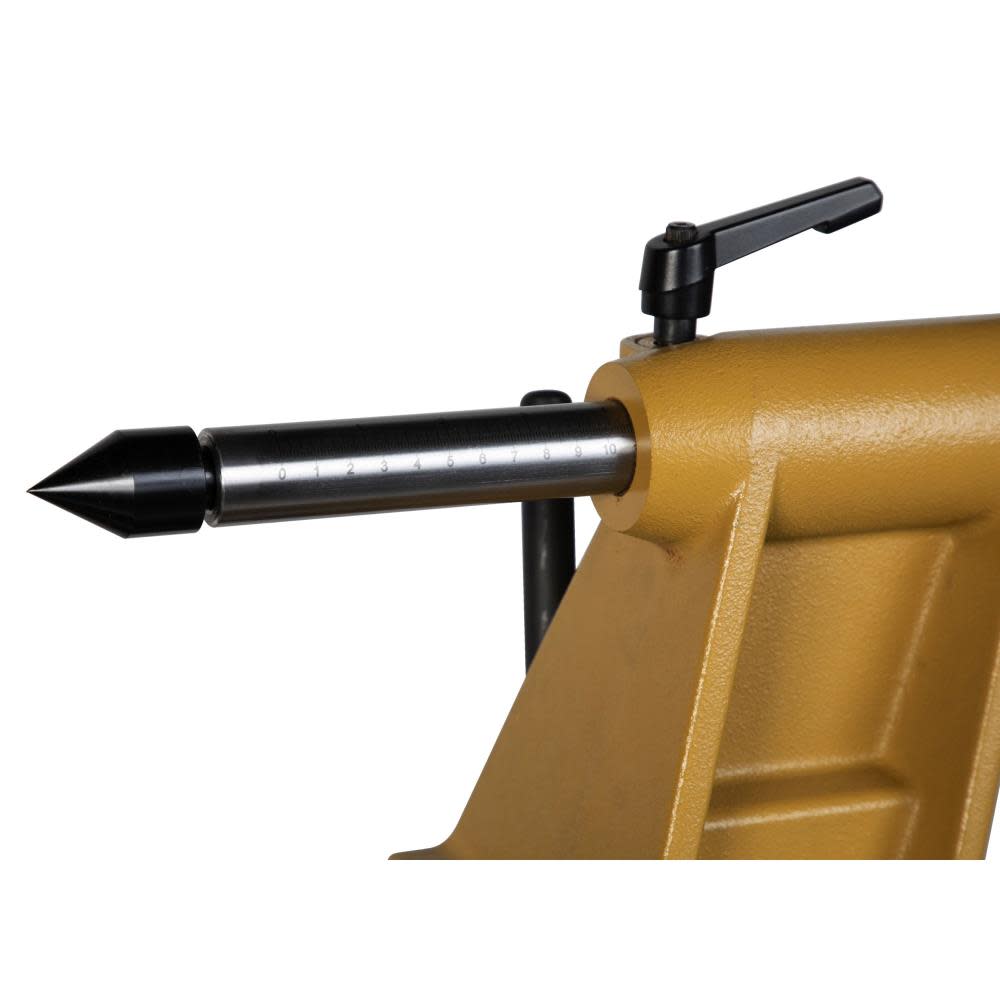

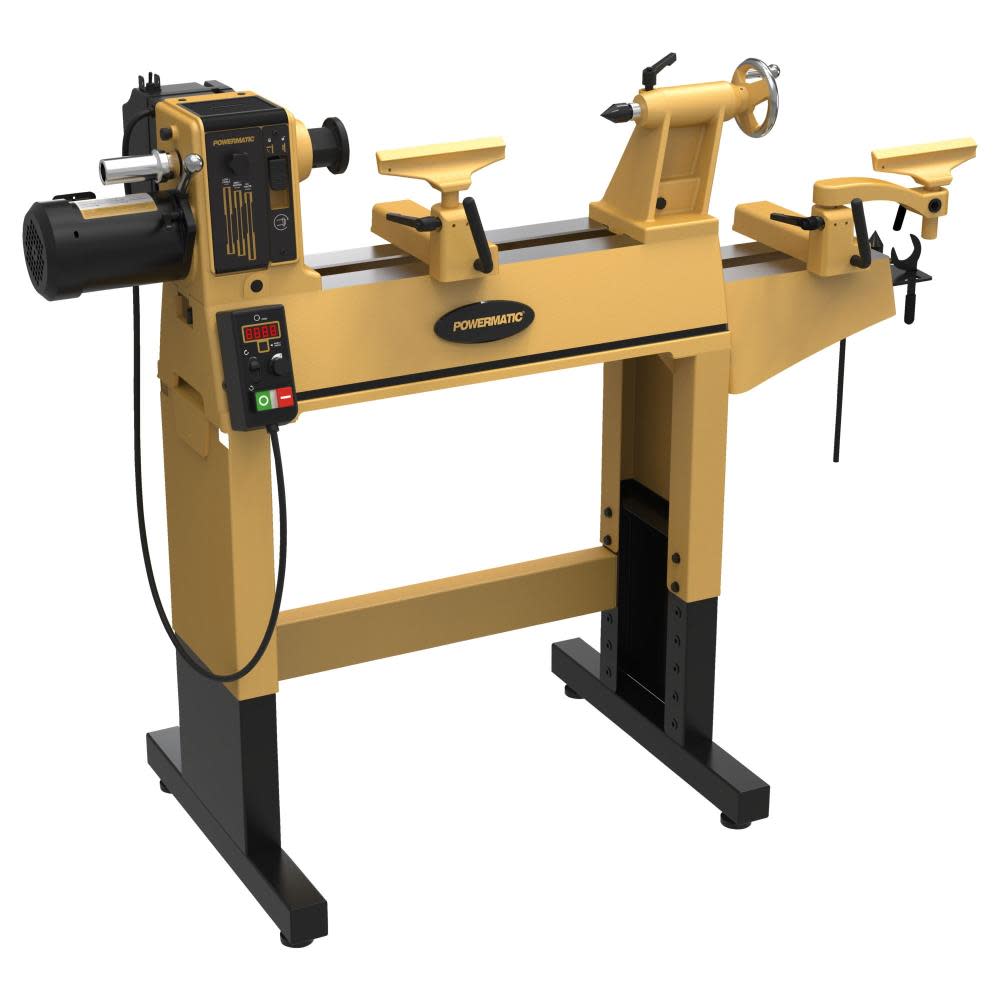

Sliding headstock and removable tail stock make outboard turning easy
Cast iron bed reduces motor vibration for decreased noise and added precision
Variable speeds from as low 15RPM to as high as 3600 RPM
With constant monitoring of the motor the inverter keeps torque consistent
Lathe easily disassembles for better portability
Includes 8 inch tool rest with 1 inch post

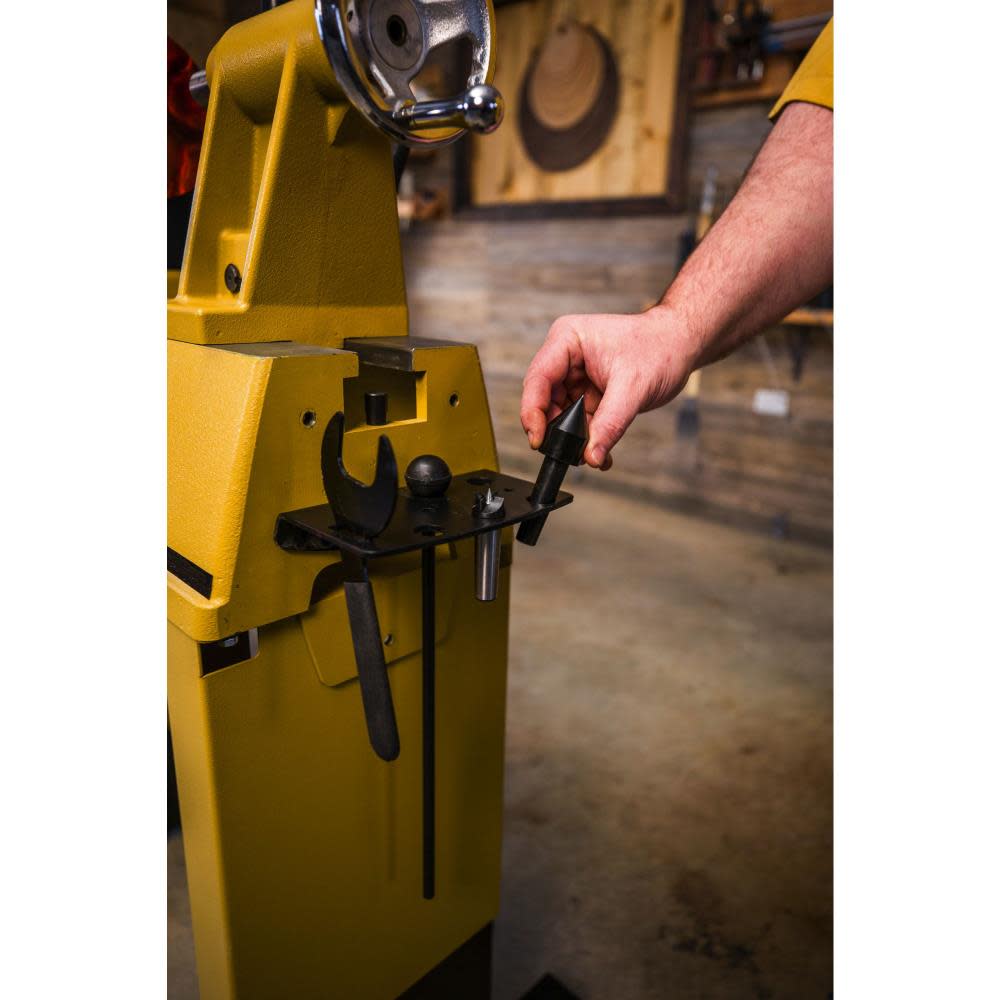

Attached tool caddy allows convenient access to centers, wrenches, and accessories
Banjo features a non-marring, pinch style clamp for solid tool rest placement
Chrome trimmed hand wheels are ergonomic for a comfortable feel
Main power disconnect on rear of headstock lock out for safety
Specifications
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1792014AK
Amperage (A)
15
Assembled Weight (lbs)
238
California Proposition 65 Warning Required
Yes
Color / Finish
Gold/Metal
Cord Length (ft)
7
Country of Origin
Taiwan
CSA Certified
Yes
Digital Display
Yes
ETL Listed
No
globalTradeItemNumber (GTIN)
00731325808025
Height (in)
38
Horsepower (hp)
1
Housing Material
Cast iron
Internal Supplier Part #
1792014AK
Internet Product Code (IPC)
4E6BD14F235
Length (in)
52
Manufacturer Warranty
5 Year
Motor Size
1 HP
Net Tool Weight (lbs)
238
Package Depth
58
Package Height
35
Package Weight
275
Package Weight (lbs)
275
Spindle Speed High (rpm)
3600
Spindle Speed Low (rpm)
15
Stand Included
Yes
Swing Over Bed
14.26
Swing Over Tool Rest Bed
10.75
Tool Rest Width (in)
8
UL Listed
No
UPC
731325808025
Variable Speed
Yes
Voltage
115 Volts
Width (in)
25
Working Distance Between Centers
20.25
