Description

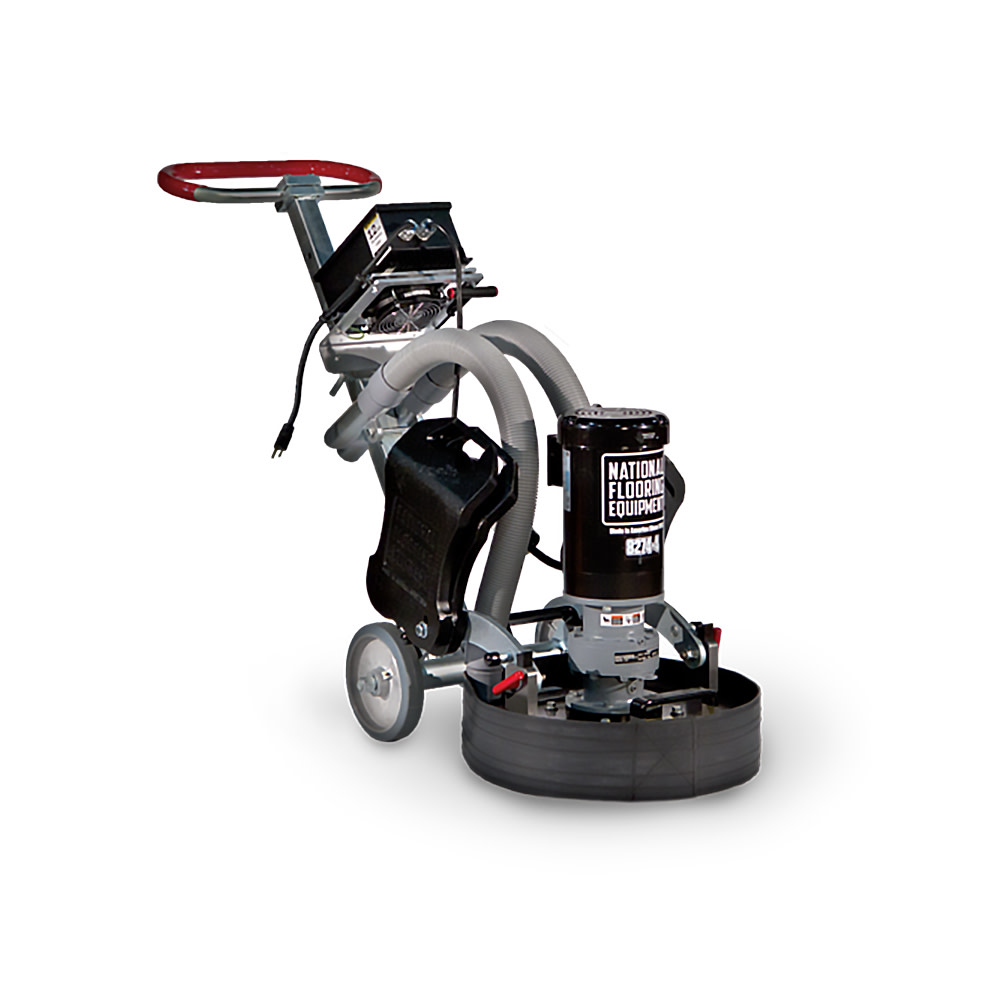

Planetary Floor Preparation System
The 8274-4 is the only grinder on the market offering 3 HP at 115 volts while operating at a 230-volt level. With variable speed and a soft start to control its amperage draw, the 8274-4 adjusts to the needs of small or large jobs. The versatility of the 8274-4 is derived from its quick-change magnetic tooling to remove thin-set, coatings, adhesives, and high spots, prepare concrete and overlays for coatings, and sand and refinish wood flooring. Polishes floors to a high-gloss shine.
Features
Three-part adjustable angle handle
Choose from 15A or 20A circuit-breaker settings with a convenient switch on the side of the controller; the 15A selection limits motor draw to 15 amps; the 20A selection pulls up to 20 amps
Forward and reverse directional controls increase tooling productivity with cleaner consumables and more even wear
Variable speed control
Dual rear vacuum ports
Flip-style weights for added or decreased head pressure
Removable handle and weights for easy transport
18-inch grinding path; uses National’s patented self-tensioning, single-belt design to prepare concrete surfaces to a 3000-resin shine
Adjustable velcro dust guard lets the machine operate within an eighth of an inch of walls and promotes nearly dustless operation
Modular design allows you to pull the machine into three different parts for transportation
Specifications
Acme Tools Brand Name
NATIONAL FLOORING EQUIPMENT
Acme Tools Part Number
8274-4
Adjustable Handle Height
Yes
Assembled Depth (in)
75
Assembled Height (in)
52
Assembled Weight (lbs)
388
Assembled Width (in)
20
Blade Width (in)
0
California Proposition 65 Warning Required
Yes
Country of Origin
United States
globalTradeItemNumber (GTIN)
00400274000117
Height (in)
52
Hertz (Hz)
60
Horsepower (hp)
3
Housing Material
Metal
Maximum Handle Height (in)
52
Package Contents
Planetary Floor Preparation System
Package Depth
38.5
Package Height
27.5
Package Weight
389
Package Weight (lbs)
389
Power Source
115V
Self Propelled
No
Size
75″ x 20″ x 52″
UPC
400274000117
Voltage
115
Voltage (V)
115
