Description
Oscillating Edge Sander, 3HP 3PH 230/460V

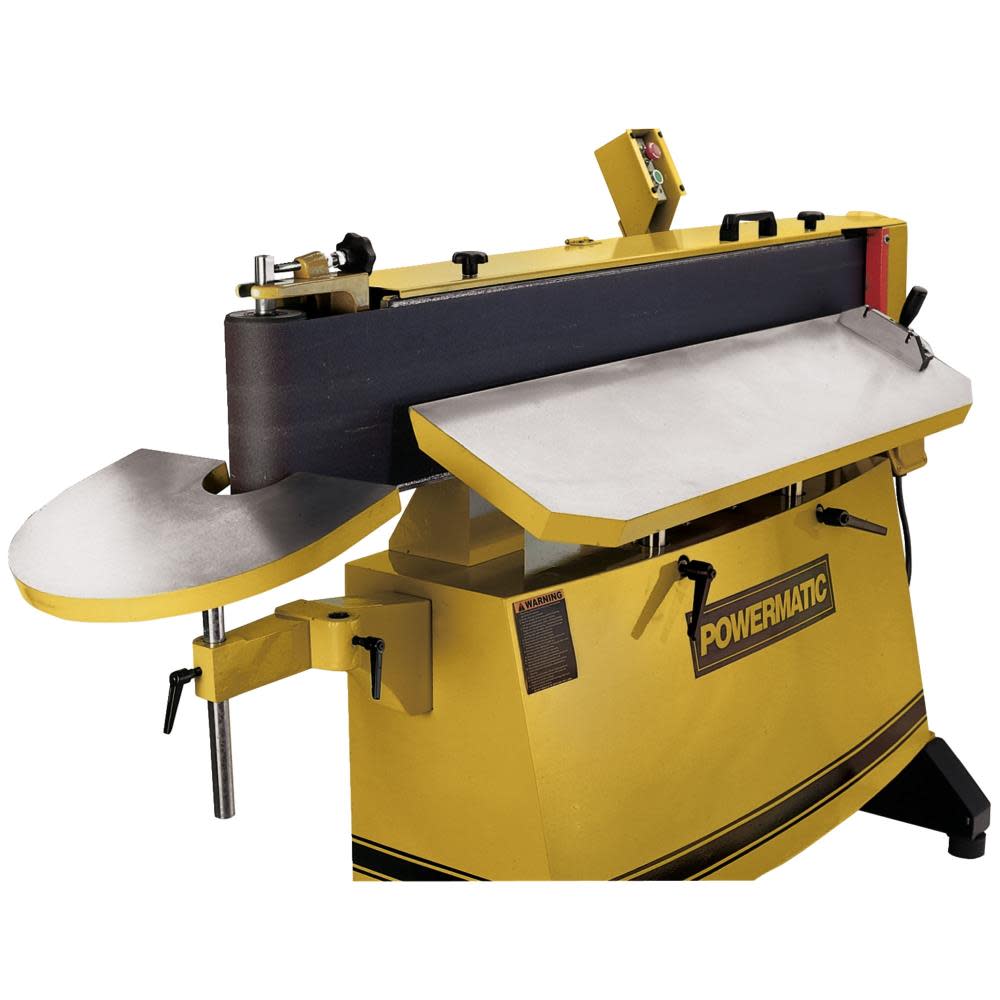

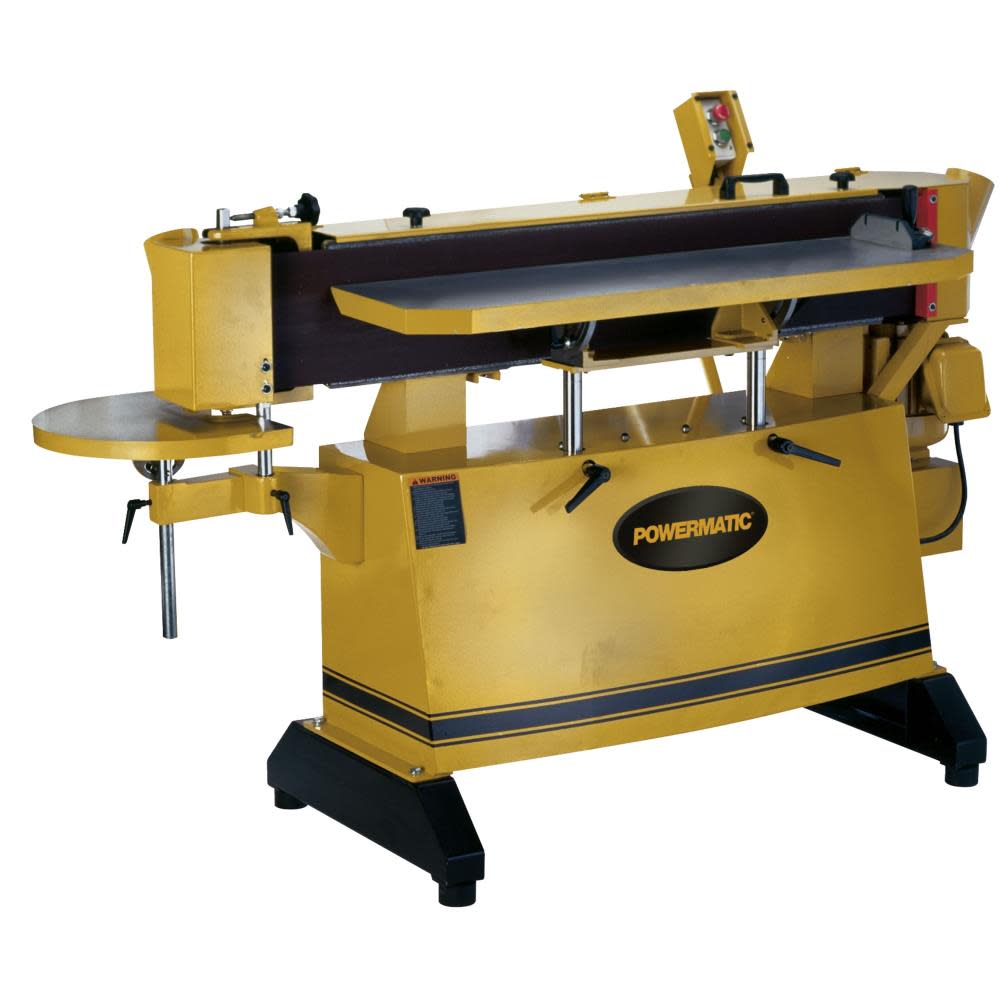

“The large 11-3/4″” x 48″” table on the ors9138 oscillating edge sander travels a full 8″” in vertical height to accommodate most woodworking pieces. It will also tilt negative 5° and out to positive 45°. The cast iron platen is a generous 48″” x 9-1/2″” and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.”
Features
3HP motor with 9″ x 138-3/4″ abrasive belt handles large workpieces
Oscillates 24 cycles per minute for better finish and longer belt life
9-1/2″ x 48″ platen with graphite pad offers largest work surface in its class

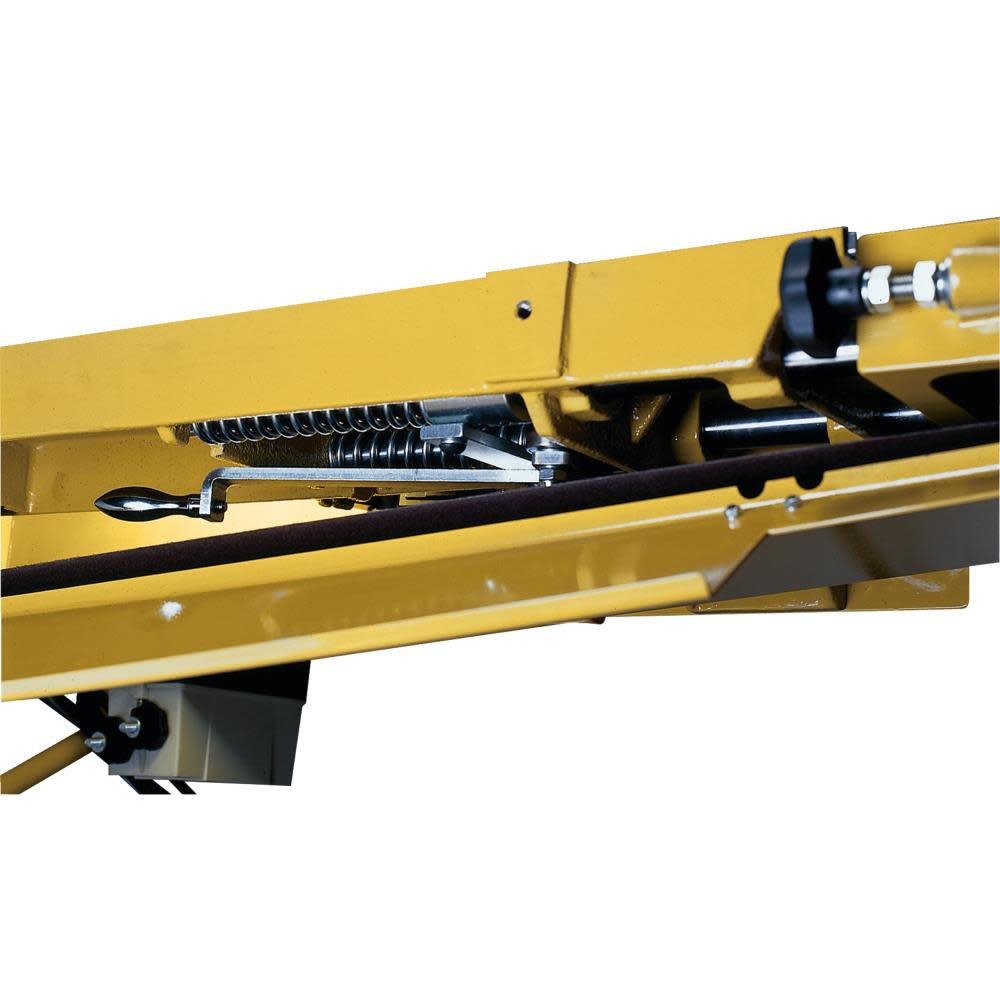

Rugged bearing-assisted tensioning device for fast belt changes and quick adjust tracking
Pedestal control switch for easy access

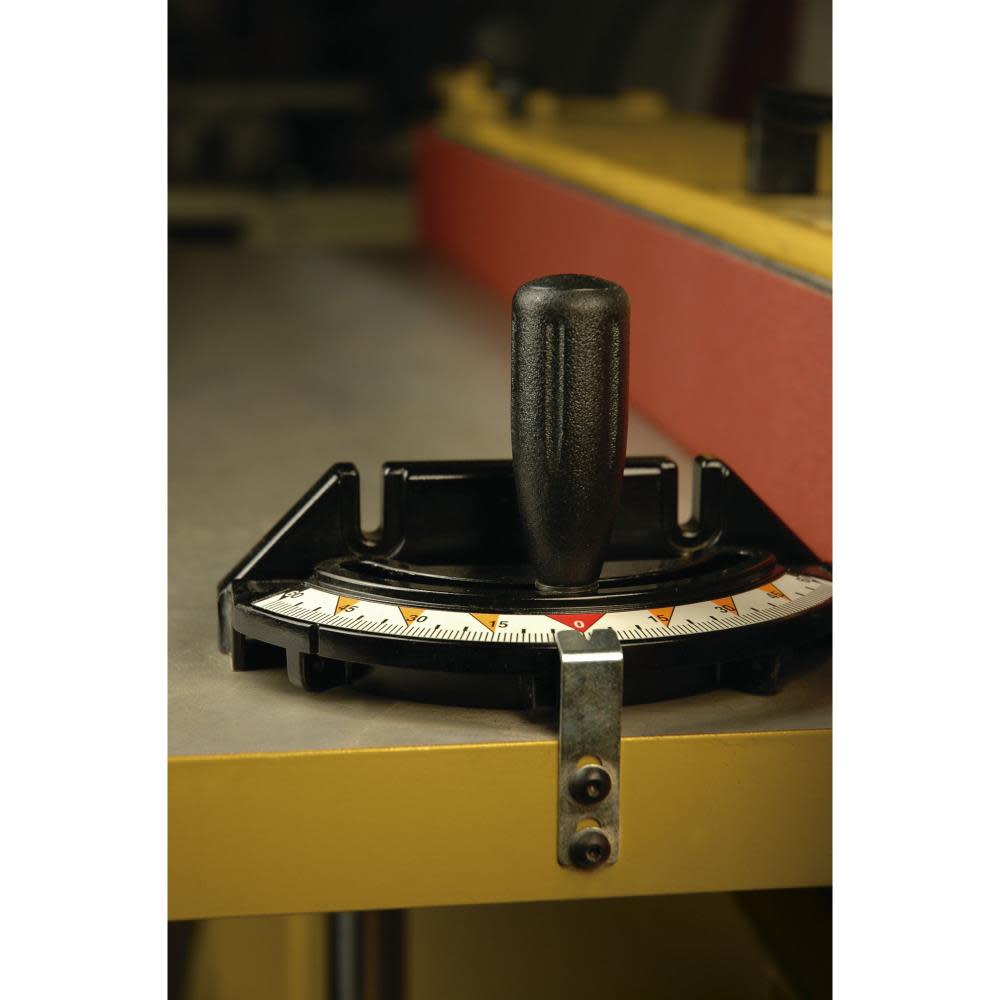

Large 11-3/4″ x 48″ front worktable with 8″ vertical travel tilts and 45° tilt, includes miter head for angle work

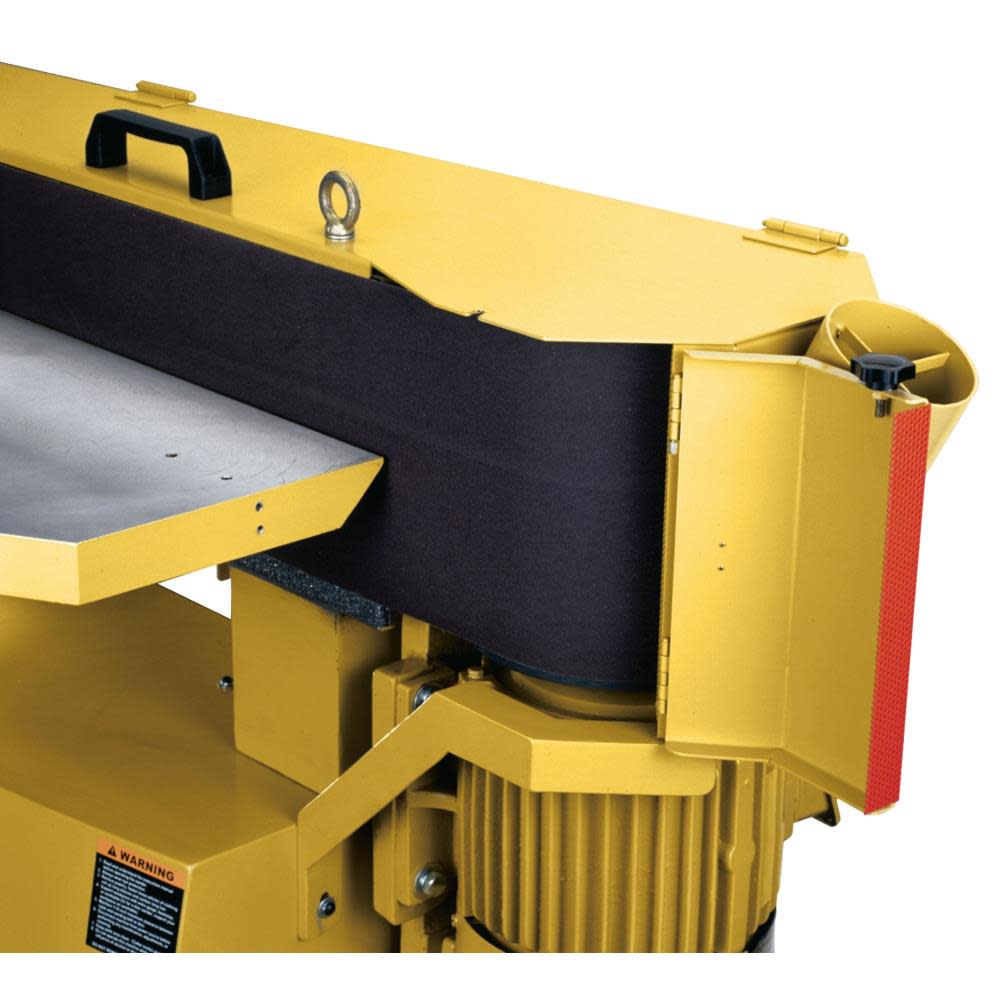

Precision balanced 9″ diameter drive drum and 4″ diameter rubber coated idler pulley for positive drive and rigid tracking

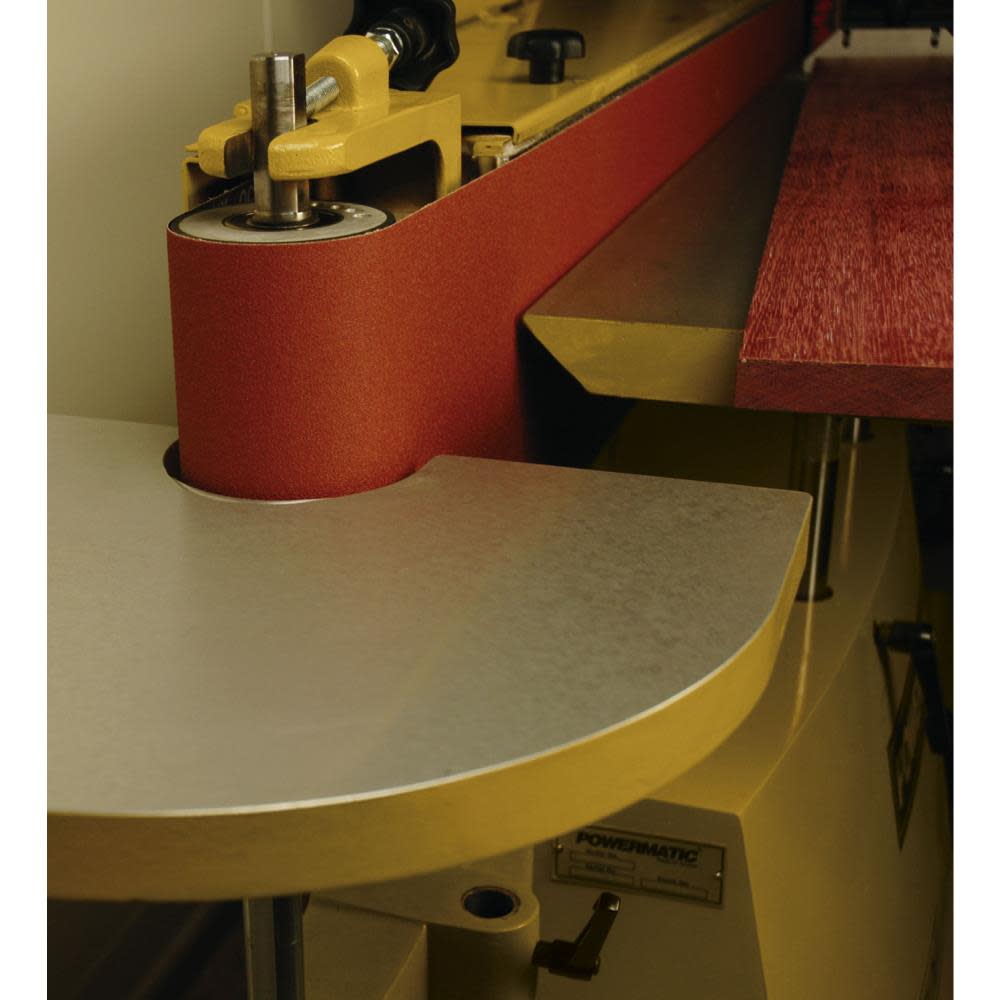

Large radius end table has 6″ vertical travel and 45° tilt for any angle and working height needed
Heavy-duty oscillating gearbox and shaft for long maintenance-free use

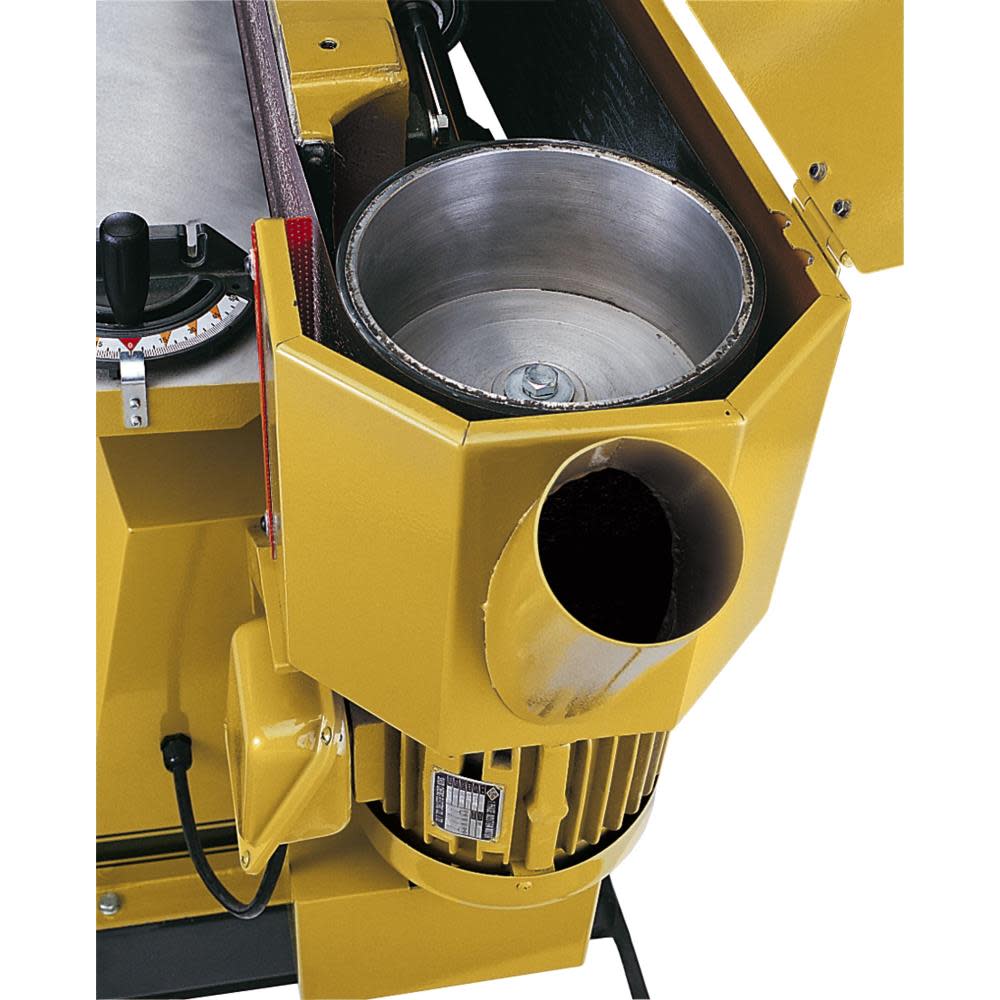

Dual dust collection ports keep work area clean and extend abrasive belt life
Two 4″ dust ports
Tilting main and end tables
Platen with graphite pad
Specifications
2 Mounting Feet
4 Rubber Foot Pads
1 Control Switch Bracket
4 Hex Cap Screws, M10 x 30
4 Lock Nuts, M10
4 Flat Washers, M10
2 Hand Knobs
1 Owner’s Manual
1 Warranty Card
