Description

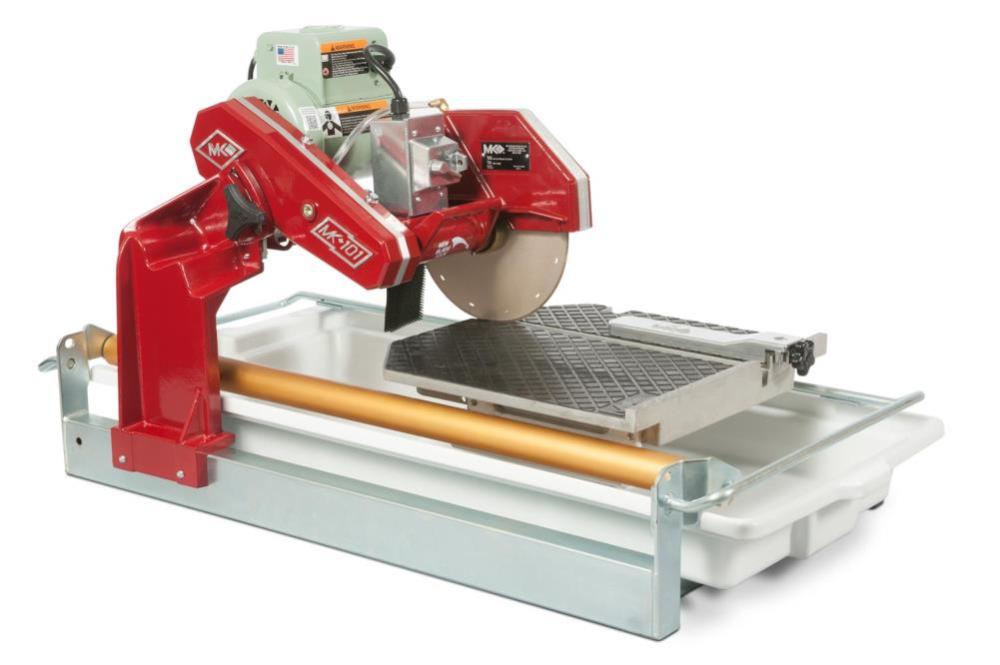

MK-101 Pro24 Tile Saw
The MK-101 Pro 24 Tile Saw helps you create precision rip cuts up to 24 inches long. It relies on a 1-1/2 horsepower motor to produce enough power and speed for everyday tile projects. The MK Diamond® MK-101 Pro 24 wet-cutting tile saw produces long diagonal cuts as well that measure up to 18 inches. The commercial-grade body handles industrial usage without losing power. It comes with an MK-225 hot dog blade for wet cuts and adjusts to support various blade sizes. The MK Diamond 10-inch tile saw features a neoprene surface to keep tiles in place while you cut. It uses a high volume pump to coat both sides of the blade with water for efficient performance at high speeds.
Features
Heavy-duty 1-1/2-HP motor with 13-inch throat depth

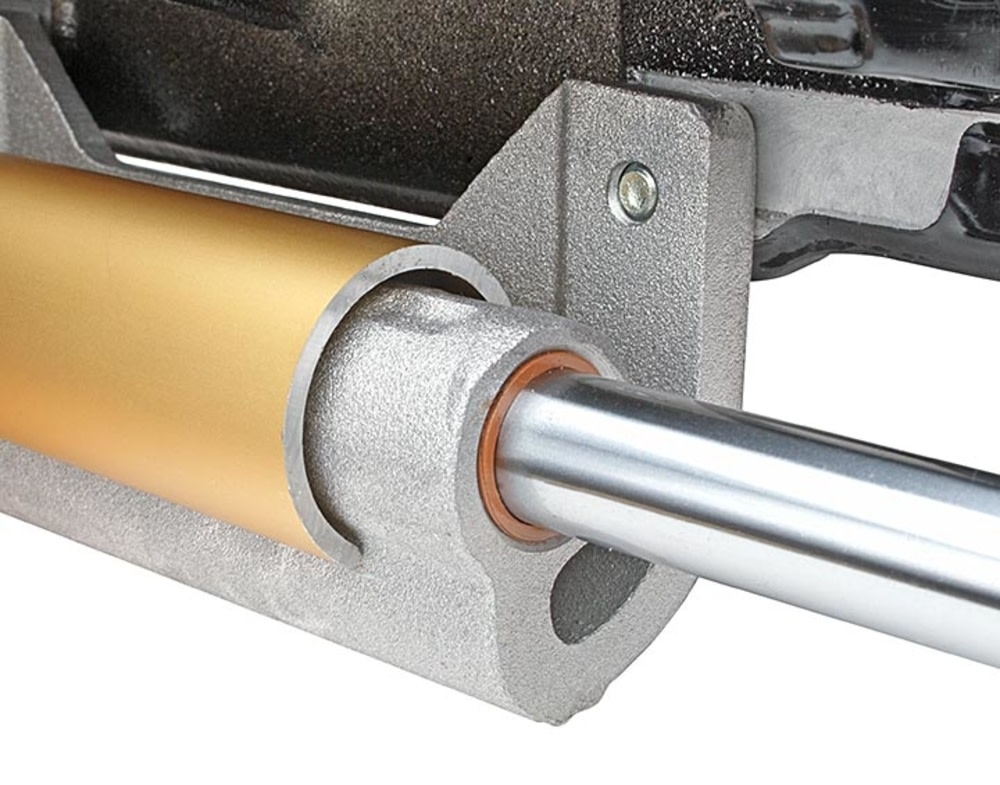

Extended table and permanently lubricated blade shaft bearings provide years of maintenance-free operation

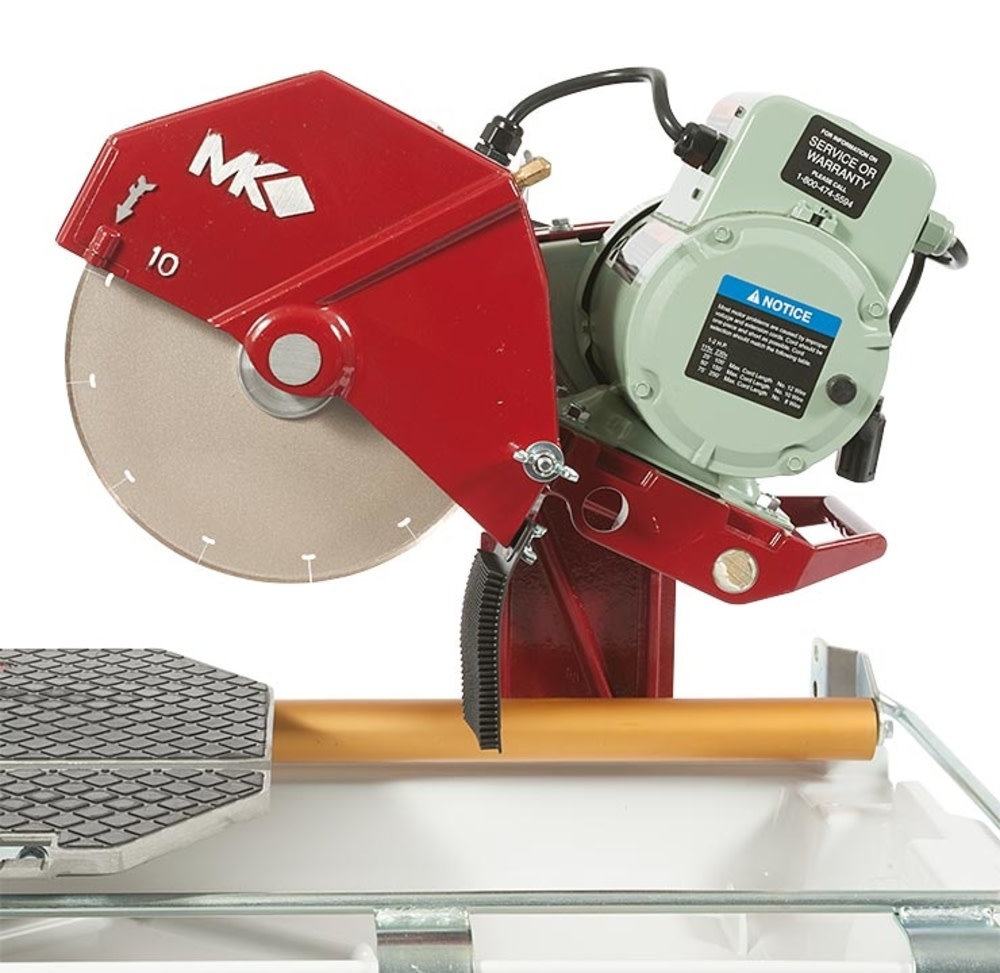

Multi-position motor post and cutting head allows saw to be configured for convenient cutting of both large and small tile sizes

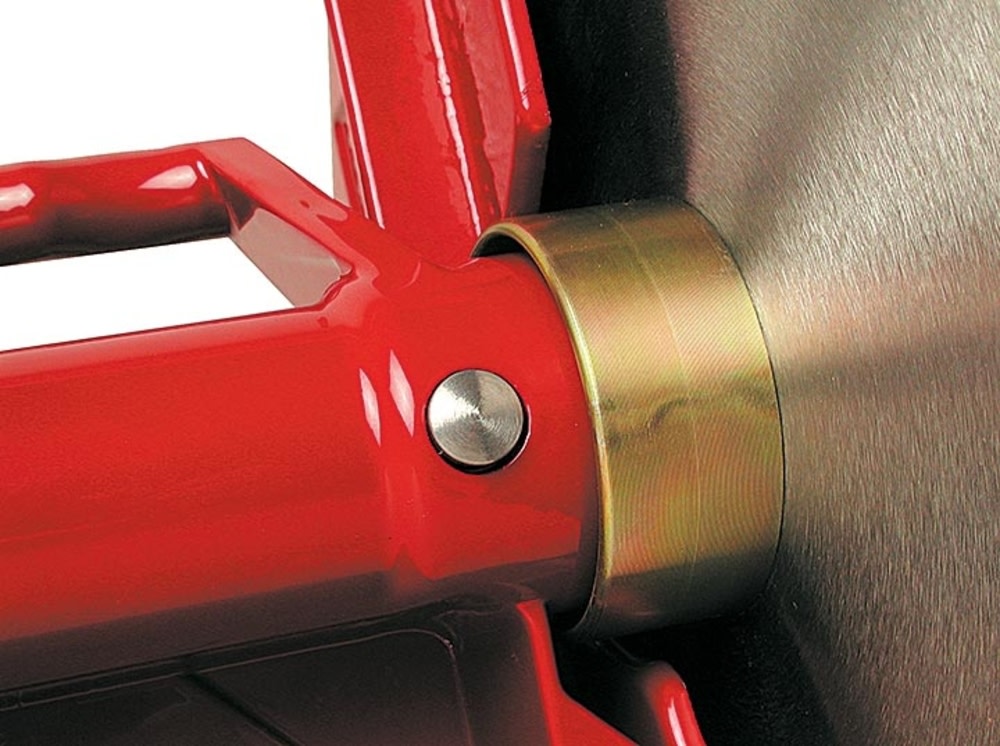

Locking blade shaft for easy blade removal
Built-in water distribution system supplies water to both sides of blade
Cut height adjusts for plunge cuts and various blade sizes
Neoprene surface maintains material position
High water volume for efficient performance
includes 1-year limited warranty; Made in USA
Specifications
Acme Tools Brand Name
M K DIAMOND
Acme Tools Part Number
153243
Amperage (A)
12.4
Arbor Size (in)
0.625
Assembled Weight (lbs)
130
Beveling Capability
Yes
Blade Diameter (in)
10
California Proposition 65 Warning Required
Yes
Color / Finish
Red
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
United States
Cuts Ceramic
Yes
Cuts Natural Stone
Yes
Cuts Porcelain
Yes
Depth (in)
42
Diameter
10 in
Electric Motor Brake
No
Electrical Cord Configuration
3-Wire
ETL Listed
No
globalTradeItemNumber (GTIN)
00092333210041
Height (in)
23
Horsepower (hp)
Universal Motor
Integrated Laser Guide
No
Internal Supplier Part #
153243
Internet Product Code (IPC)
CF9D665619B
Manufacturer Warranty
1-Year Limited
Material
Aluminum
Maximum RPM
3450
Maximum Tile Cut Size Diagonal
18
Maximum Tile Cut Size Rip
24
Package Contents
Saw, blade, and rip guide
Package Weight
112.0
Package Weight (lbs)
112
Reservoir Capacity (gal)
4
Reservoir Material
Plastic
Size
0.625 in
Sliding
No
Stand Included
No
Table Material
Aluminum
UL Listed
No
UPC
092333210041
Voltage
120
Voltage (V)
120
Water Pump
Yes
Weight (lbs)
130
Width (in)
22
