Description

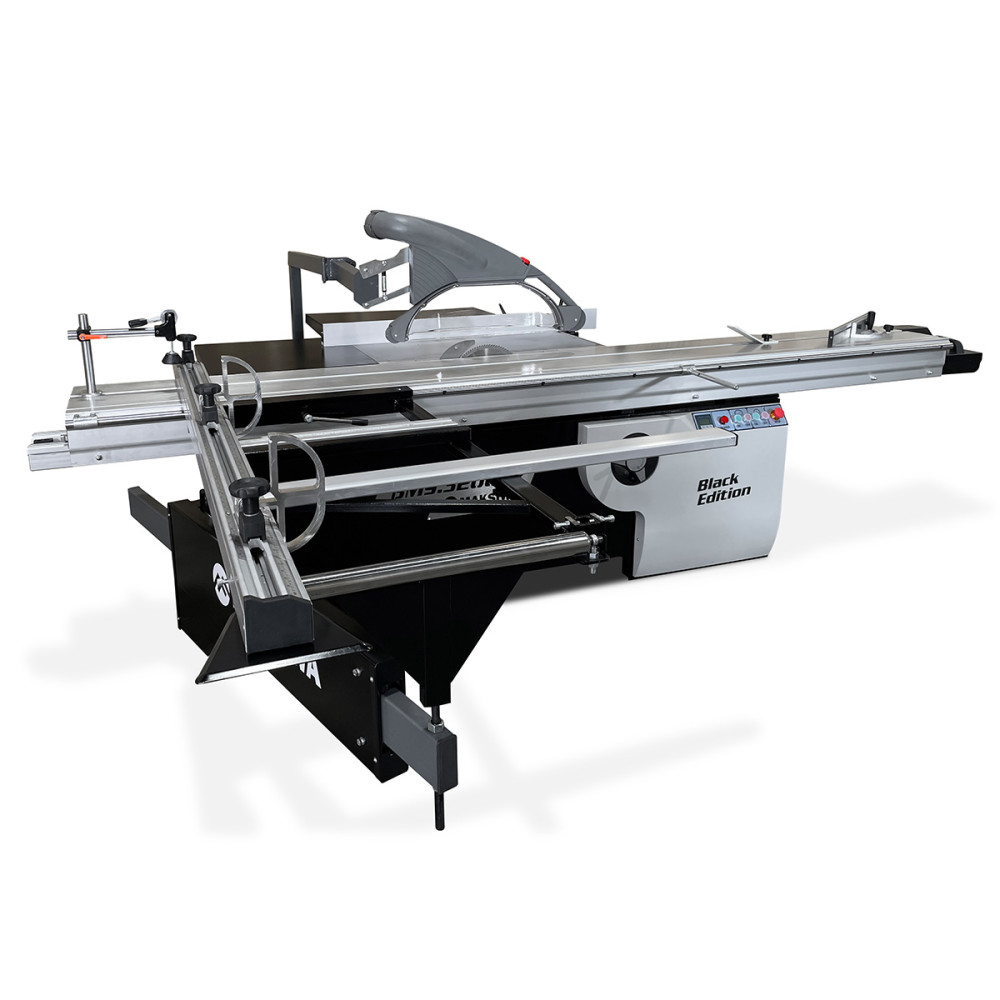

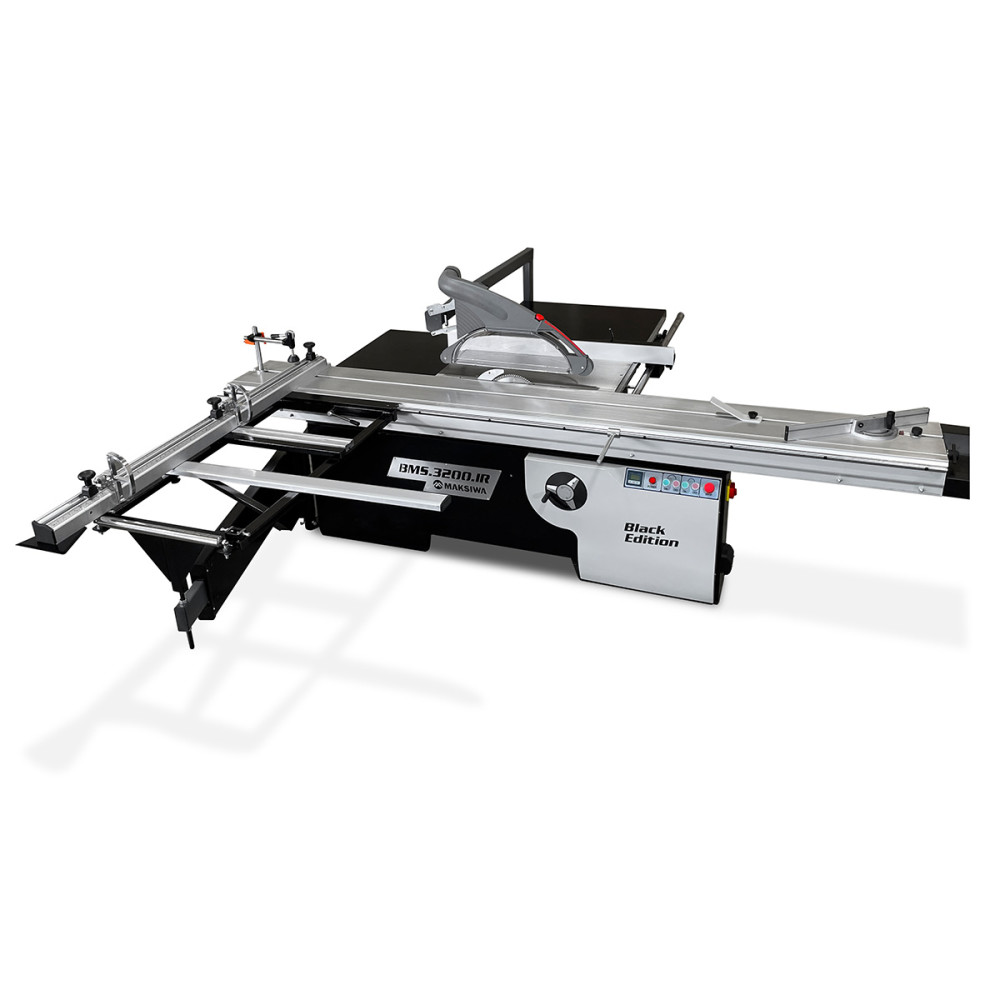

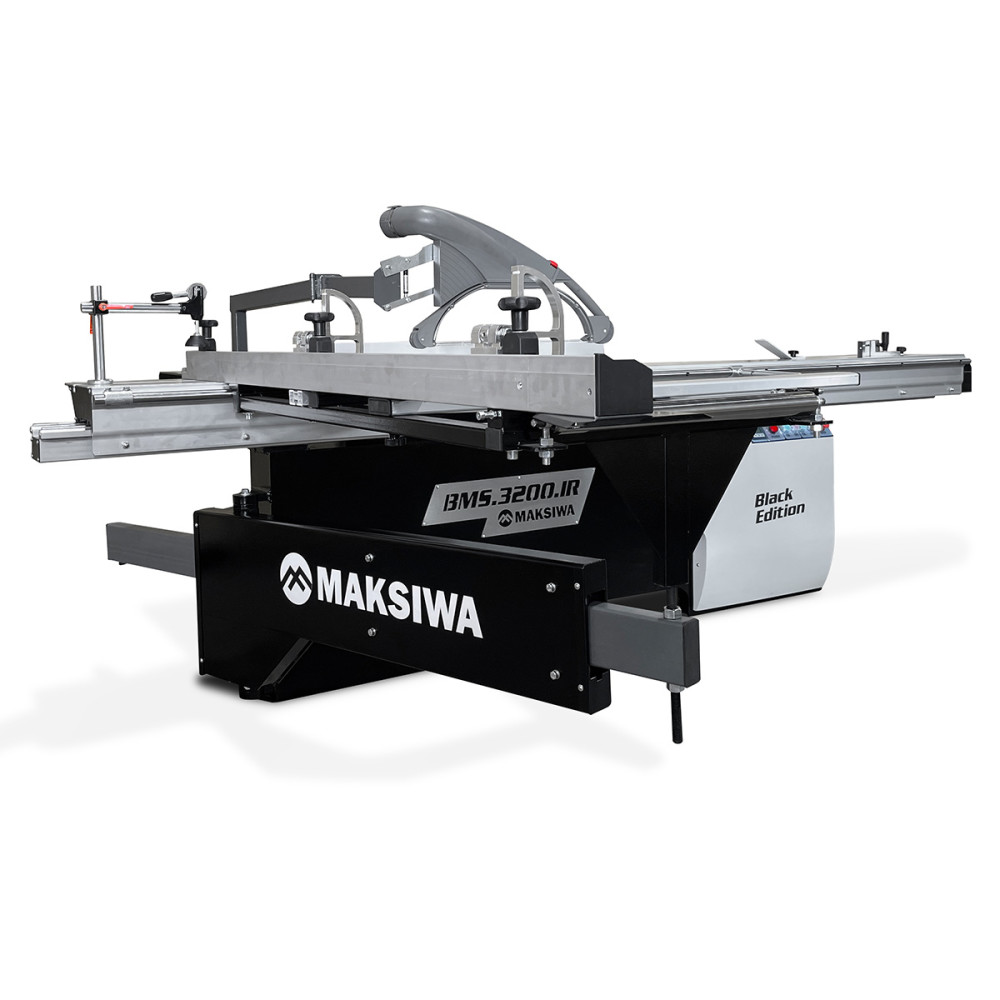

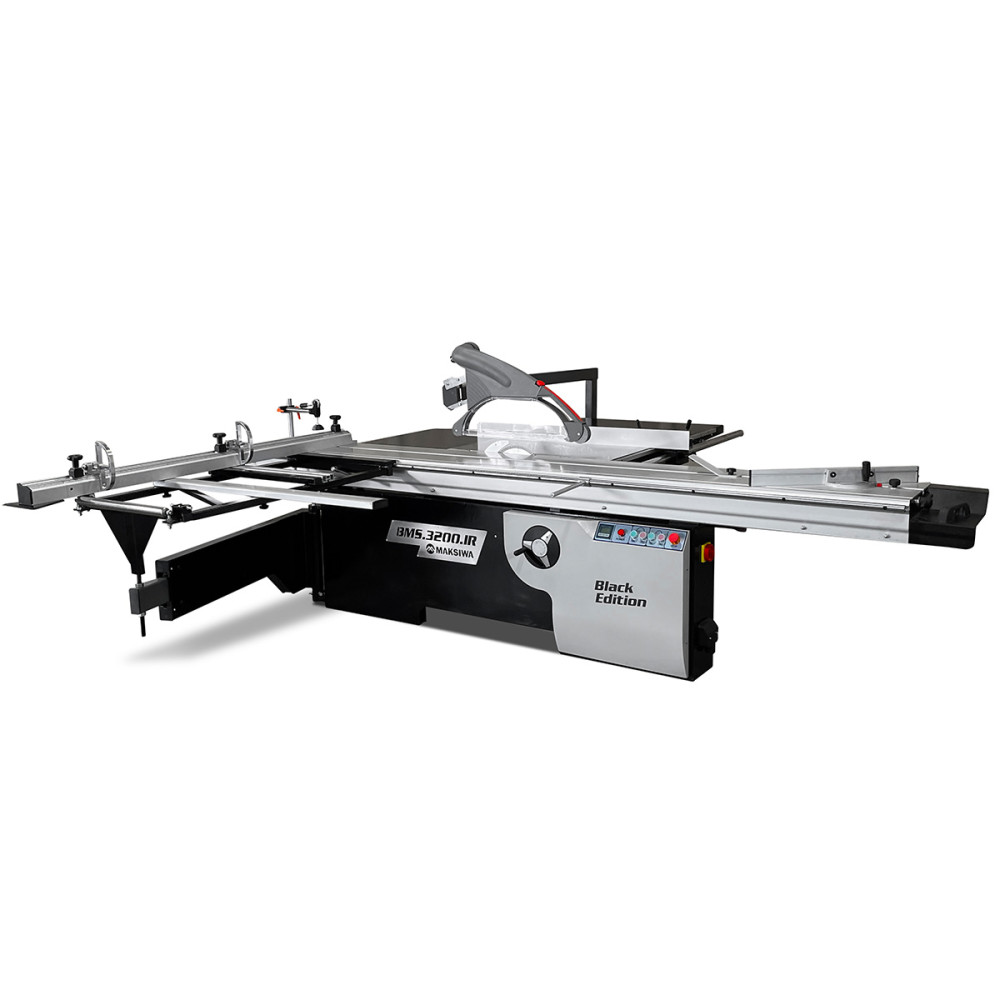

Maksiwa Sliding Panel Saw 5HP with Tilting Blade & Scoring Blade
The BMS.3200.IR is a sliding panel saw tailor made to provide high quality precise cuts in diverse angles with a max cut depth of 4 In. (100 mm) at 90 Deg. It includes a 5HP motor, cutting guides, miter guide, blade guard. The noise level of this equipment is 76.5 dB (the machine turned on only) up to 110 dB (with the machine on and the exhaust system on. The noise will vary in accordance with the location the machine is in and the materials used).
Features
Main motor: 5HP 1 Phase 220 20A, Non-Loaded blade speed: 4000 Rpm
Scoring motor: 3/4HP 1 Phase 2.5/5A, Non-loaded Scoring blade speed: 8000 Rpm
Dust collection 2 ports – standard 4 In.
Main blade diameter: 12 In., Main blade arbor: 1 In.
Scoring blade diameter: 4-3/4 In., Scoring blade arbor: 25/32 In.
Maximum Tilt: 45 Deg, Maximum depth cut: 3 In., Maximum cutting length: 120 In.
Machine dimensions (closed): 133 In. Length x 135 In. Width x 65 In. Height, Machine dimensions (maximum): 192 In. Length x 280 In. Width x 65 In. Height
Sliding table dimension: 14-3/4 In. x 132 In., Sliding table maximum travel length: 280 In.
Fixed table maximum width: 52 In.
Specifications
Acme Tools Brand Name
MAKSIWA INTERNATIONAL
Acme Tools Part Number
BMS.3200.IR
Amperage (A)
10/20/35
Assembled Weight (lbs)
1470
Blade Diameter (in)
12
Cordless / Corded
Corded
Country of Origin
China
Diameter
12 in
Dust Port Outside Diameter (in)
4 & 3
Frame Height (in)
65
globalTradeItemNumber (GTIN)
07898531012066
Horsepower (hp)
5
Length (in)
192
Maximum Crosscut Length (in)
130
Maximum Cutting Depth (in)
3
Number of Dust Ports
2
Package Depth
133
Package Height
65
Package Weight
1470
Phase
1
Scoring Blade
Yes
UPC
7898531012066
