Description

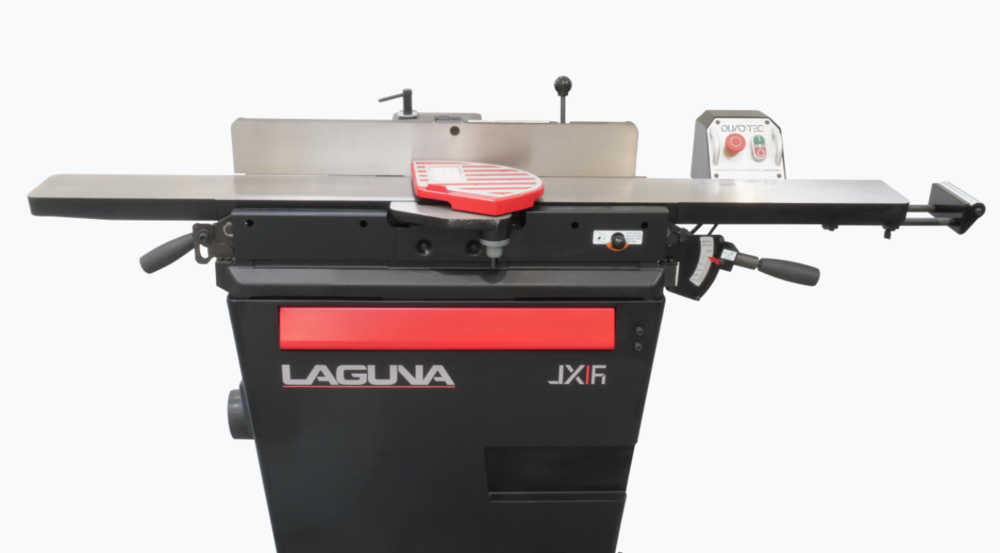

Laguna JX|6 QUADTEC: I Jointer 1.5HP 110V 1PH
The Laguna JX|6 QuadTec I is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|6 QuadTec has adjustable table depths and in-feed support rollers for longer materials being used. This JX Jointer also has an emergency knee-stop that allows the operator to stop the machine quickly at any position without having to let go of their work piece which allows operating this machine to have an extra safety feature. The JX-6 also comes with an all new QuadTec I cutterhead which uses 4-sided carbide insert knives that are quieter and more durable than straight HSS knives.
Features

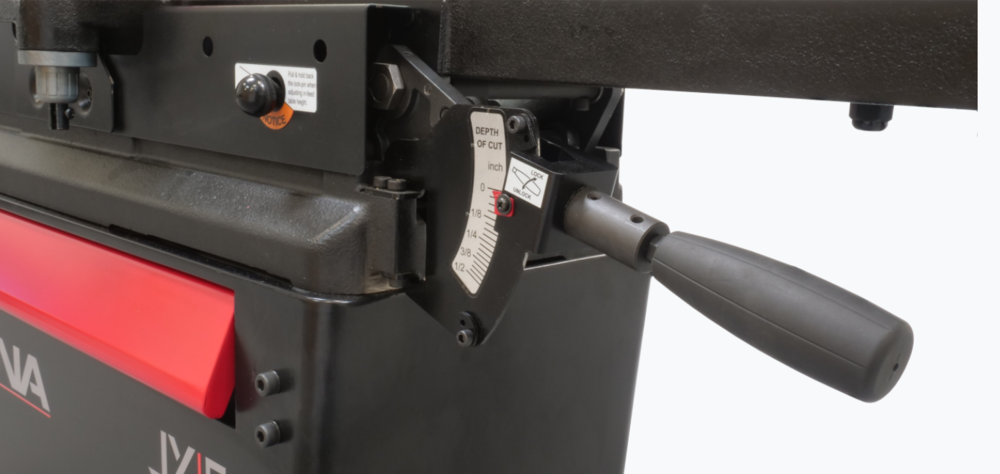

Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
QuadTec I Cutterhead – The all-new QuadTec I cuttherhead comes as standard equipment on the new JX-6. The QuadTec I produces an amazing surface finish on all woods including difficult hardwoods. The QuadTec I uses 4-sided carbide insert knives that are quieter and much more durable compared to straight HSS knives. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine
Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece
In-feed Support Roller – Infeed tables are now fitted with pull out support roller to help support longer materials
Cast-Iron Tables and Fence
Specifications
Acme Tools Brand Name
LAGUNA TOOLS
Acme Tools Part Number
506601L
Amperage (A)
13
Assembled Depth (in)
63
Assembled Height (in)
31
Assembled Weight (lbs)
161
Assembled Width (in)
22
Blade Width (in)
6
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
globalTradeItemNumber (GTIN)
00195444004810
Height (in)
31
Helical Cutter Head
No
Motor Horsepower (hp)
1 1/2 HP
Package Contents
1 JX|6 QUADTEC: I Jointer
Package Depth
65
Package Height
13
Package Weight
174
Phase
1
Table Length (in)
60
UL Listed
No
UPC
195444004810
Voltage
110
