Description
Kubota GL7000 Diesel Generator 7KW Auto Start
The Kubota GL7000 Lowboy II generator saves space and the environment. Designed to have the minimum possible height while using a vertical diesel engine. Easy one-side maintenance with a large swing-up side panel for quick engine inspection and maintenance. Safety features include automatic engine shut down if the water temperature is excessive or oil pressure drops below a safe level and double circuit protectors to prevent over current damage. One-point lifting makes it easy to transport all GL series generators.
Features
Factory installed Auto Start
Engine oil and coolant drain extensions are provided to ease regularly scheduled maintenance
Oil guage, oil filter, oil replenishment port, fuel filter, water reserve tank, batter and air cleaner are all located on one side
Automatic engine shut-down if the water temperature is excessive or the oil pressure drops below a safe level
Equipped with a start safety relay to prevent the starter from engaging after the engine starts up
Terminal type is equipped with an output connection cover that will stop the engine immediately when it is opened during operation
In addition to the overall circuit protector, each receptacle has a circuit protector that will shut the engine down to prevent over current damage
One-point lifting eye makes it easy to transport all GL series generators
Special forklift openings are provided in the base of the machine
Four separate features help reduce overall noise levels

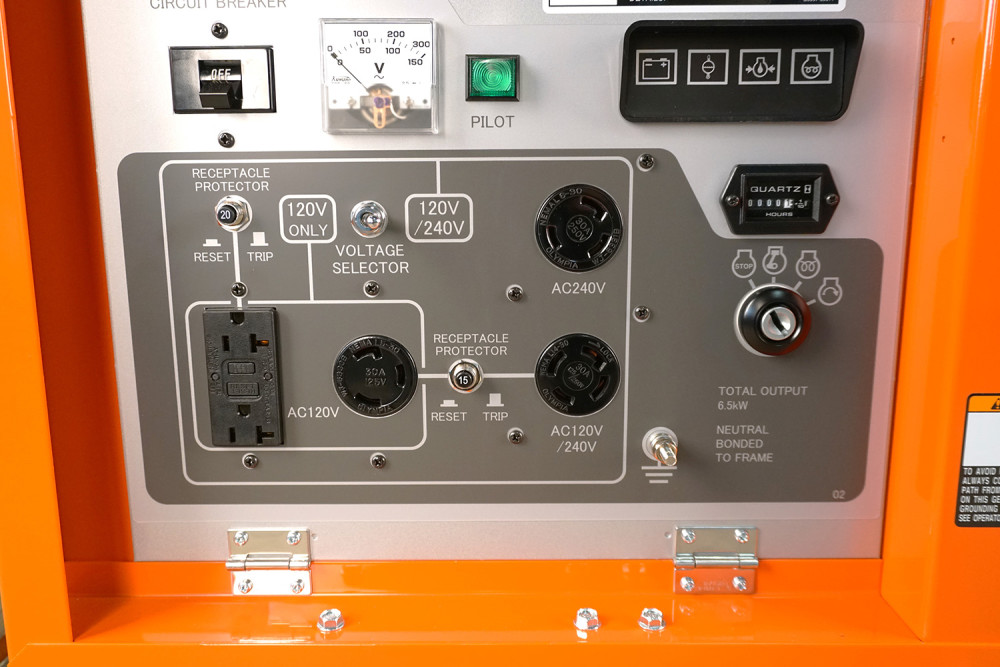

Access terminals for automatic transfer switches are located behind the control panel
Large swing-up side panel enables quick and easy engine inspection and maintenance
Specifications
Acme Tools Brand Name
KUBOTA
Acme Tools Part Number
GL 7000-AUTO
Alternator Type
Brushless
Assembled Weight (lbs)
518
Automatic Idle Control
Yes
Automatic Transfer Switch Included
No
Automatic Voltage Regulation
Yes
Battery Charger With Cables
No
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Color / Finish
Kubota Orange and silver, steel frame
Control Panel
Yes
Cordset Gauge
0
Cordset Length
0
Country of Origin
Japan
Current Range (A)
54.2
Engine
Kubota Z482
Engine Design
Vertical, liquid-cooled, 4-cycle diesel engine
Engine Displacement (cc)
29.2
Engine Series
Z482
Engine Torque (ft-lbs)
21.9
ETL Listed
No
Fuel Gauge
Yes
Fuel Tank Capacity (gal)
7.4
globalTradeItemNumber (GTIN)
00407007000031
Height (in)
27.5
Horsepower (hp)
10.9
Hour Meter
Yes
Internal Supplier Part #
GL 7000-AUTO
Length (in)
42
Low Oil Shut Down
Yes
Manufacturer Warranty
Limited manufacturer 2 Year/2000 hour warranty.
Osha Required GFCI Outlets
Yes
Output Receptacles
1-5-20R(GFCI), 1-L5-30R, 1-L6-30R, 1-L14-30R
Overload Protection
Yes
Package Contents
One Kubota GL 7000 generator.
Package Depth
34
Package Height
56
Package Weight
698
Package Weight (lbs)
545
Portable Generator Starting Type
Electric
Power Cord
No
Rated Wattage
7000
Recommended Oil & Capacity
CJ-4 engine oil, 2.3 US quarts
Run Time @ 1/2 Load (hrs/tank)
0.45
Small Engine Maximum Torque (ft-lbs)
21.9
Sound Decibels (dB)
66
Surged Wattage
7000
Towable
No
UL Listed
No
UPC
407007000031
Voltage Rating
120/240V Single Phase
Weight (lbs)
518
Wheel Design
None
Wheel Kit Included
No
Width (in)
24.3
