Description

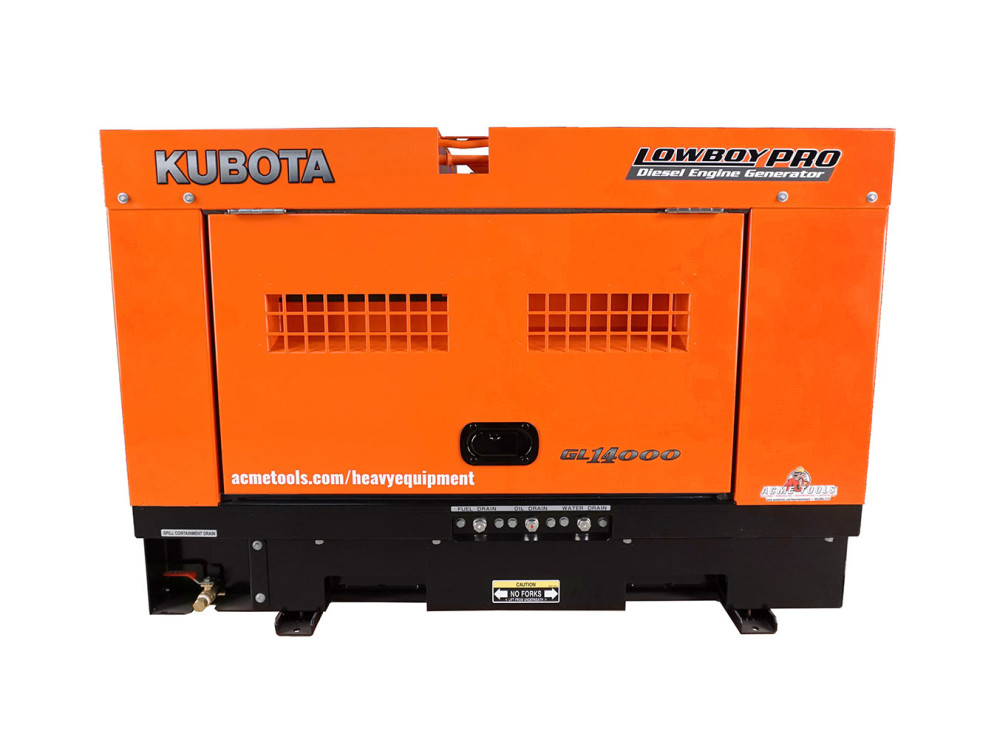

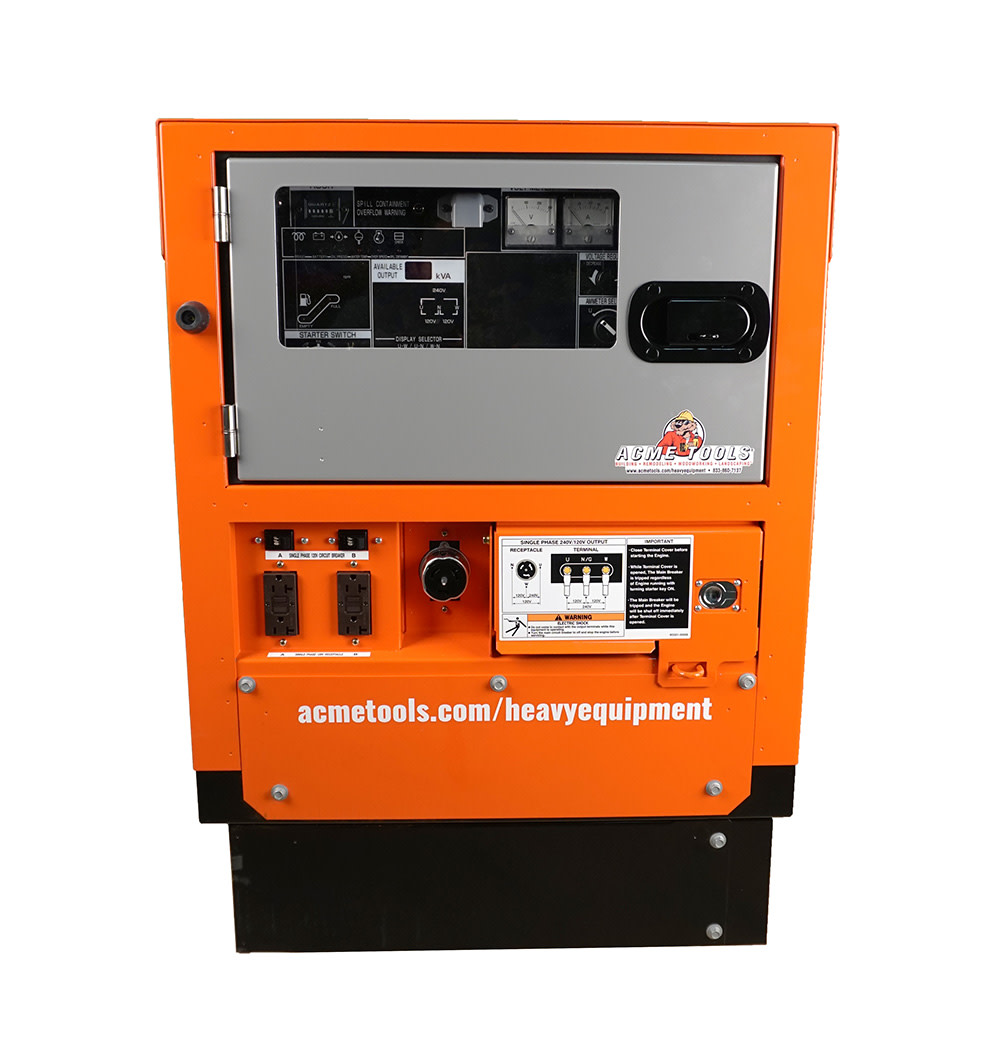

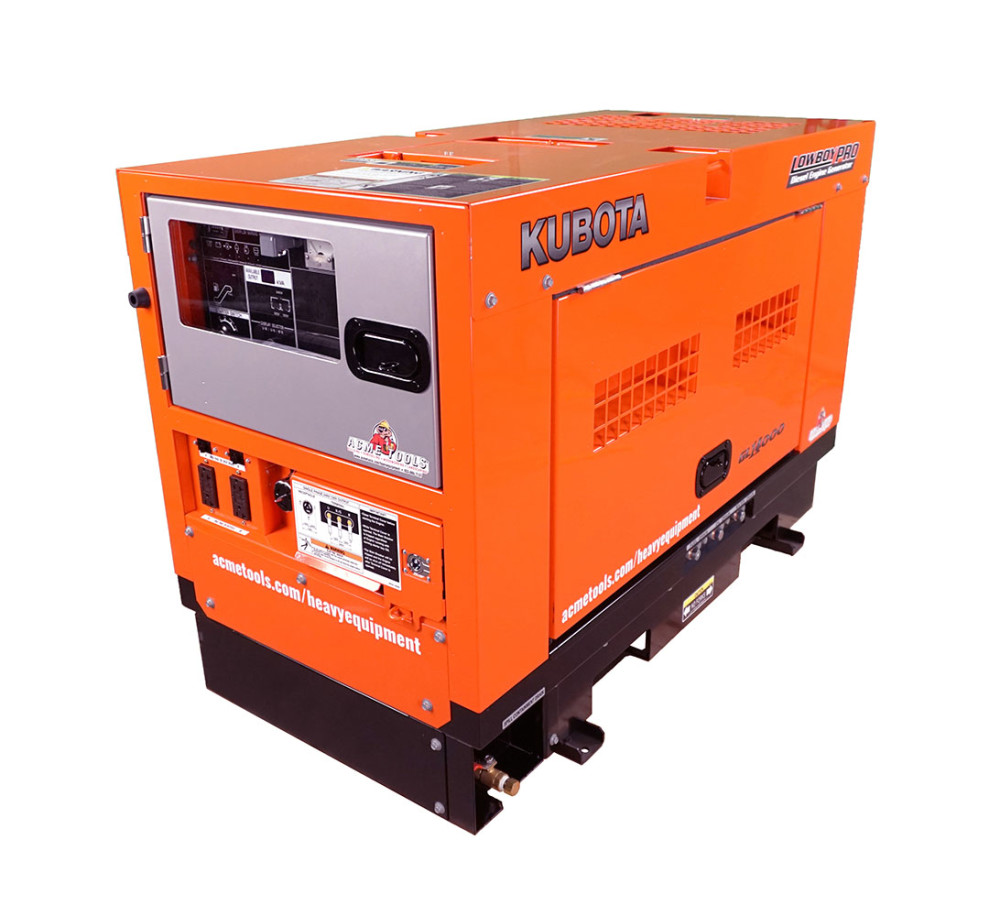

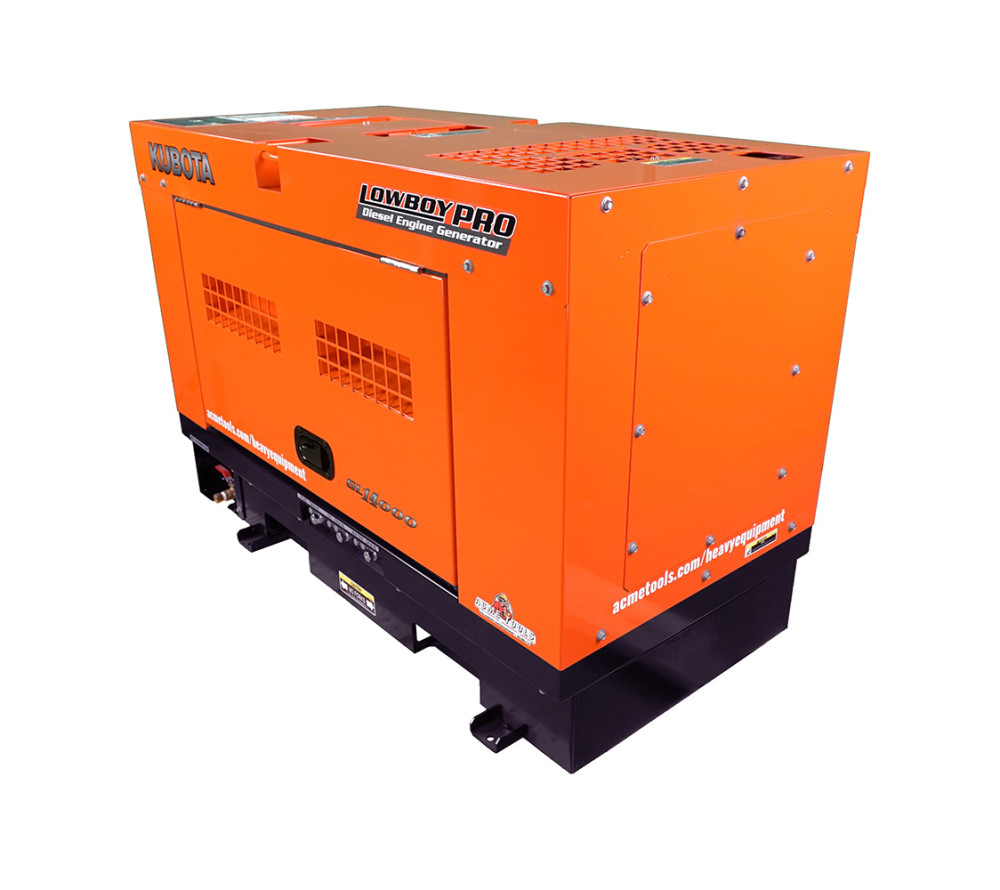

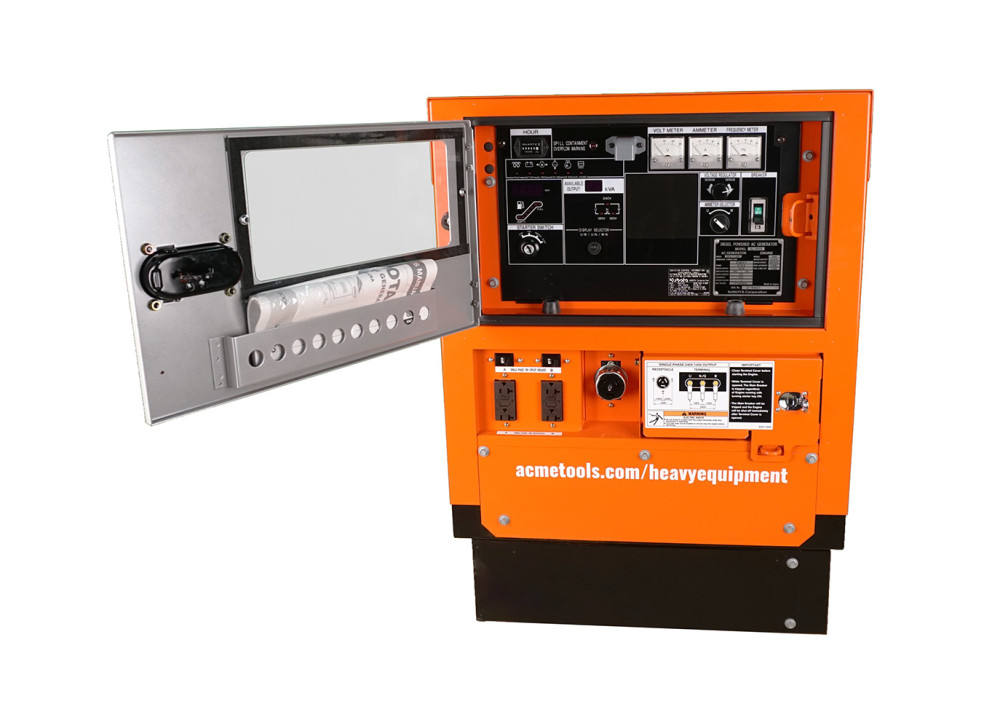

Kubota GL14000 Diesel Generator 14KW Auto Start
The Kubota GL14000 generator delivers exceptional power from Kubota’s own D902 diesel engine. Compact, reliable and innovative, the GL14000 is ideally suited for a wide array of applications.
Features
Factory installed Auto Start

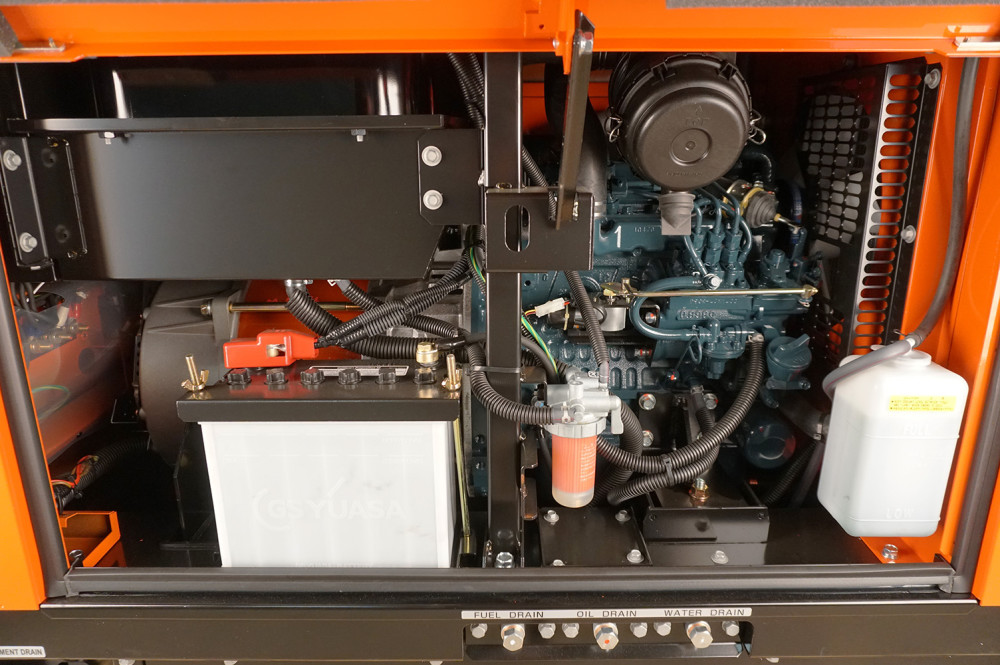

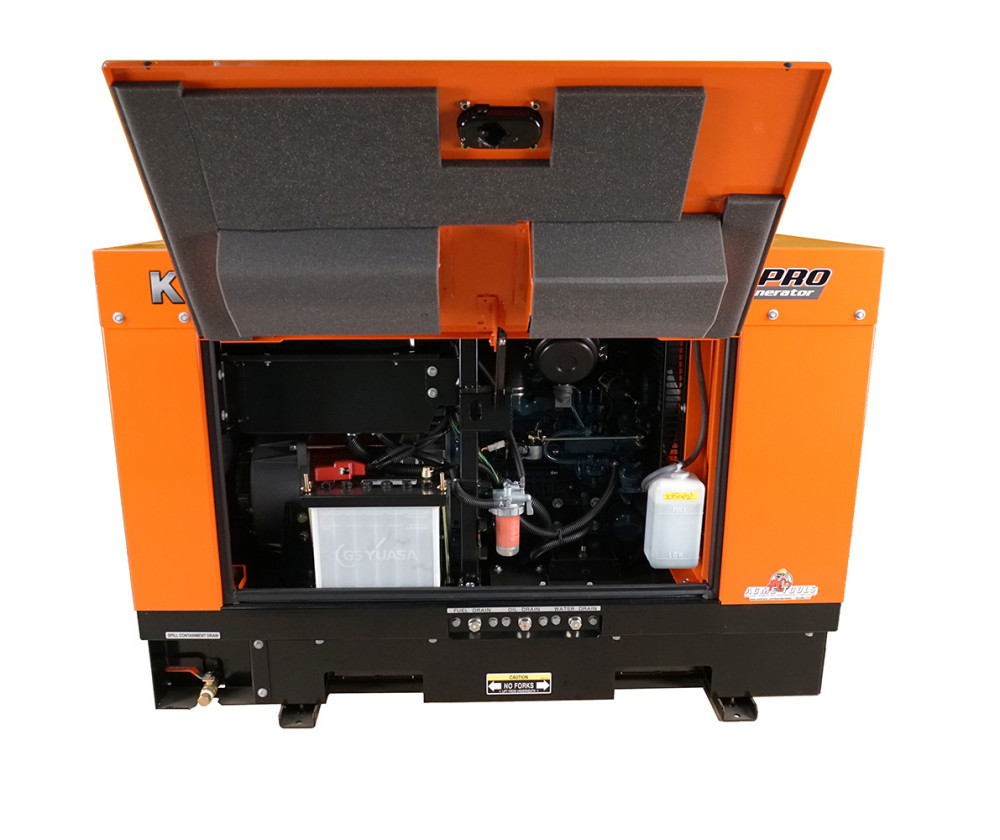

All maintenance locations can be accessed from a single, large access panel on the side of the generator: oil gauge, oil filter, oil fill, fuel filter, water tank, battery and air cleaner.

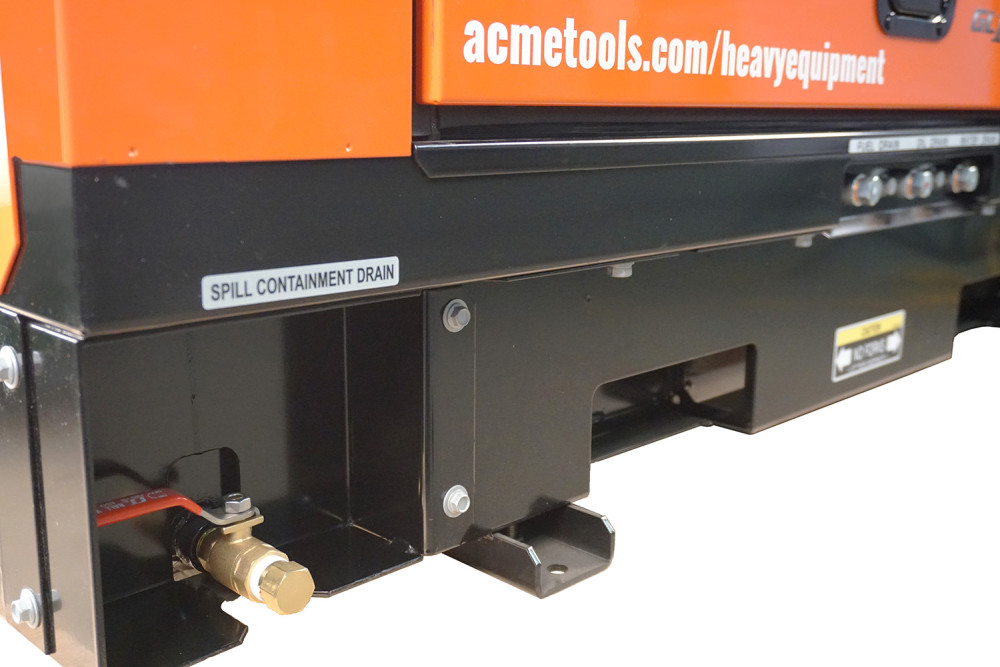

Engine oil and coolant drain extensions are included to help with regularly scheduled fluid changes.
The large-capacity radiator reduces fan-related noise by direct coupling the crankshaft with a slower-speed fan.
The large-capacity, built-in muffler reduces exhaust noise
A longer air-cleaner hose dampens air-suction noise levels.
The inlet vent is strategically placed and specifically designed to allow minimal noise from the enclosure’s opening.
Electrodeposition coating covers the edges uniformly, which provides corrosion prevention that is difficult to achieve with other technologies
From top to bottom, the GL14000 is designed to resist corrosion in wet weather and other extreme conditions
External powder coat provides a hard finish that further resists corrosion and maintains its appearance in severe working conditions
The new GL14000 alternator is optimized to generate more magnetic force with fewer turns, which improves long-term reliability and durability
Varnishing bundles individual coils together within the interior winding layer, greatly improving durability
The surface of the coil layer is coated with a second layer of varnish to protect against dust and moisture
The varnish-coated wires are wound at a constant pitch, increasing protection against the wear and ear inherent in high-speed rotation components
The entire alternator is finish-coated with another varnish layer that enhances moisture and water resistance while ensuring excellent performance in extreme weather
Direct engine coupling and unique cooling system enhance the GL14000’s low profile that allows it to fit in more spaces
Specifications
Acme Tools Brand Name
KUBOTA
Acme Tools Part Number
GL 14000-AUTO
Assembled Weight (lbs)
904
California Proposition 65 Warning Required
Yes
Color / Finish
Orange/Black/Grey
Country of Origin
Japan
Current Range (A)
50/50 x 2
Engine
Kubota/D902
Engine Cooling System
Liquid Cooled
ETL Listed
No
Fuel Consumption Using Full Load Per Hour
1.29
globalTradeItemNumber (GTIN)
00407001000648
Height (in)
35.24
Internal Supplier Part #
GL 14000-AUTO
Length (in)
51.57
Low Oil Shut Down
Yes
Manufacturer Warranty
See manufacturers website for details
Package Contents
Generator; Owners Manual
Package Depth
43
Package Height
56
Package Weight
923
Package Weight (lbs)
934
Rated Wattage
14
Recommended Oil & Capacity
9.62
Standby Generator Fuel Type
Diesel
UL Listed
No
UPC
407001000648
Voltage Rating

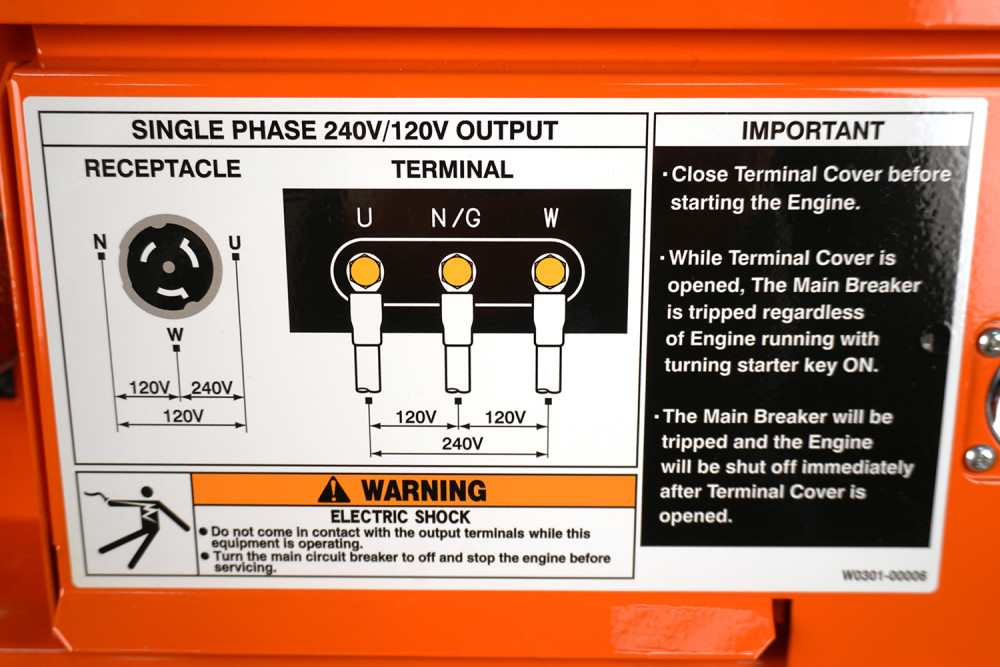

240/120
Weight (lbs)
904
Width (in)
25.2
