Description

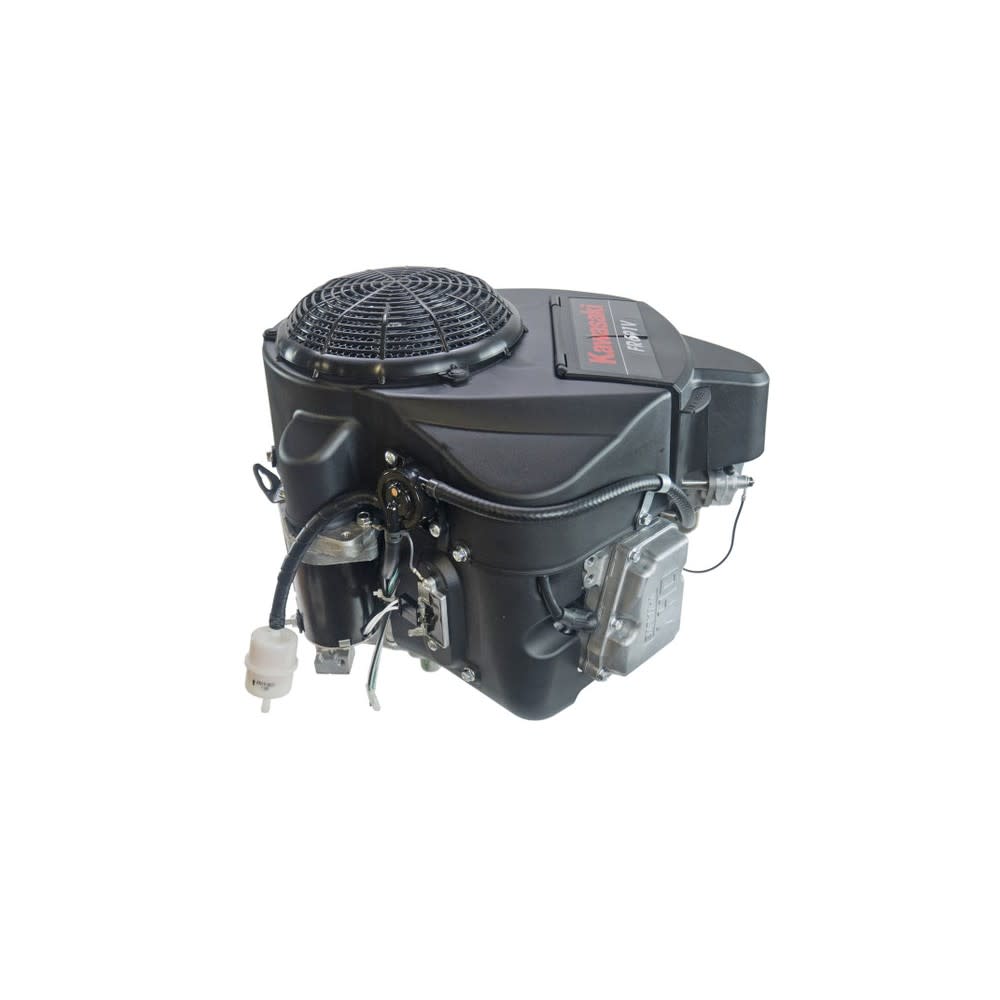

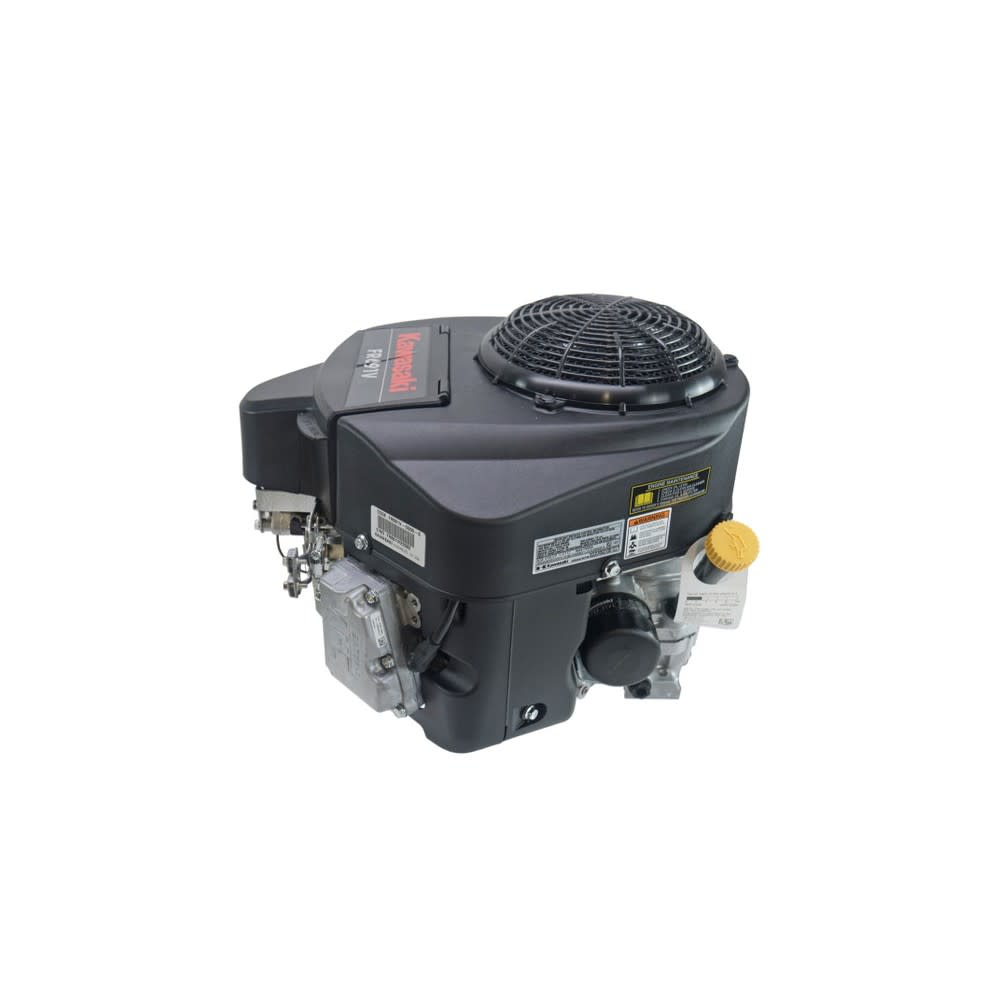

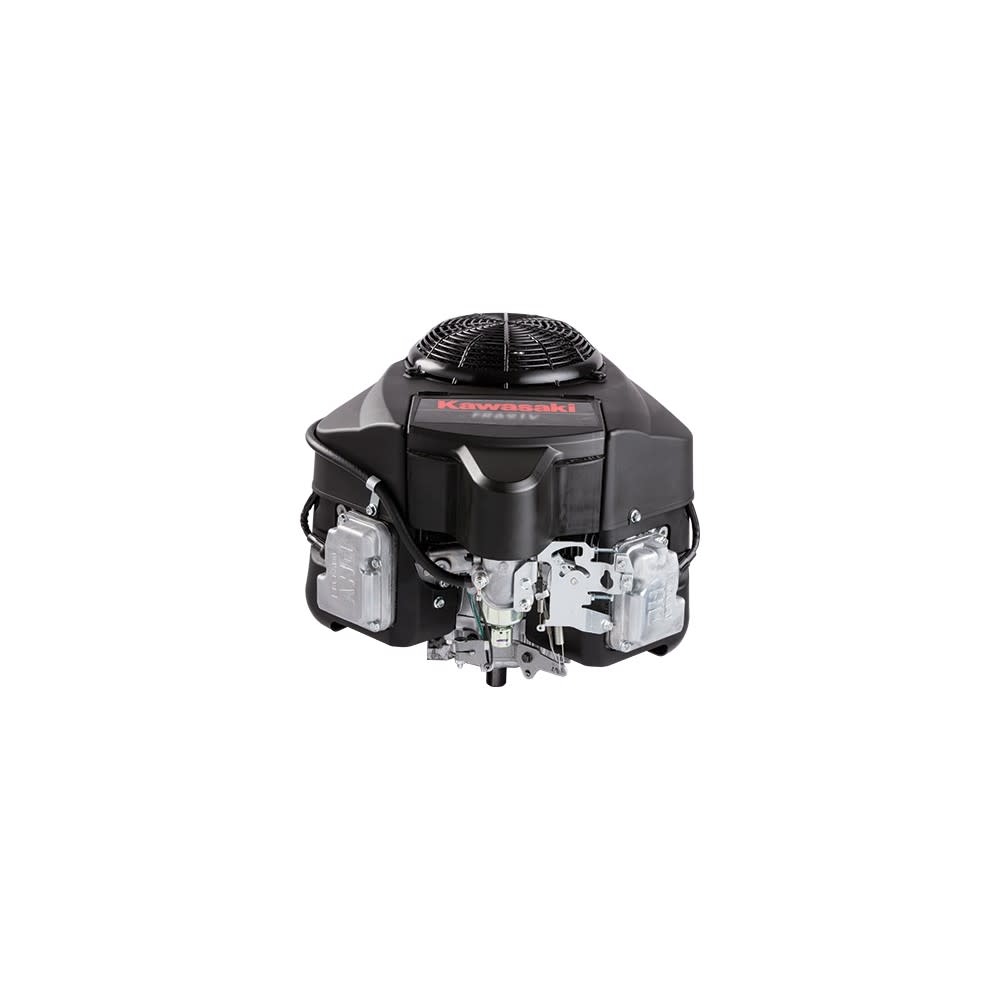

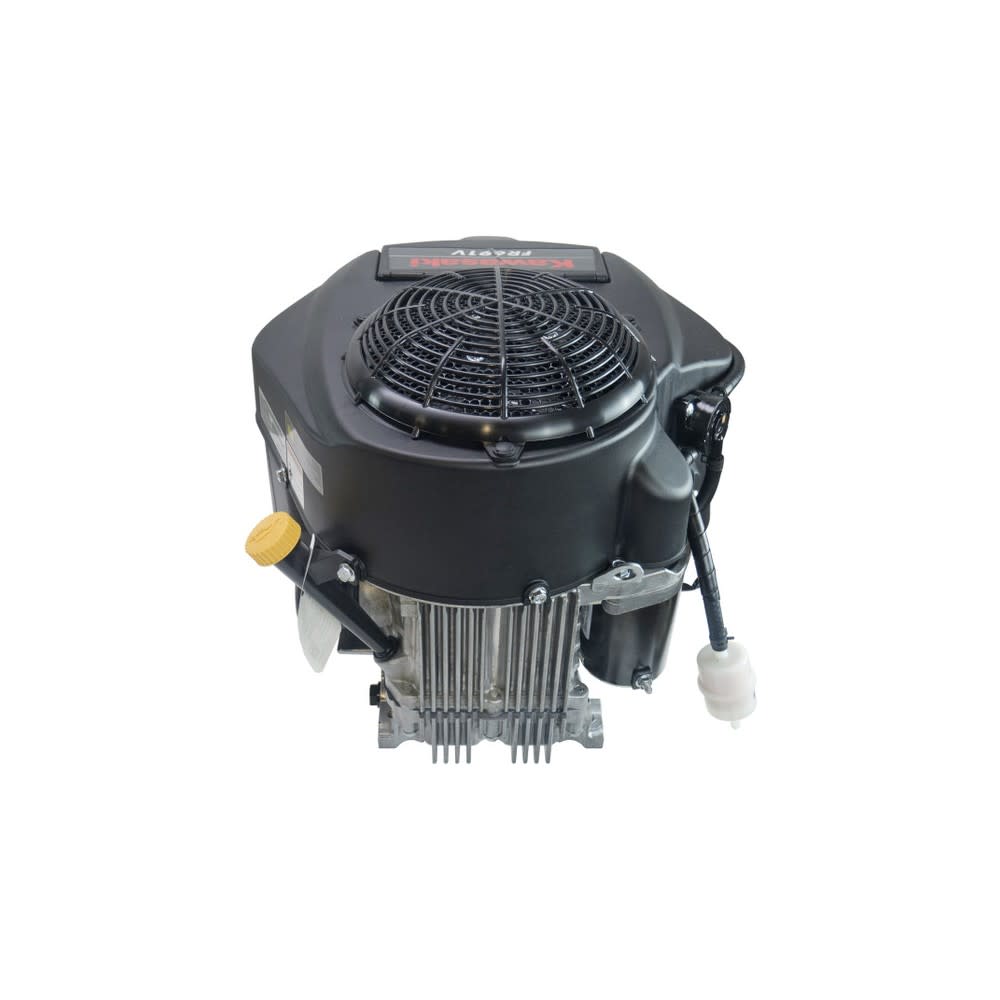

Kawasaki Gasoline Engine Air Cooled V Twin 4 Stroke 23hp 726cc
Pros trust Kawasaki power for dogged toughness in their machines, year after year. That same strength and quality is ready for deployment at home in the all-new FR Series engines. The FR Series brings a 4-cycle V-twin powerplant to a range of sizes from 18HP to 26HP. SAE-Certified critical power. The FR691V engine is a commercial-grade powerplant that meets your yard’s toughest demands. This 4-cycle engine features automatic compression release and an internally vented carburetor.
Features
Overhead V-valves
90 Deg V-twin
Pressurized lubrication system
Electronic spark ignition
Automatic compression release
Single-stage air filter
Internally vented carburetor with fuel shut-off solenoid
Rotating metal grass chopper screen
Cast-iron cylinder liners
Specifications
Acme Tools Brand Name
KAWASAKI ENGINES
Acme Tools Part Number
FR691V-GS00S
Assembled Weight (lbs)
88.18
Camshaft Configuration
OHV
Color
Multiple
Color/Finish
Multi
Country of Origin
United States
Cylinder Count
2
Dry Weight (lbs)
88.2
Engine Block Material
Cast Iron
Engine Bore (mm)
78
Engine Compression Ratio
8.2:1
Engine Configuration
V-Twin
Engine Cooling System
Air Cooled
Engine Cycle
4-Stroke
Engine Displacement (cc)
726
Engine Fuel Type
Gasoline
Engine Horsepower (hp)
23
Engine Output Shaft Direction
Vertical Shaft
Engine Stroke (mm)
76
Engine Torque (ft-lbs)
39.3
globalTradeItemNumber (GTIN)
00406069000133
Ignition System
Electronic
Oil Capacity (qt)
2.1
Package Contents
Replacement Engine
Package Depth
19.72
Package Height
15.43
Package Weight
88.18
Starting System
Electric Starter
Type of Lubrication System
Full Pressure
UPC
406069000133
