Description

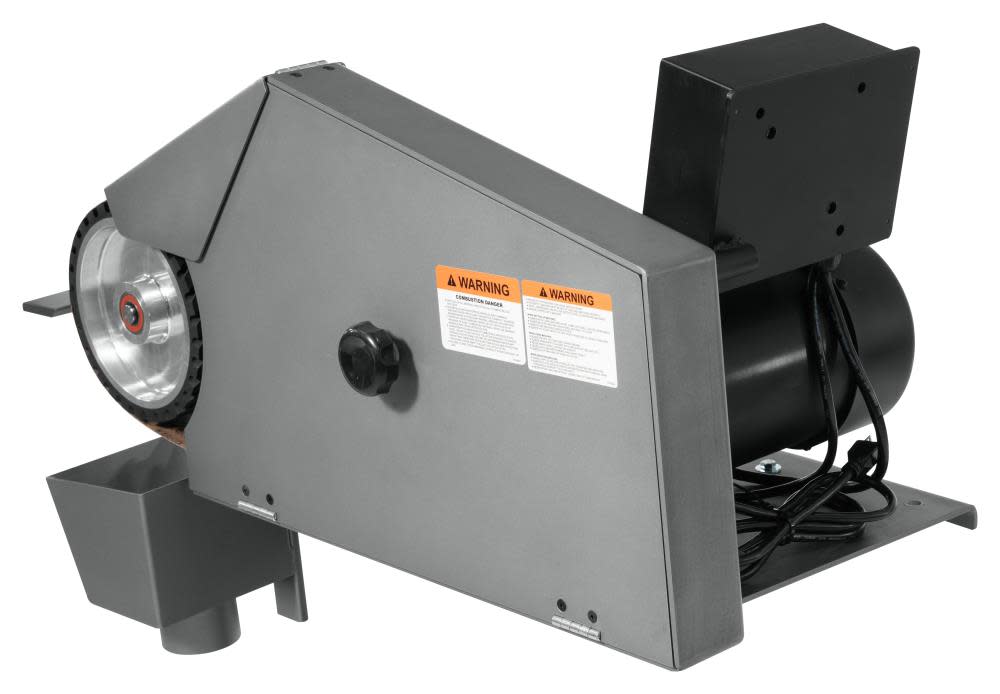

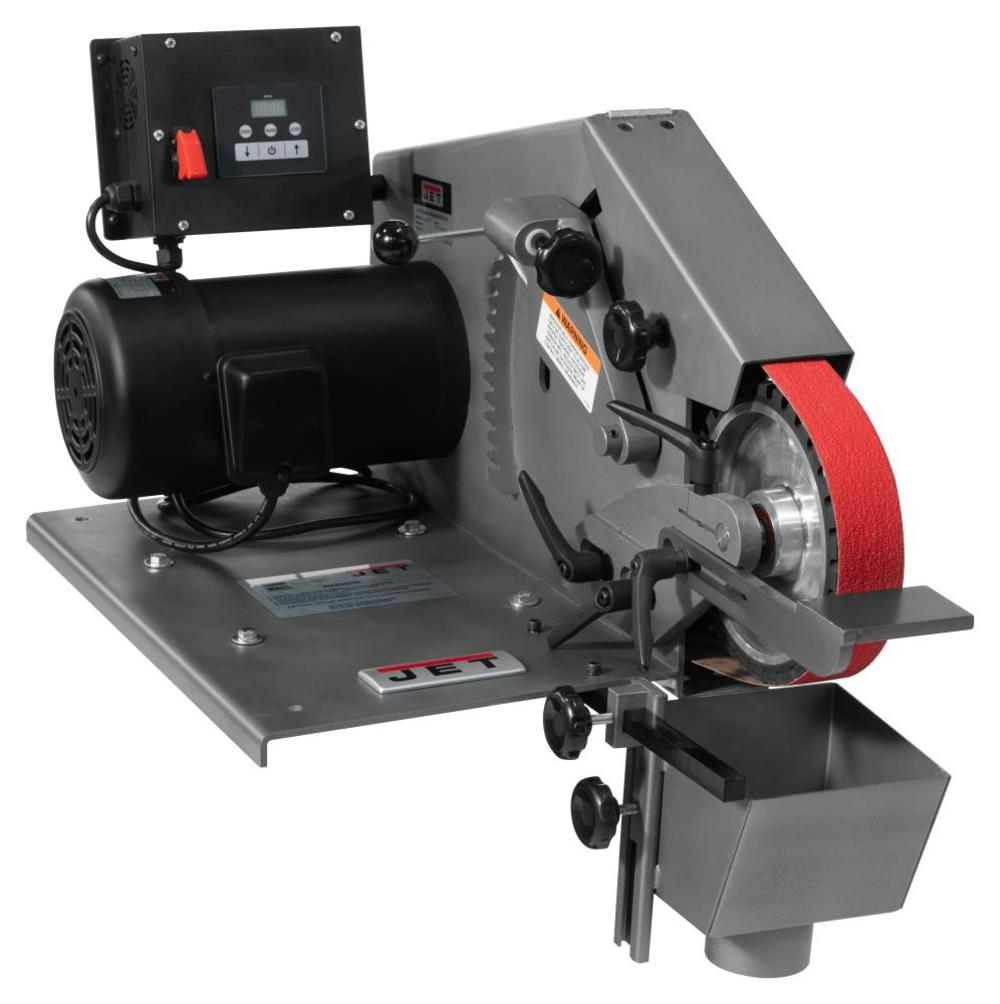

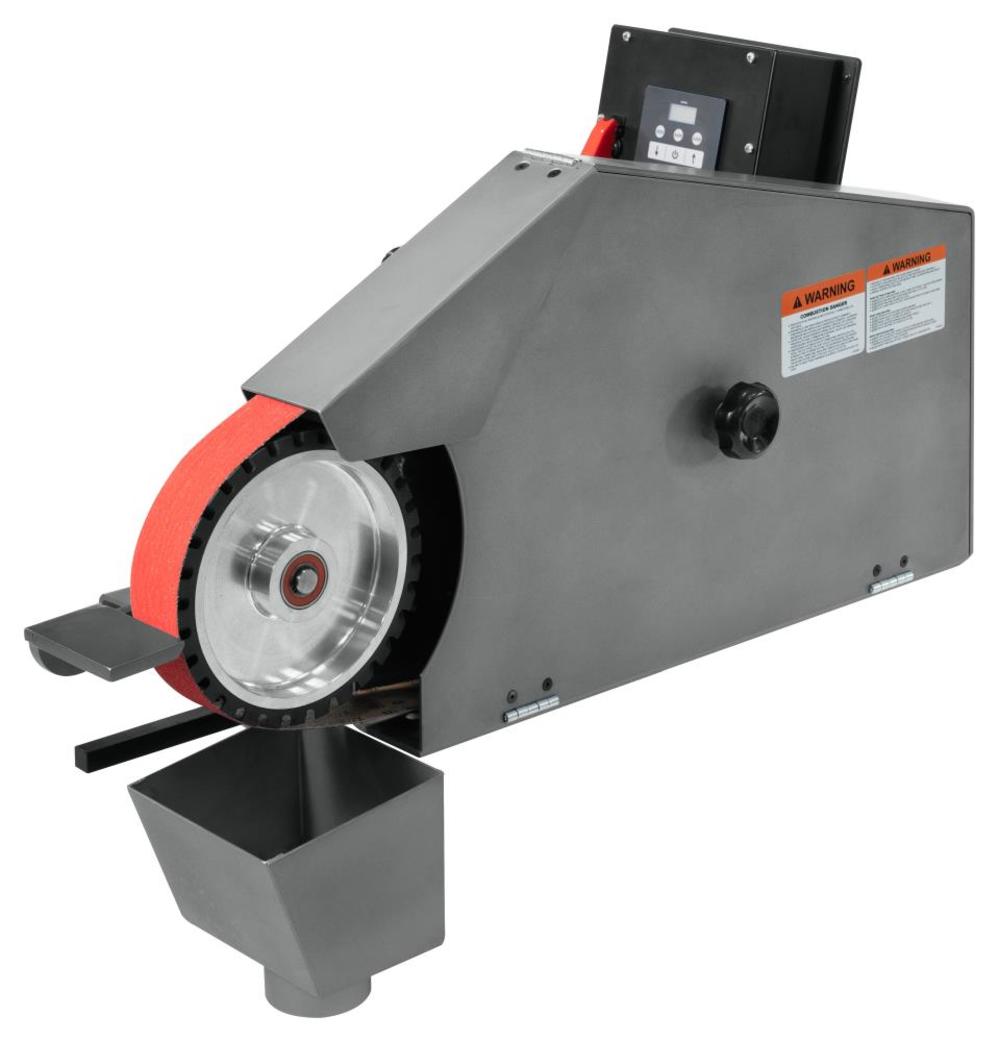

Jet SWG-272VS EVS Square Wheel Grinder 1HP, 115/230V, 1 Phase
The JET Square Wheel Grinder is a belt grinder that uses a flat platen and idler wheels at each end to achieve a long, flat grinding surface. This innovative design permits grinding on the front wheel, which is square to the work and not crowned. The JET Square Wheel Grinder will grind, deburr and chamfer with equal proficiency both internal/external on parts large or small. We have added a dust port to help keep your shop clean and sparks and debris away from the operator.
Features
Flat & angular Stock: platen setting is the perfect angle for high speed, precision flat and level grinding
Steel frame and platen provides heavy duty construction
Strong cast iron head casting
Aluminum casted drive wheel for years of use
Totally enclosed fan cooled inverter motor
Fully guarded on all grinding surfaces

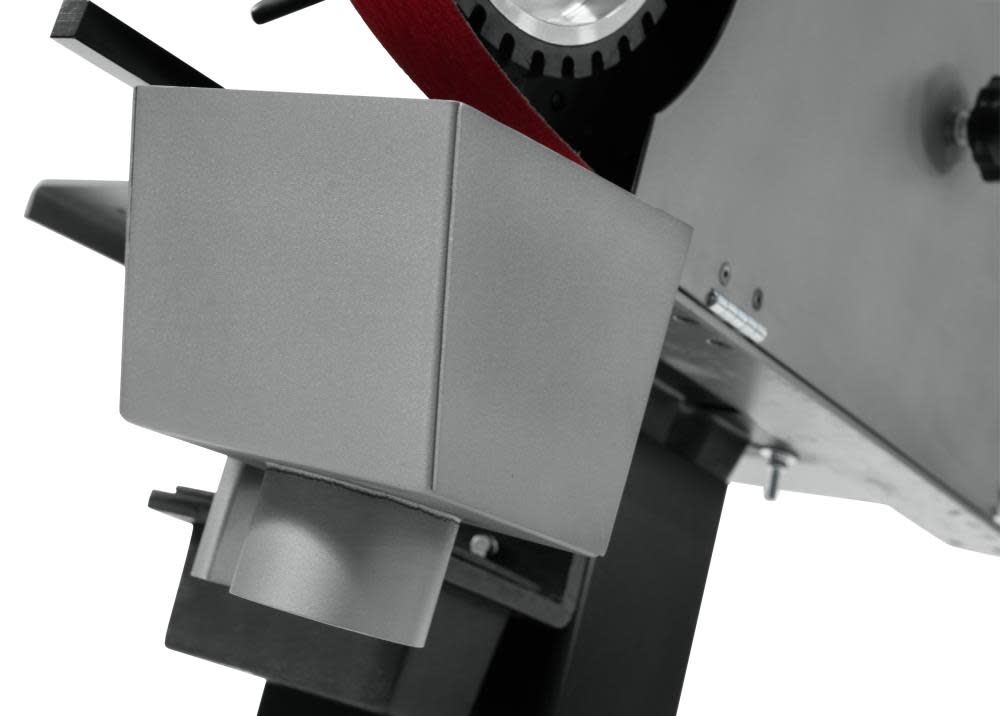

Adjustable dust port with high dust collection efficiency and drive sparks away from the operator
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
577405
Amperage (A)
13
Assembled Weight (lbs)
131
Belt Grit
50
Belt Included
Yes
Belt Length (in)
72
Belt Material
ALUMINUM OXIDE
California Proposition 65 Warning Required
Yes
Color / Finish
Grey/Metal
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Dust Collection
Yes
globalTradeItemNumber (GTIN)
00731325868517
Grinder Type
Bench
Height (in)
21.84
Horsepower (hp)
1
Housing Material
Steel
Internal Supplier Part #
577405
Internet Product Code (IPC)
C2E42AA3314
Length (in)
35.44
Manufacturer Warranty
2 Year
Motor Type
Totally enclosed fan cooled, inverter
Package Contents

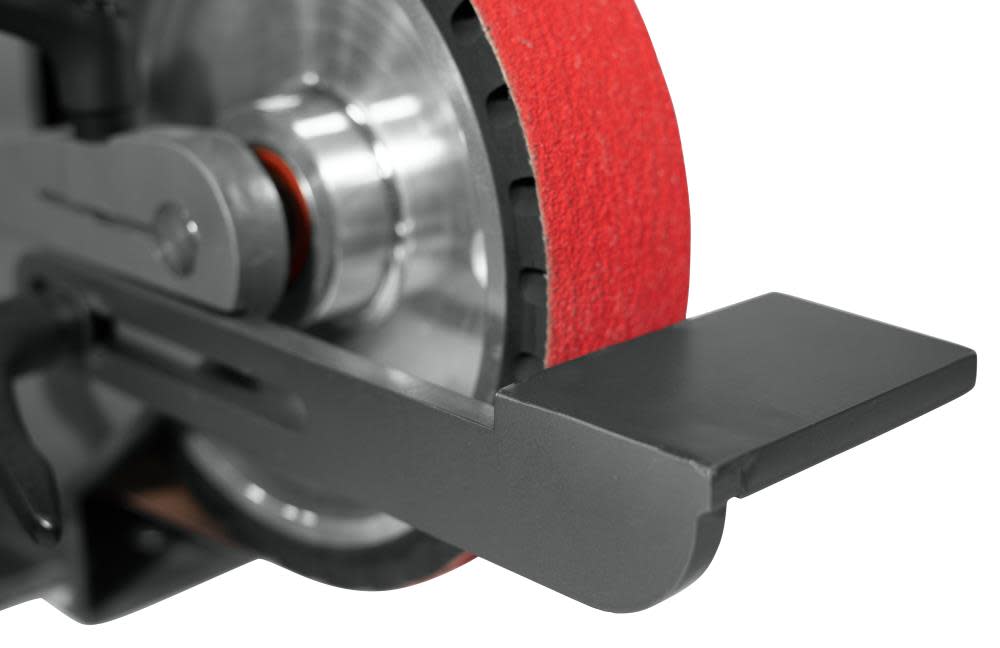

1 Grinder, 1 Serrated contact wheel 8”x2” (installed), 1 Abrasive belt (installed) 1-1/2″ x 2″ smooth contact wheel (dia. x w), 3″ x 2″ smooth contact wheel (dia. x w), 8″ x 2″ serrated contact wheel, 3″ dust port, Casted work rest
Package Depth
36
Package Height
22
Package Weight
167
Spindle Lock
No
Spindle Speed High (rpm)
6200
Spindle Speed Low (rpm)
2000
Switch Type

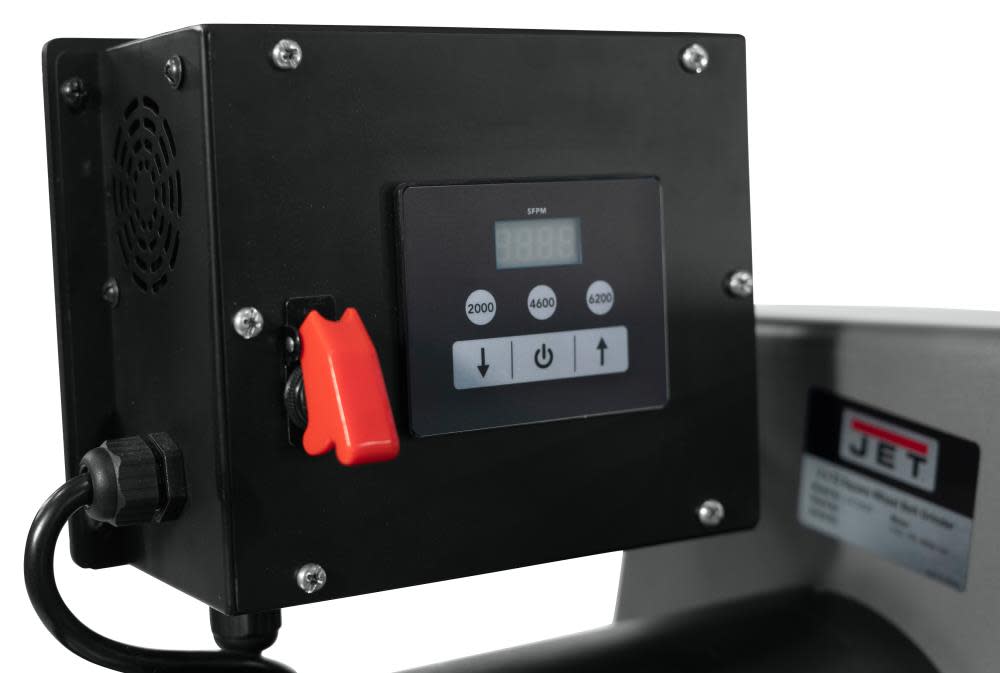

Toggle switch with safety cover; Membrane switch inverter panel
UL Listed
No
UPC
731325868517
Variable Speed
Yes
Voltage
115/230 Volts
Weight (lbs)
131
Width (in)
17
