Description

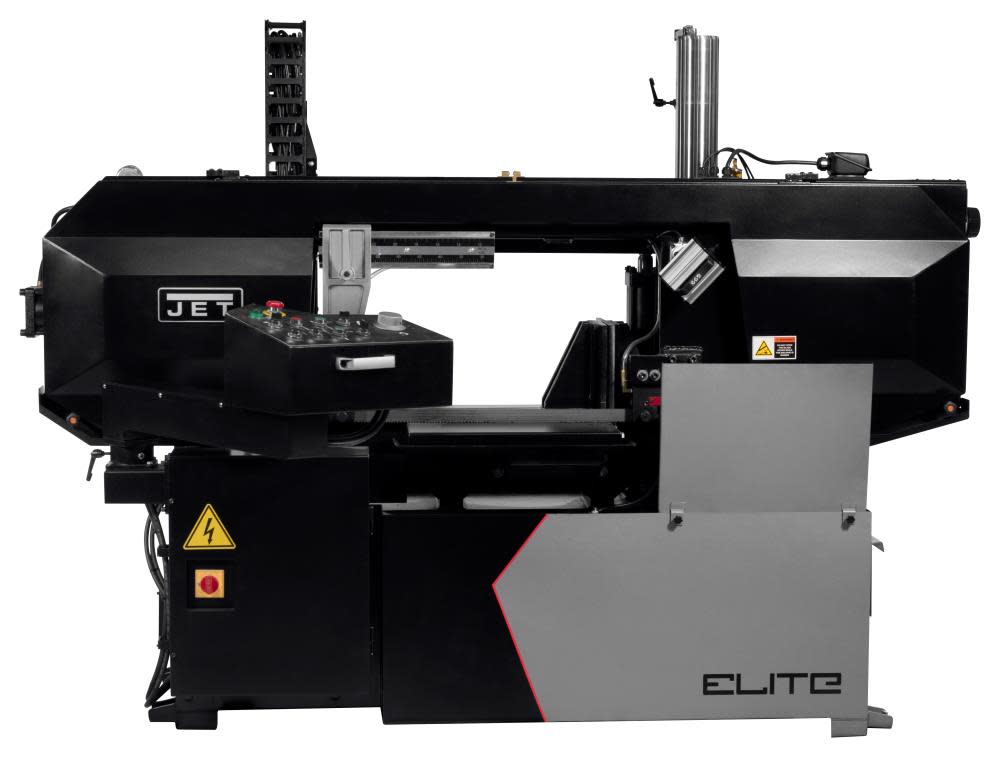

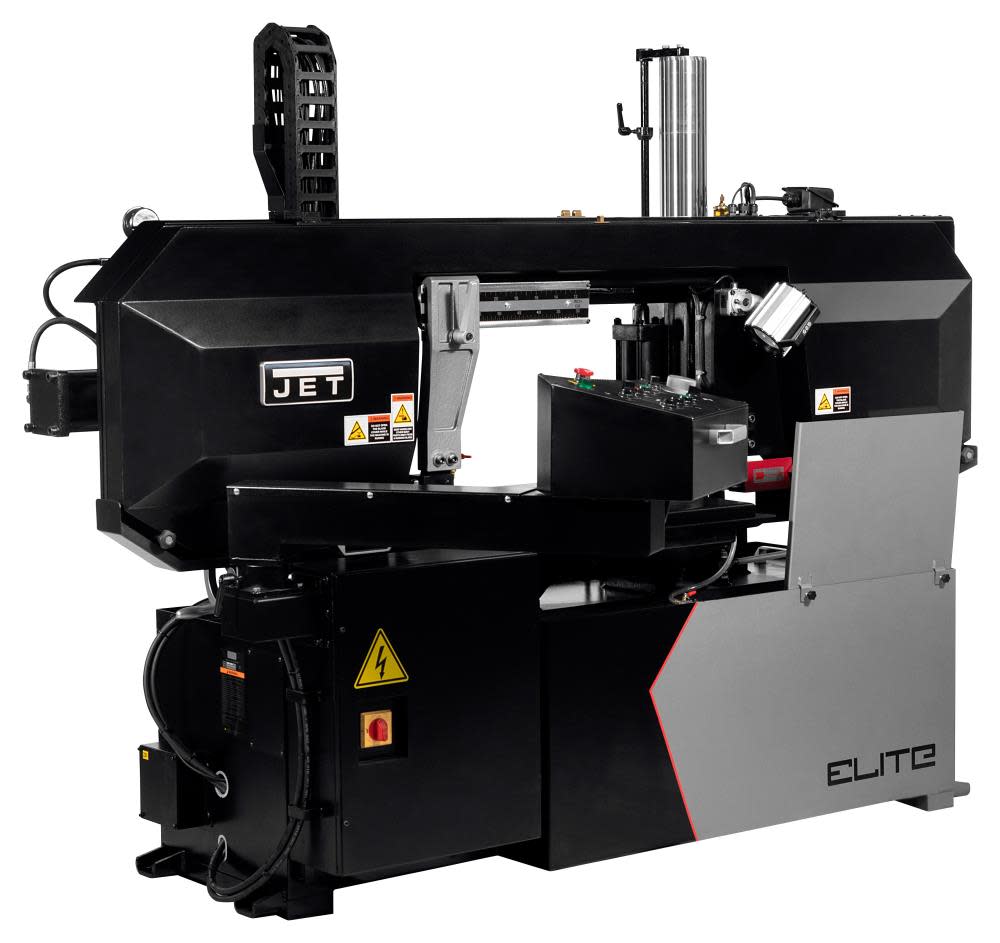

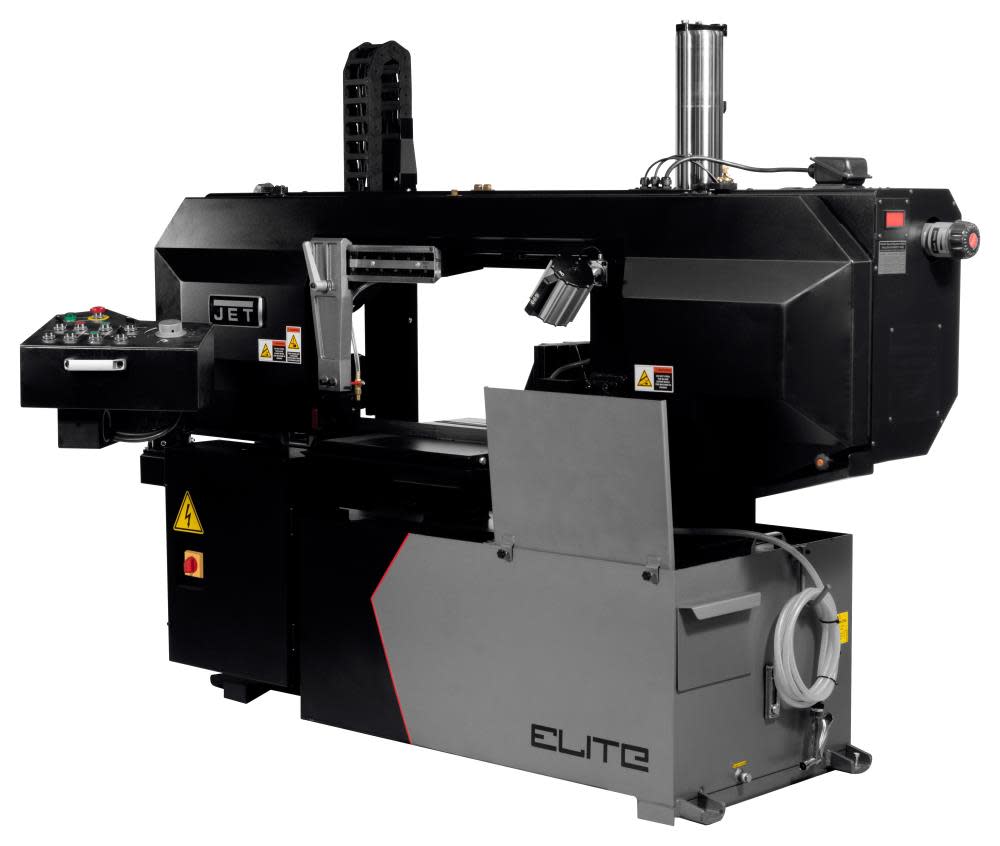

Jet Bandsaw Semi Automatic Variable Speed Dual Column 5hp 3 Phase 230/460V 14 x 22″
JET Elite’s Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.
Features
Two column design for more precise and productive cutting
Blade tension gauge helps to ensure the blade is in the correct cutting position

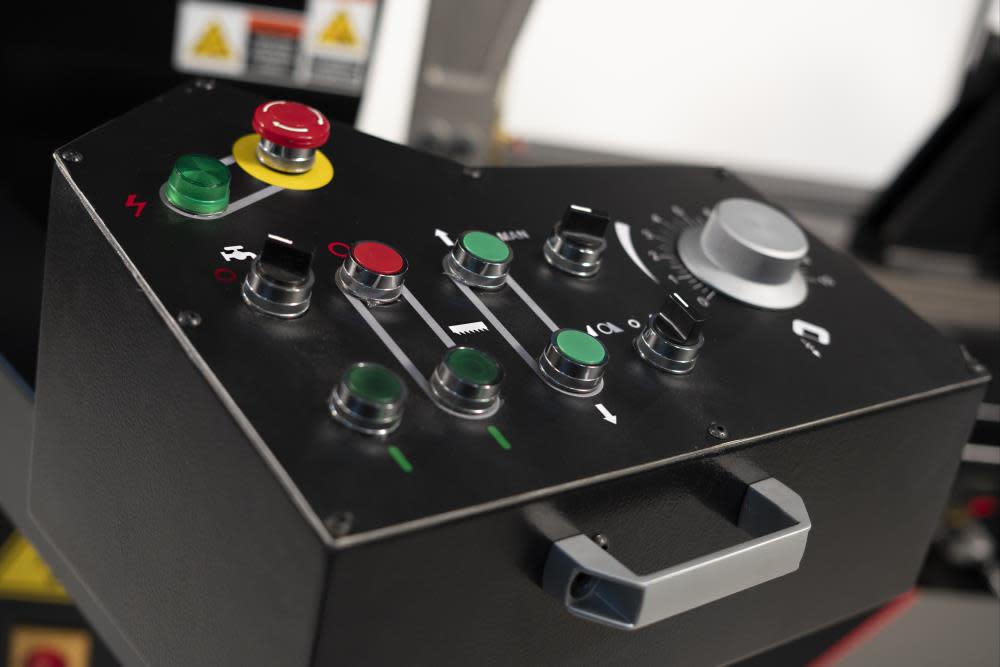

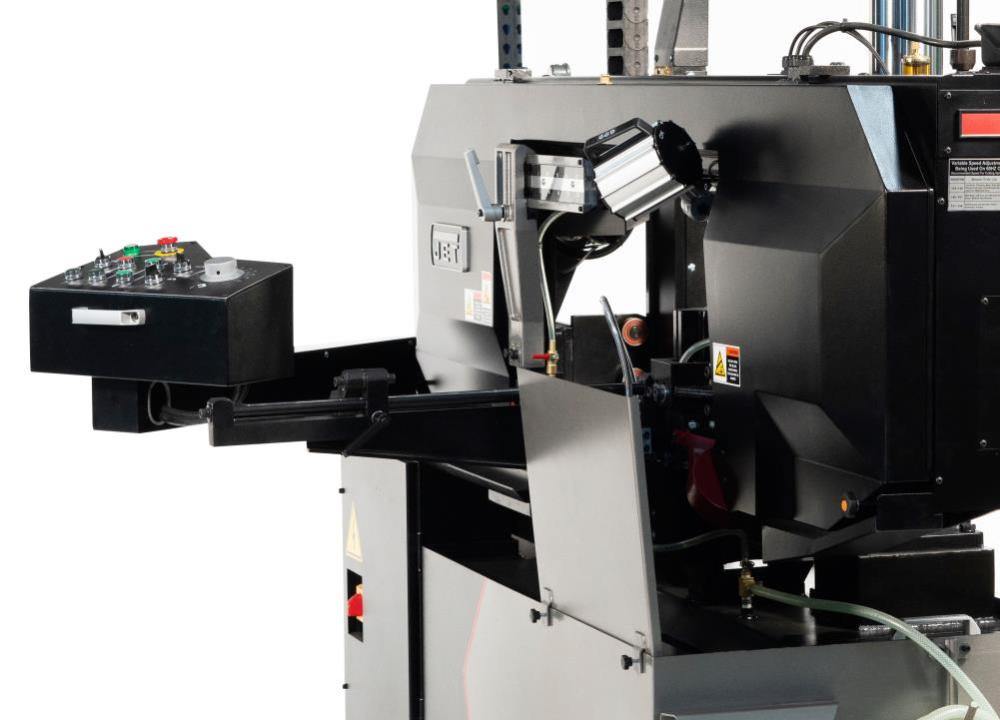

Swing away control box allows Operator to use in any position
Semi-auto on saw bow lifting & hydraulic vise
Easy frame height adjustment
Heavy duty construction reduces vibration and deflection
Mechanical Variable Speed allows quick and easy speed changes
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
891160
Amperage (A)
12.9
Assembled Weight (lbs)
2266
Band Saw Type
Stationary
California Proposition 65 Warning Required
Yes
Color / Finish
Elite Grey/Metal
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Dust Port
No
ETL Listed
No
globalTradeItemNumber (GTIN)
00731325806847
Horsepower (hp)
5
Internal Supplier Part #
891160
Internet Product Code (IPC)
9172AAEE674
Manufacturer Warranty
3-Year
Material
Cast Iron
Maximum Blade Length (In)
192.13
Maximum Blade Width (In)
1.3
Maximum Feet Per Minute
250
Maximum RPM
60
Minimum Blade Width (in)
1.3
Number of Wheels
2
Package Contents
1 Band Saw, 1 Stock Stop Assembly, 1 Splash Plate1 Test Piece, 1 Product Manual, 1 Product Registration Card, 1 Tool Box Complete
Package Depth
98
Package Height
74
Package Weight
2992.0
Speeds
75250
Stand Included
Yes
Table Height (in)
29.21
Table Height From Floor (In)
29.21
Table Length (in)
14
Table Material
Cast Iron
Table Width (in)
22
UL Listed
Yes
UPC
731325806847
Variable Speed
Yes
Voltage
230/460 Volts
