Description

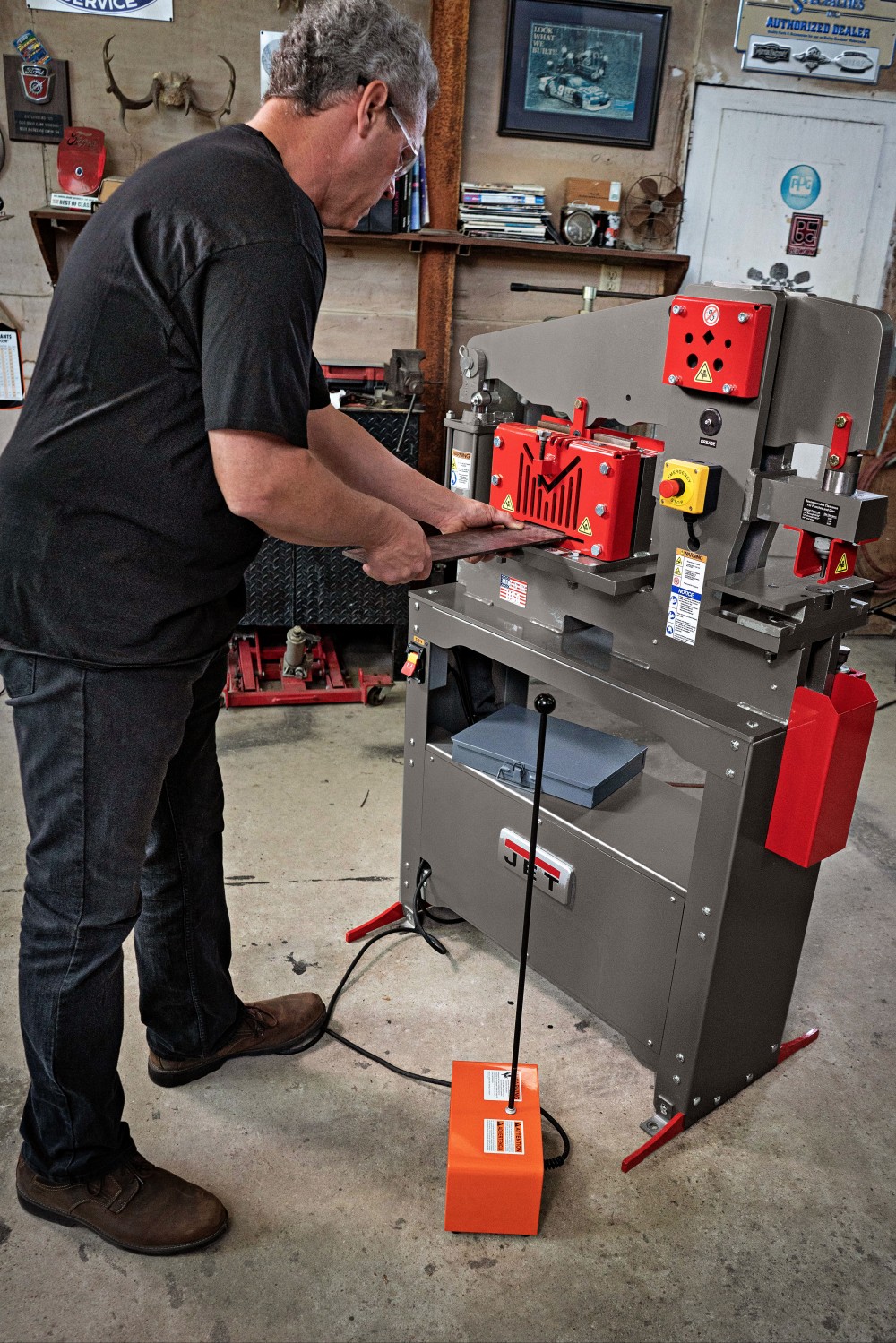

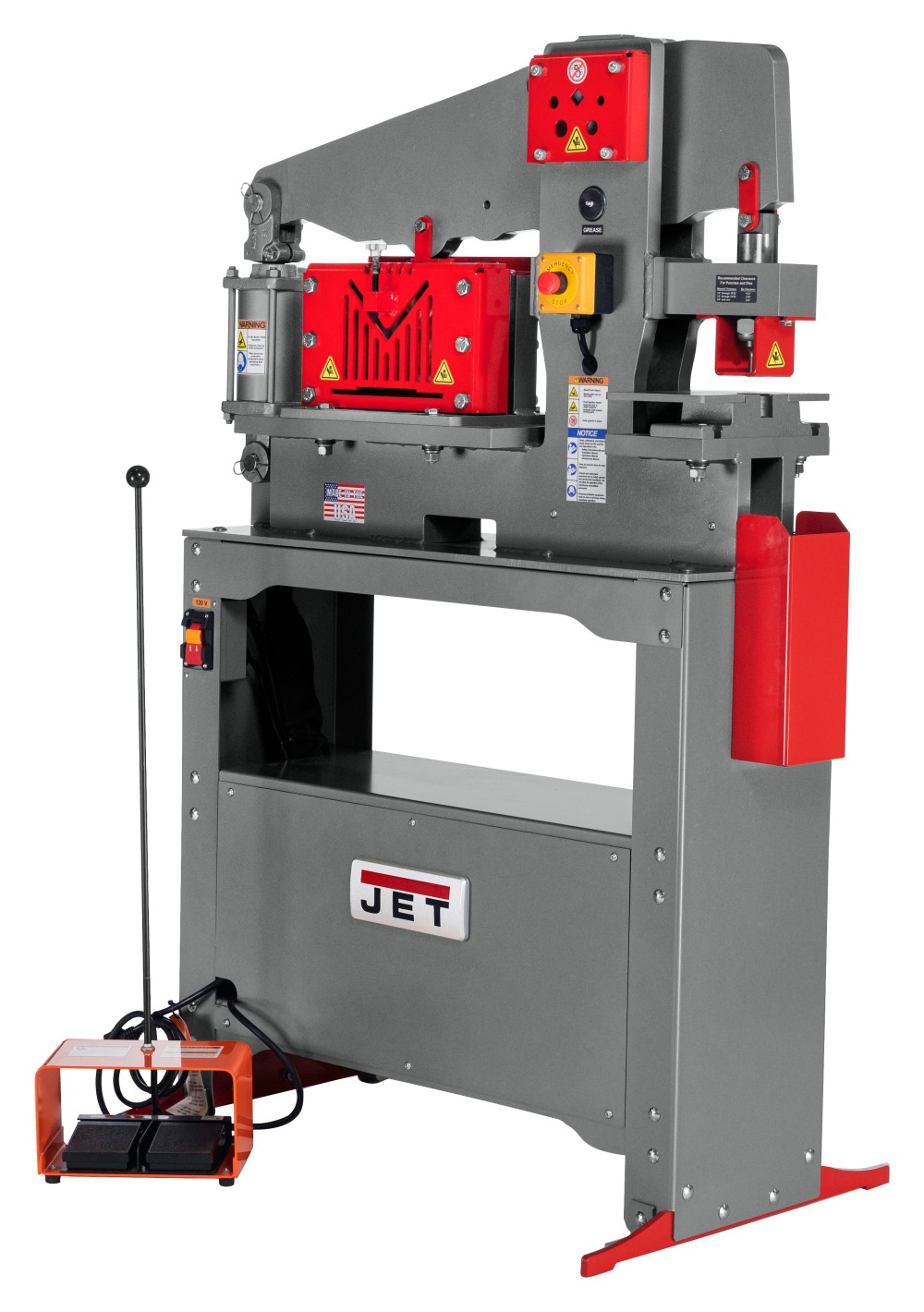

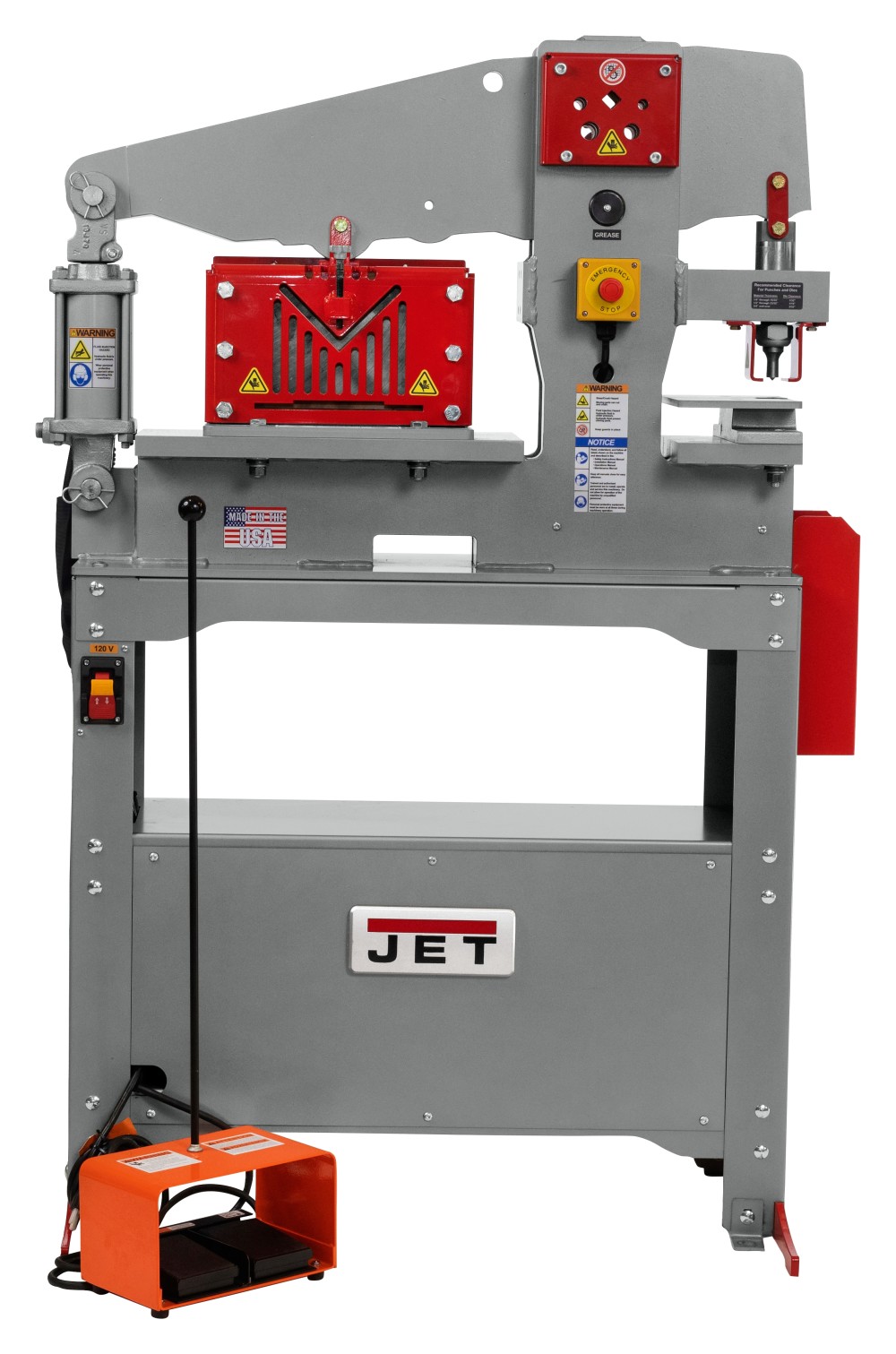

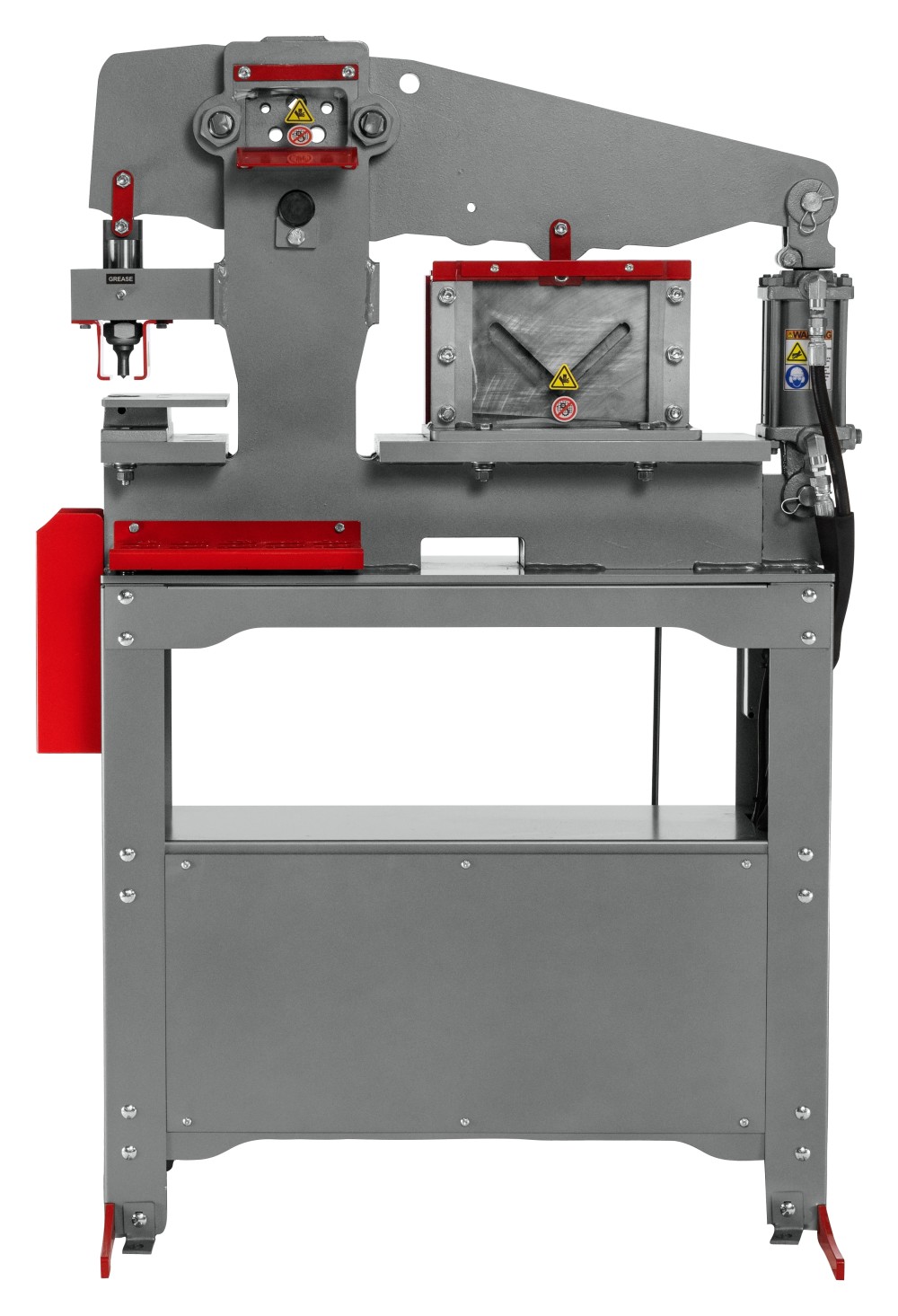

Jet 45 Ton Ironworker
The JET 45 Ton Ironworker delivers 4 workstations to provide solutions to users needs, with a Punch workstation, a combination Flat Bar Shear and Angle Shear, and an integrated 7-size Rod Shear. Small and with a compact footprint, this Ironworker also includes a Punch & Die Holder and Slug Receptacle to keep the users work area clean and organized. This sturdy and tough Ironworker is Made in the USA and back by the JET RED Assurance 2-Year warranty.
Features
Four Workstations: Punch, Flat Bar Shear, Angle Shear & Rod Shear
Operates on 115V power allowing use almost anywhere
ANSI Compliant Guarding on the Angle & Rod Shears
E-stop with UL listed compliant controls providing additional operator safety
Includes a Punch & Die Storage Tray able to hold up to 10 Punch & Die Sets
Optimized workstation heights reduce user fatigue
Slug receptacle collects all punch slugs keeping work area clear
Blades for the Flat Bar, Angle and Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life
Compatible with most Edwards Punch & Die Sets including round, square, oblong, hex, and metric
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
756100
Amperage (A)
14
ANSI Safety Listing
Yes
Assembled Weight (lbs)
698
California Proposition 65 Warning Required
Yes
Color / Finish
Gray/Steel
Country of Origin
United States
CSA Certified
No
ETL Listed
No
Horsepower (hp)
1.5
Internal Supplier Part #
756100
Internet Product Code (IPC)
96F0153B7D9
Manufacturer Warranty
2 Year
Maximum RPM
3500
Motor Horsepower (hp)
1.5
Motor Voltage (V)
115
Overall Height (in)
58
Overall Length (in)
40
Overall Width (in)
24
Package Depth
51
Package Height
64
Package Weight
802
Phase
Single Phase
Reservoir Capacity (gal)
7
UL Listed
Yes
UPC
400561000301
Voltage
115
Weight (lbs)
698
