Description

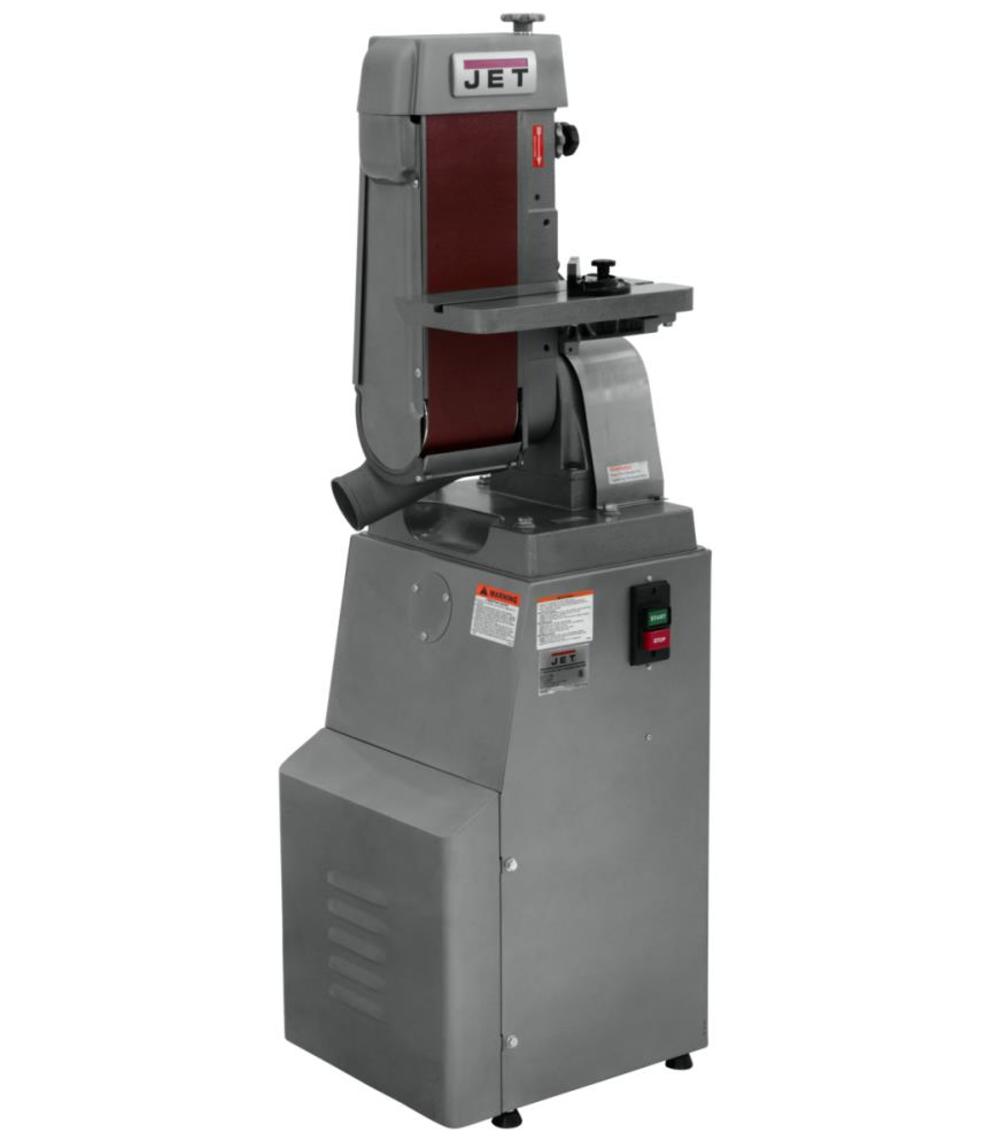

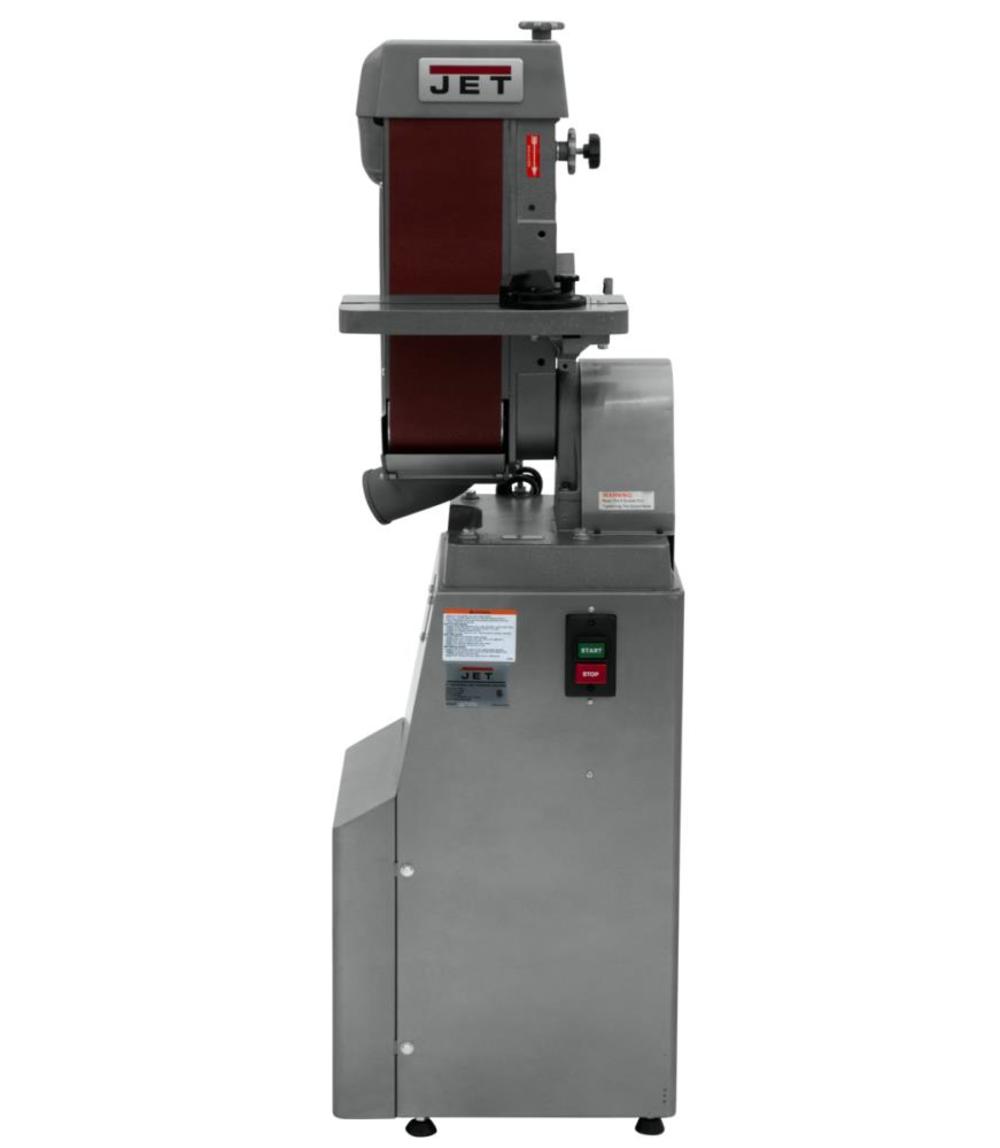

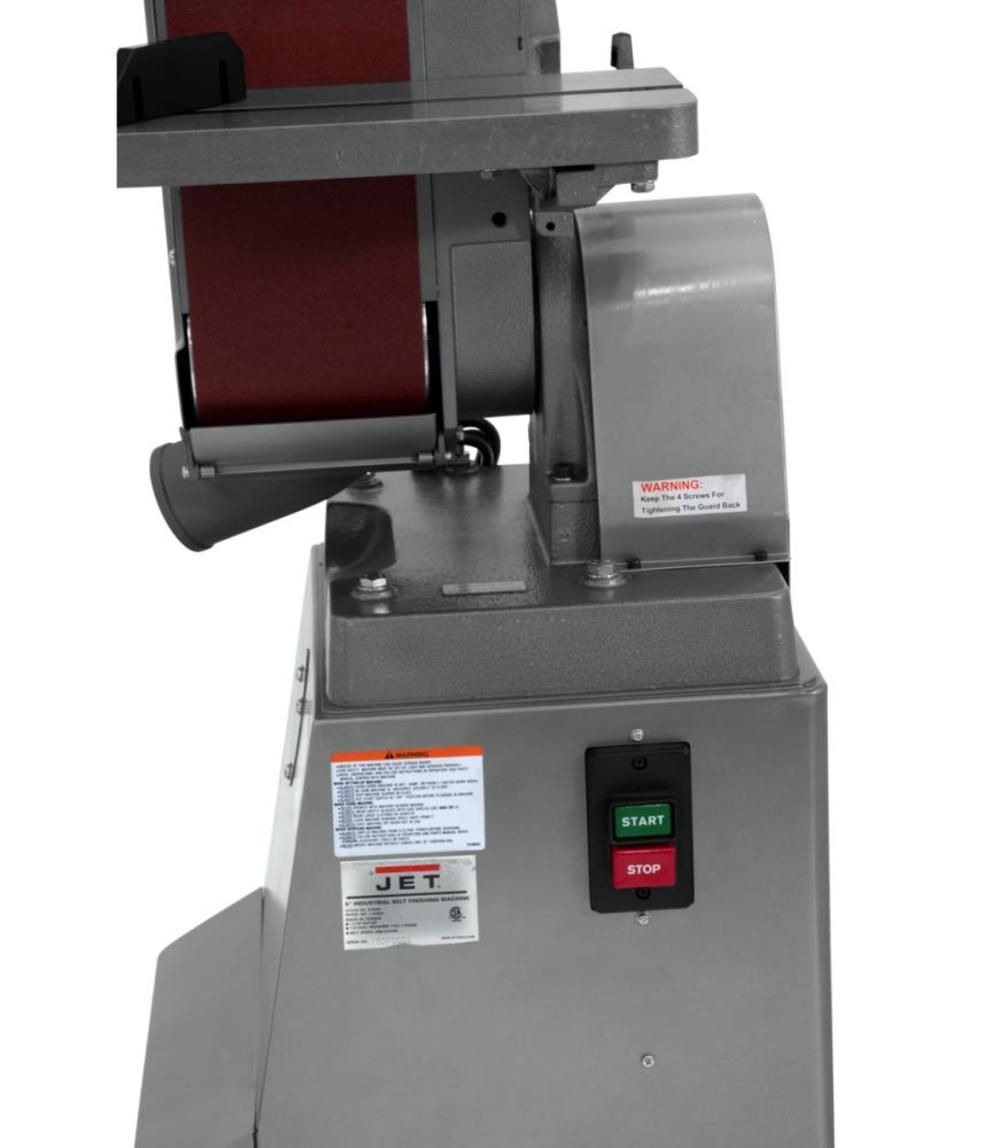

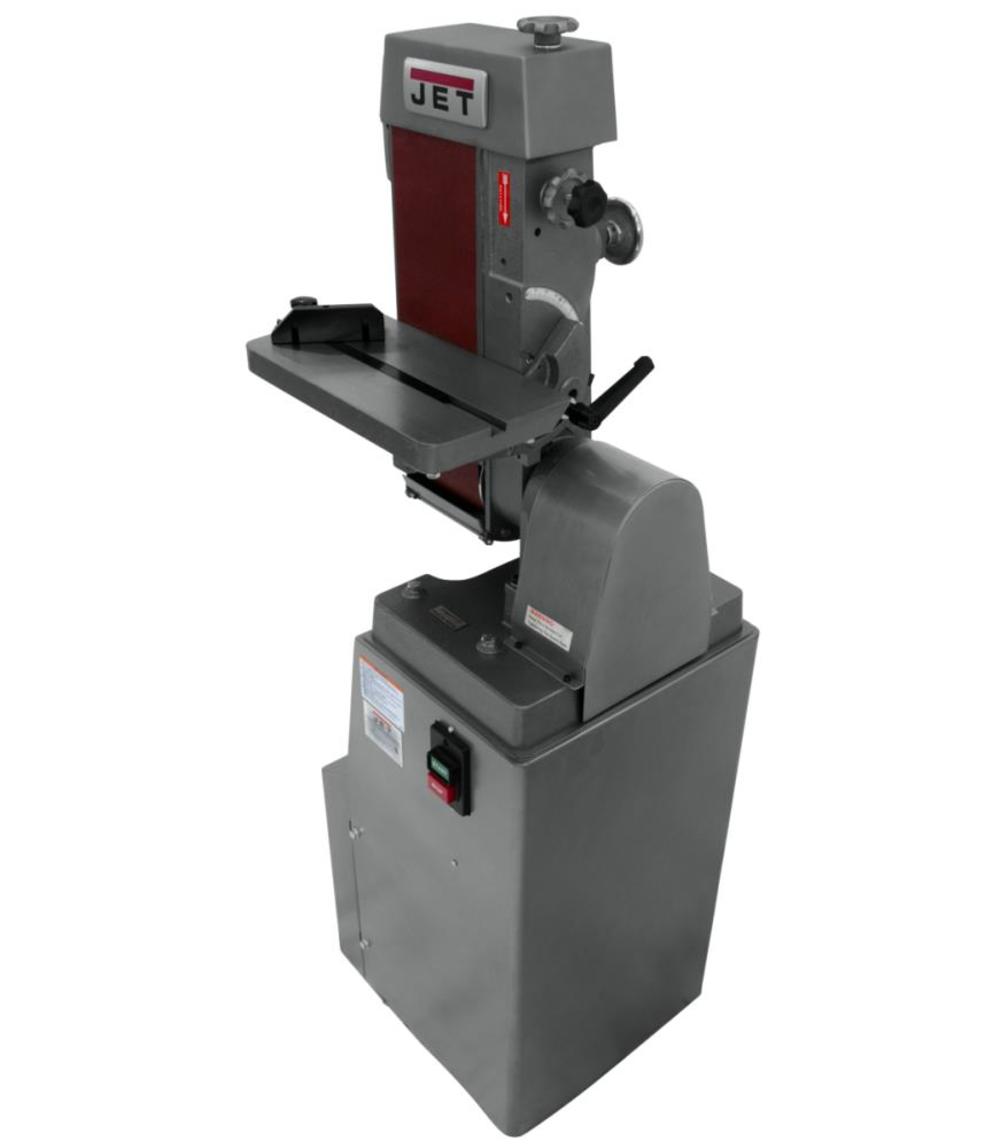

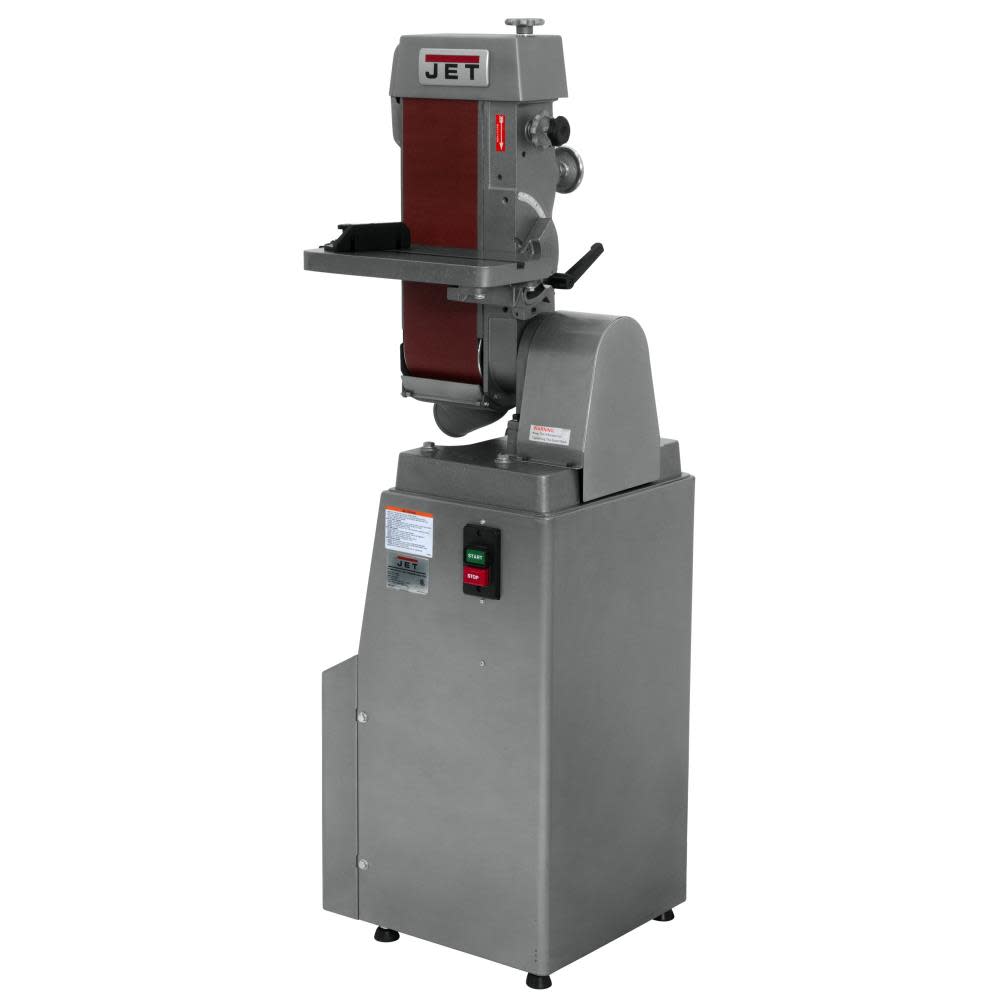

J-4301A 6 x 48 Industrial Belt Finishing Machine, 3 Phase
High-speed precision that conforms to curves, variable speed operation for command and control at all times and confidence that JET® square wheel grinders, and combination sanders and chamfering machines will perform at the flip of a switch.
Features
Table tilts 45° out and 20° in for all angle finishing operations
Adjustable dust deflector and dust chute
Completely enclosed drums and a guarded sanding belt
Fine thread adjustment for simple and easy belt tracking
Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge
Will handle virtually all the finishing operations in a production line
Adjustable heavy duty cast iron removable platen
Removable upper guard for contour finishing
Variable position locks, belt head adjusts vertically, horizontally and in between
Heavy duty one piece steel stand
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
414601
Amperage (A)
6
Arbor Size (in)
0
Assembled Weight (lbs)
215
Assembly Required
Yes
Belt Sander Tilt (Deg)
0
Belt Sanding Speed-Maximum (Ft/Min)
2850
Belt Sanding Speed-Minimum (Ft/Min)
0
Belt Size
6×48
Belt Table Length (in)
6.25
Belt Table Tilt
Yes
Belt Table Width (in)
14.75
Belt Tension Type
Cam/Spring
Bench or Stationary
Bench
California Proposition 65 Warning Required
Yes
Color / Finish
See photo
Convertible To 220 V
No
Cord Length (ft)
8
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Dust Collection
No
ETL Listed
No
globalTradeItemNumber (GTIN)
00662756096111
Grinder Type
Bench
Horsepower (hp)
1.5
Housing Material
Metal
Included Accessories
N/A
Internal Supplier Part #
414601
Internet Product Code (IPC)
102C8402C77
Lock-on Switch
Yes
Lockout Power Switch
Yes
Manufacturer Warranty
2 Year
Material
Cast Iron
Maximum RPM
0
Miter Gauge
Yes
Net Tool Weight (lbs)
290
Overload Protection
No
Package Contents
N/A
Package Depth
30.5
Package Height
49.8
Package Weight
290
Package Weight (lbs)
290
Quick Release Belt Tension
No
Replaceable Brushes
No
Sander Style
Belt
Stand Included
Yes
Table Material
Cast Iron
UL Listed
No
UPC
662756096111
Variable Speed
No
Voltage
115/230 Volts
Wheel Width
0
Work Light
No
