Description

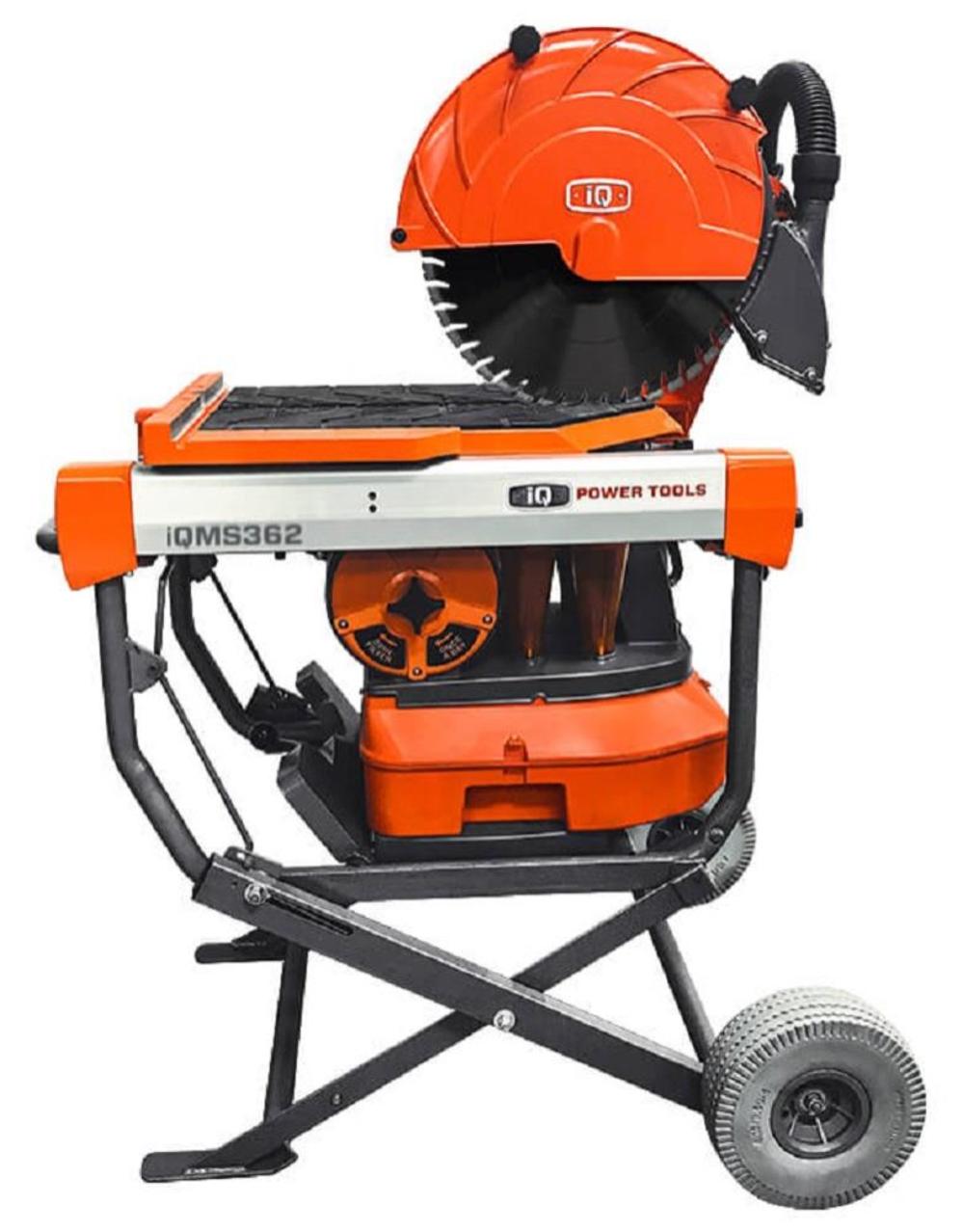

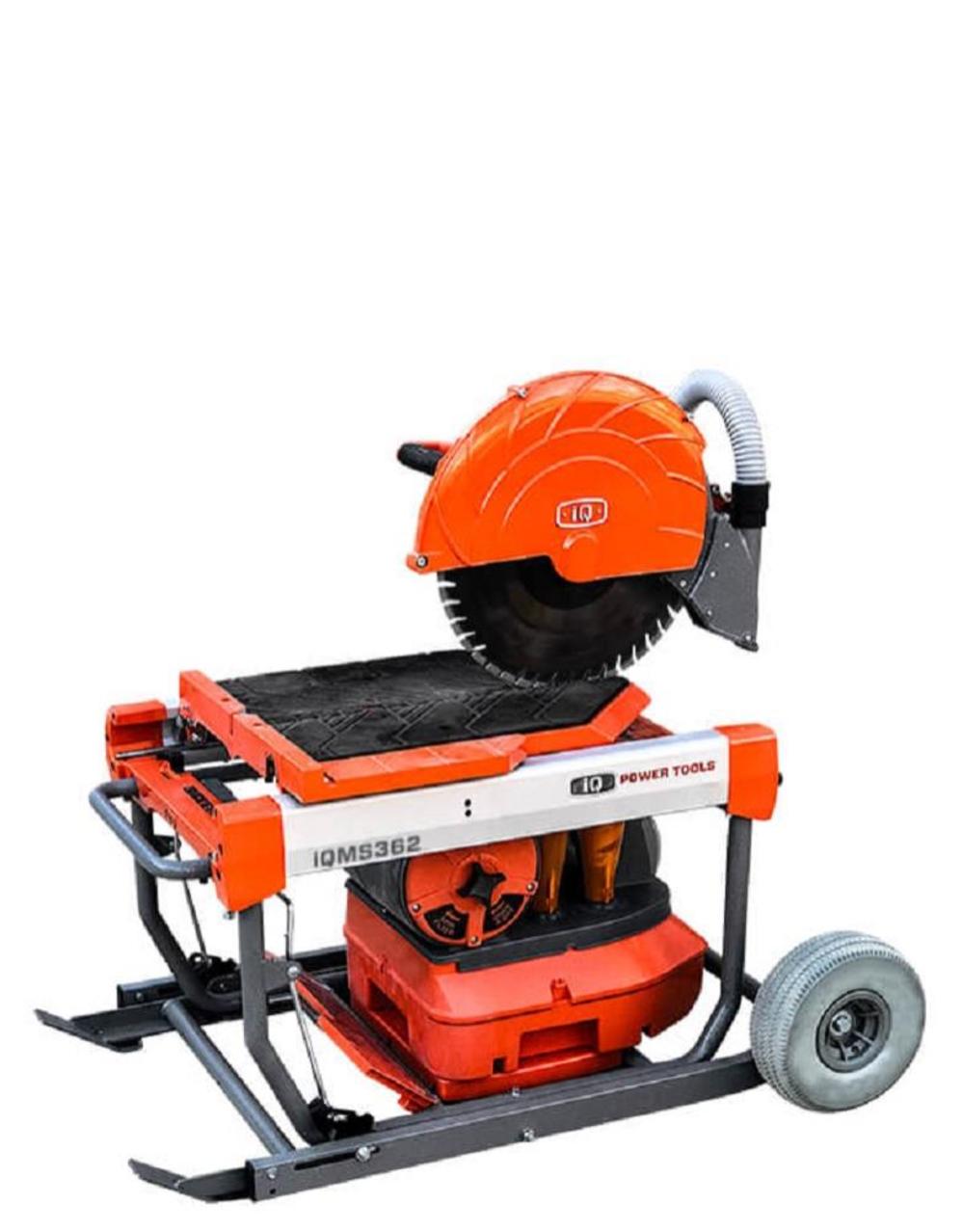

IQ 16.5″ Masonry Saw Dust Control with Stand
The iQMS362 motor package, Q-Drive blade and integrated dust collection system are specifically engineered to overcome the common limitations of most masonry saws. The proprietary Q-Drive blade incorporates the latest in diamond tool technology, with a diamond layout in the matrix, spacing and segments designed to reduce turbulence and dust. The Q-Drive cuts 40% faster than any other blade, including masonry materials in a wide range of shapes, sizes, weights, and densities; from soft, manufactured stone to dense pavers and granite. This blade can cut through a 60 mm x 4 In paver in just three seconds.
Features
Cut brick, pavers, stone and veneer with unmatched precision
16.5” blade allows for a 5.5” depth and a full 24” length of cut
Cuts up to 40% faster than any other masonry saw in its class
High-flotation tires allow one person to move over rough jobsite terrain
Integrated stand with a gas-shock powered lifting/lowering mechanism
Operates on standard 120v and 20 amps
Integrated dust collection captures up to 99.5% of hazardous silica dust
Meets the 2017 OSHA silica standard
Cut dry while protecting the health and safety of your workforce
iQ quick-spin filter system
Cyclone vacuum system
18 In. diagonal cuts
OSHA compliant
24 In. rip cuts
Specifications
Acme Tools Brand Name
IQ POWER TOOLS
Acme Tools Part Number
IQMS362
Adjustable Handle Position
No
Adjustable Tilt Angle
Yes
Amperage (A)
20
Application
No
Arbor Size
1 in
Arbor Size (in)
IQ Special
Assembled Depth (in)
41
Assembled Height (in)
40
Assembled Weight (lbs)
150
Assembled Width (in)
31
Blade Diameter (in)
16.5
Blade Size (in)
16.5
California Proposition 65 Warning Required
Yes
Color / Finish
Orange, Grey and Silver
Cord Length (ft)
25
Country of Origin
Taiwan
Cuts Ceramic
Yes
Cuts Natural Stone
Yes
Cuts Porcelain
Yes
Engine Displacement (cc)
N/A
Engine Horsepower (hp)
1.5
Fuel Mix Ratio
N/A
globalTradeItemNumber (GTIN)
00409000000858
Height (in)
40
Horsepower (hp)
3
Internal Supplier Part #
IQMS362
Internet Product Code (IPC)
A0F55A826FA
Manufacturer Warranty
1 Year Limited Manufacturer Warranty. See Owner’s Manual for Details.
Maximum Cutting Depth (in)
5.5
Maximum Flow Rate (gpm)
N/A
Maximum RPM (No Load)
3600
Motor Type
Electric Universal
Motor Voltage (V)
120
Net Tool Weight (lbs)
150
Package Contents
Masonry Saw, Stand, Blade
Package Depth
48
Package Height
24
Package Weight
187
Package Weight (lbs)
175
Start Type
Electric
UL Listed
Yes
UPC
705464788517
Voltage
120
Voltage (V)
120
Wet / Dry
No
