Description

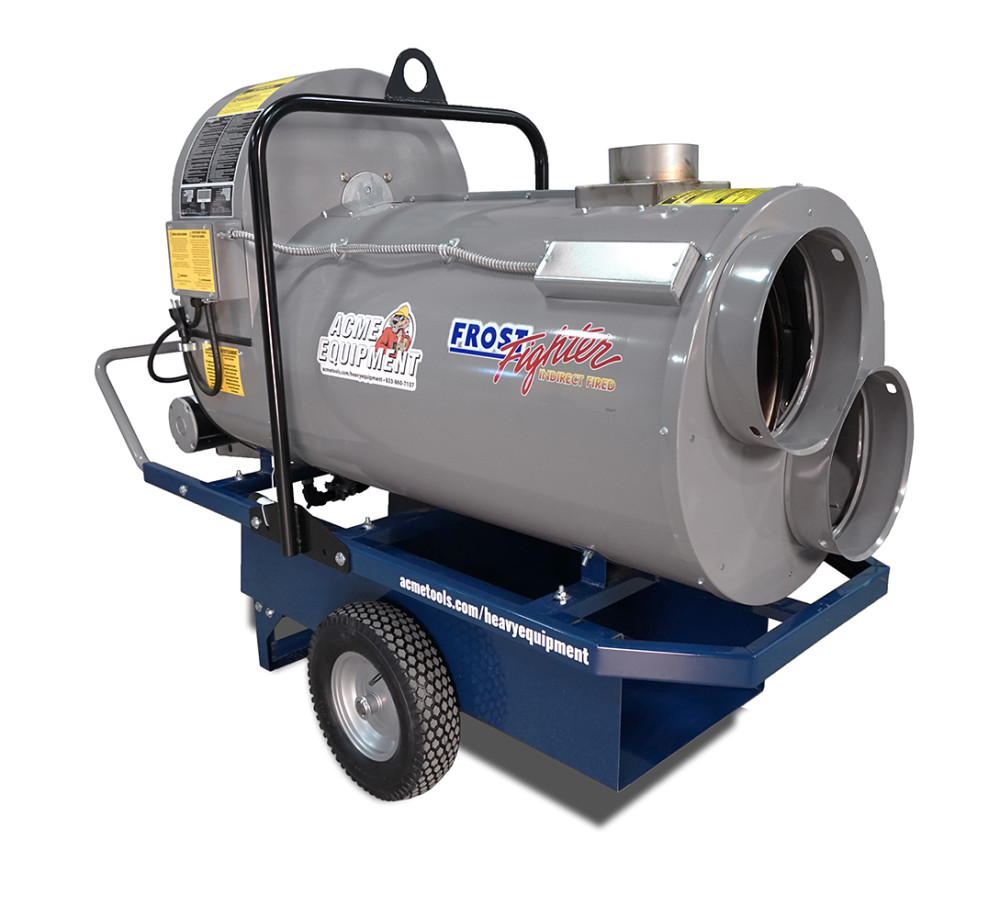

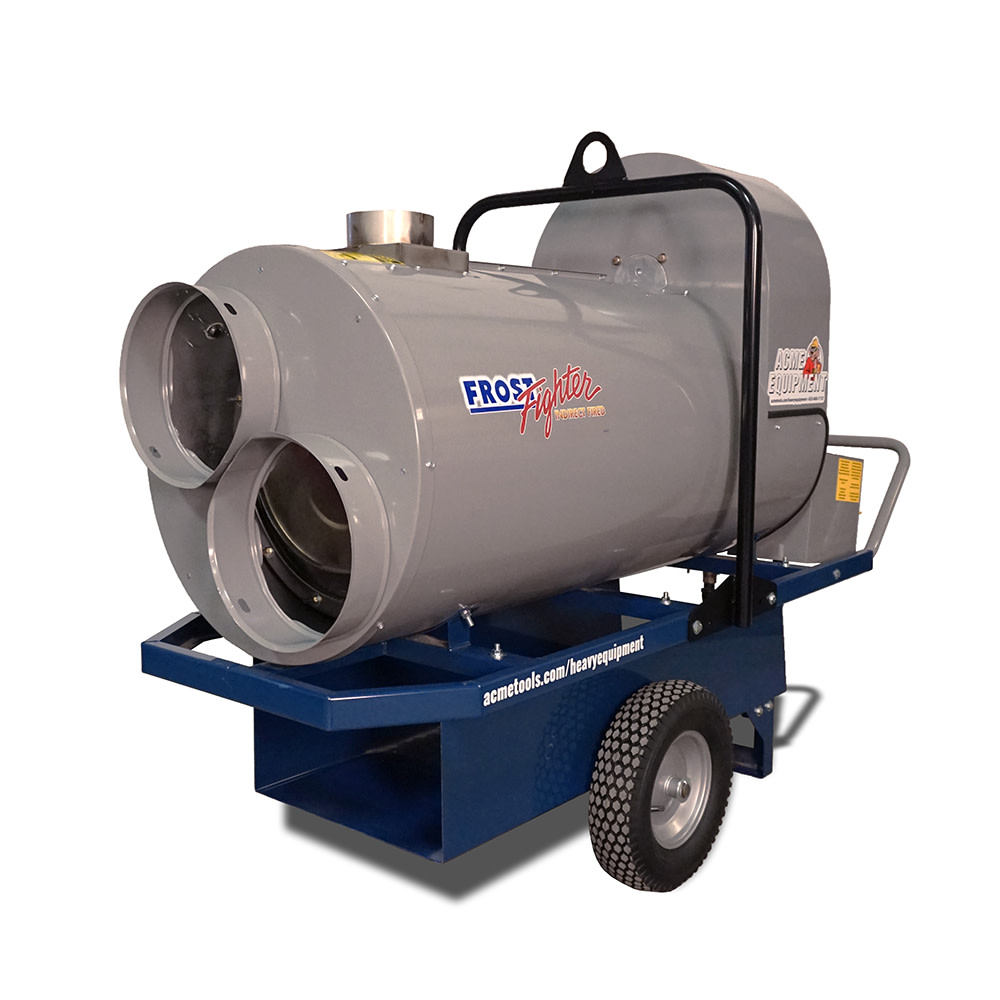

Indirect Fired 500k BTU Portable Heater System (LP/NG) 20 amp

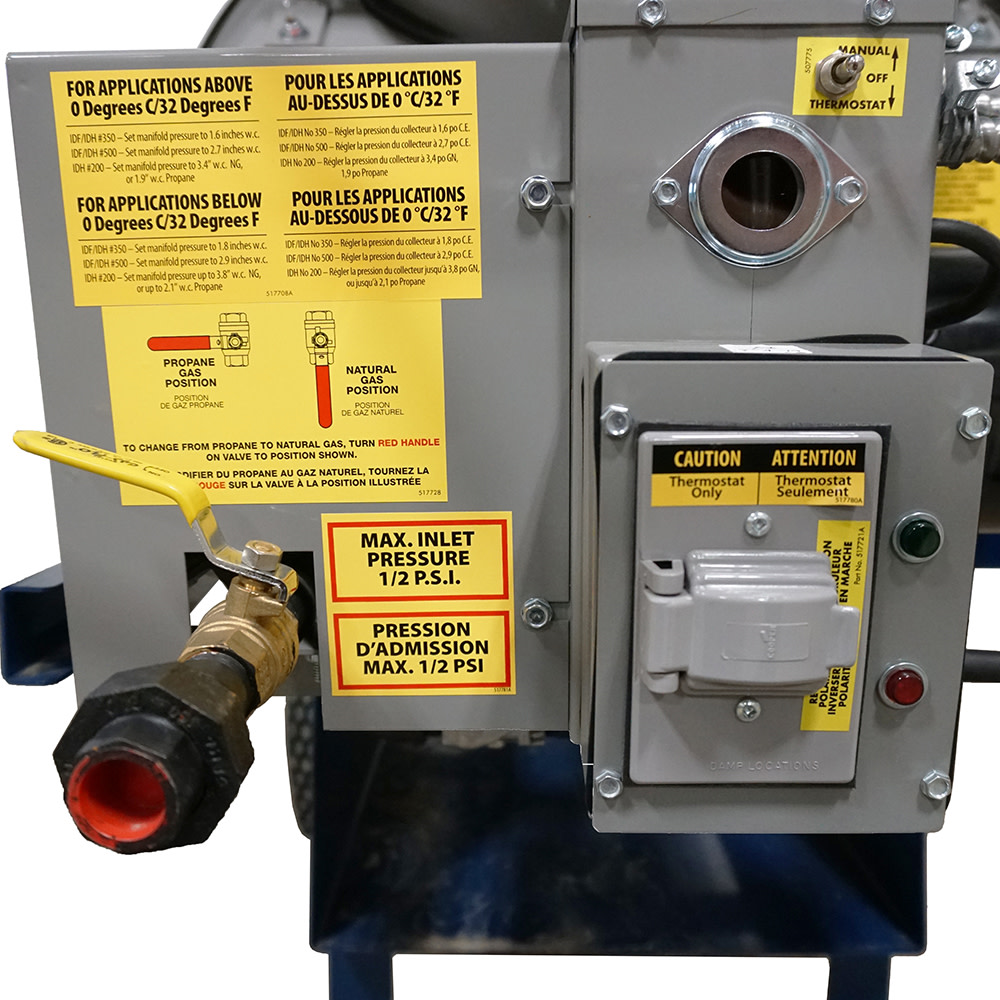

Compact, lightweight and extremely powerful, the IDH500QR-LP/NG is equipped with standard recirculation, high static pressure, low dB noise level and is capable of up to 100 ft of total duct length. A cool to the touch jacket, stainless steel multi-pass heat exchanger, 3-trials for ignition and ez ball valve switchover features make this system ideal for applications where portability, durability and reliable operation are necessary. Heaters require special outfitting to work properly at elevations greater than 2,000 ft. Please contact our sales team for assistance.
Features
Proven & reliable commercial grade burner
Over 81% efficiency
Fully insulated jacket to minimize heat loss, increase efficiency and provide cool to the touch for safety

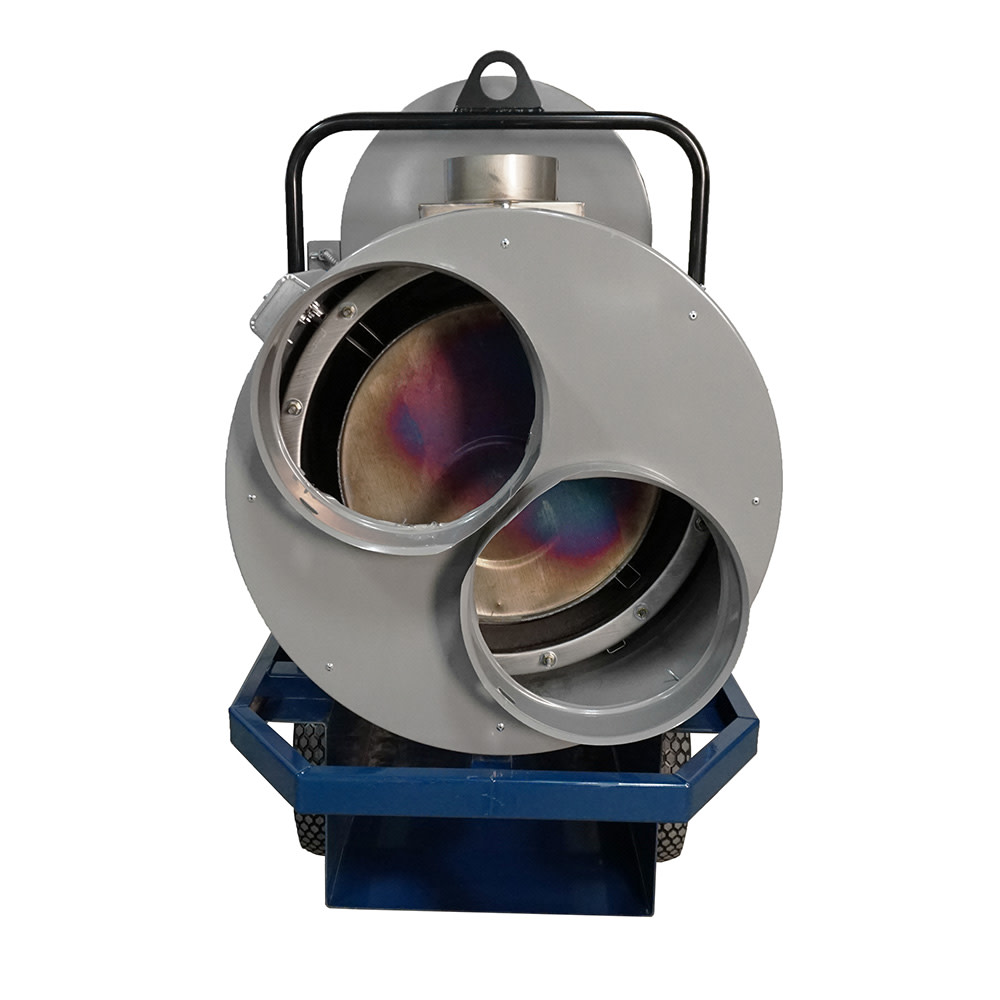

Proven multi-pass stainless steel heat exchanger provides unsurpassed heat transfer

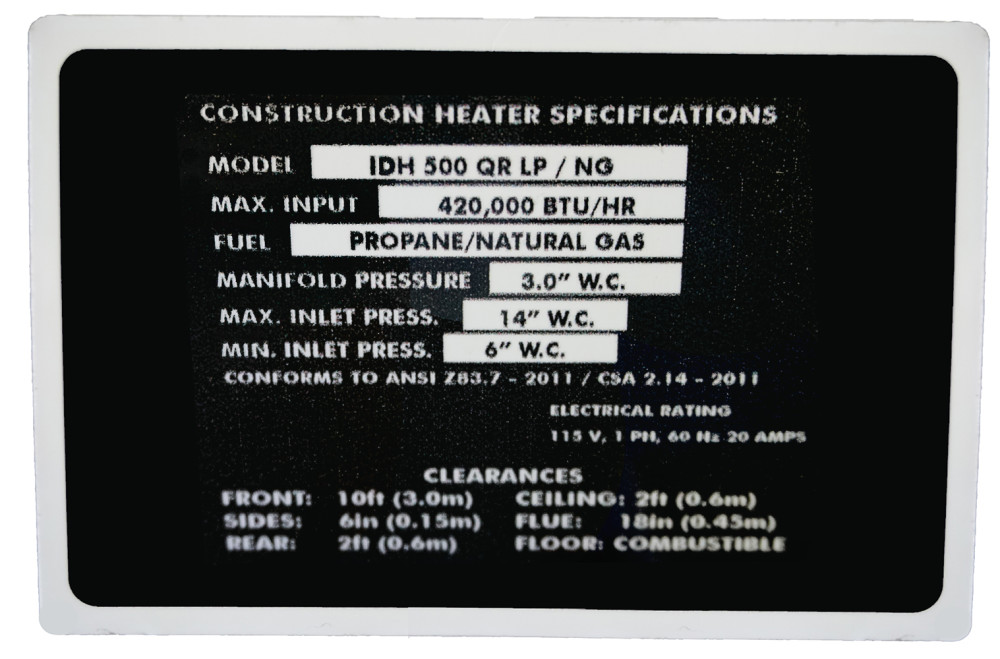

Specifications
Accessories Included
No
Acme Tools Brand Name
FROST FIGHTER
Acme Tools Part Number
IDH500QR-LP/NG
Adjustable Thermostat
Yes
Air Volume (CFM)
4800
Assembled Weight (lbs)
420
Auxiliary Heating Capacity (BTU)
500000
BTU Heat Rating
500000
California Proposition 65 Warning Required
Yes
Color
Gray
Color / Finish
Grey/Red/Blue
Country of Origin
United States
CSA Certified
No
Depth (in)
70
Diameter (in)
24
Efficiency (%)
81
Electricity Required
Yes
Element System
No
ETL Listed
Yes
Fuel Rate (lbs/h)
0.5
globalTradeItemNumber (GTIN)
00409005000433
Heater Controls
Thermostat
Heater Design
Thermostat
Heater Type
Indirect Fired
Height (in)
57
Ignition Source
Electronic
Indoor / Outdoor
Indoor/Outdoor
Internal Supplier Part #
IDH500QR-LP/NG
Internet Product Code (IPC)
90E7172306B
Length (in)
70
Manufacturer Warranty
See Manufacturer’s Website for Details
Material
Stainless Steel
Maximum Hours Of Operation
15
Number of Heat Settings
Variable
Package Weight
420
Package Weight (lbs)
460
Thermostat
Yes
UL Listed
No
UPC
409005000433
Wall Mount
No
Wheeled
Yes
Wheels
Yes
Width (in)
35
