Description

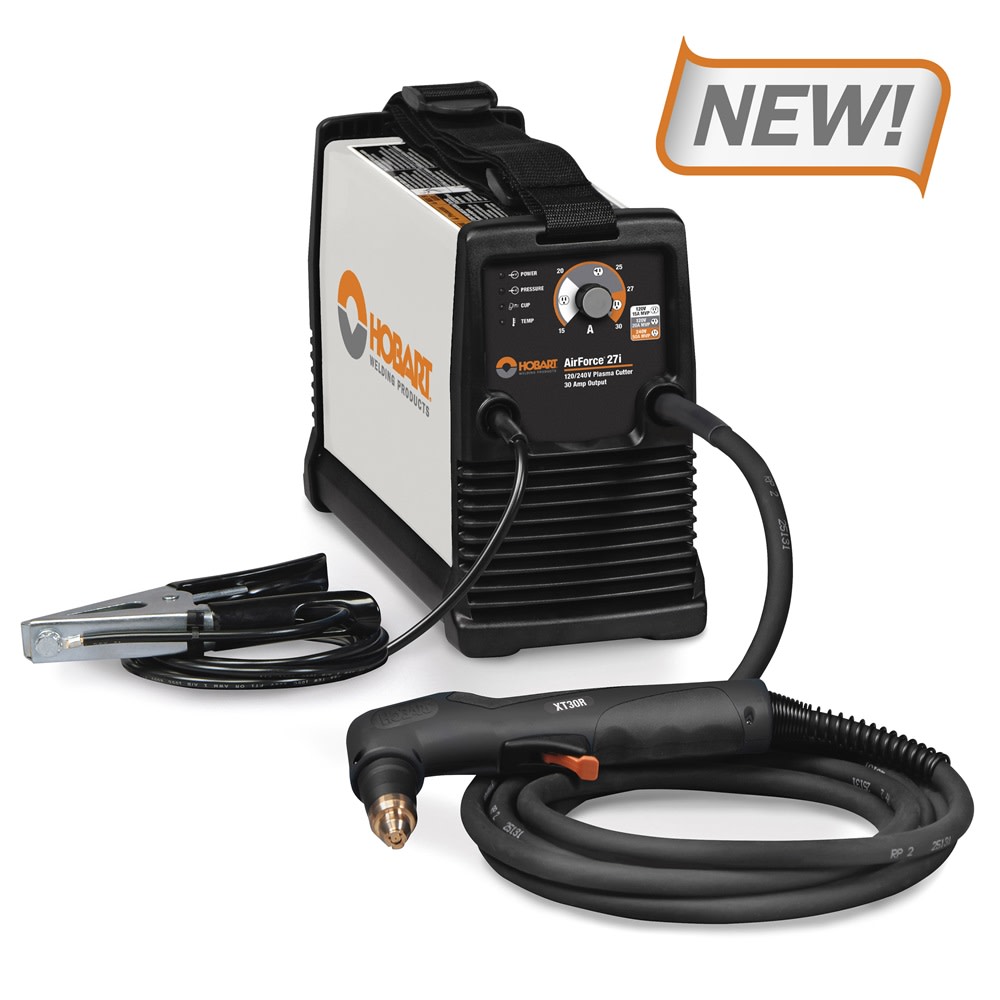

Hobart AirForce 27i Plasma Cutter
Versatile, powerful cutting in a lightweight power source. Inverter-based design and reliable technology pack a lot of performance into a very portable package. The Airforce 27i features a multi-voltage plug (MVP™) that allows you to connect to common 120- or 240-volt power receptacles without using any tools. You can easily transport this plasma cutter to the job, connect to power and begin cutting up to 5/8-inch material on 240-volt power quickly.
Features
50% smaller than the previous model so you need less room to store it.
Designed for increased comfort with an ergonomic trigger safety, more efficient cooling and economical replacement cutting tips.
Complete cutting capability when powered by an engine- driven welder/generator with 240V receptacle of 4 kW or more.
Draws up to 30% less amperage for the same cutting range as compared to the competition. PFC expands operators work area via extension cord, while minimizing nuisance circuit breaker trips caused by voltage drops.
Cooling system operates only when needed reducing power consumption and contaminants drawn into the machine.
Extends life of consumables and torch by cooling them with postflow air after trigger is released.
Allows you to connect to common 120 or 240 V power receptacles without the use of any tools – simply choose the plug that fits the receptacle.
Provides peak performance power under variable input voltage conditions (+/- 15%) for steady and cleaner-ending cuts.
Specifications
Acme Tools Brand Name
HOBART
Acme Tools Part Number
500575
Assembled Depth (in)
13.25
Assembled Height (in)
9
Assembled Weight (lbs)
19
Assembled Width (in)
5.5
California Proposition 65 Warning Required
Yes
Clamp Cable Length (ft)
12
Country of Origin
United States
Current Rating (A)
30
Cutter Or Welder
Cutter
Duty Cycle
35-60% depending on rated output
globalTradeItemNumber (GTIN)
00715959674829
Height (in)
9
Input Voltage
120V 15A 5-15P and 240V 50A 6-50P
Maximum Cutting Depth (in)
5/8
Package Depth
16
Package Height
16
Package Weight
25
Portable
Yes
Recommended Safety Equipment
Gloves, Sleeves, Glasses
Self Igniting
Yes
Switch Type
Trigger
Tips Included
Yes
Trigger
Yes
UPC
715959674829
Voltage
120/240
Welder / Cutter Type
Plasma Cutter
Work Cable Length (ft)
12
