Description

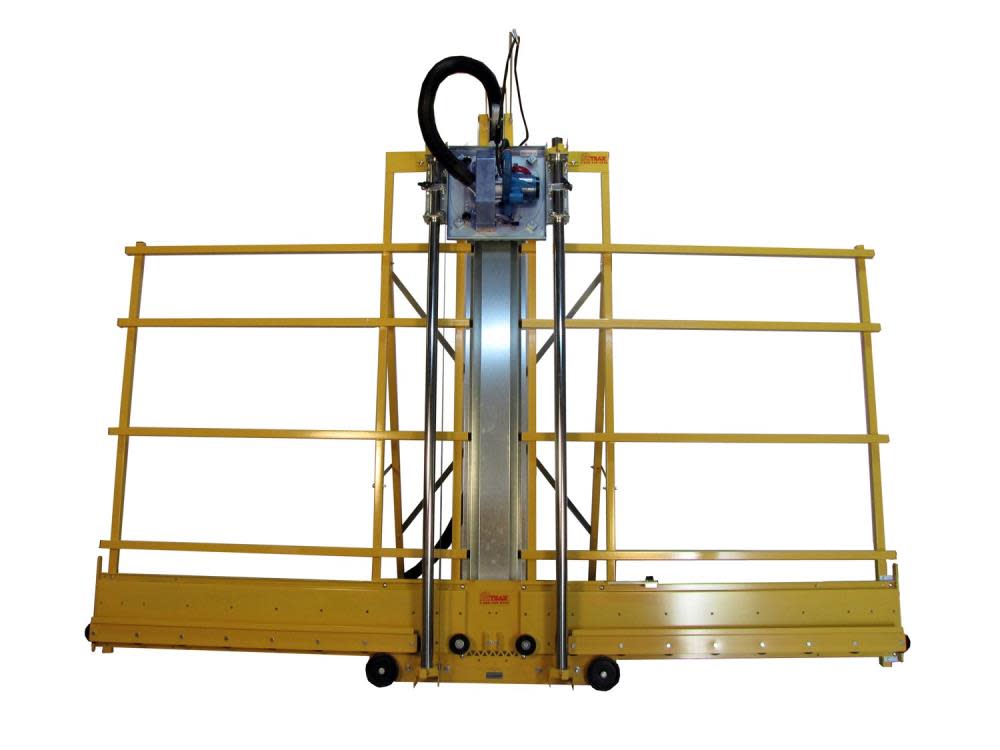

Full Size 52″ Cross Cut Vertical Panel Saw

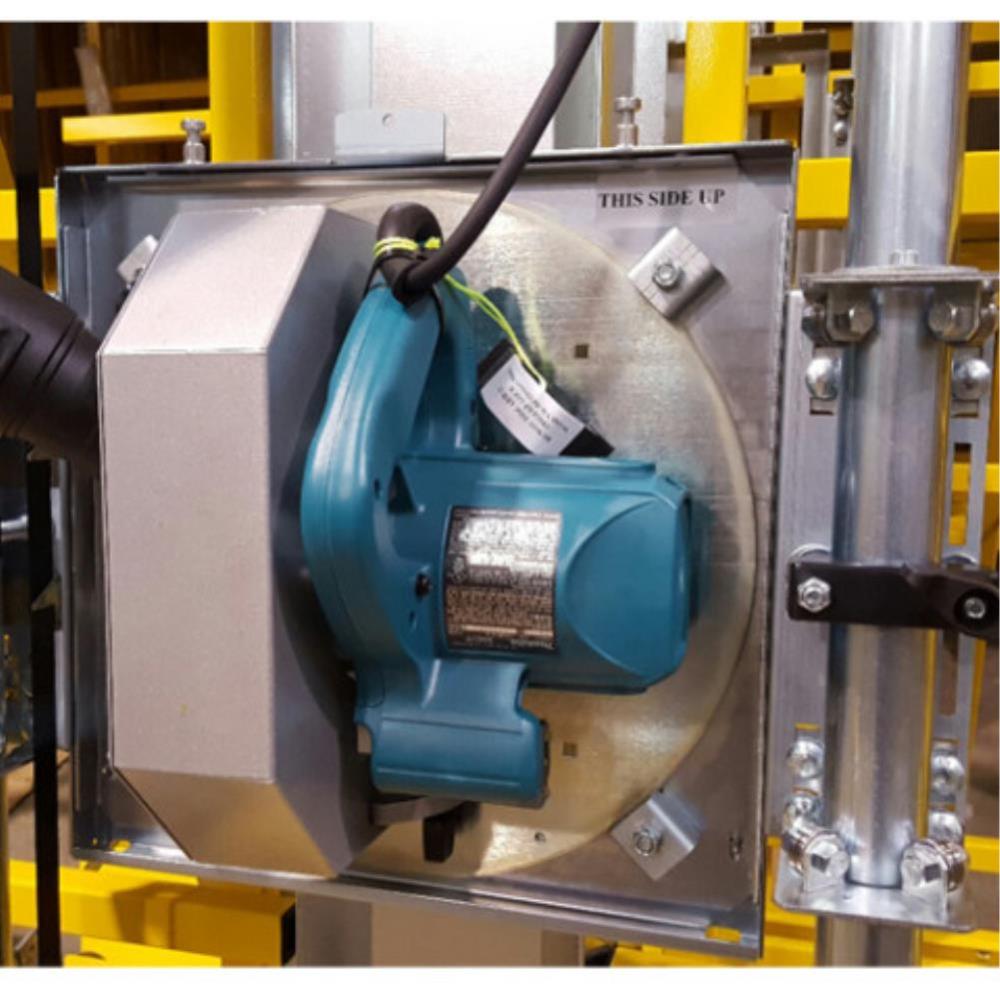

Offers the precision, cut accuracy, ease of use and safety that sets Saw Trax vertical panel saws apart. A quick change carriage that allows you to use other cutting tools and selected options to provide you the equipment that most woodworkers request. Benefits of pre-attached folding stand, transport wheels for the frame, vertical tapes with rip pointers, two horizontal tapes with a stop block with bar, a dust containment brush, a 12′ by 2.5″ dust hose with coupler for use with a vacuum and a spinning saw insert with attached 15 amp Makita 5007F saw.
Features
Full size 10′ wide frame
Accu-Square alignment system – Set by manufacturing, always square.
Accu-Glide steel sealed roller bearings
Nickel chrome plated guide tubes
Folding stand and wheels
Stop bar and tapes
Patented accu-square system
Sealed steel bearings
Ideal for customers that need a vertical panel saw to perform precision cuts in sheet goods that are less than 1.75 inch thick
Great for woodworking and cabinet making
Specifications
Acme Tools Brand Name
SAW TRAX
Acme Tools Part Number
1052
Amperage (A)
15
Arbor Size (in)
0.625
Assembled Weight (lbs)
253
Bevel Stop
No
Beveling Capability
Yes
Blade Diameter (in)
7.25
California Proposition 65 Warning Required
No
Clamping System
No
Cordless / Corded
Corded
Counter-Balanced Carriage
No
Country of Origin
United States
CSA Certified
Exempt
Cut Accuracy
1/64
Dust Blower
No
Dust Port Outside Diameter (in)
2.5
Electric Motor Brake
Yes
ETL Listed
Yes
Frame Color / Finish
Powder Coated Yellow
Frame Height (in)
78
Frame Width (in)
122
globalTradeItemNumber (GTIN)
00861823000338
Guide Tube Material
Nickel Chrome Plated
Height Stops
No
Horsepower (hp)
0
Integrated Laser Guide
No
Internal Supplier Part #
1052
Internet Product Code (IPC)
C78C8245830
Manufacturer Warranty
1 year limited warranty
Maximum Crosscut Length (in)
52
Maximum Cutting Depth (in)
1.75
Mid Way Fence
No
Number of Dust Ports
1
Package Contents
1 Dust Port
Package Depth
40
Package Height
78
Package Weight
253
Roller Material
Plastic Material Rollers
Router Attachment Available
Yes
Saw Carriage Bearing Type
Accu-Glide Steel sealed bearing system
Saw Carriage Movement
Vertical
Saw Drive
Sidewinder Geared
Scoring Blade
No
Size
0.625 in
Spindle Lock
Yes
UL Listed
Yes
UPC
861823000338
Voltage
110/120 Volts
Wheeled
Yes
