Description

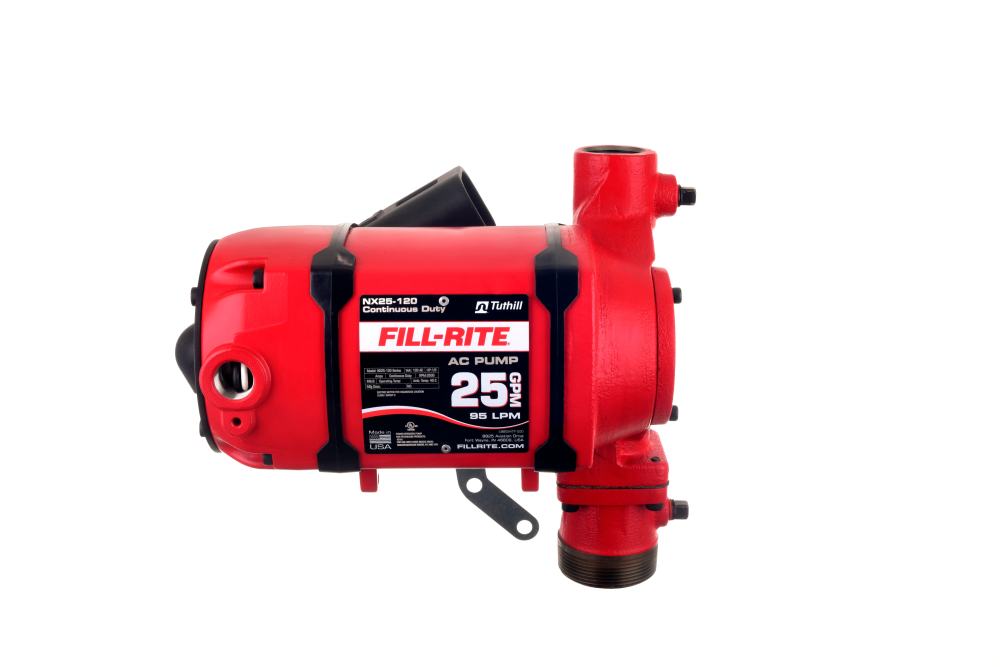

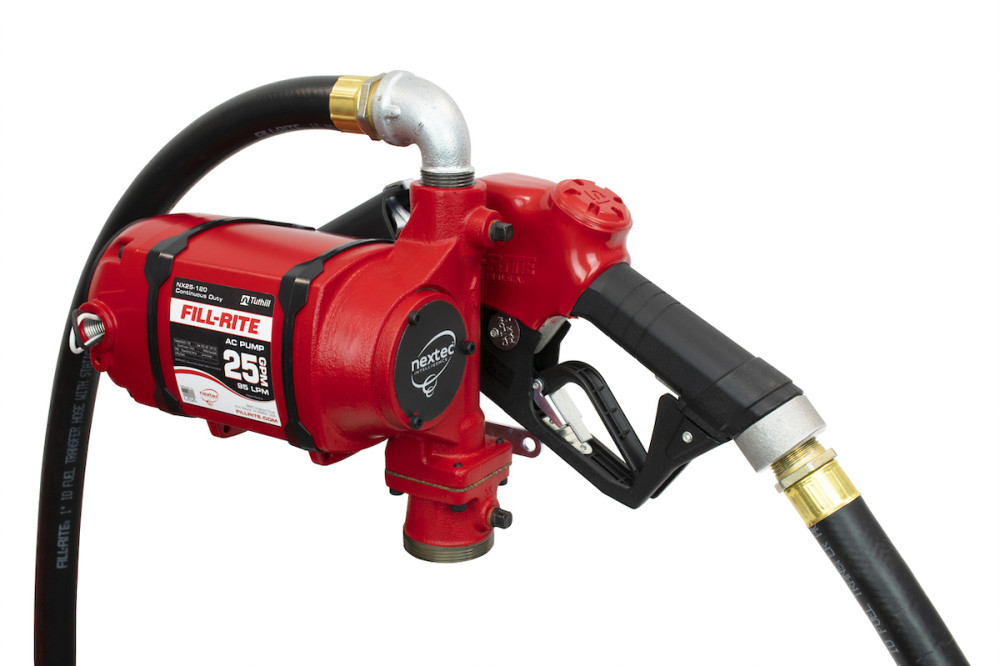

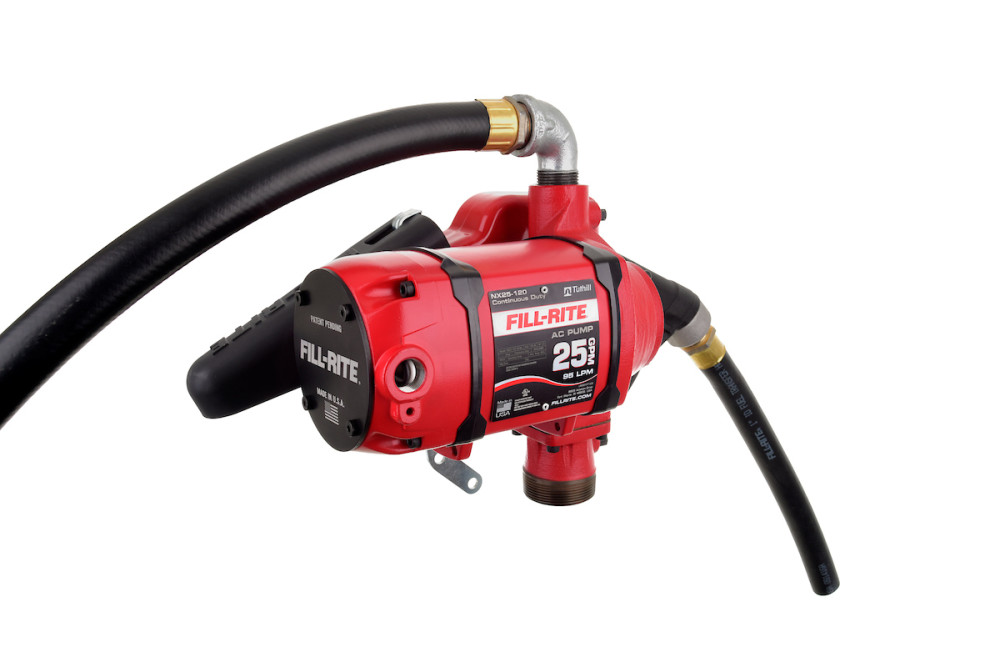

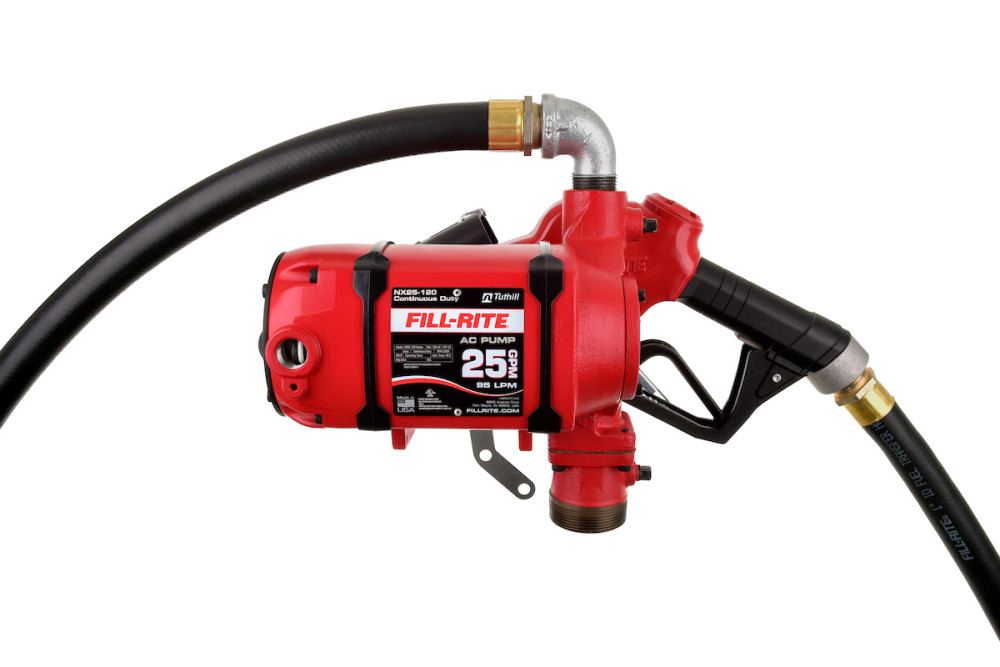

Fill Rite Fuel Transfer Pump Continuous Duty 120V 25gpm
The NX25-120 Continuous Duty fuel transfer series allows users to fuel all day with less downtime. The NX25’s robust variable speed motor actively adjusts its speed for optimal performance and produces a true 25 GPM flow rate at the nozzle. It reduces long-term damage on wetted components while also improving suction lift. Its low profile, lightweight construction reduces installation time. Intelligent audible tones simplify the troubleshooting process by informing users when and where attention is needed. Its rugged powder-coated paint stands the test of time against even the toughest environmental factors. The NX25 Series defines elite efficiency in fuel transfer.
Features
Continuous duty cycle, transfer fuel all day with no downtime
Pumps 25% faster, eliminating hours of costly driver downtime while filling up equipment
Consumes up to 45% less electricity, slashing operating costs and boosting efficiency
60% lighter weight, making installation faster and strain free
75% reduction in common field repair costs through quality design and construction
Built-in remote on/off, ideal for tall above ground tanks
+/- 1% accuracy
Factory and field calibrations
Specifications
Acme Tools Brand Name
FILL-RITE
Acme Tools Part Number
NX25-120NB-AA
Assembled Weight (lbs)
44
Brand / Model Compatibility
Gasoline, diesel, B20, E-15, and kerosene compatible
Can Be Cut To Shape
No
Capacity
25 GPM
Country of Origin
United States
globalTradeItemNumber (GTIN)
00089404247488
Indoor / Outdoor
Outdoor
LCD Display
No
Material
Cast Iron
Maximum Amperage (A)
3.5
Package Contents
120V PUMP; NPT; BUNG; AUTO NOZZLE; HOSE
Package Depth
22
Package Height
12
Package Weight
44
UPC
089404247488
Voltage
115
