Description
Edwards 230V 1 Phase 55 Ton Ironworker with PowerLink & 10″ Brake

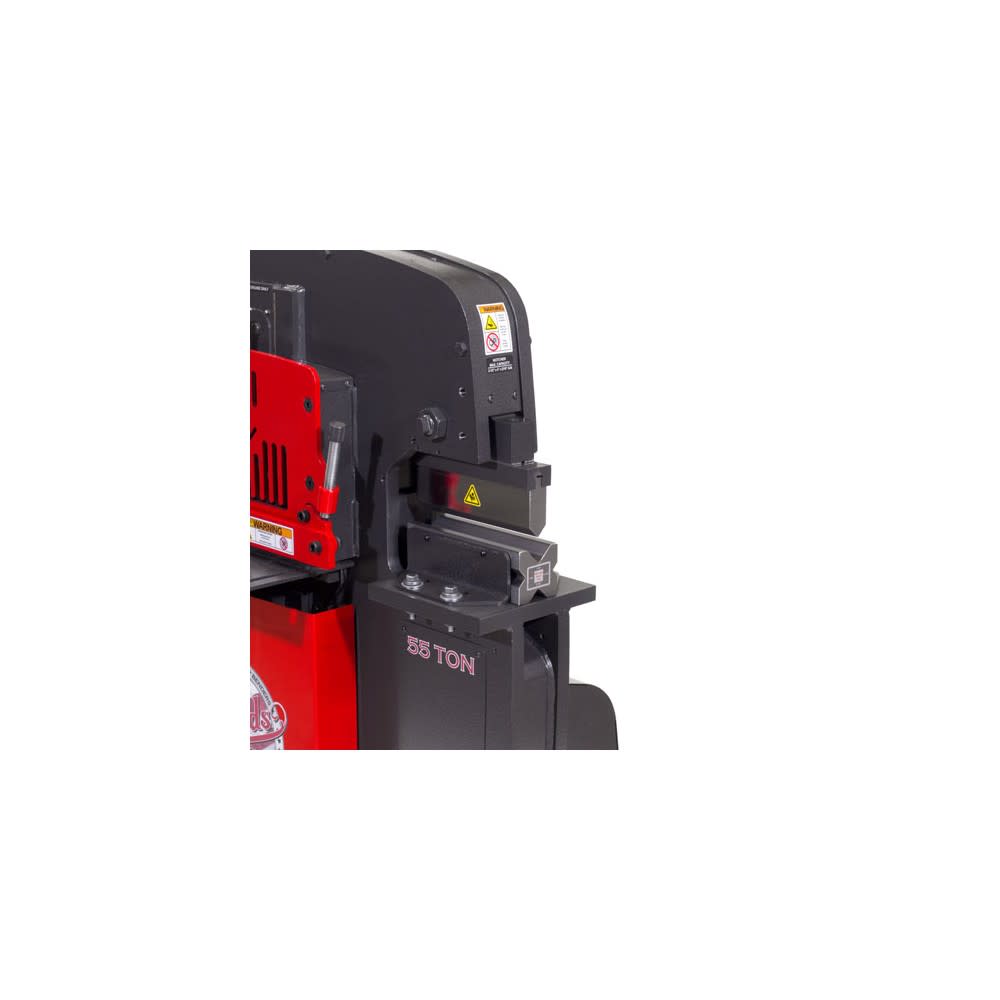

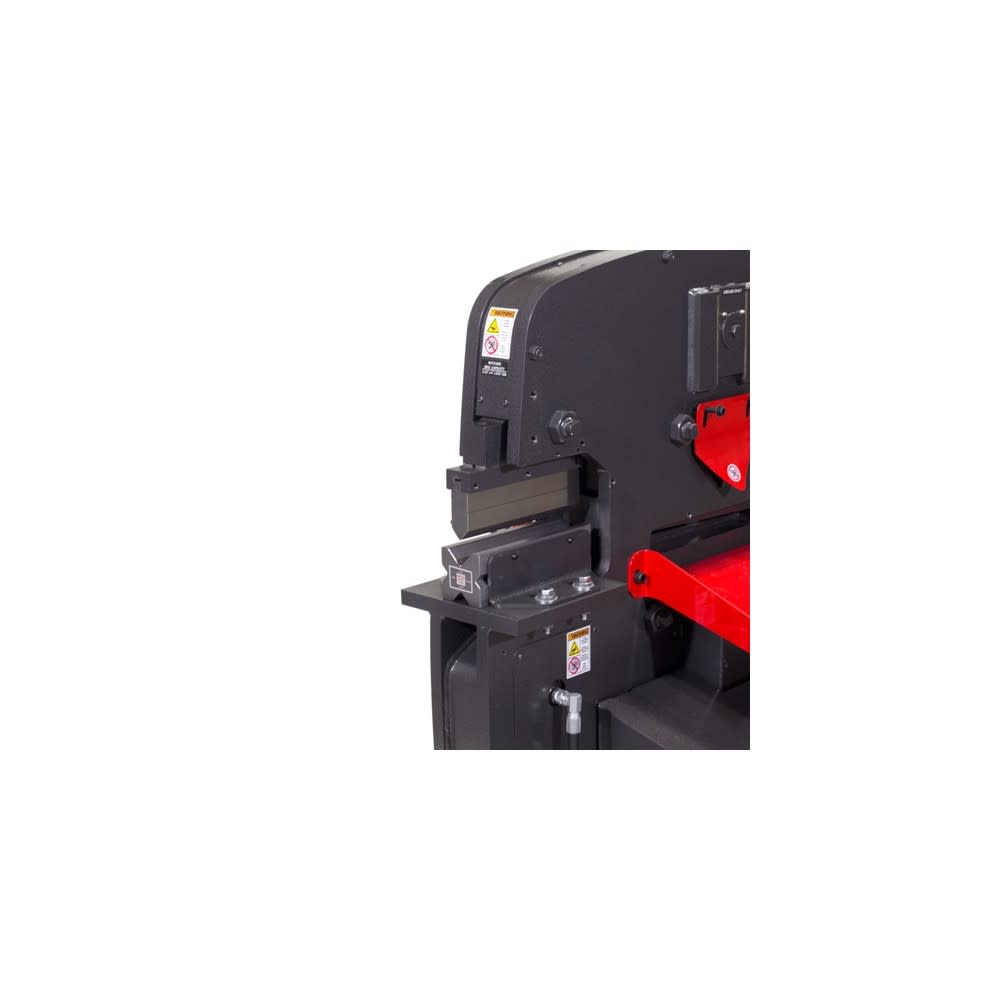

The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories. This 55 Ton Ironworker package includes a factory-installed 10 In. brake with 4-way die allowing 1/16 In., 1/8 In., 3/16 In. and 1/4 In. material to be formed to a 90 Deg angle.
Features
Four Workstations: Standard (3) – Punch, Flat bar shear & angle shear, Open (1) – Factory installed 10 In. brake
Includes a factory-installed 10 In. brake with 4-way die allowing 1/16 In., 1/8 In., 3/16 In. and 1/4 In. material to be formed to a 90 Deg angle
12 interchangeable attachments available
17 optional accessories available
ANSI B11.5-1988(02) compliant guarding
ETL certified controls
Integrated lock-out/tag-out system with E-Stop for added safety
The PowerLink system allows your Ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
55231522
Amperage (A)
23
ANSI Safety Listing
Yes
Assembled Weight (lbs)
2480
Country of Origin
United States
ETL Listed
Yes
globalTradeItemNumber (GTIN)
00731325763096
Horsepower (hp)
5
Maximum Pressure Rating (psi)
2500
Maximum RPM
1725
Motor Horsepower (hp)
5
Motor Voltage (V)
230
Package Contents
230V 1 Phase 55 Ton Ironworker with PowerLink & 10 In. Brake
Package Depth
36.125
Package Height
55.25
Package Weight
2480
Phase
1
Shop Press Type
Electric
Stroke Length (in)
1.25
UL Listed
Yes
UPC
731325763096
Voltage
230
Weight Capacity (lbs)
2480
