Description

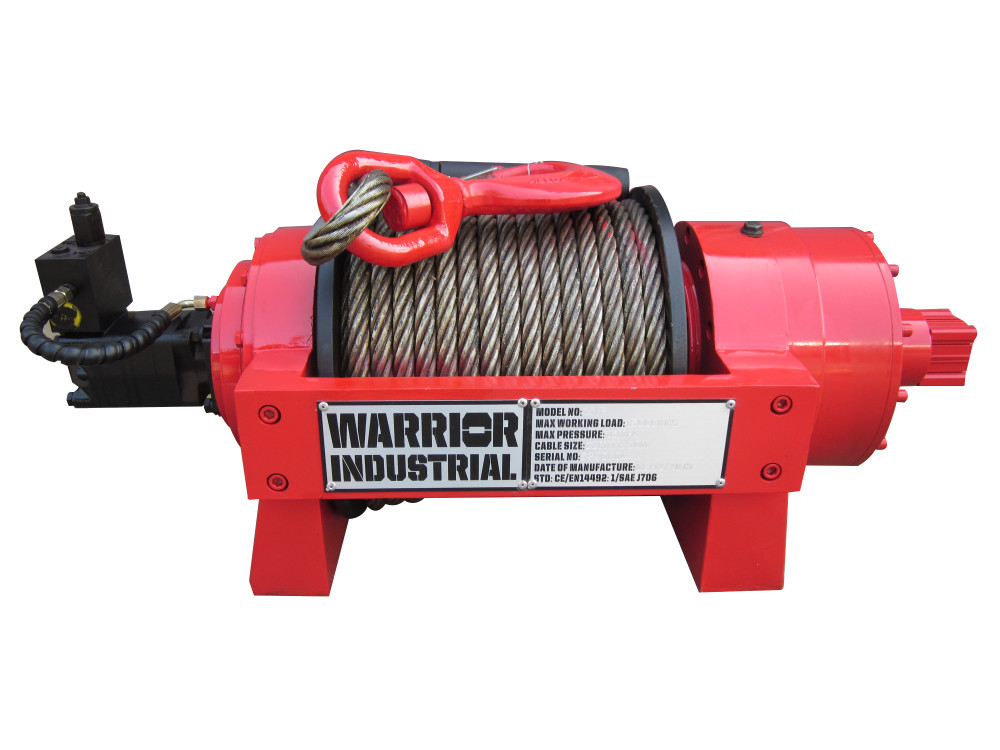

DK2 JP Hydraulic Winch 33069lb
Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for the toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Available from 10 tonne to 40 tonne. Manufacturered to meet GLB82-86 National Military Standard.
Features
Full float heavy duty planetary gearing
Heavy duty rope tensioner as standard
Heavy Duty Steel Cast Frame, Rugged High Torque Motor
Rope and Tensioner as Standard, 2 Stage Planetary Gearing
Complete with Balance Valve
Air Operated Free spool
Rated Line Pull
15000 kg
Working Speed (bottom layer)
6m/min
Response Pressure of Arrester
<2.5 td>
Max Flow
110
Max Pressure Mpa
17
Drum Size Dia x L
400 x 340mm
Cable Dia x L
22mm x 70m
Weight
285 kg
Specifications
Acme Tools Brand Name
DK2
Acme Tools Part Number
15TJP
Assembled Depth (in)
42.4
Assembled Height (in)
16.54
Assembled Weight (lbs)
628
Assembled Width (in)
18
Color
Red
Country of Origin
China
globalTradeItemNumber (GTIN)
00826518004947
Height (in)
16.54
Internal Supplier Part #
15TJP
Material
Steel
Package Contents
JP Hydraulic Winch 33069lb
Package Depth
25
Package Height
48.5
Package Weight
628
UPC
826518004947
