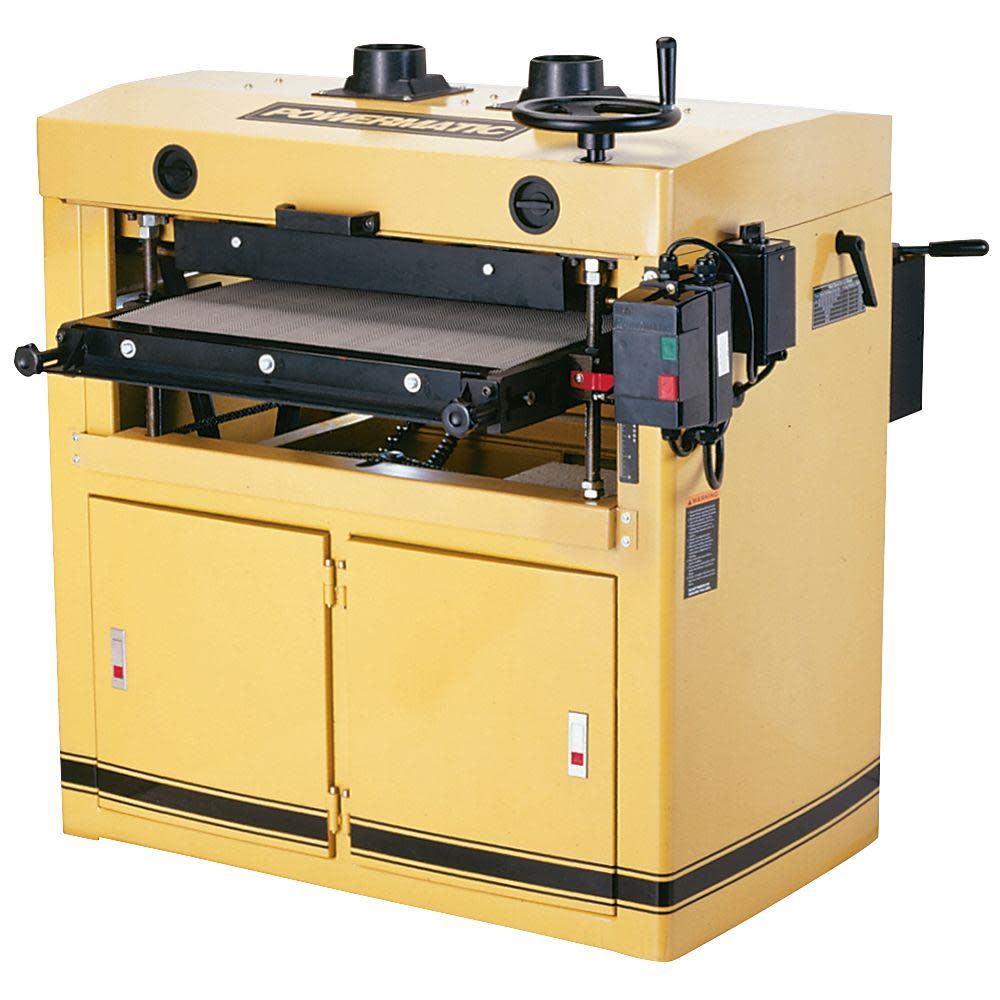

DDS225 25″ Dual Drum Sander, 5HP, 1
Finally, a production class dual drum sander that is loaded with features. This machine features a 5 HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jack screws with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4 HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration free sanding, with plenty of storage space underneath.
Features
Strong motor for plenty of power
Independently adjustable rear drum for fine tuning
Hard durometer rubber coating on steel drums provides flat, smooth finish

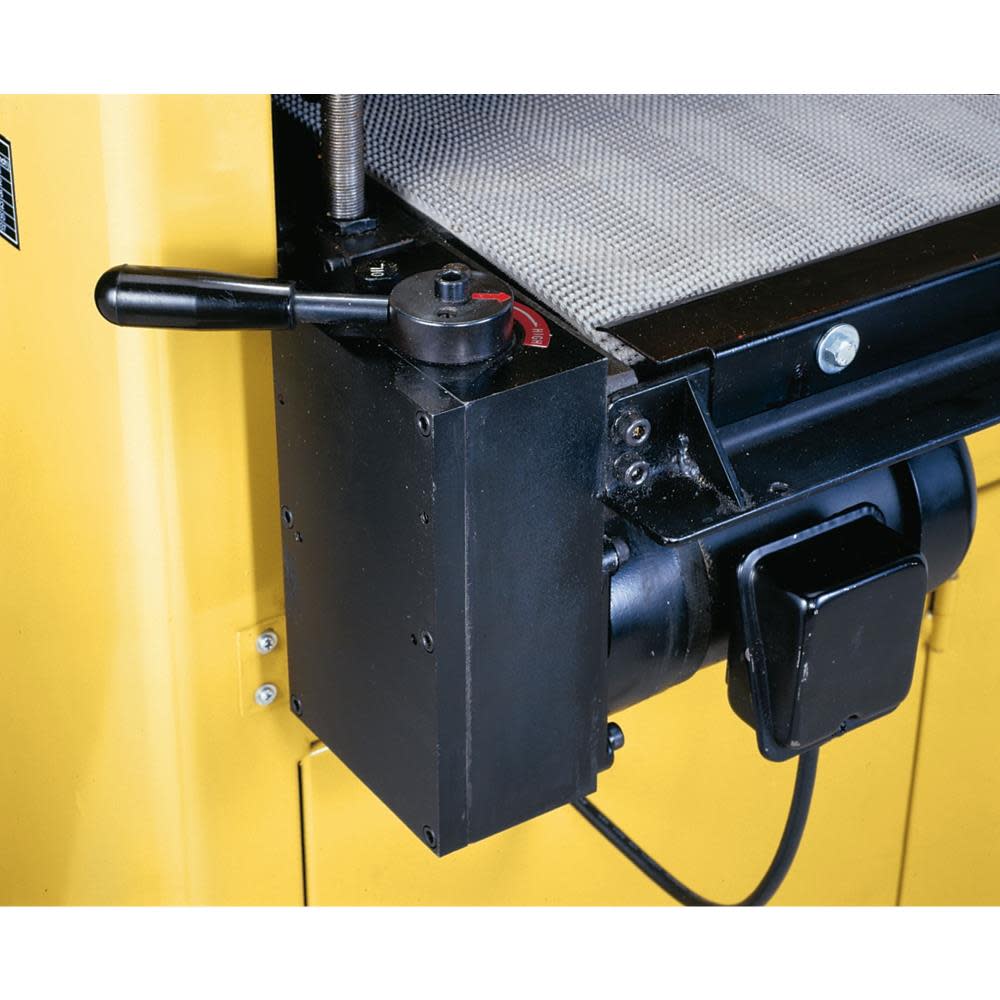

Two-speed gearbox for wide range of sanding projects
Specifications
Abrasive Fastening
Spring Tensioned
Abrasive Wrap Size
0
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1791290
Amperage (A)
20
Assembled Weight (lbs)
730
Assembly Required
Yes
Bench or Stationary
Stationary
California Proposition 65 Warning Required
Yes
Caster / Wheel Locking
No
Color / Finish
See Photo
Convertible To 220 V
No
Conveyor Bed Material
Steel
Conveyor Maximum Speed (Ft/Min)
12
Conveyor Minimum Speed (Ft/Min)
8
Cord Length (ft)
8
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Drum Diameter (in)
6
Drum Length (in)
25
Drum Material
Steel / Plastic
Drum Sander Frame Style
Open End
Dust Collection
Yes
Dust Collection Method
Dust Port
Electrical Cord Configuration
3 Wire
ETL Listed
No
globalTradeItemNumber (GTIN)
00662755464294
Horsepower (hp)
5
Housing Material
Steel / Plastic
Internal Supplier Part #
DDS-225
Internet Product Code (IPC)
57D9824FE6F
Lock-on Switch
Yes
Lockout Power Switch
Yes
Manufacturer Warranty
5 Year
Material
Steel / Plastic
Maximum Drum Surface Speed (Ft/Min)
10
Maximum Stock Thickness (in)
5.25
Maximum Stock Width (Single Pass) (in)
25
Minimum Drum Surface Speed (Ft/Min)
1700
Minimum Stock Length (in)
9
Minimum Stock Thickness (In)
0.031
Net Tool Weight (lbs)
840
Number of Drums
2
Number of Motors
1
Number of Wheels
0
Package Contents
Accessories Included
Package Depth
43
Package Height
43
Package Weight
840
Package Weight (lbs)
840
Sander Style
Drum
Sandpaper Type
Drum
Stand Included
Yes
UL Listed
No
UPC
662755464294
Variable Speed
No
Voltage
220 Volts
