Description

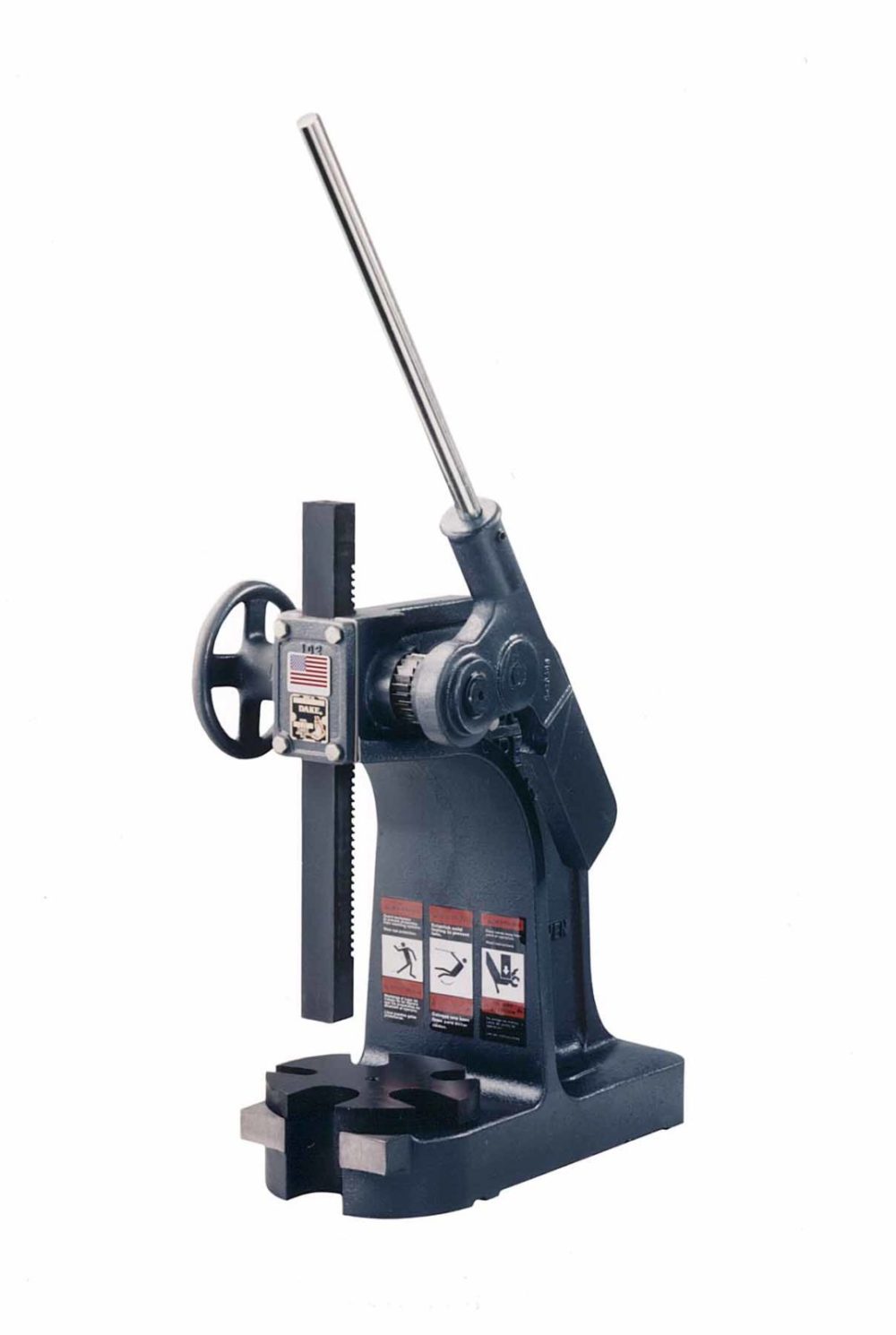

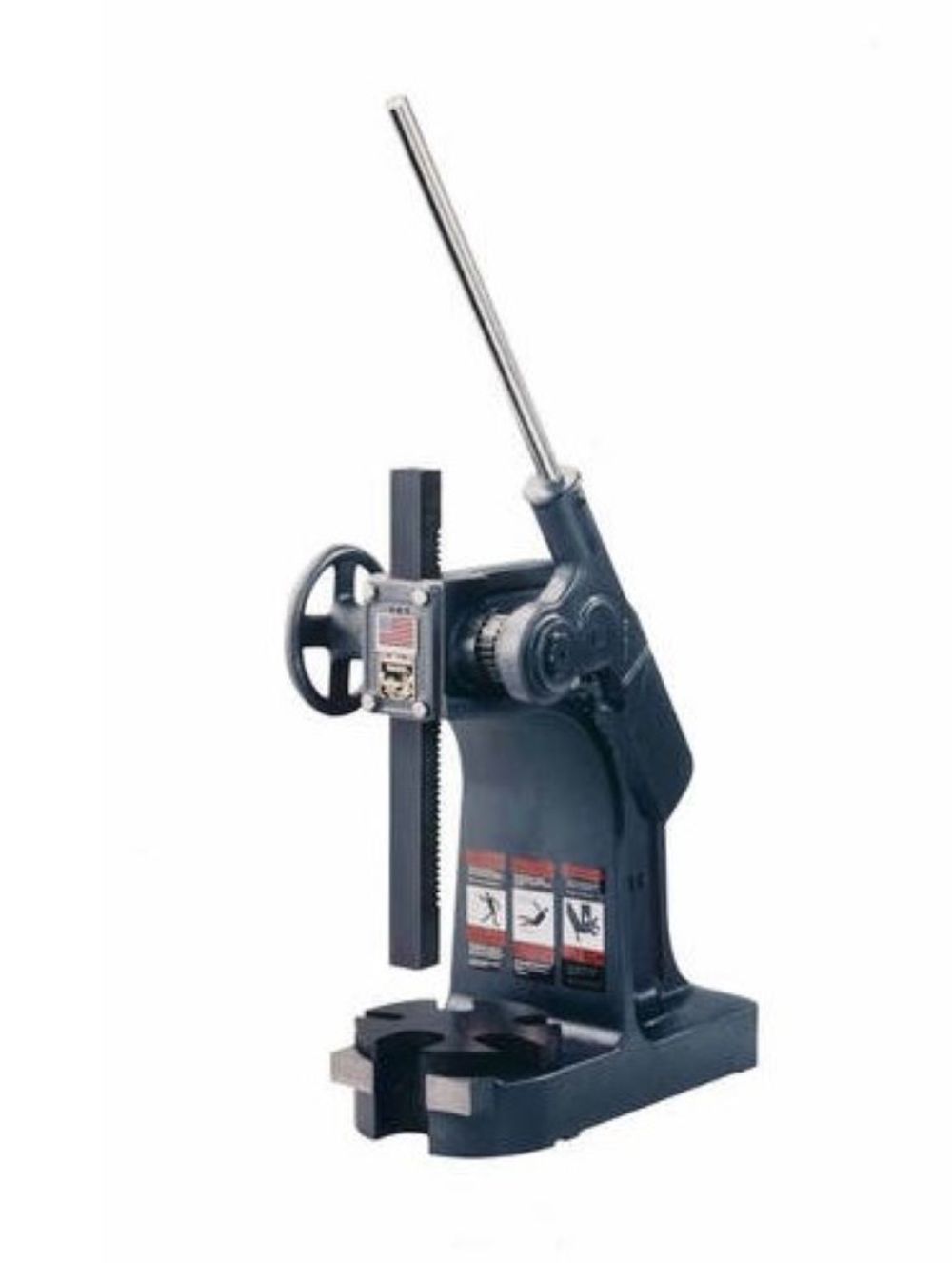

Dake Arbor Press Ratchet Lever 3 Ton Model 1-1/2
3 ton ratchet lever bench model arbor press that is designed with a friction brake and slotted table. Equipped with ratchet device that allows lever to be used in many positions. The counterweight also helps return the lever after a downstroke.
Features
Ratchet device permits lever to be used in most convenient position.
Counterweight returns lever quickly after downstroke.
Handwheel advanced ram to work quickly.
Cast Iron Base
Notched Table Plate
Leverage ratio = 48:1
Ram size 1-1/4” x 1-1/4” x 16-1/2”
Maximum diameter work = 14”
Throat = 7”, Largest arbor = 2”
Capacity over table plate = 10-3/4”
Specifications
Acme Tools Brand Name
DAKE
Acme Tools Part Number
902001
Assembled Weight (lbs)
145
California Proposition 65 Warning Required
Yes
Country of Origin
United States
globalTradeItemNumber (GTIN)
0400020004079
Maximum Pressure Rating (psi)
6,000
Package Contents
1 ARBOR PRESS
Package Depth
20
Package Height
8
Package Weight
145
Stroke Length (in)
7
UPC
400020004079
