Description

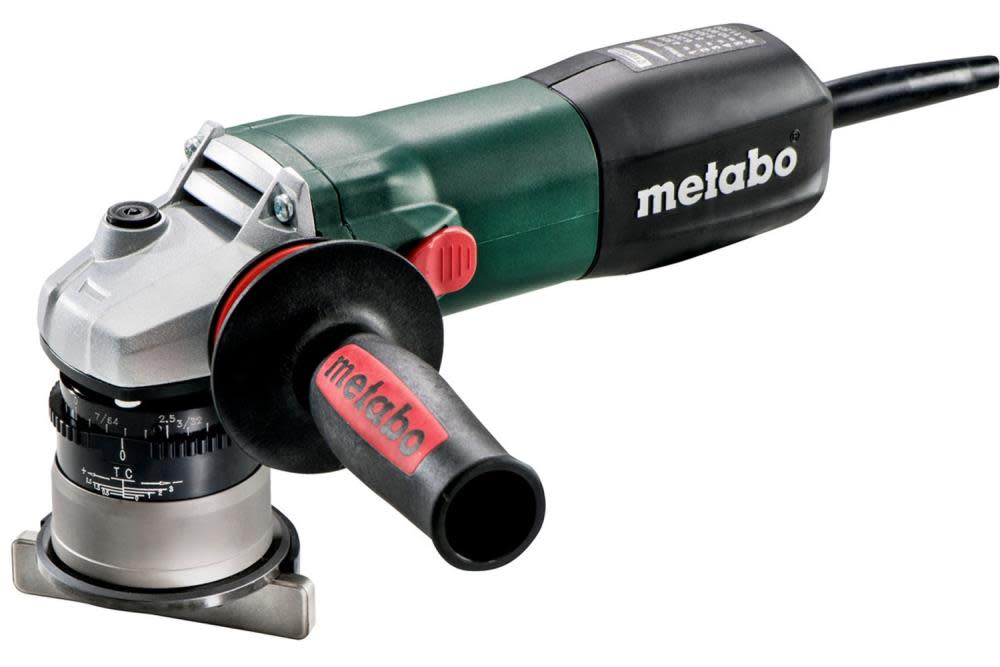

Compact Metal Beveling Tool
This compact metal beveling tool for 45° chamfers and radii of 2 to 3 mm at visible edges. It provides surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion.
Features
Patented, tool-free setting of the cutting depth in 0.1 In. steps, stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

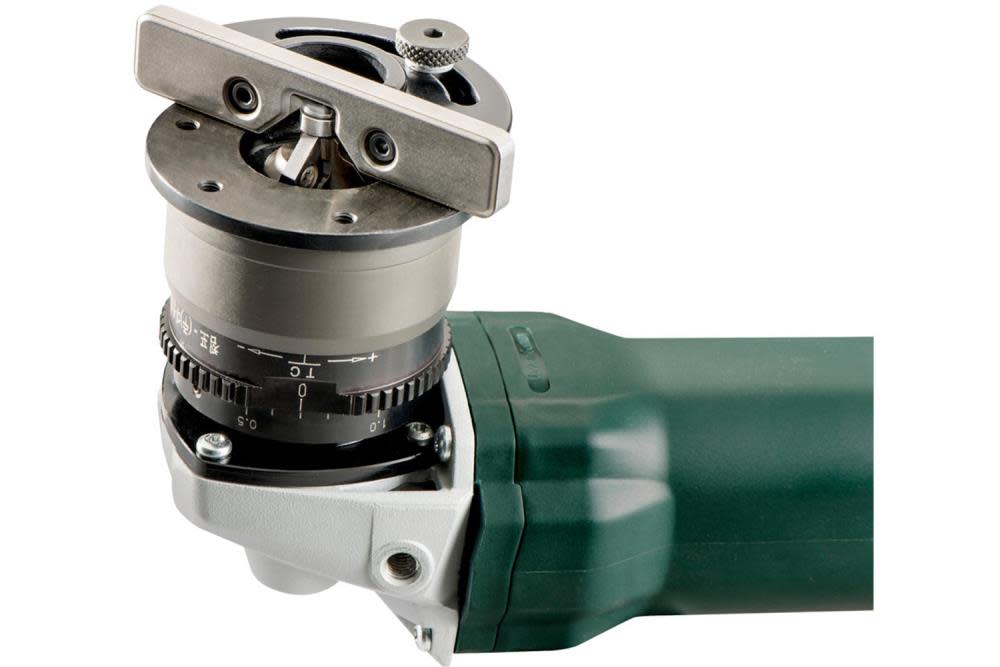

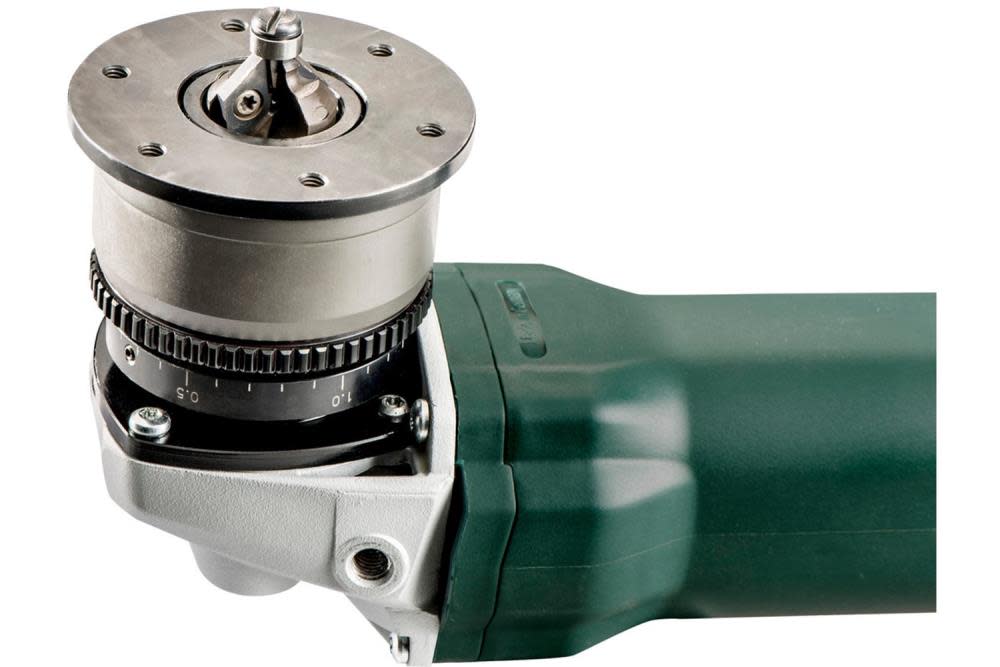

Slim cutter head with standard carbide indexable inserts and ball-bearing stationary seal ring for working in tubes and in curves
Guide stop for uniform finish and high quality of the surface when processing straight sheets
Metabo long-life motor with patented dust protection for long service life
Full wave electronics with thumbwheel for working with materials requiring customized speeds, which remain almost constant under load
Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly
Electronic overload protection, soft start and restart protection
Slim housing for ideal handling
Specifications
Acme Tools Brand Name
METABO
Acme Tools Part Number
601751750
Amperage (A)
8.0
Assembled Weight (lbs)
11.0792
California Proposition 65 Warning Required
Yes
Color / Finish
Green/black
Cordless / Corded
Corded
Country of Origin
Denmark
ETL Listed
No
globalTradeItemNumber (GTIN)
04007430293428
Grinder Switch Type
Sliding Switch
Grinder Type
Bevel
Housing Material
Die cast aluminum
Internal Supplier Part #
601751750
Internet Product Code (IPC)
78547FD24B4
Length (in)
15.21
Manufacturer Warranty
3-year/30-day warranty program
Maximum Output Wattage
470.0
Maximum RPM
11500.0
Net Tool Weight (lbs)
5.5
Overload Protection
No
Package Contents
Beveling tool
Package Weight
11.079
Package Weight (lbs)
11.079
Powered Tool Power Source
Electric – Corded
Product Storage Included
Case
Switch Type
Sliding Switch
UL Listed
No
UPC
4007430293428
Variable Speed
No
Voltage
0.0
Voltage (V)
0.0
Width (in)
5.07
