Description

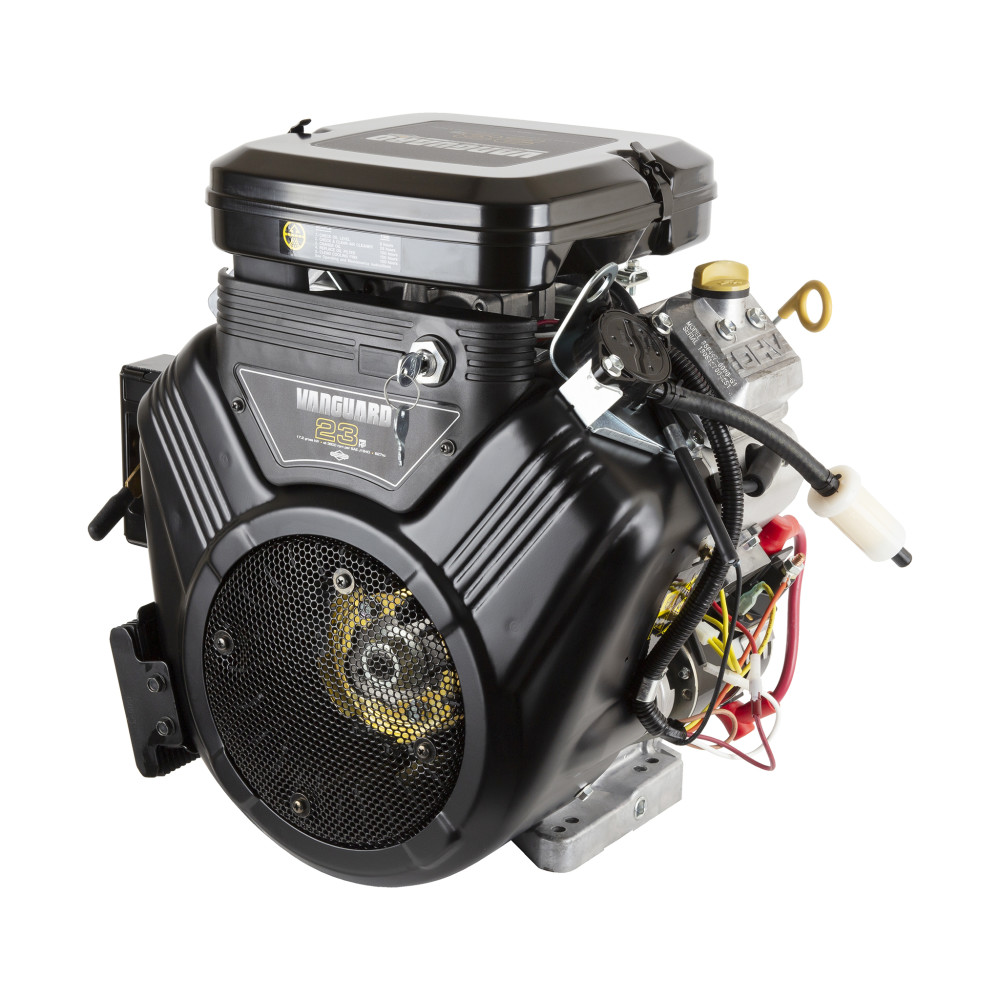

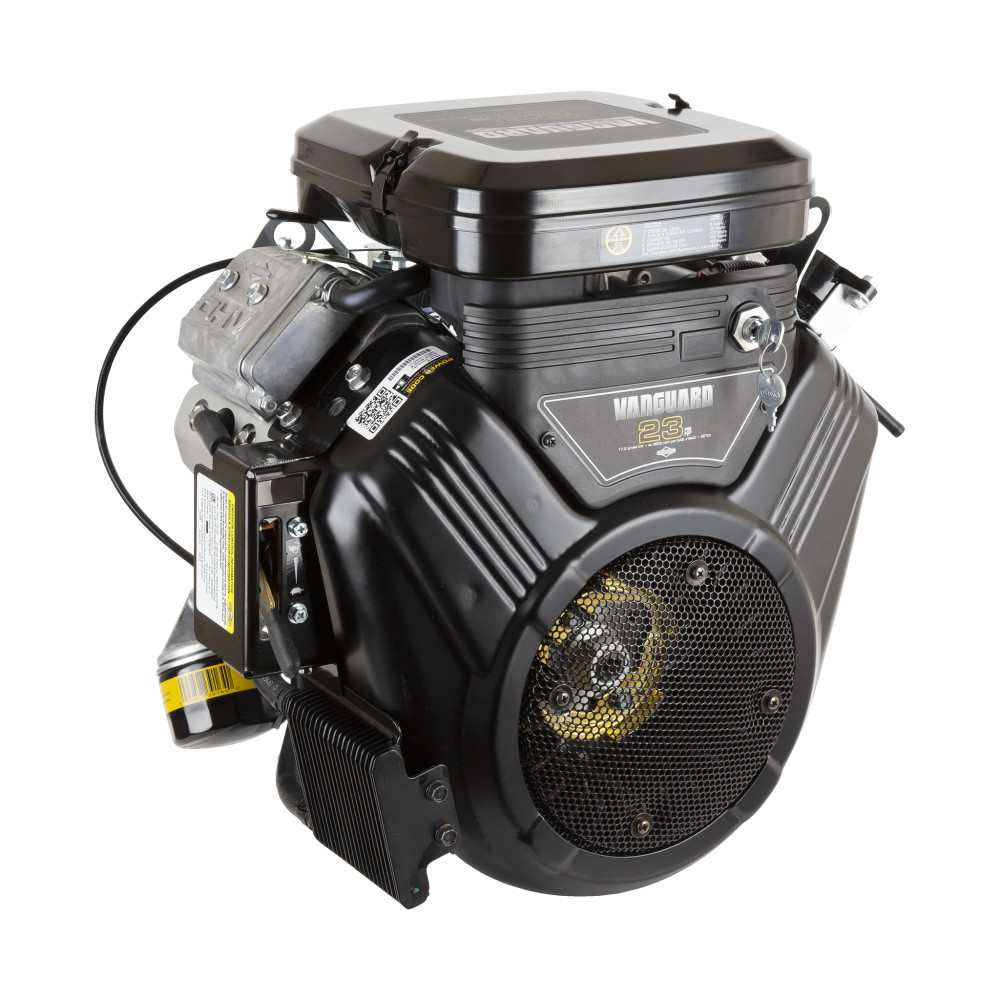

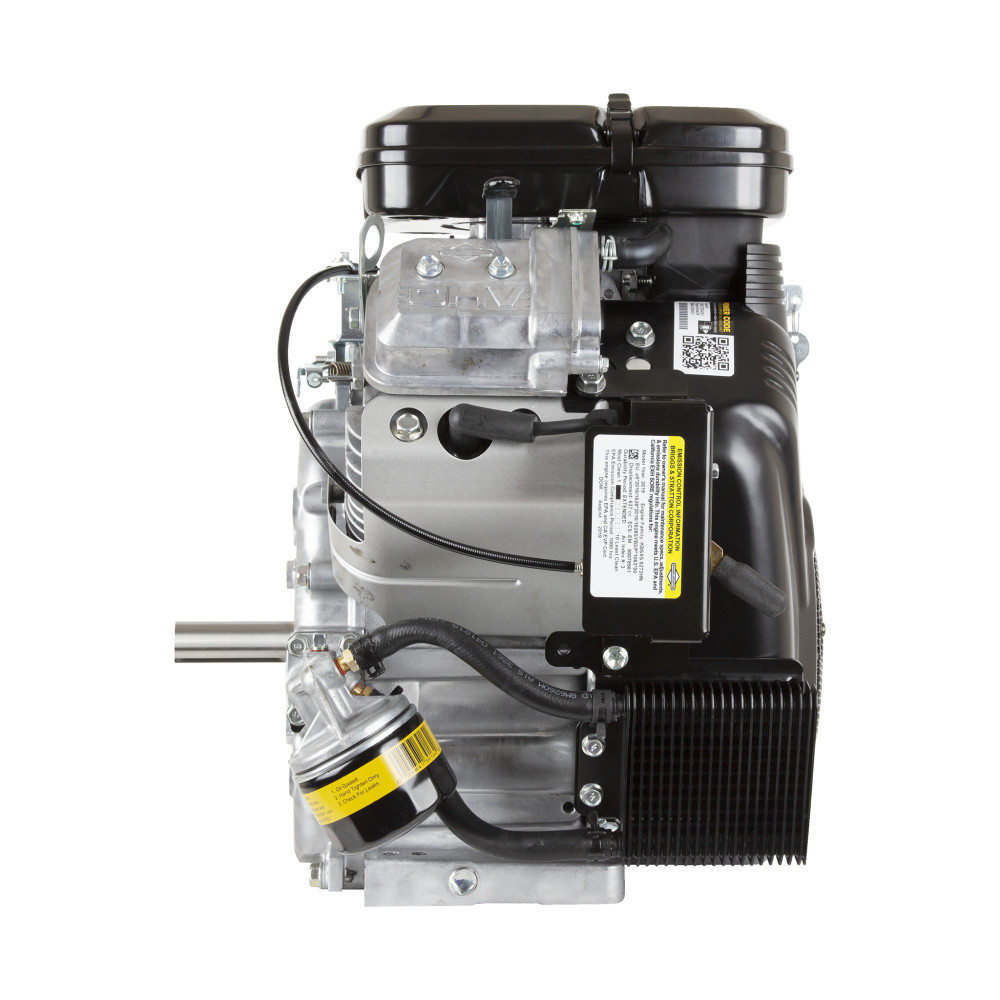

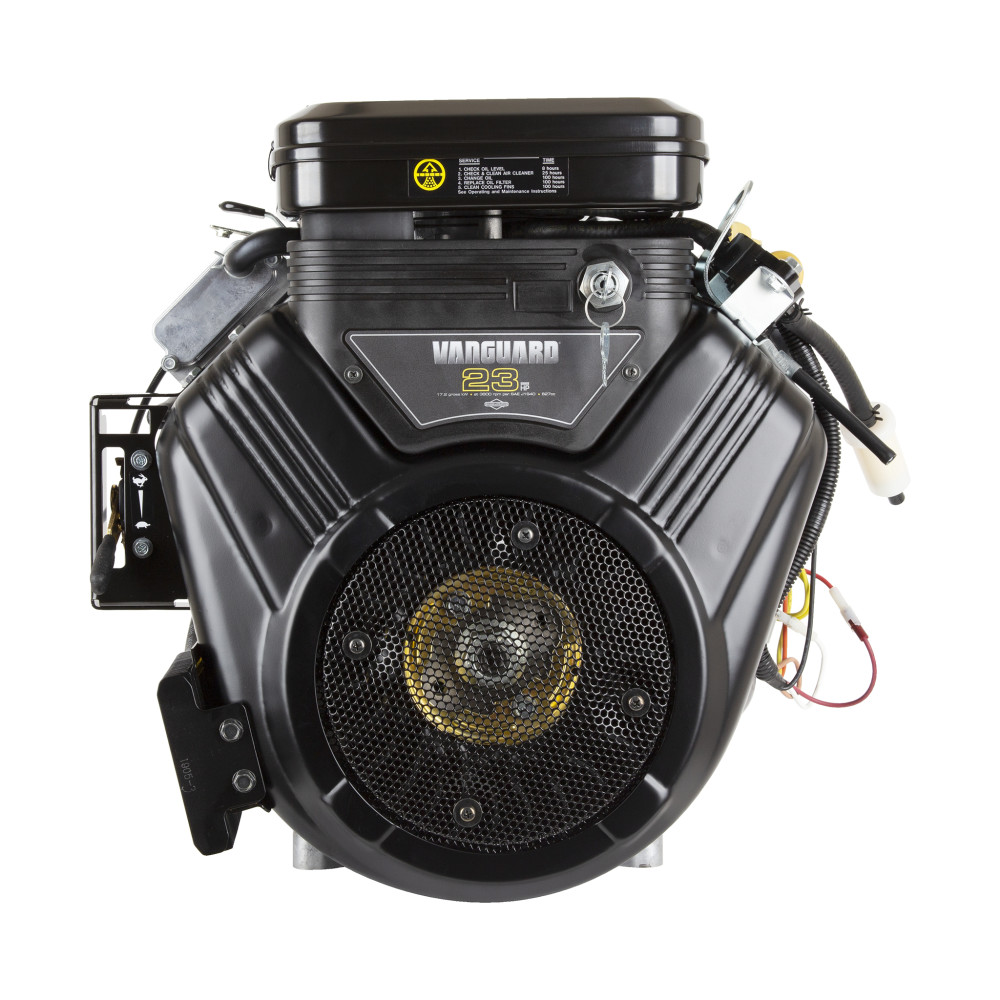

Briggs & Stratton Vanguard Engine Twin Cylinder 4 Cycle 1″ x 2 29/32″ Crankshaft
The Small Block V-Twin Vanguard engine is designed-engineered to handle the most demanding commercial applications. Energetic and quick starting, these powerhouse engines feature a number of advanced technologies and integrated components, while also being lighter and more compact than leading competitor’s engines.
Features
627cc
Advanced Debris Management
Dura-Bore Cast Iron Cylinder Sleeve
Full Pressure Lubrication w/ Spin-On Oil Filter
Oil Cooler
Centrally Located Oil Pump and Pickup
High Efficiency Head Design
Light Weight Piston Ring Package
Dynamically Balanced Crankshaft
Specifications
Acme Tools Brand Name
BRIGGS AND STRATTON
Acme Tools Part Number
386447-0090-G1
Assembled Weight (lbs)
92
Camshaft Configuration
OHV
CARB Compliant
Yes
Carburetor Design
Butterfly Float Type
Country of Origin
United States
Cylinder Count
2
Dry Weight (lbs)
93
Engine Block Material
Cast Aluminum Alloy
Engine Bore (mm)
75.44
Engine Configuration
V-Twin
Engine Cooling System
Air Cooled
Engine Cycle
4-Stroke
Engine Displacement (cc)
627
Engine Fuel Type
Gasoline
Engine Governor System
Centrifugal
Engine Horsepower (hp)
23
Engine Oil Sump Style
Wet
Engine Output Shaft Direction
Horizontal Shaft
Engine Stroke (mm)
70.1
globalTradeItemNumber (GTIN)
00047282811054
Ignition System
CD (Capacitance Discharge)
Oil Capacity (qt)
48
Package Contents
Engine, high vacuum parts,adjustable fix speed,casing clamp & screw,exhaust gaskets, owner manual
Package Depth
20.75
Package Height
20.75
Package Weight
94.2
Package Weight (lbs)
94.2
PTO Shaft Rotation
Counterclockwise (PTO shaft side)
Starting System
Electric Starter
Type of Lubrication System
Full Pressure
UPC
047282811054
