Description

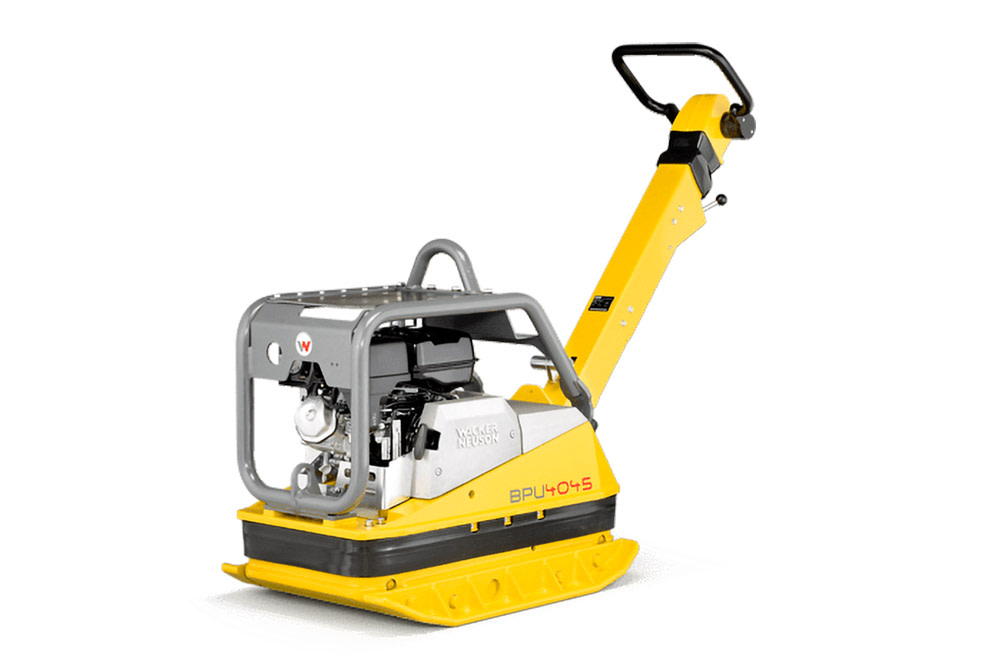

BPU4045A Reversible Vibratory Plate Compactor
High compaction force combined with fast forward and reverse travel means the BPU4045 achieves great productivity. It is an all around versatile plate for all job sites that place high demands on the machine’s performance potential. Its other outstanding characteristics are high operator comfort and a long service life. It is perfectly suited for the compaction of building back-fill, and of frost and sub bases when constructing roads, paths and parking lots. The 69 Hz frequency makes the BPU4045 suitable for all purposes and compacts even medium-weight interlocking paving stone reliably.
Features
Intuitive guide handle design: The operator changes the direction of travel and speed simply by moving the handle forwards and backwards.
Infinitely variable forward and reverse operation including spot compaction for easy maneuverability. Ideal for trenches and over large areas.
Comprehensive comfort features: e.g. low oil shut off and maintenance-free alternator.
The large gasoline engine with its high reserve capacity ensures great efficiency and a long service life.
The BPU4045 is equipped with a recoil starter. Different extension plates provide a variety of operating widths.
Specifications
Acme Tools Brand Name
WACKER NEUSON
Acme Tools Part Number
5100009663
Assembled Weight (lbs)
710
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 1.4 Gal
CARB Compliant
Yes
Compacting Plate Length (in)
35.4
Compacting Plate Width (in)
17.7
Compaction Equipment Type
Vibratory Plate Compactor
Country of Origin
Germany
Engine
Honda GX 270
Engine Starting Method
Crank Handle / Recoil
Engine Type
Gasoline 4 Cycle
Fuel Consumption (gph)
.42
Fuel Tank Capacity (gal)
1.4
globalTradeItemNumber (GTIN)
00694157527345
Maximum Engine Output (hp)
8
Maximum Sound Output (dB)
90
Maximum Travel Speed (ft/min)
78.7
Package Contents
BPU4045A Compactor
Package Depth
35.4
Package Height
28.5
Package Weight
711
Package Weight (lbs)
711
UPC
400100006566
Vibration Frequency (Hz)
69
