Description

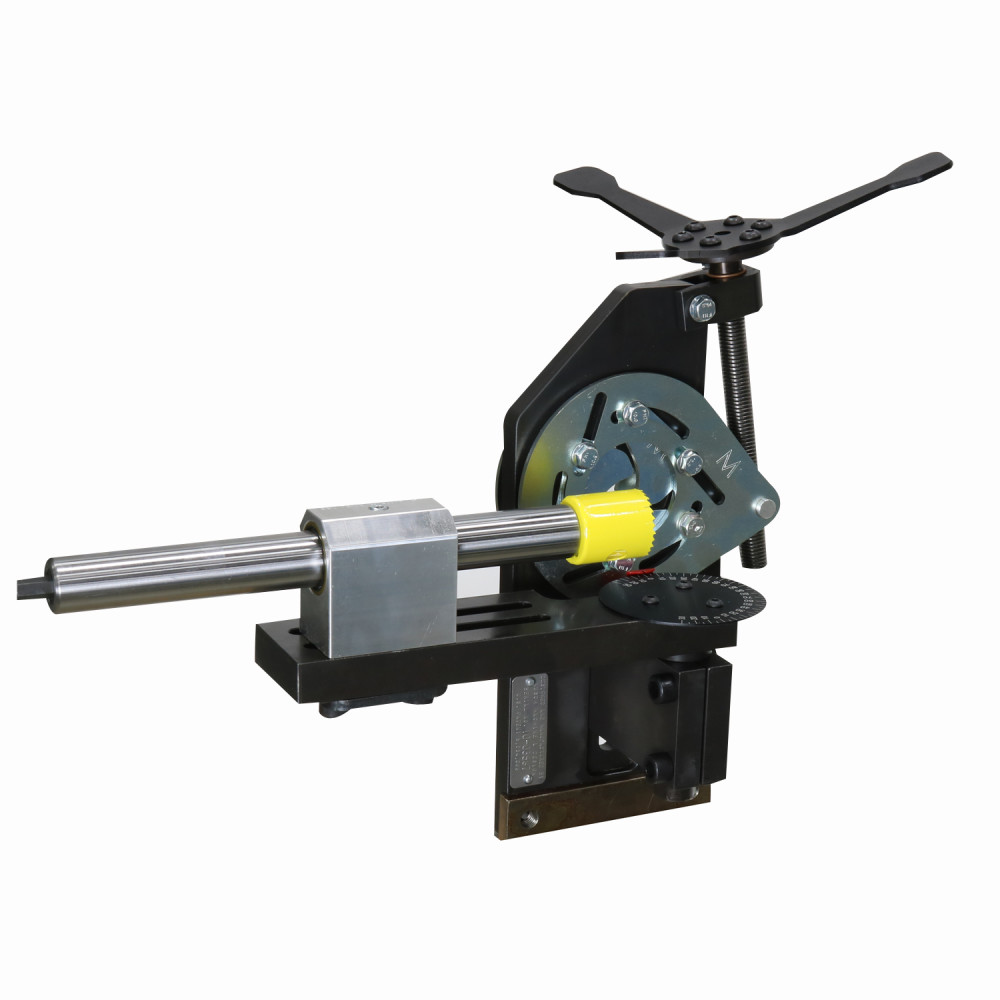

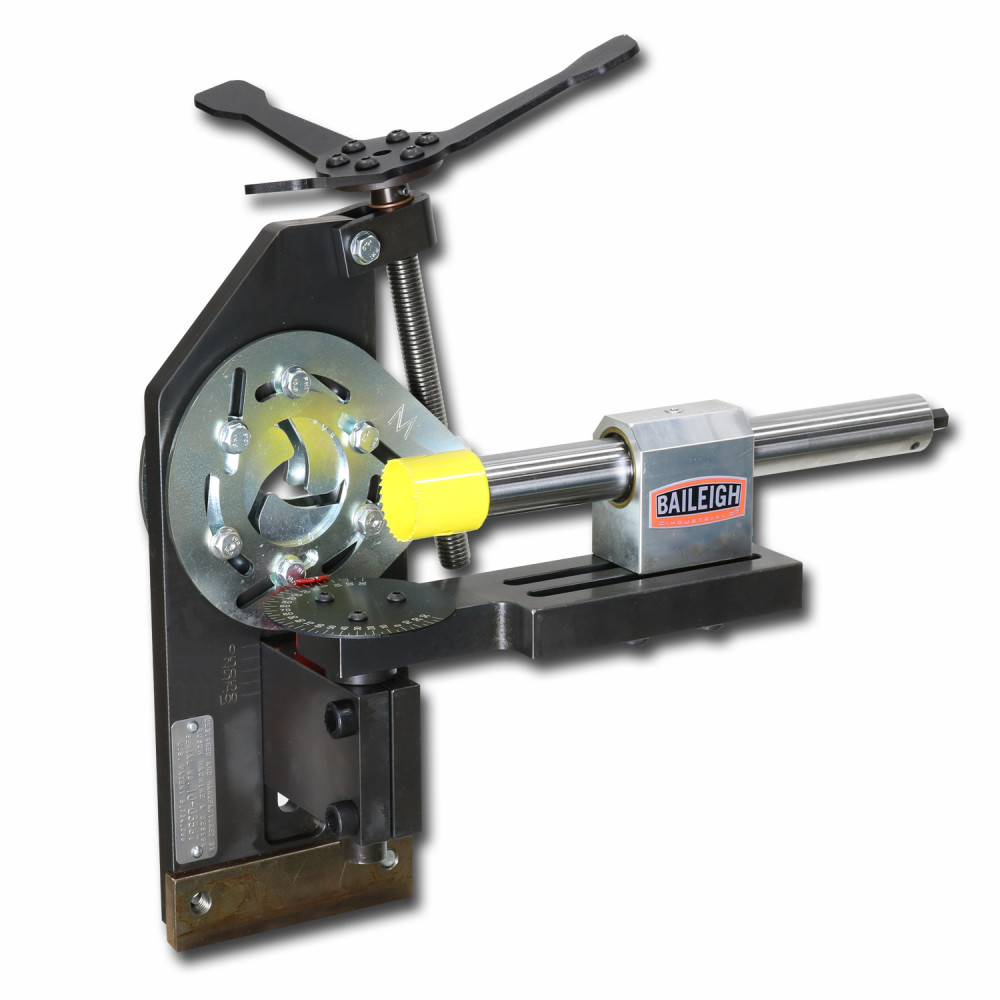

Baileigh TN-250 Hole Saw Tube and Pipe Notcher
The best hole saw notcher in the world – a big claim, but customers say the Baileigh TN-250 lives up to it. It’s the only hole saw pipe notcher on the market that’s always centered.
Features
Notches up to 2.5 In. Outside Diameter

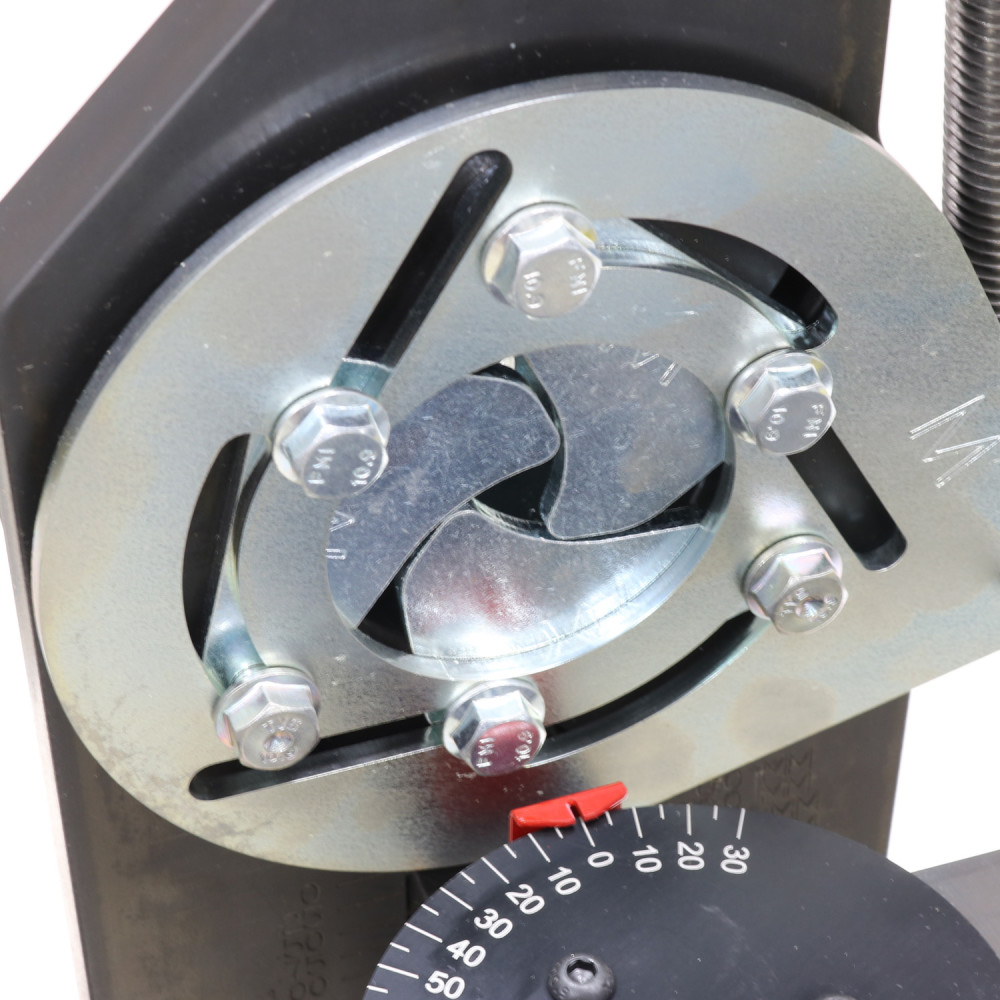

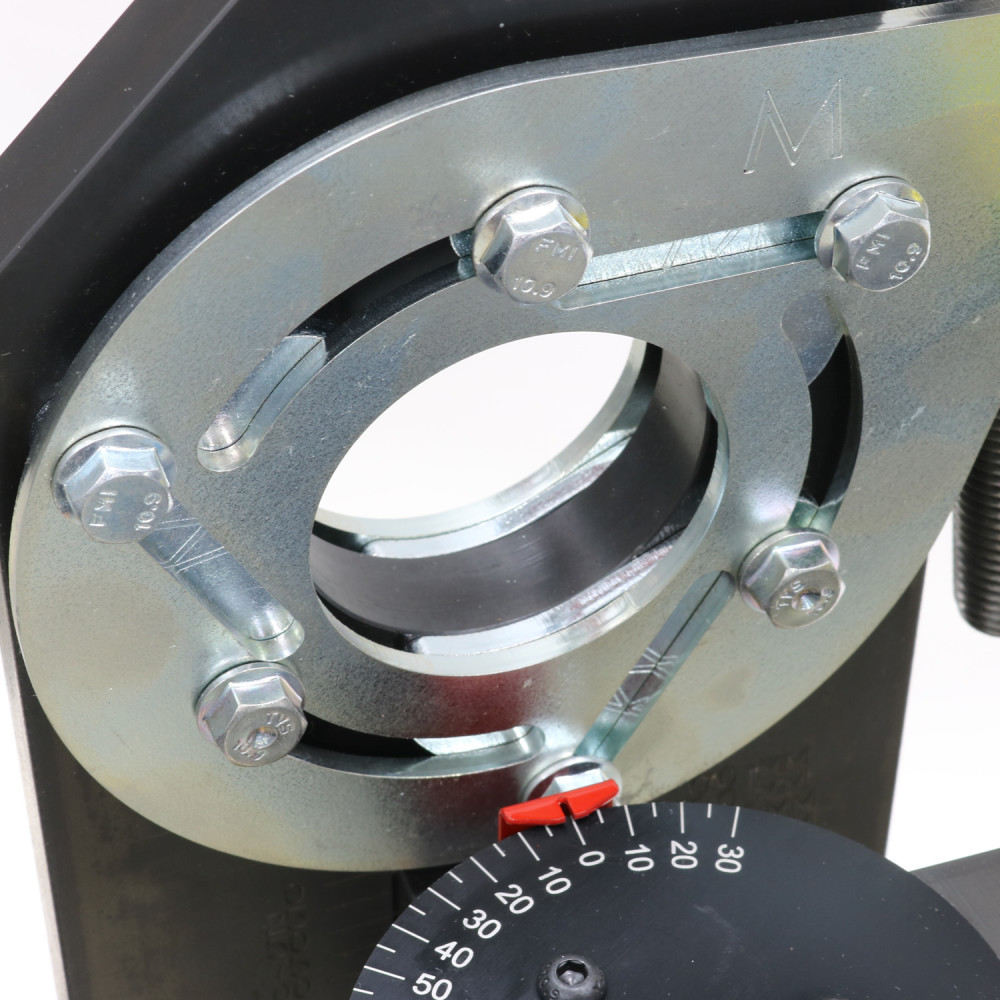

Our patented self-centering vise can clamp down anywhere on tube, including the middle of bends
Fully-adjustable axis accommodates almost any notch combination
Carriage pivots up to 220 In. left to right, so you can come from the “back side” of the notch

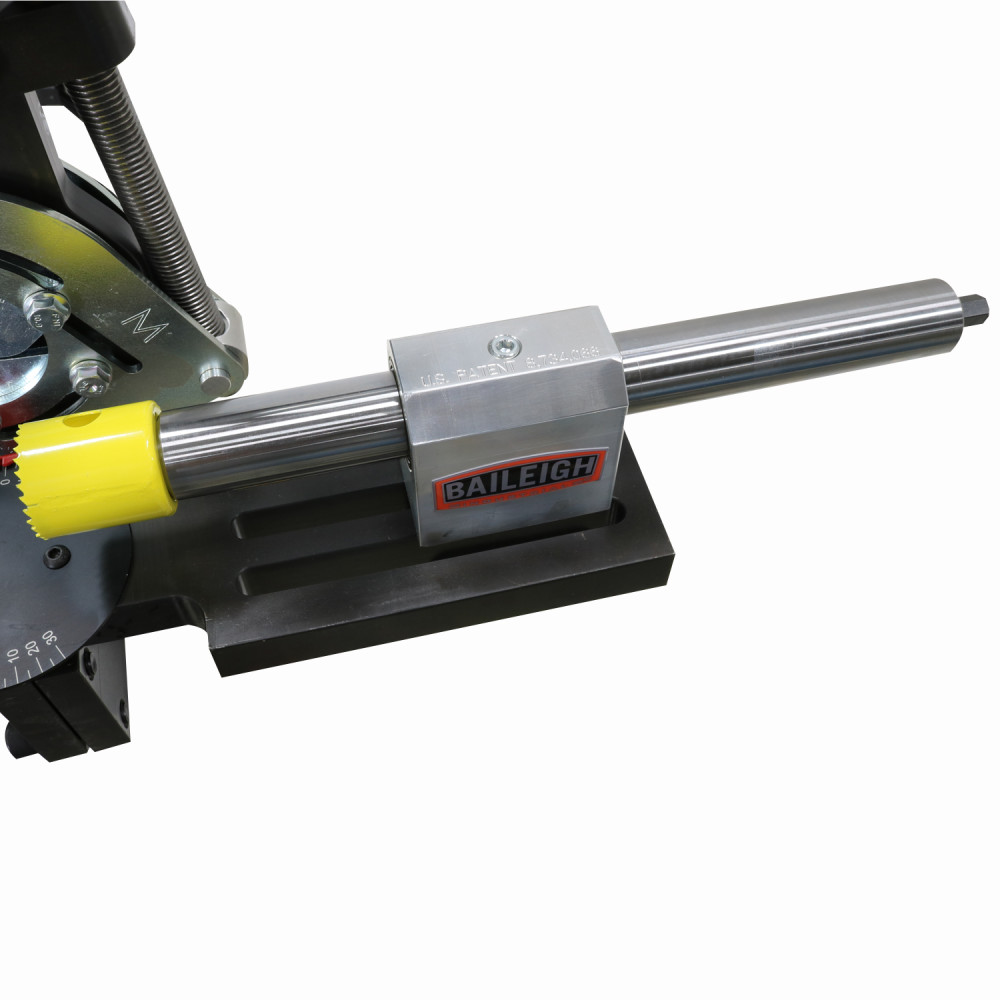

2 slotted mounting rails move up and down with scales for offset notches up to 1 In. and allow for almost any position of the bearing block

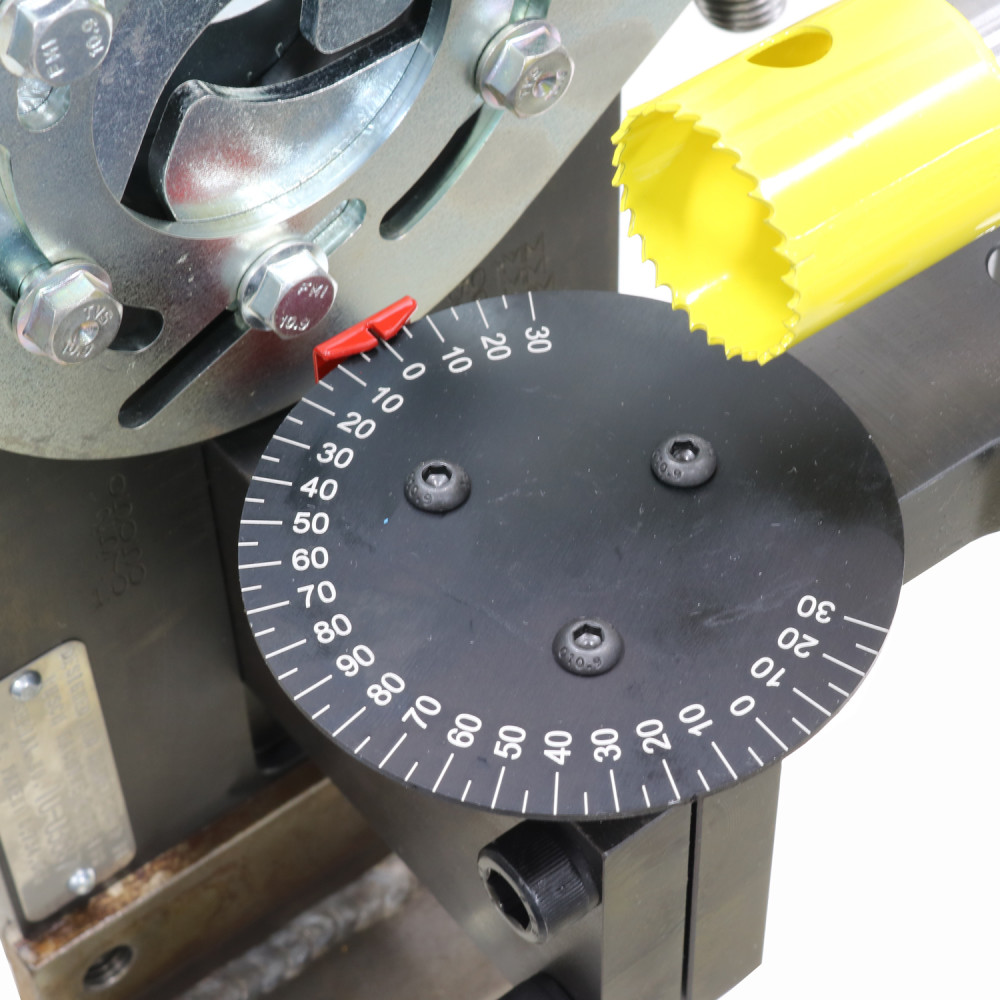

Large engraved degree dial (or angle-finder) helps you get those back-side notches lined up

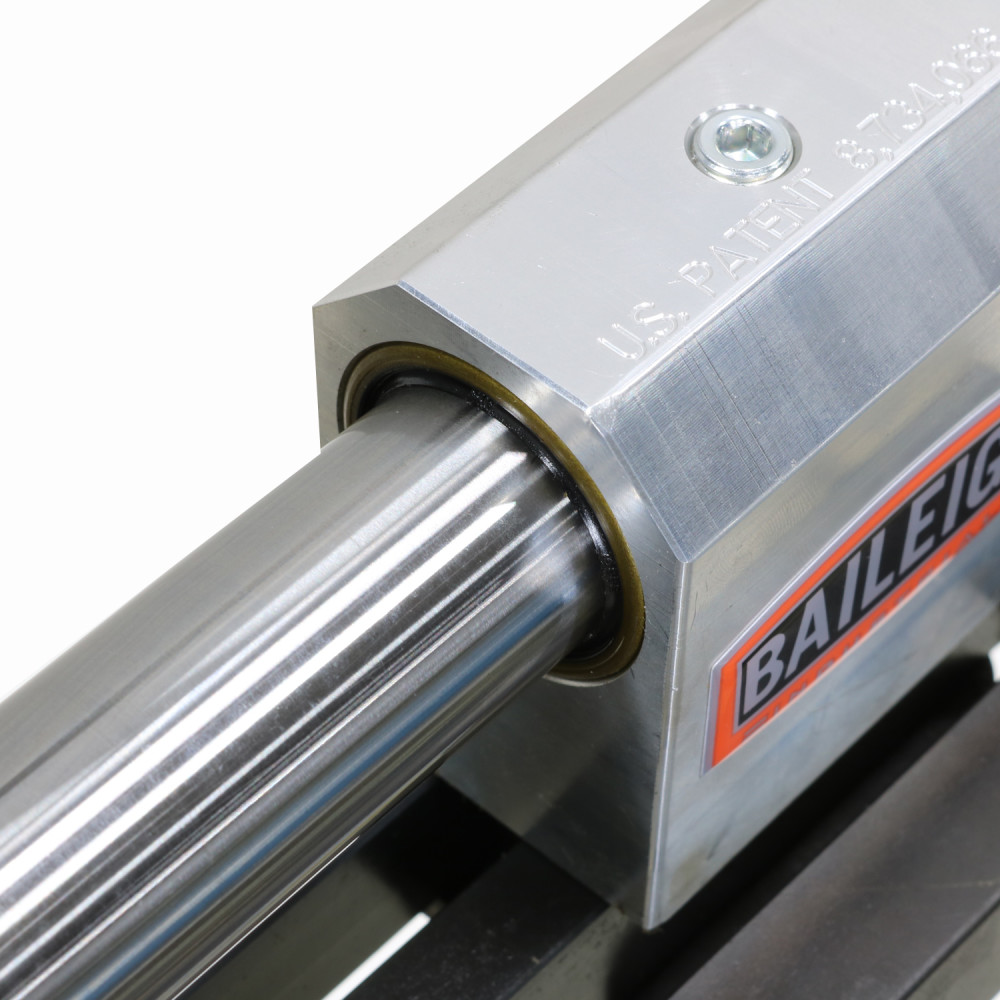

1.25 In. Thompson® shaft rides in sealed and oiled needle bearings for smooth performance
Both ends of the shaft are completely replaceable to save you time and money
Heavy-duty 0.75 In. steel plate backbone and all-interlocking components create a rigid platform that reduces vibration and prolongs the life of the hole saws
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1008041
Assembled Weight (lbs)
43
Country of Origin
United States
globalTradeItemNumber (GTIN)
00400008001038
Material
Heavy-Duty Steel
Package Contents
Tube and Pipe Notcher
Package Depth
14
Package Height
19
Package Weight
43
UPC
731325080346
