Description

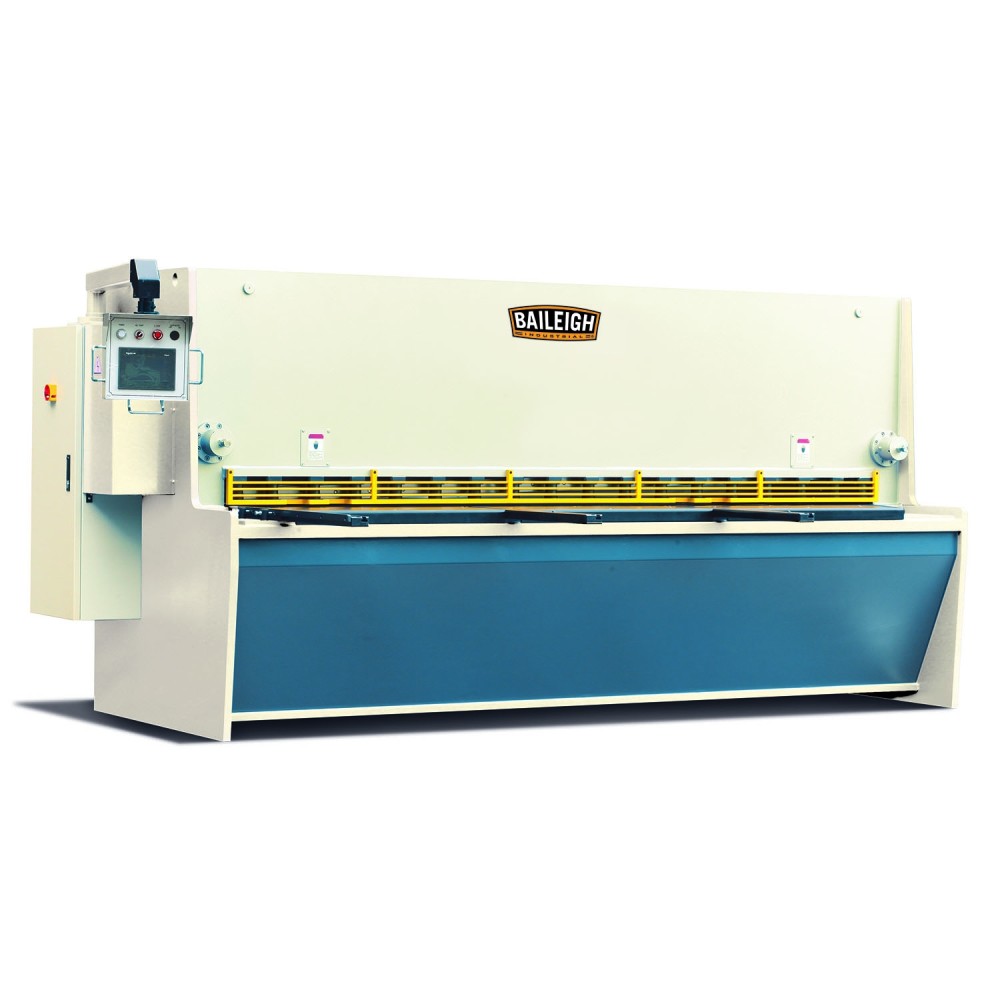

Baileigh SH-12003-HD Mild Steel Hydraulic Shear 120″ 3 Gauge
Looking for the most reliable 1/4 In. mild steel hydraulic shear on the market? You found it. With a Schneider NC controller and a steel plate frame, this shear was built for heavy production.
Features
Can cut up to 10 Ft. wide metal sheets, 1/4 In. thick mild steel capacity, Also makes quality cuts in lighter gauge materials
20HP motor runs on 220V 3 Phase power, 20 to 30 strokes per minute-faster cycle times than many comparable shears
Upper blade carriage rides in a 3-axis bearing housing, Precision ground and hardened rail system offers unbeatable accuracy and longer blade life

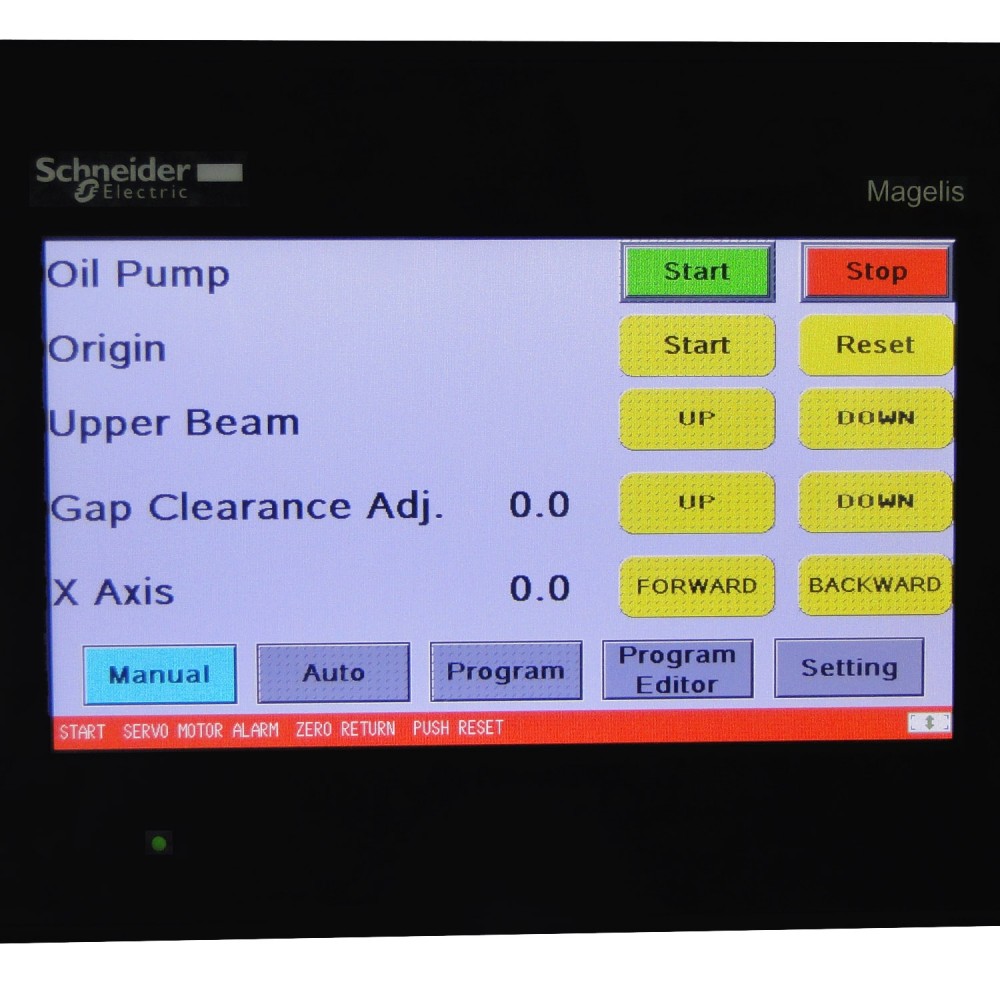

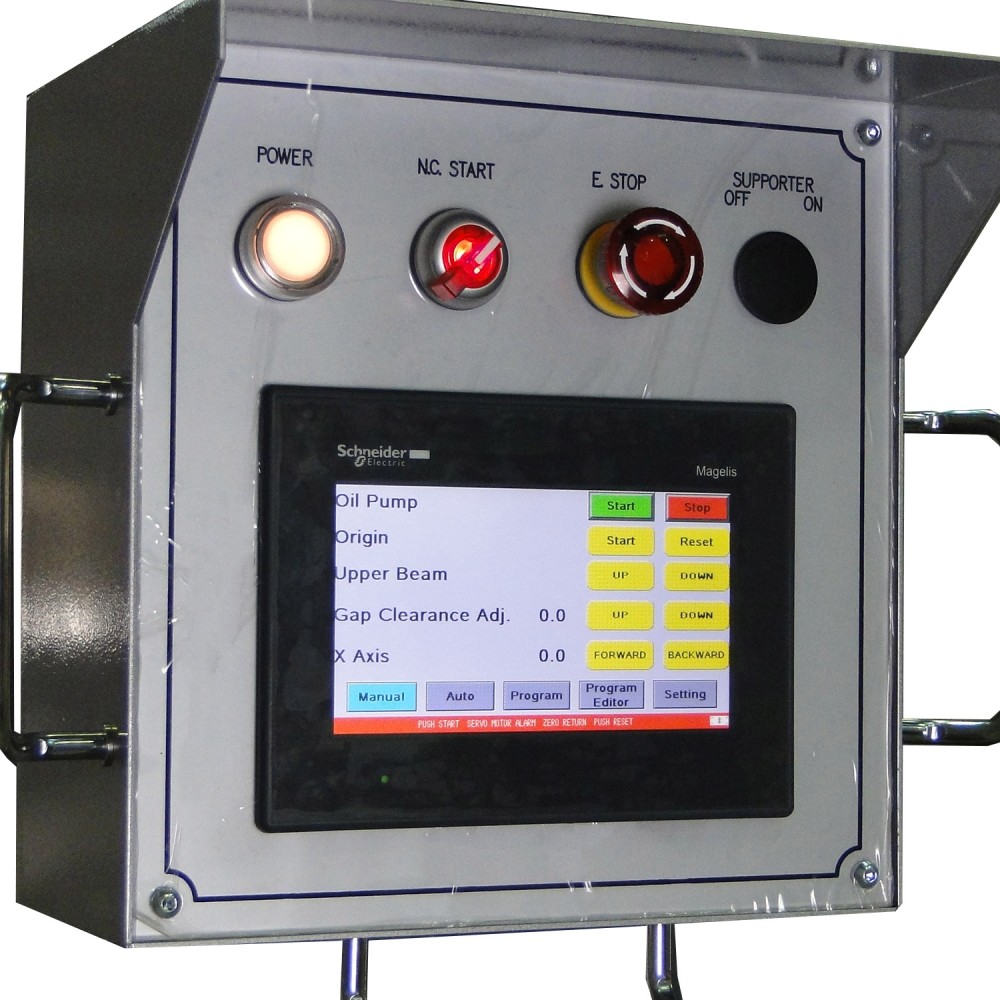

Touchscreen NC controller, made by Schneider, and foot pedal make this shear easy to operate
Controller lets you program the back gauge to make the best use of each piece of steel
You can program repeated sequences of pieces with different cut lengths

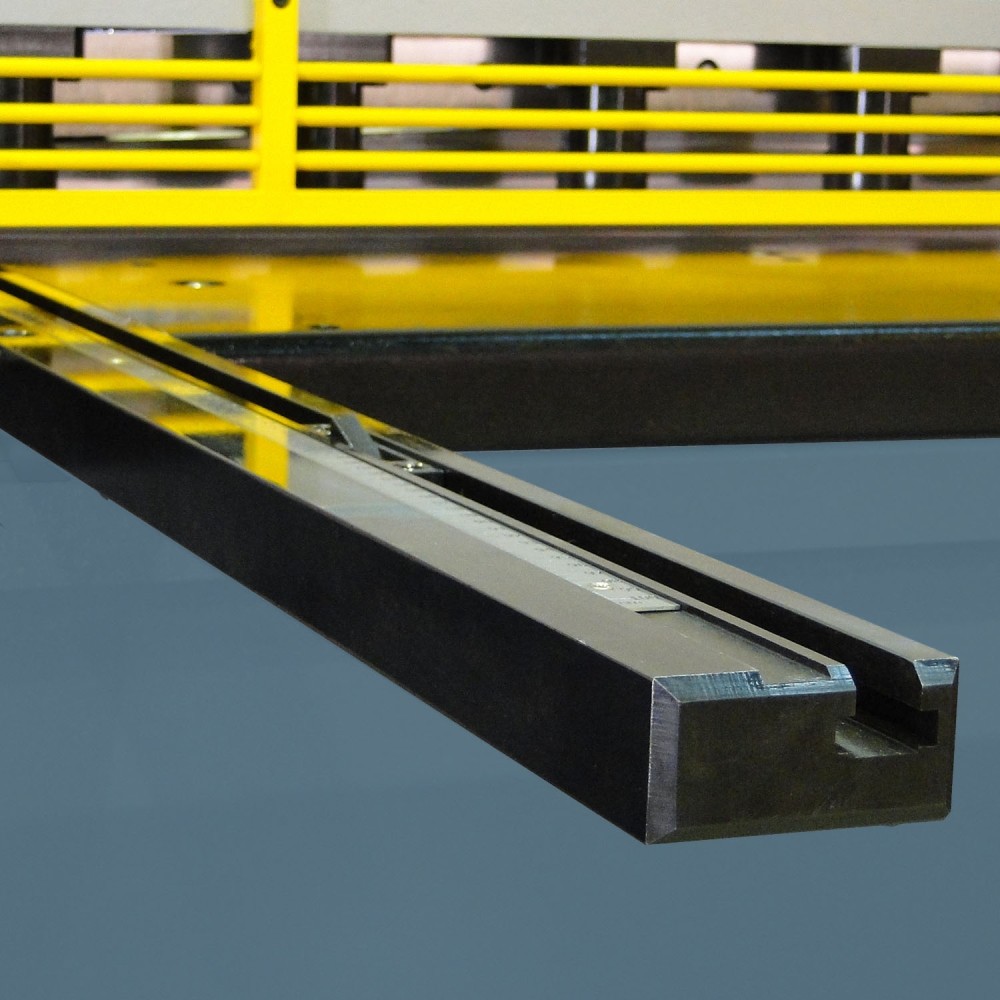

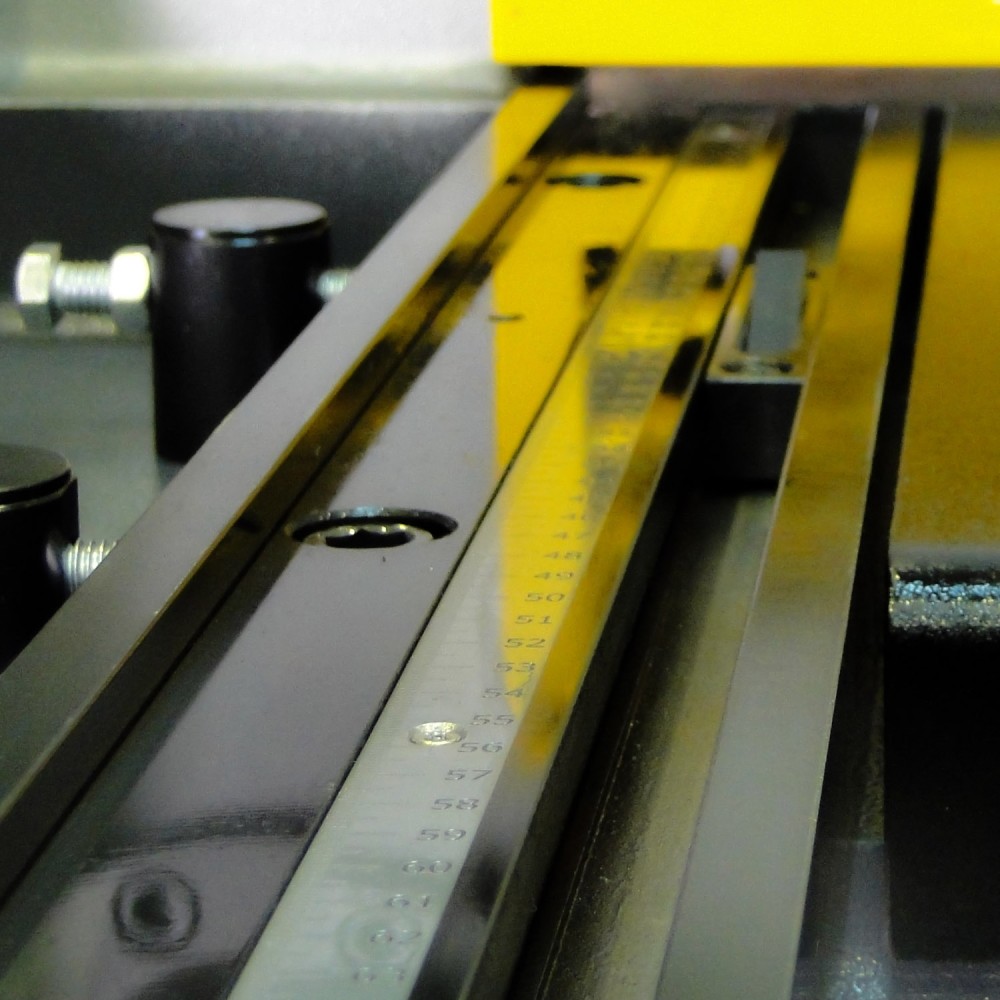

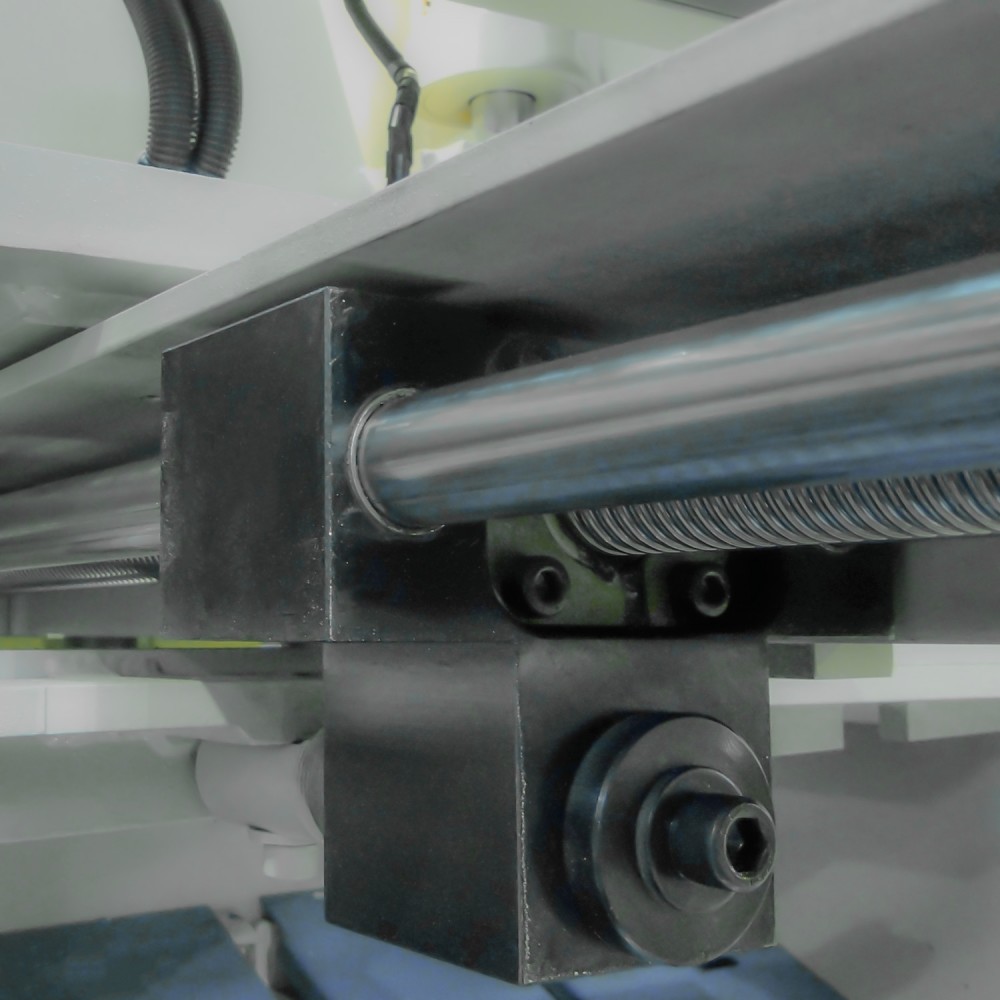

Back gauge positioner rides on a screwball rail system and uses an encoder for accuracy
Jog mode – Inching the blade down to the material, Single cycle mode – One cut for one pedal push, Automatic cycling mode – Continuously cutting for production runs

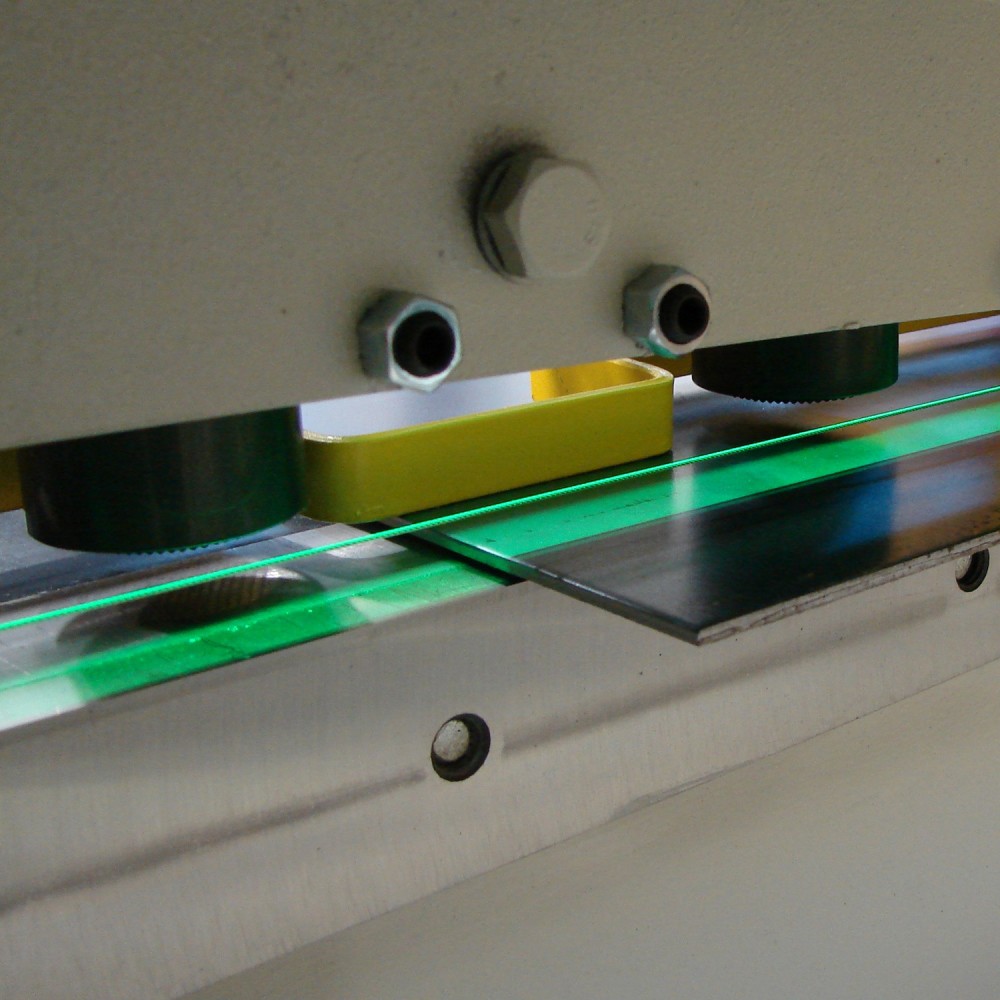

Piece counter makes production runs more efficient, Quick-change blade gap adjustment prevents the material from folding
Baileigh SH-12003-HD 220V 3 Phase 120 In. Length 3 Gauge Mild Steel Capacity Heavy Duty Hydraulic Sheet Metal Shear
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1007048
Assembled Weight (lbs)
15400
Blade Count
6
Country of Origin
Taiwan
Gauge Cutting Capacity
3
globalTradeItemNumber (GTIN)
00400007001060
Package Contents
120 In. Hydraulic Sheet Metal Shear
Package Depth
166
Package Height
85
Package Weight
15400
Portable
No
UPC
400007001060
