Description

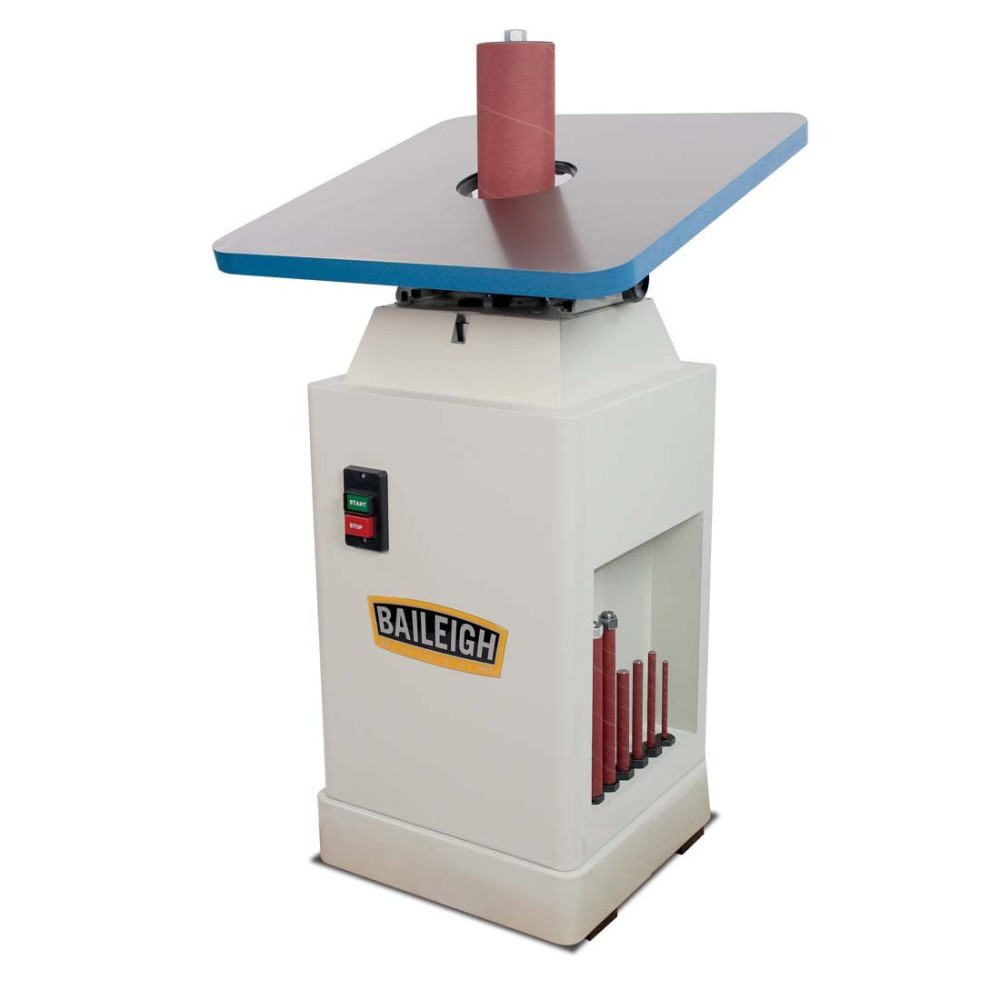

Baileigh OS-2424 Oscillating Vertical Spindle Sander 110V 24″
Built with a rigid steel frame and a 24 In. x 24 In. cast iron table, this floor-style oscillating spindle sander is a heavy-duty professional shop machine. It comes with 10 spindle sizes, from 1/4 In. to 4 In.
Features
Runs on 110V power, plug it into any household outlet
1HP motor spins the spindle at 1725 Rpm
Oscillating spindle moves up and down 1-1/2 In. to create an extremely smooth finished surface
Precision-ground 2 Ft. x 2 Ft. cast iron table remains square and level through many years of use
Cast iron table won’t warp like aluminum tables found on competing models

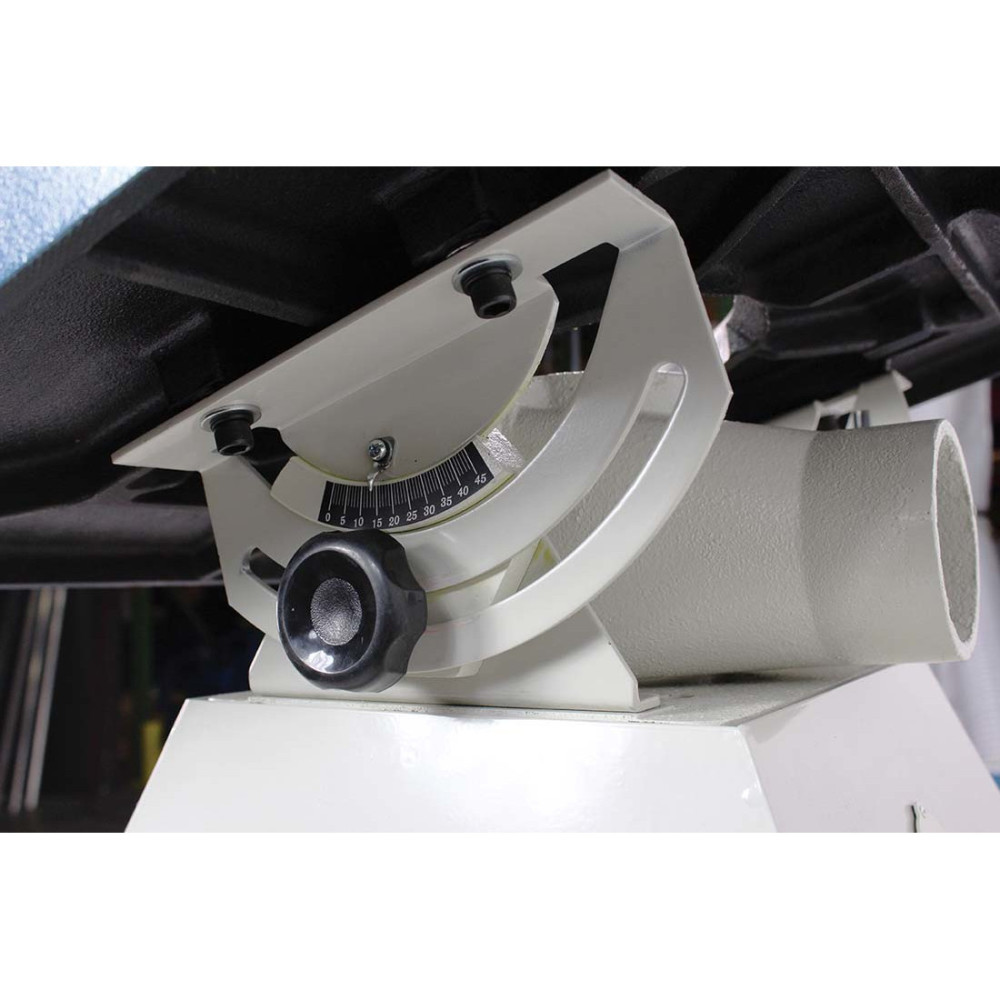

Table tilts up to 45 Deg with a scale for repeatability

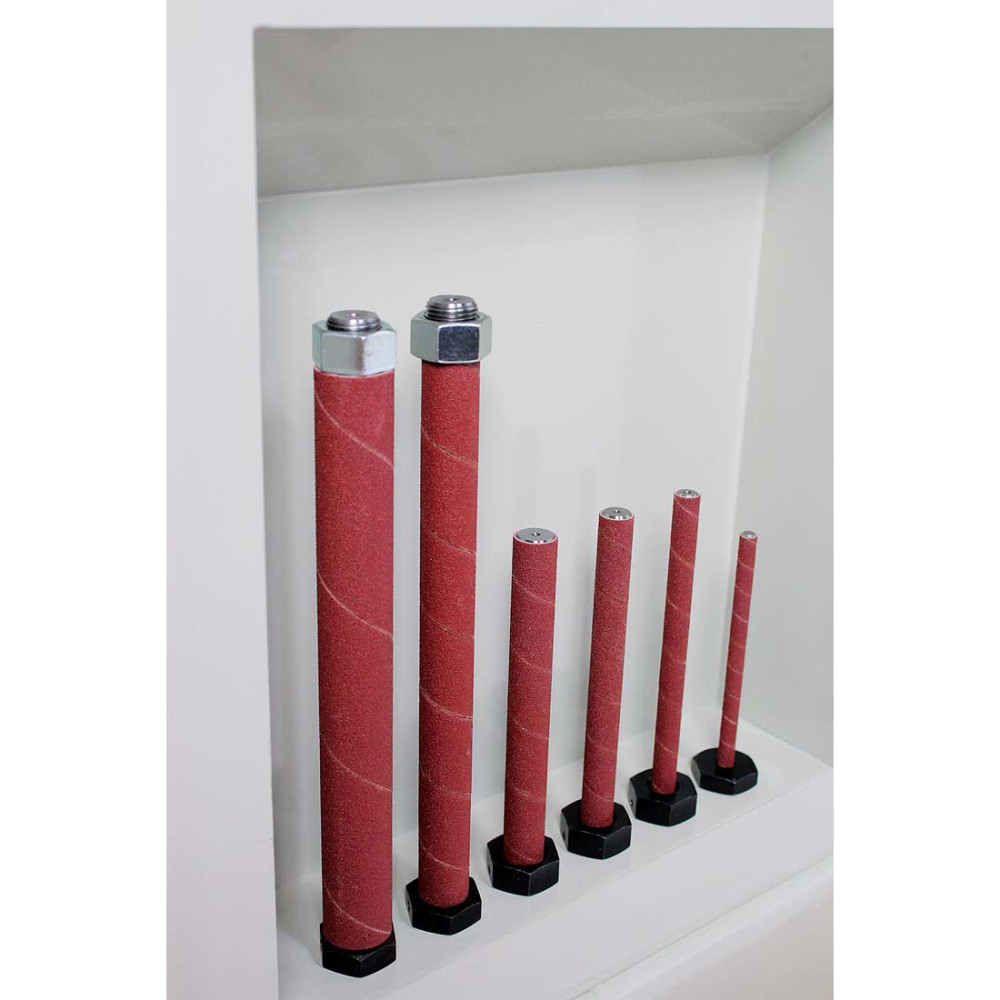

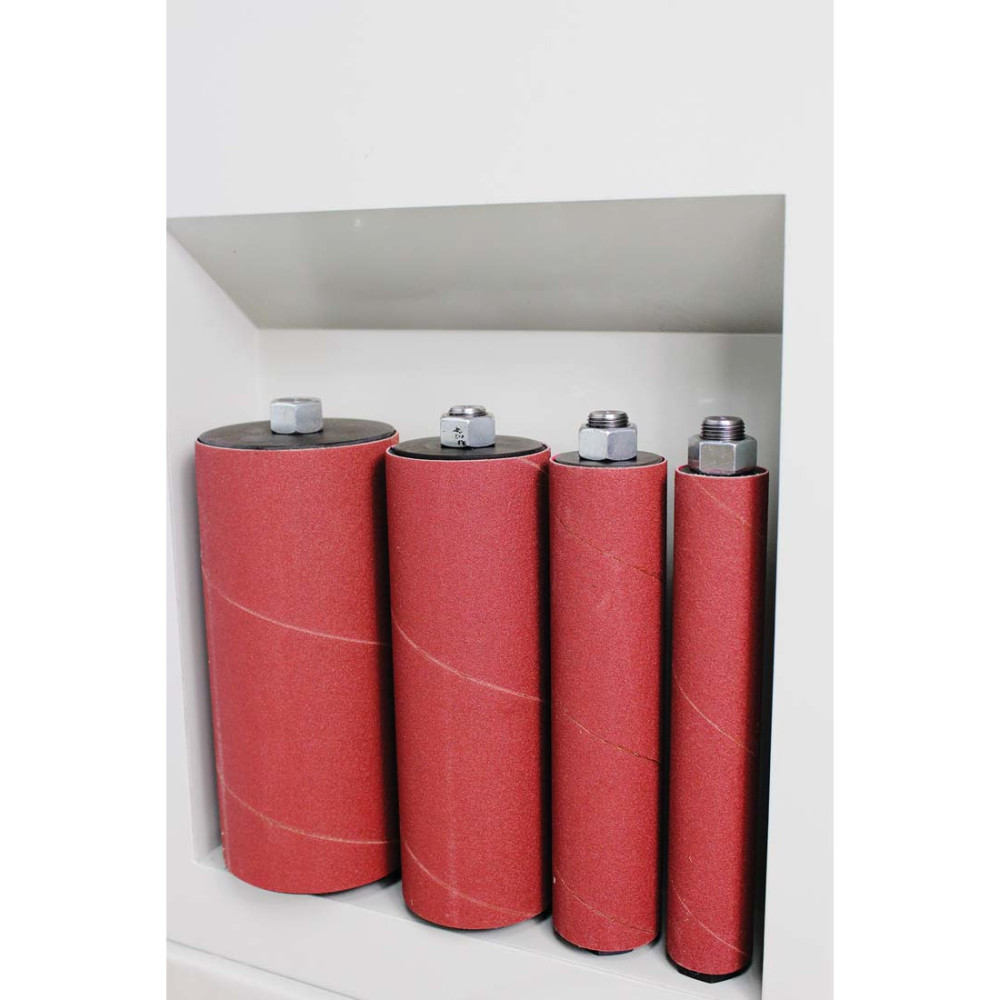

Comes with 10 different spindle sizes (see below) to provide the most sanding choices in one package
Heavy steel frame stabilizes the machine for greater accuracy
Weighs 320 lbs, so you know you’re getting one solidly built wood sander
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1005908
Amperage (A)
0.0
Assembled Weight (lbs)
320
Cordless / Corded
Corded
Country of Origin
Taiwan
Dust Collection
Yes
Dust Collection Method
Dust Hood
Electronic Speed Control
Yes
globalTradeItemNumber (GTIN)
00400005001826
Horsepower (hp)
1
Material
Cast Iron
Maximum Spindle Diameter (in)
4
Minimum Spindle Diameter (in)
0.25
Number of Spindle Speeds
1
Number of Spindles Included
10
Oscillation
Yes
Oscillations Per Minute
75
Package Contents
Sander, 1/4 In. x 6 In., 3/8 In. x 6, 1/2 In. x 6 In., 5/8 In. x 6 In., 3/4 In. x 9 In., 1 In. x 9 In., 1-1/2 In. x 9 In., 2 In. x 5-1/2 In., 3 In. x 9 In., & 4 In. x 9 In. Spindle
Package Depth
50
Package Height
48
Package Weight
320
Sander Style
Spindle
Size(s) Of Spindles Included
1/4 In. x 6 In., 3/8 In. x 6, 1/2 In. x 6 In., 5/8 In. x 6 In., 3/4 In. x 9 In., 1 In. x 9 In., 1-1/2 In. x 9 In., 2 In. x 5-1/2 In., 3 In. x 9 In., & 4 In. x 9 In.
Spindle Speed High (rpm)
1725
Spindle Speed Low (rpm)
1725
Spindle Table Length (in)
24
Spindle Table Tilt Range
45 Deg
Spindle Table Width (in)
24
Spindle Travel (in)
1-1/2
Table Material
Cast Iron
UPC
400005001826
Variable Speed
No
