Description

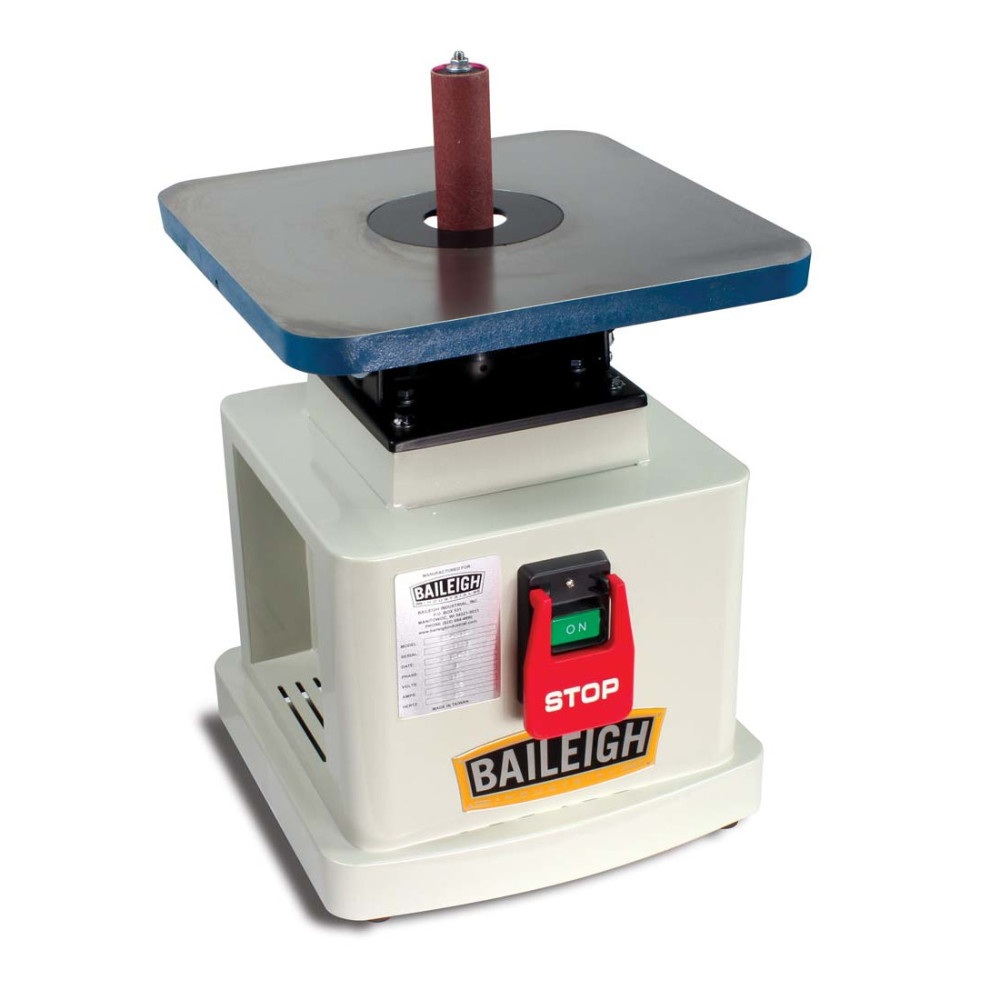

Baileigh OS-1414 Oscillating Vertical Spindle Sander 110V 14″
This space-saving benchtop spindle sander lets you smooth radii with ease and accuracy. The OS-1414 bench top sander has a long-lasting cast iron table, unlike most small wood sanders on the market.
Features

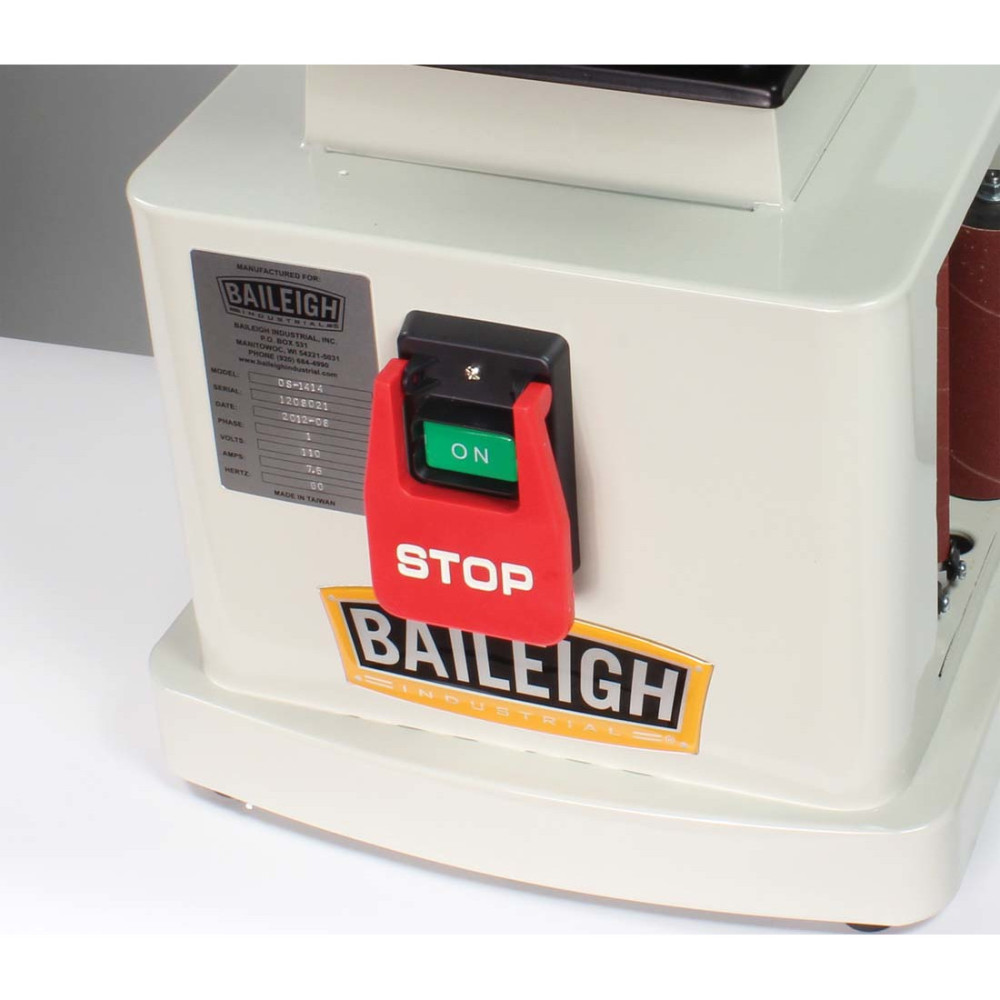

Runs on 110V power, plug it into any household outlet
Spins at 1720 Rpm
Oversized 14 In. x 14 In. cast iron table stays true and level over many years of use. It won’t wobble or “walk In. like aluminum tables

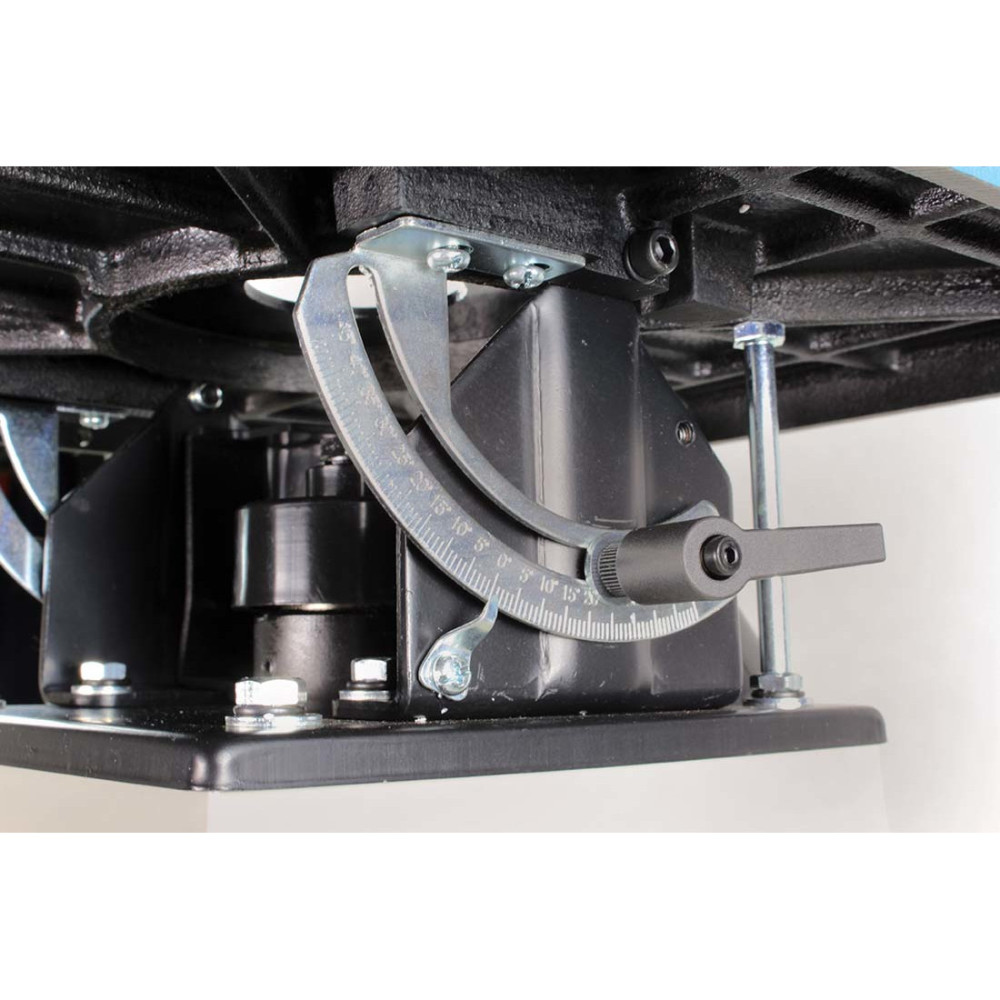

Table can tilt 45 Deg to the front

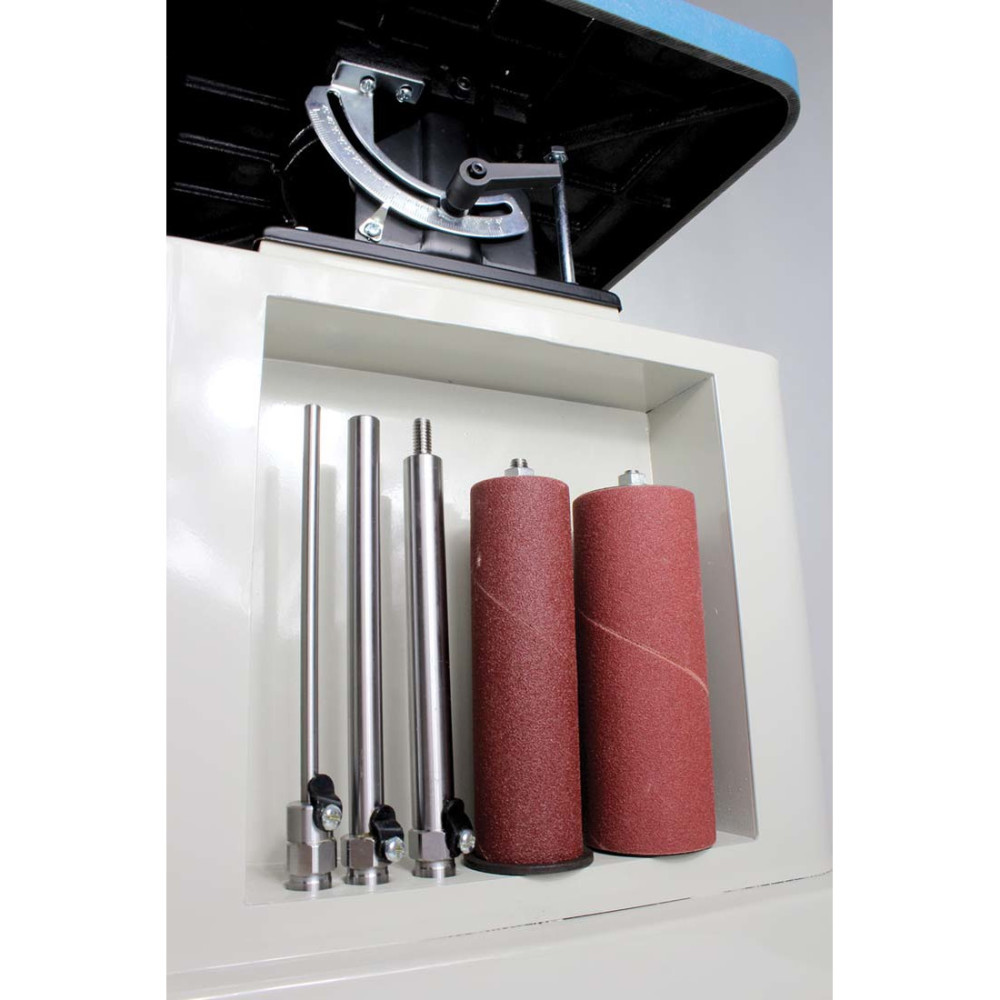

Comes with 5 spindle sizes: 1/4 In., 1/2 In., 5/8 In., 1-1/2 In., and 2 In.
Supplied wrench makes spindle changes easy
Drum both spins and oscillates up and down a total of 15/16 In. for improved sandpaper life
Spindle accepts standard 4 in. sandpaper sheets. You can buy replacements at any store that carries woodworking supplies
Weighs 85 lbs solid but movable for convenient storage
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1005907
Amperage (A)
0.0
Assembled Weight (lbs)
85
Bench or Stationary
Bench
Cordless / Corded
Corded
Country of Origin
Taiwan
Electronic Speed Control
Yes
globalTradeItemNumber (GTIN)
00400005001789
Horsepower (hp)
0.5
Material
Cast Iron
Maximum Spindle Diameter (in)
2
Minimum Spindle Diameter (in)
0.25
Number of Spindle Speeds
1
Number of Spindles Included
5
Oscillation
Yes
Oscillations Per Minute
29
Package Contents
Sander
Package Depth
24
Package Height
20
Package Weight
85
Sander Style
Spindle
Size(s) Of Spindles Included
1/4 In., 1/2 In., 5/8 In., 1-1/2 In. and 2 In.
Spindle Speed High (rpm)
1720
Spindle Speed Low (rpm)
1720
Spindle Table Length (in)
14
Spindle Table Tilt Range
45 Deg
Spindle Table Width (in)
14
Spindle Travel (in)
15/16
Table Material
Cast Iron
UPC
400005001789
Variable Speed
No
