Description
Baileigh OBS-1548 Open End Belt Sander 220V 1 Phase 5HP 15″
This open-end belt sander can tackle wide or irregular pieces. With its cast iron table and steel frame, the OBS-1548 is built to last. Unlike most competing models, it offers 3 speeds.
Features
Open-end design with 15 In. width can get 30 In. of working material through
Perfect for sanding cabinet doors, butcher blocks, office tables, and furniture
5HP motor runs on 220V 1 Phase power
3 feed speeds (16.4, 23, 32.8 fpm) let you adjust to fit your type of material, most competitors only offer 2 speeds
Multiple speeds make it easy to sand away glued layers of wood, use the high speed to knock off the glue, then switch to a slower speed
Extension table can support wider pieces of material
Disc brake for emergency stops makes your shop safer
Conveniently accessible side panel doors allow for quick belt changes

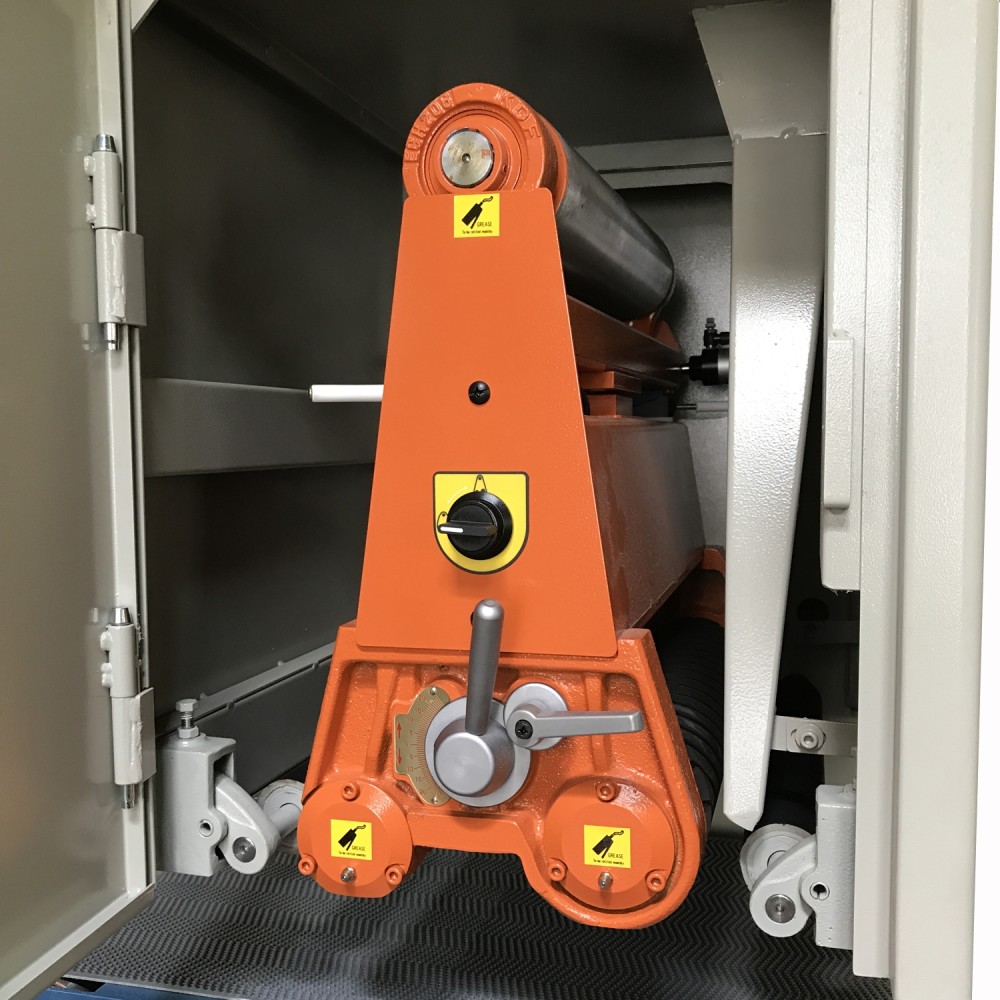

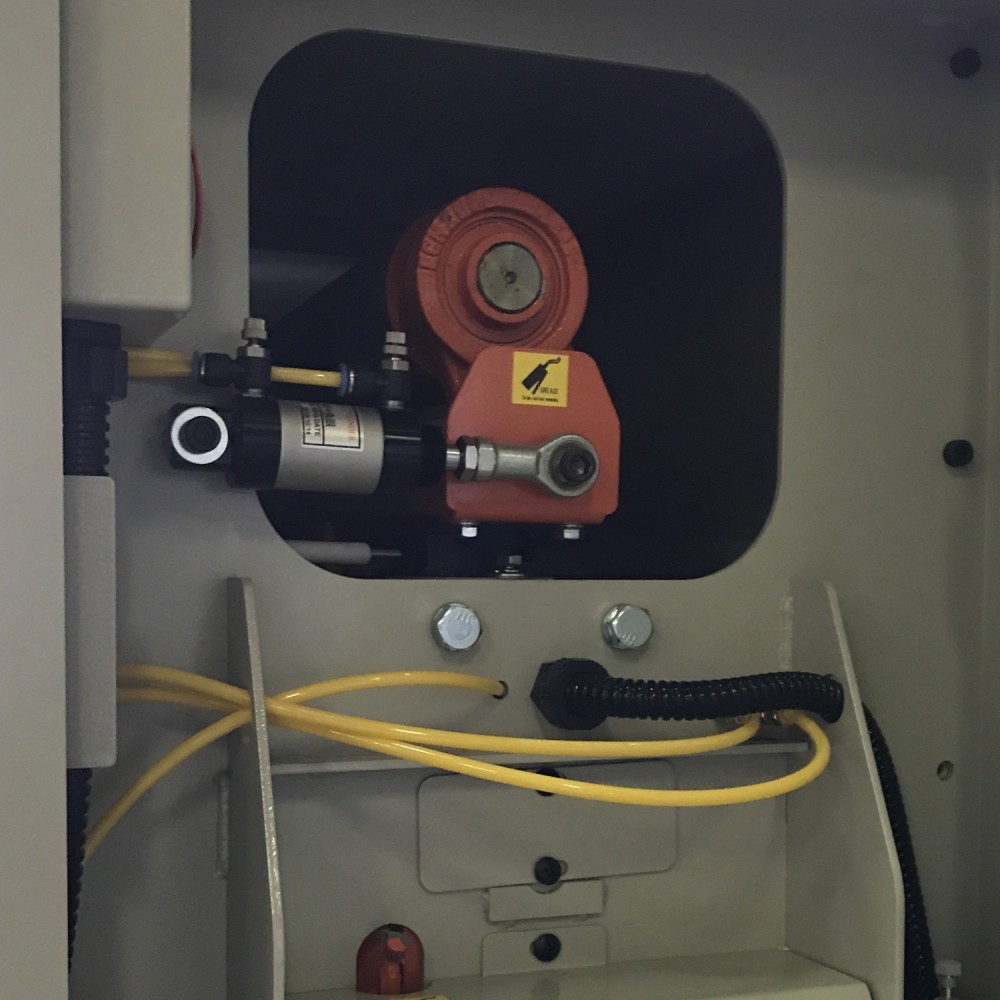

Pneumatic belt tensioning and tracking help you get the tension just right for a smooth finish
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1018229
Amperage (A)
0.0
Assembled Weight (lbs)
930
Belt Sanding Speed-Maximum (Ft/Min)
2300
Belt Size
16×48
Belt Tension Type
Pneumatic
Belt Tracking Type
Pneumatic
Cordless / Corded
Corded
Country of Origin
Taiwan
Drive Motor Power (hp)
5
globalTradeItemNumber (GTIN)
00400018000618
Horsepower (hp)
5
Material
Cast Iron
Maximum Feed Rate (fpm)
32.8
Minimum Feed Rate (fpm)
16.4
Package Contents
Belt Sander
Package Depth
74
Package Height
45
Package Weight
930
Sander Style
Belt
Table Material
Cast Iron
UPC
400018000618
Variable Speed
Yes
