Description

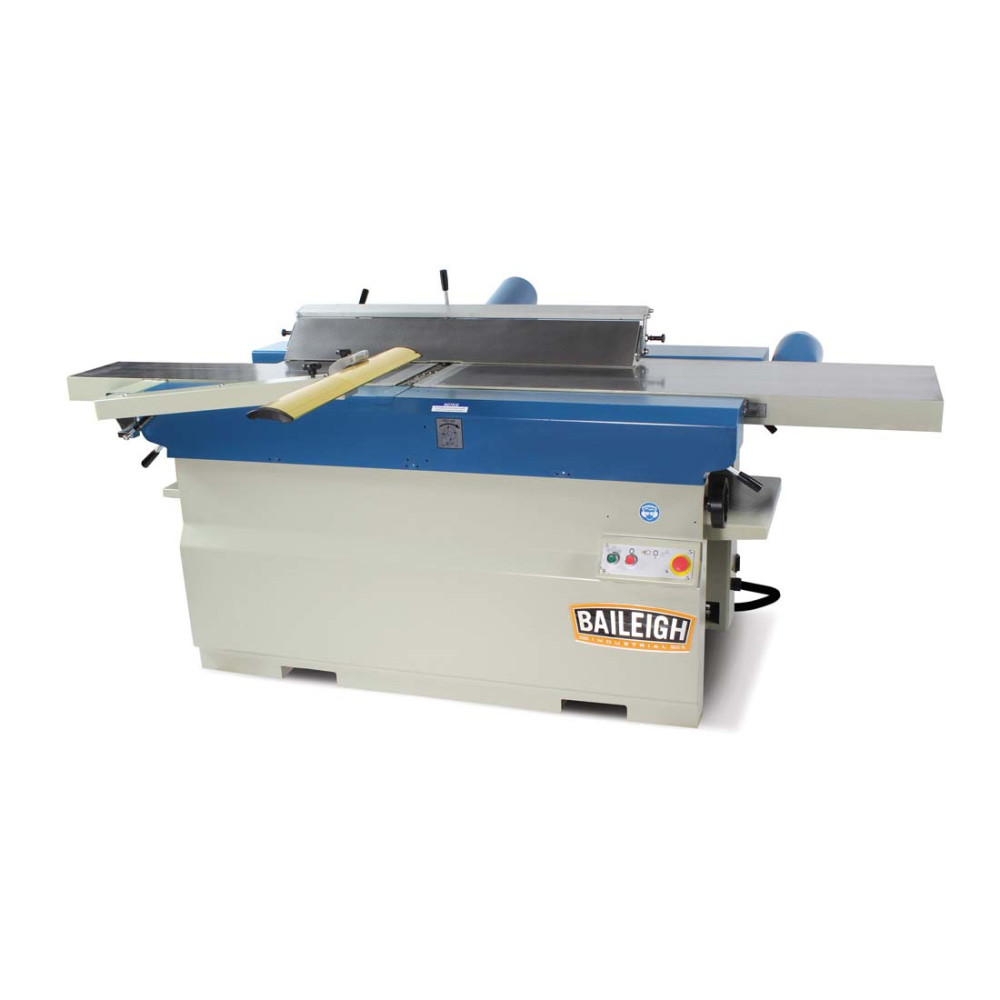

Baileigh JP-1898-NC Numerically Controlled Jointer/Planer 18″
Built from steel and cast iron, this numerically controlled 18 In. jointer/planer saves space and does the work of 2 machines without compromising on quality.
Features
7.5HP motor has enough strength to cut and smooth 18 In. boards, 4.75 In. helical cutter head (included) spins at 5700 Rpm

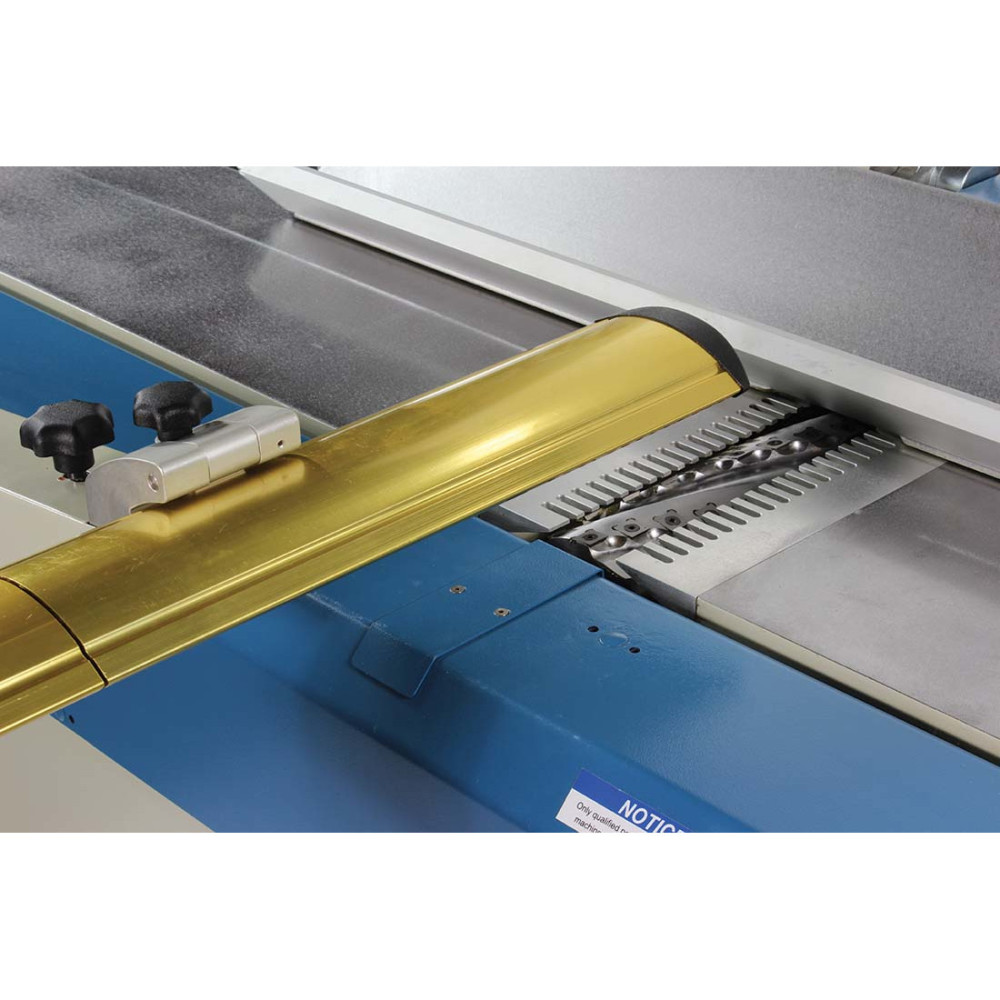

6 rows of rotatable carbide blades on the spiral cutter head will remain sharp for much longer than a straight-knife cutter could
Baileigh JP-1898-NC jointer planer runs on 220V 3 Phase power

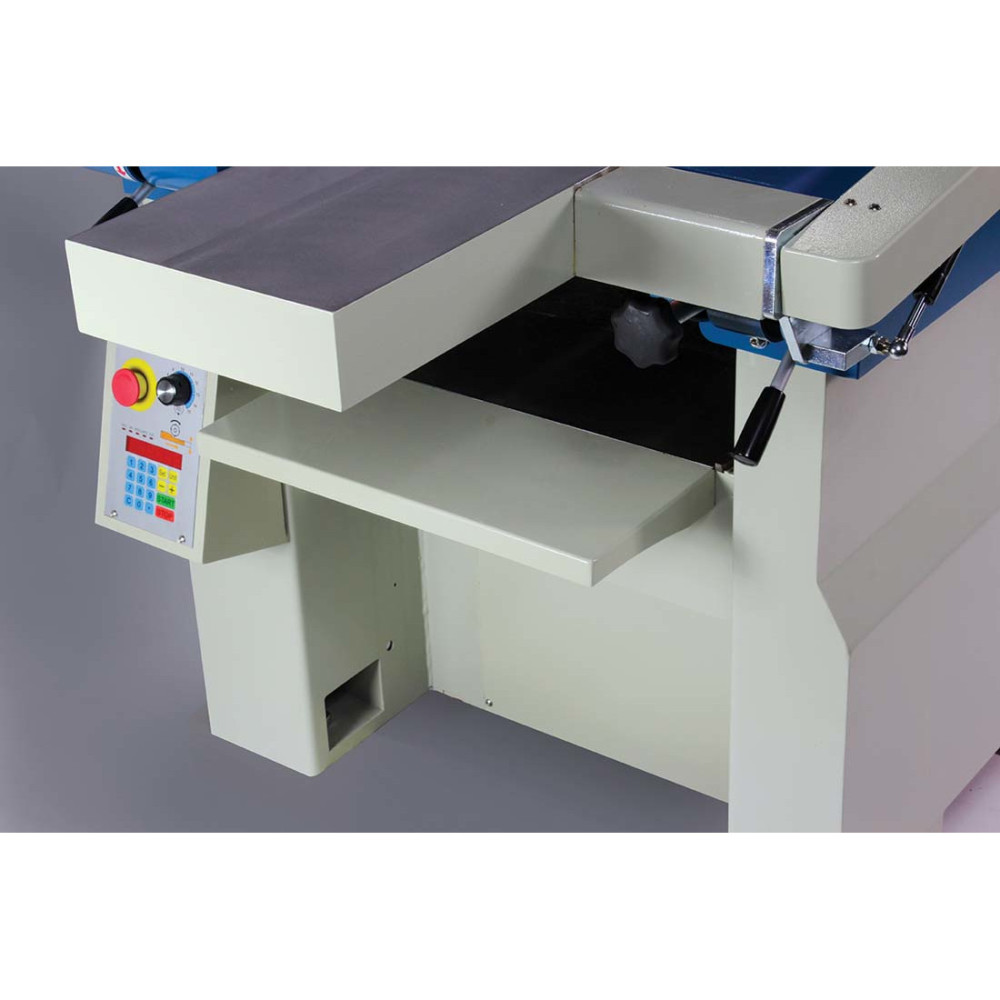

98 In. table supports your boards, ensures true, straight cuts, digital controller lets you adjust the height of the 63 In. x 18 In. jointer table

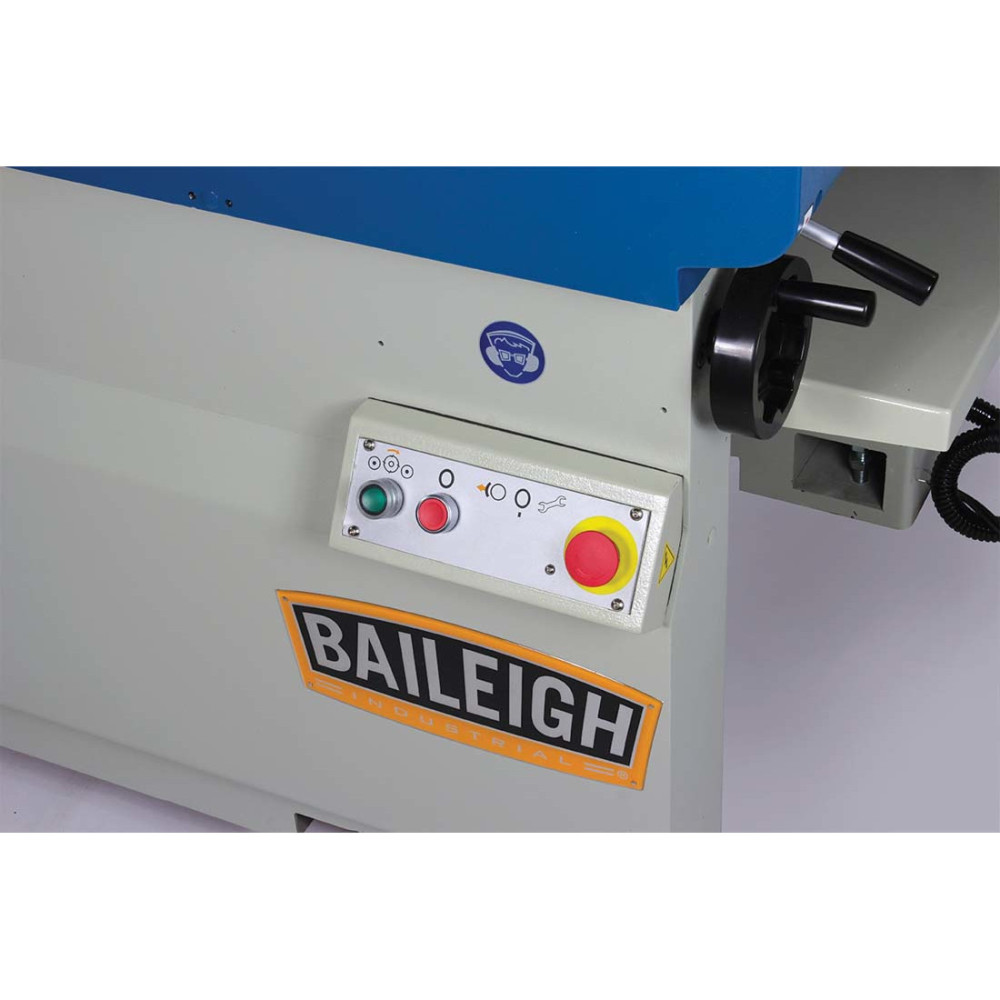

Programmable system for the planer lets you enter your desired spacing, and machine takes care of the rest, control panels with big stop and start buttons are simple to use
Parallelogram-style jointer bed helps prevent accidents by maintaining a tight, uniform gap between the table and the cutter-regardless of the table height

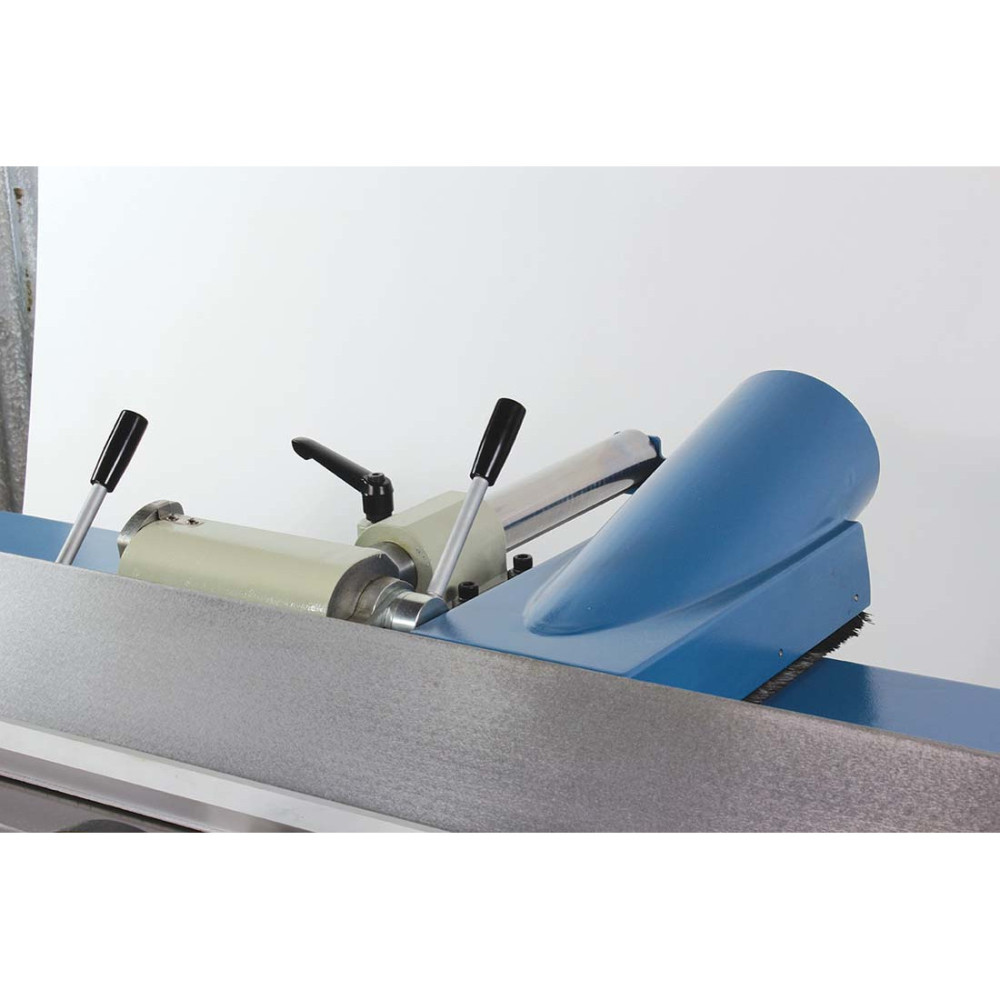

5/16 In. maximum cutting depth at the jointer station, fence can tilt up to 45 Deg for edge joining, 71 In. x 18 In. planer table (with a large resting area on both sides) makes it easier for you to maneuver the material
Variable infeed speed from 16-50 fpm lets you finetune to fit the wood you’re working with and get a better finish, rubber infeed and outfeed rollers reduce friction and keep boards moving smoothly
2 large 6 In. dust ports, one for each function, can connect to your dust collector so your shop stays pristine with safe, breathable air
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1004968
Amperage (A)
0-30
Assembled Weight (lbs)
3036
Bench or Stationary
Stationary
Blade Count
1
Blade Cutting Material
Carbide
Blade Material
Carbide
Cord Length (ft)
25/50/100
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Helical
Dust Port
Yes
Dust Port Outside Diameter (in)
6
Electrical Cord Configuration
3-Wire
Feed Rate/s (Ft/Min)
16-50
Fence Tilt
Yes
Fence Tilt Range
45 degree
globalTradeItemNumber (GTIN)
00400004001636
Helical Cutter Head
No
Housing Material
Steel
Integrated Rabbeting Edge
No
Maximum Board Thickness (in)
18
Maximum Cutting Depth (in)
0.25
Maximum RPM
5700
Maximum Speed (rpm)
5700
Maximum Stock Length (in)
9.8
Motor Horsepower (hp)
9.8
Package Contents
Numerically Controlled Jointer/Planer
Package Depth
59
Package Height
106
Package Weight
3036
Phase
3
Set / Individual
Individual
Switch Type
Stop
Table Length (in)
98
Table Material
Cast Iron
Table Width (in)
18
UPC
400004001636
Variable Speed
Yes
Weight (lbs)
3036
