Description

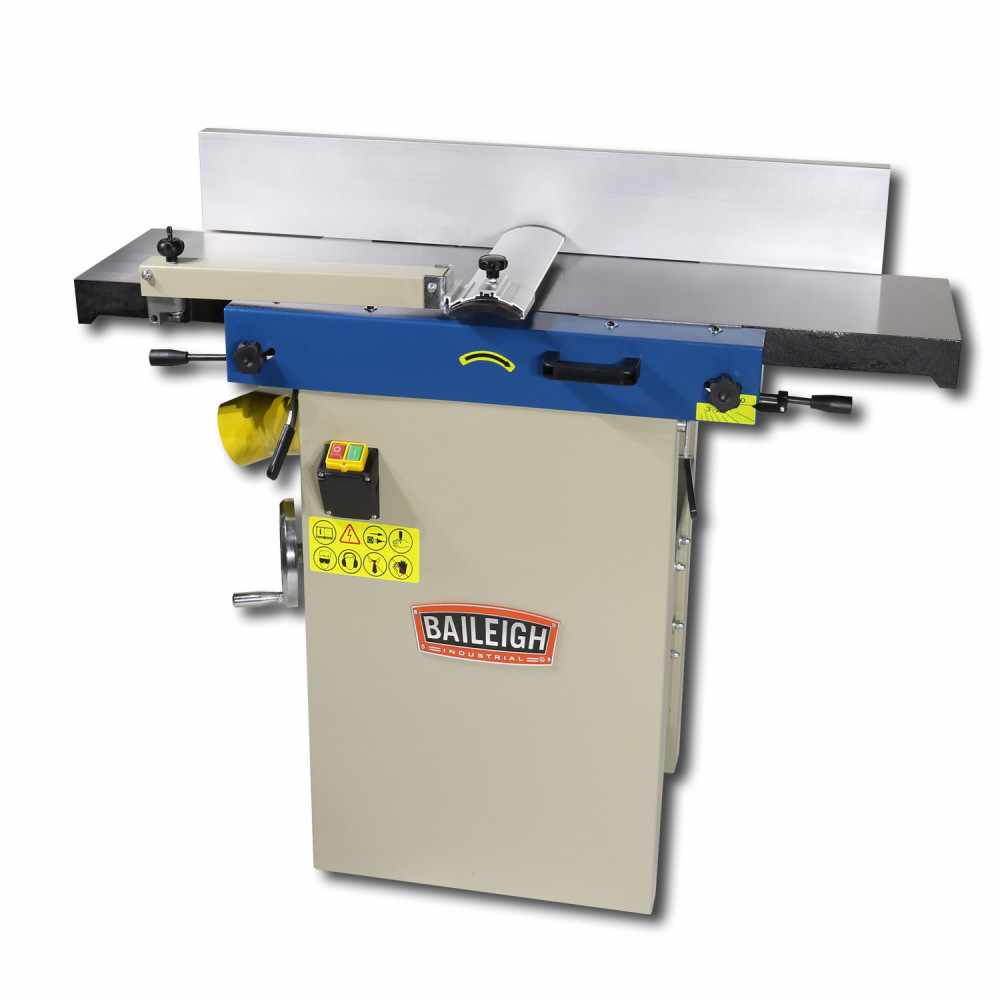

Baileigh JP-1250 Industrial Jointer/Planer with 5 Groove 12″
Designed for efficient switchovers between functions, this 12 In. wide jointer/planer saves time, space, and money. With its cast iron table and steel base, the machine will last for many years.
Features
3HP motor spins the head at 6600 Rpm to make quick work of any material

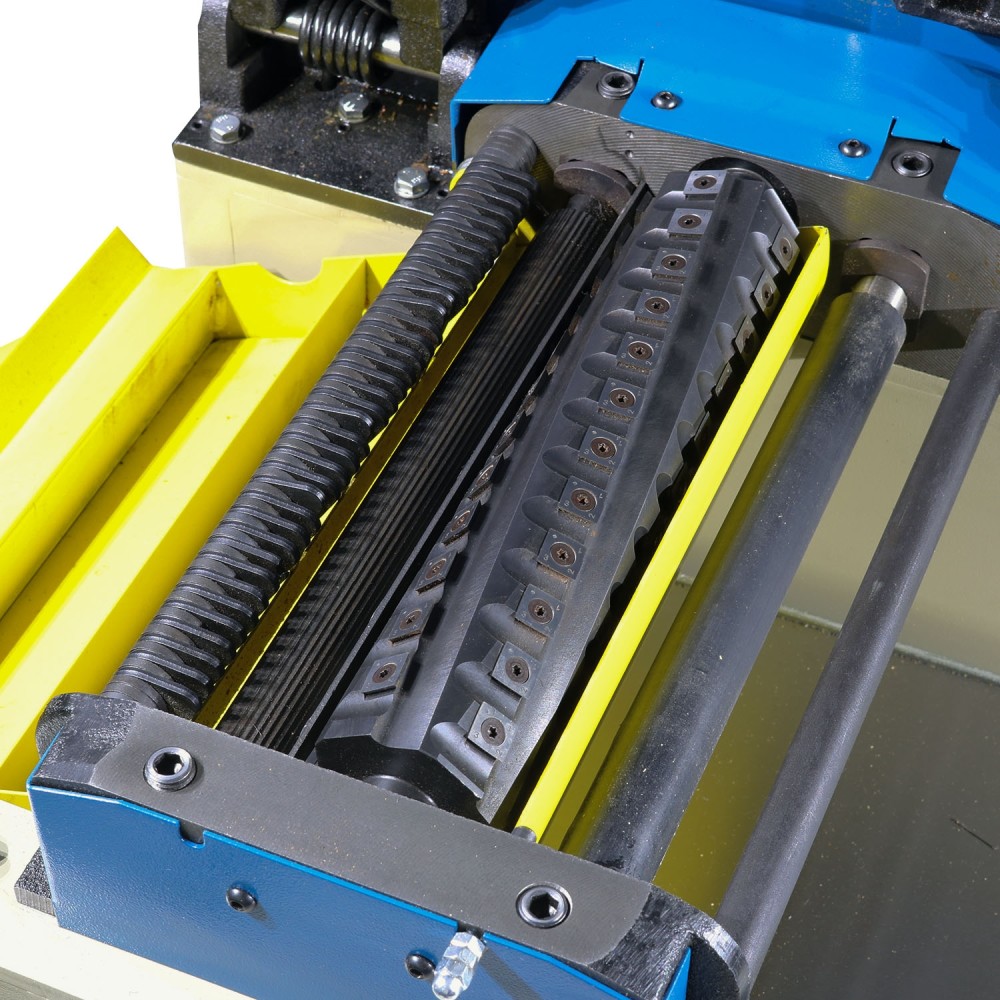

Includes a 2.75 In. helical cutter head with rotatable carbide blades
This type of head stays sharp for much longer and cuts more quietly than a straight-knife cutter
Runs on 220V 1 Phase power, so this jointer/planer combination machine will work almost anywhere

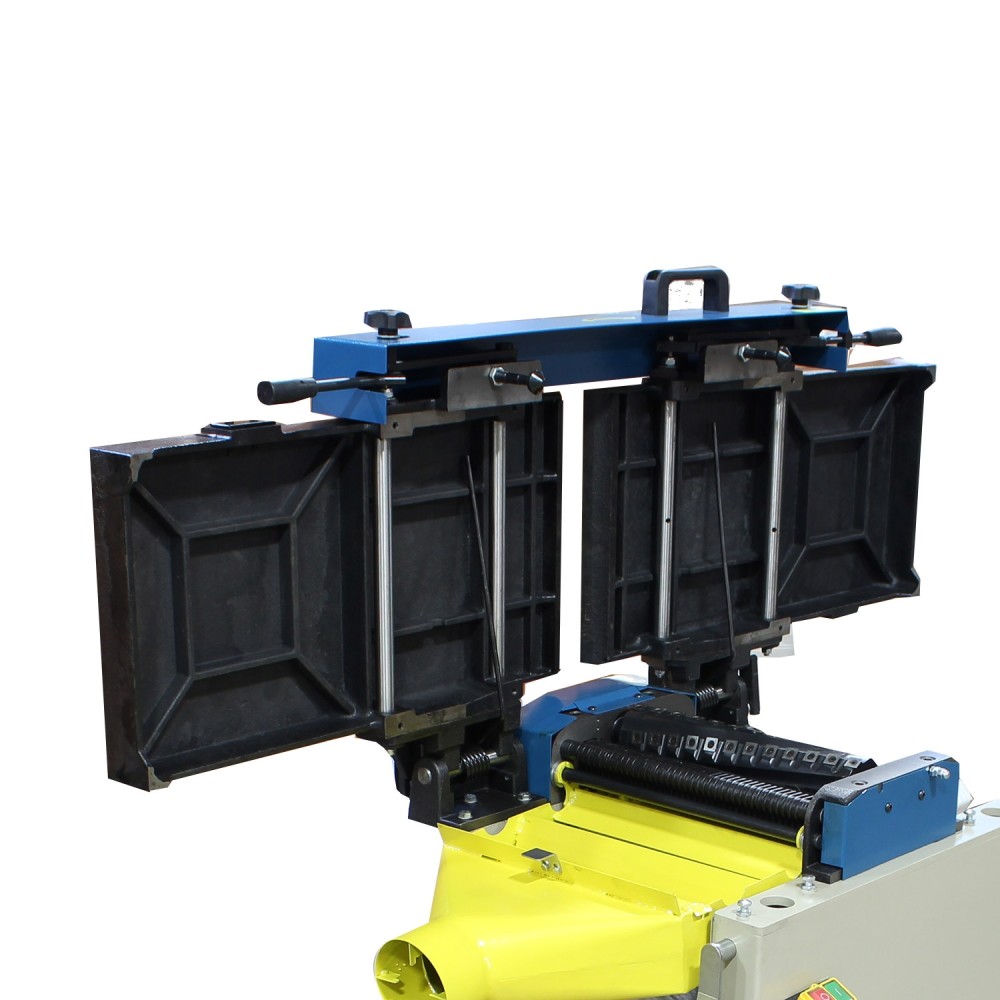

You can make fast changeovers between jointing and planning functions, since you don’t have to remove the fence
Machined cast iron table supports the material so it stays true for cutting

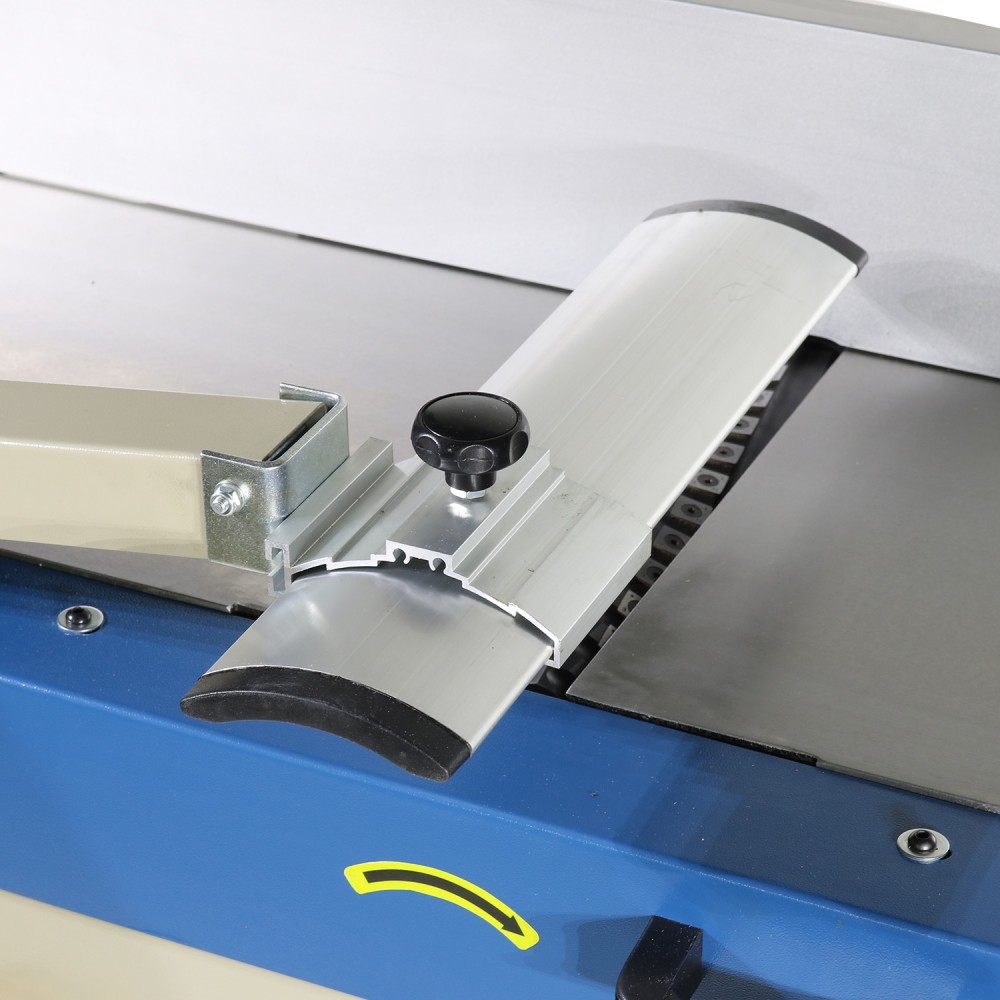

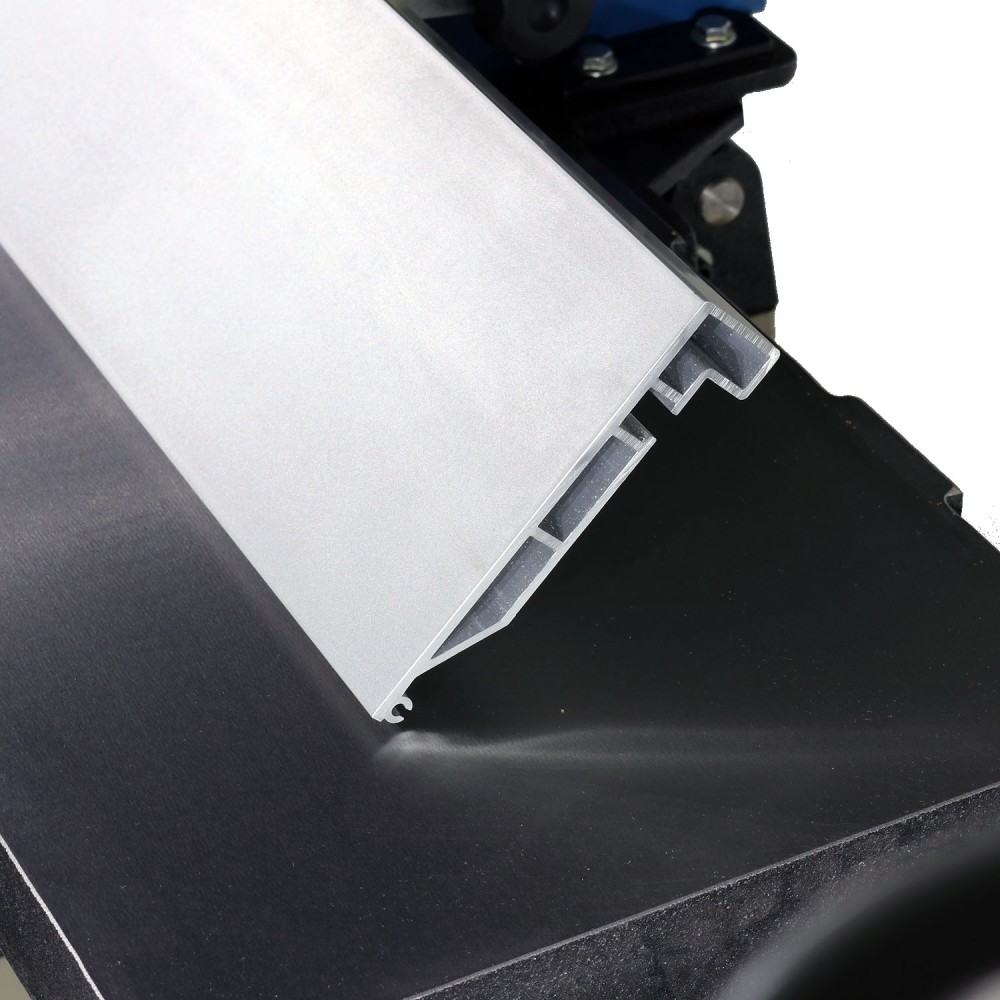

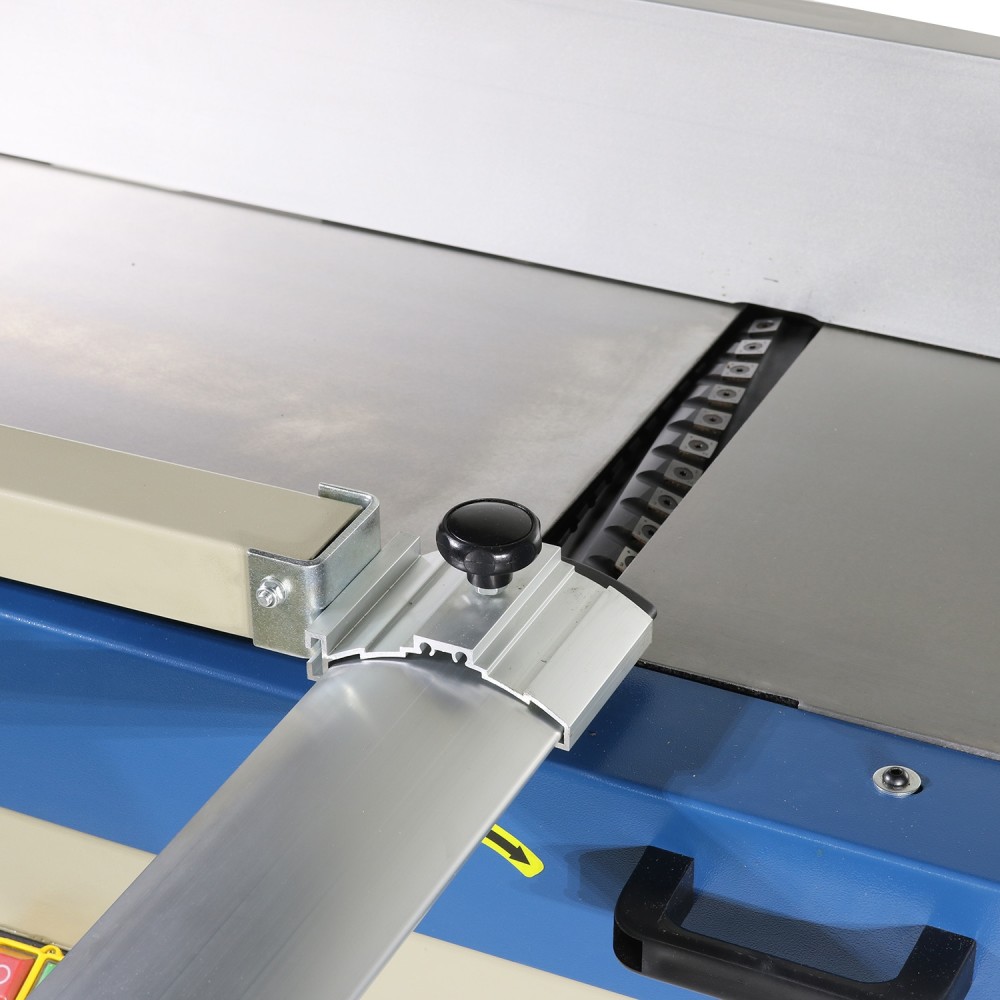

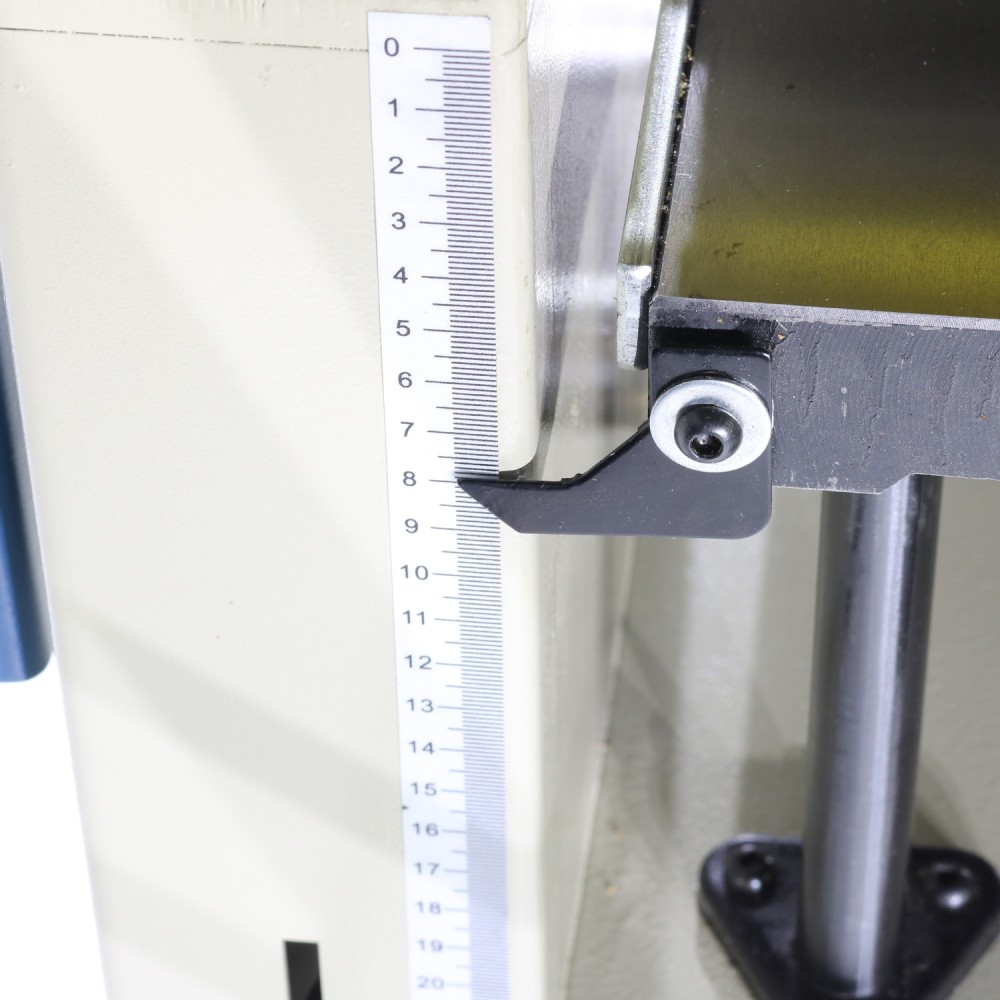

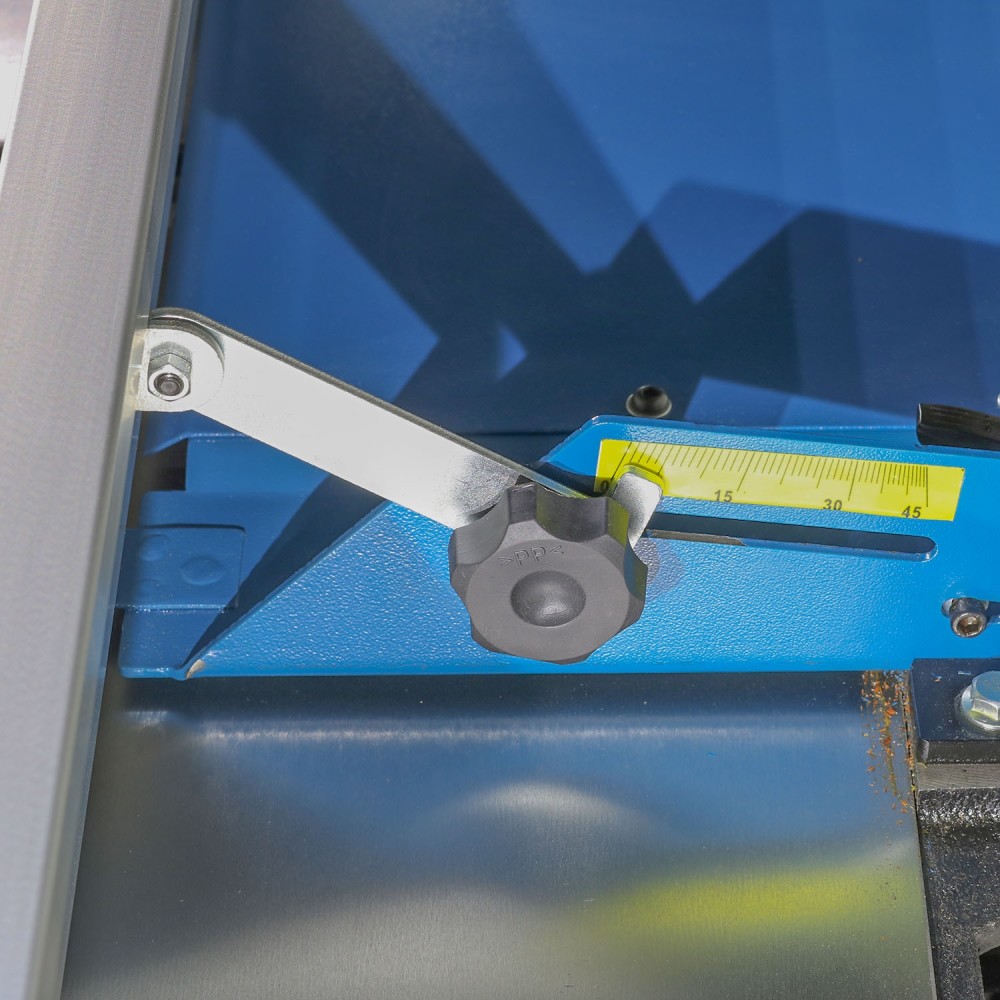

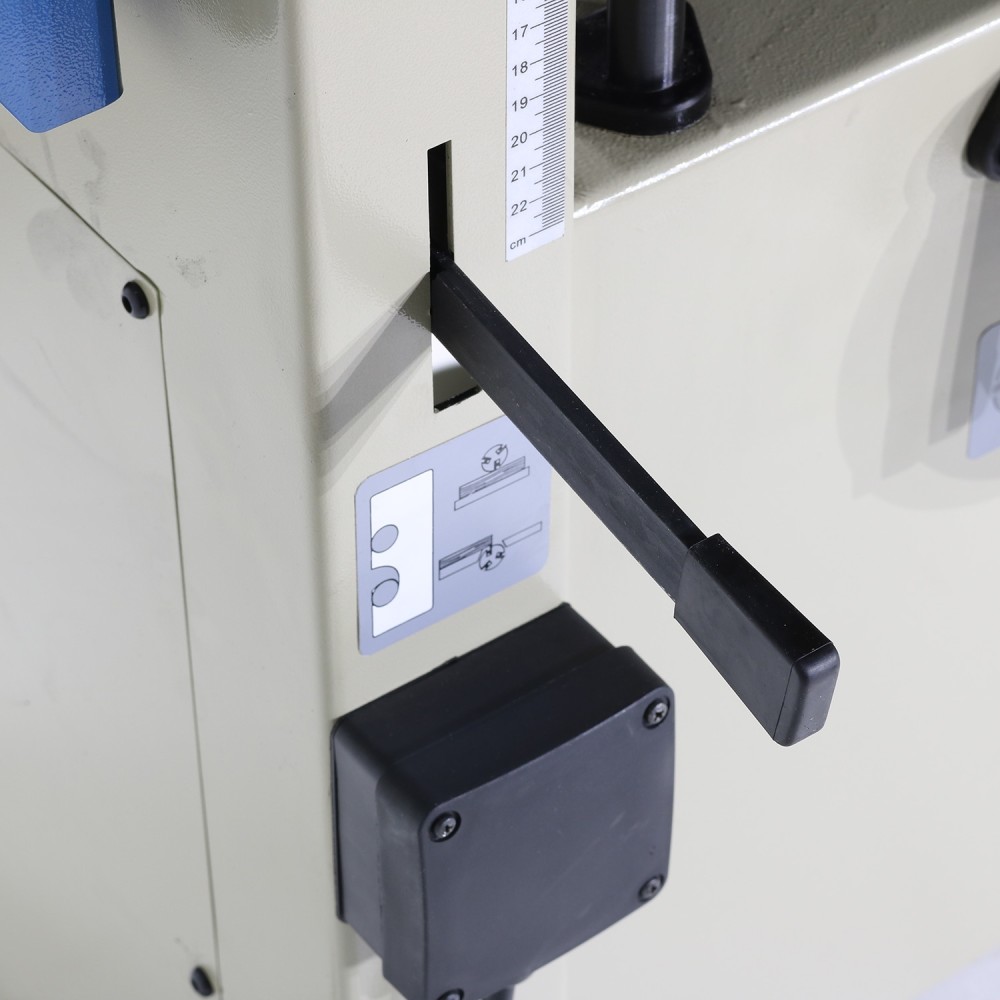

Extra-large rack and pinion aluminum fence can adjust to any angle between 45 Deg and 90 Deg, large handwheel allows you to raise the planer table quickly and precisely
Rigid, fully-closed steel stand reduces vibrations to give you clean, accurate results over a long lifetime of use
Dust ports can hook up to your dust collection system to keep your shop clean and make the air safely breathable
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1017565
Amperage (A)
1-30
Assembled Weight (lbs)
550
Bench or Stationary
Stationary
Blade Count
1
Blade Cutting Material
Carbide
Blade Material
Carbide
Cord Length (ft)
25/50/100
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Helical
Dust Port
Yes
Feed Rate/s (Ft/Min)
21
Fence Height (in)
6
Fence Length (in)
43
Fence Tilt
Yes
Fence Tilt Range
45 degree
globalTradeItemNumber (GTIN)
00400017000954
Helical Cutter Head
No
Housing Material
Steel
Integrated Rabbeting Edge
No
Maximum Cutting Depth (in)
0.125
Maximum RPM
6600
Maximum Speed (rpm)
6600
Maximum Stock Length (in)
8.5
Motor Horsepower (hp)
3
Package Contents
Industrial Jointer/Planer with 5 Groove Helical Cutter Head
Package Depth
44
Package Height
60
Package Weight
550
Phase
1
Set / Individual
Individual
Switch Type
Safety
Table Length (in)
51.2
Table Material
Cast Iron
Table Width (in)
12
UPC
400017000954
Variable Speed
No
Weight (lbs)
550
