Description

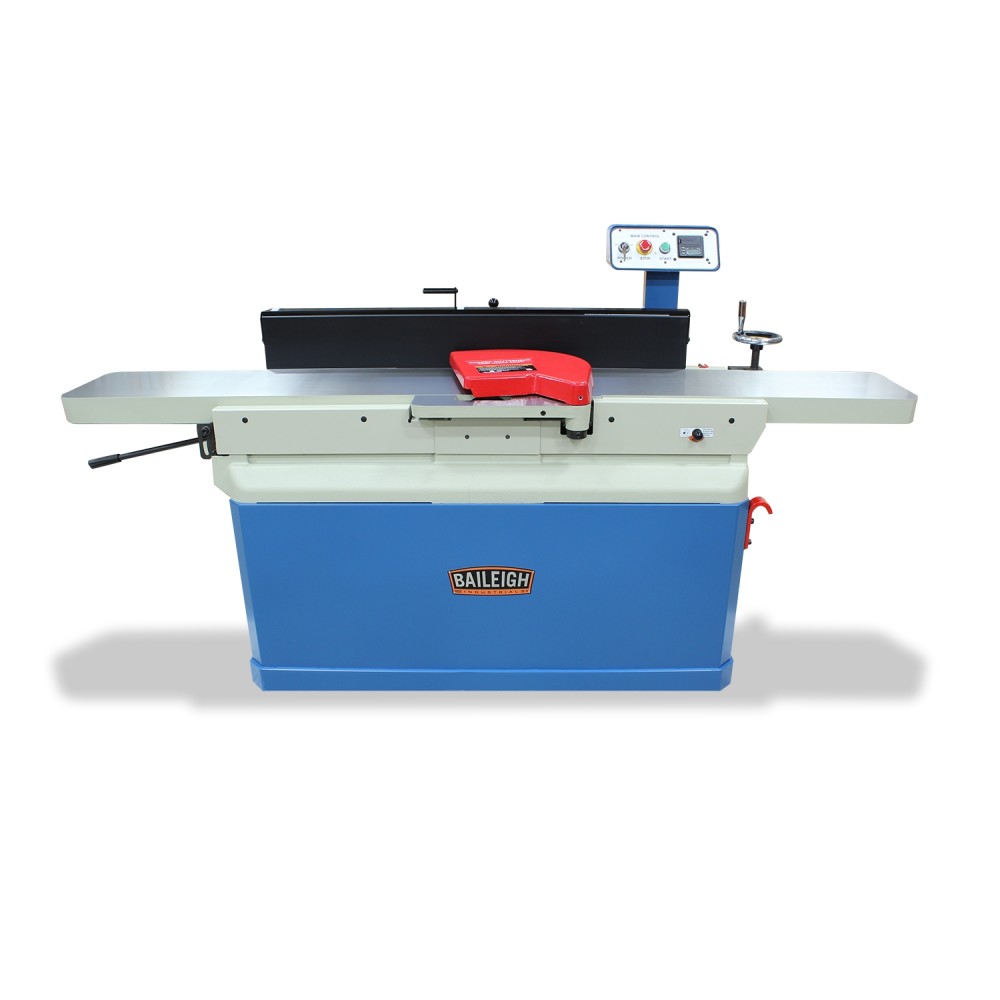

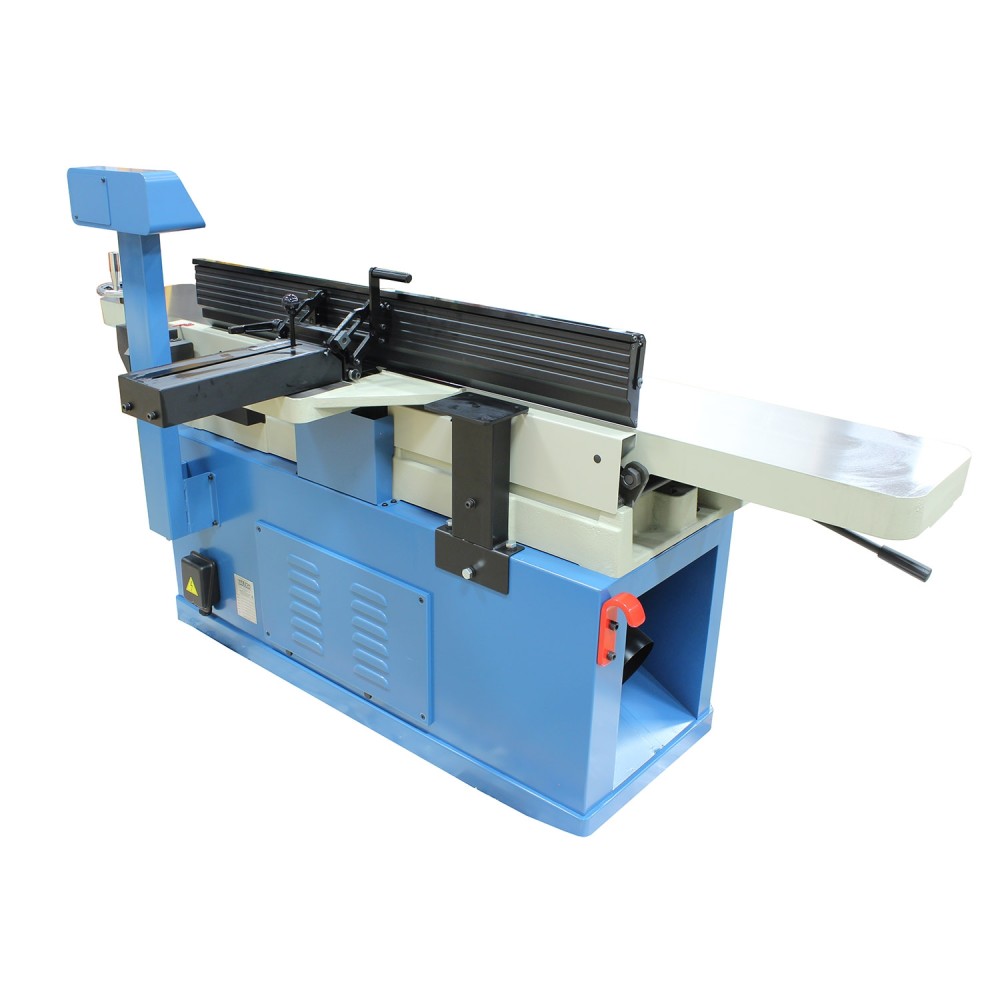

Baileigh IJ-1288P-HH Long Bed Parallelogram Jointer 220V 12″
Our largest jointer, the IJ-1288P-HH makes your shop safer, thanks to its parallelogram design. The 12 In. width and 5HP motor open possibilities by letting you tackle big pieces of lumber.
Features

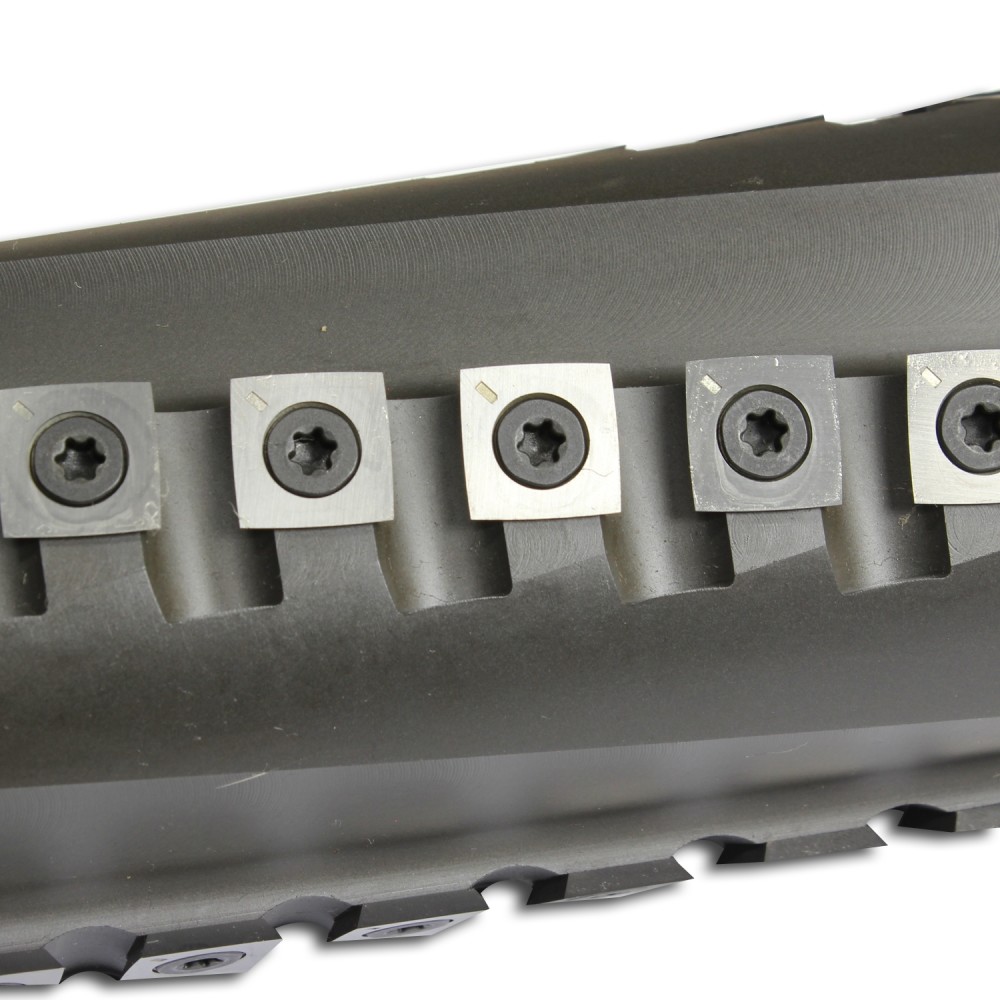

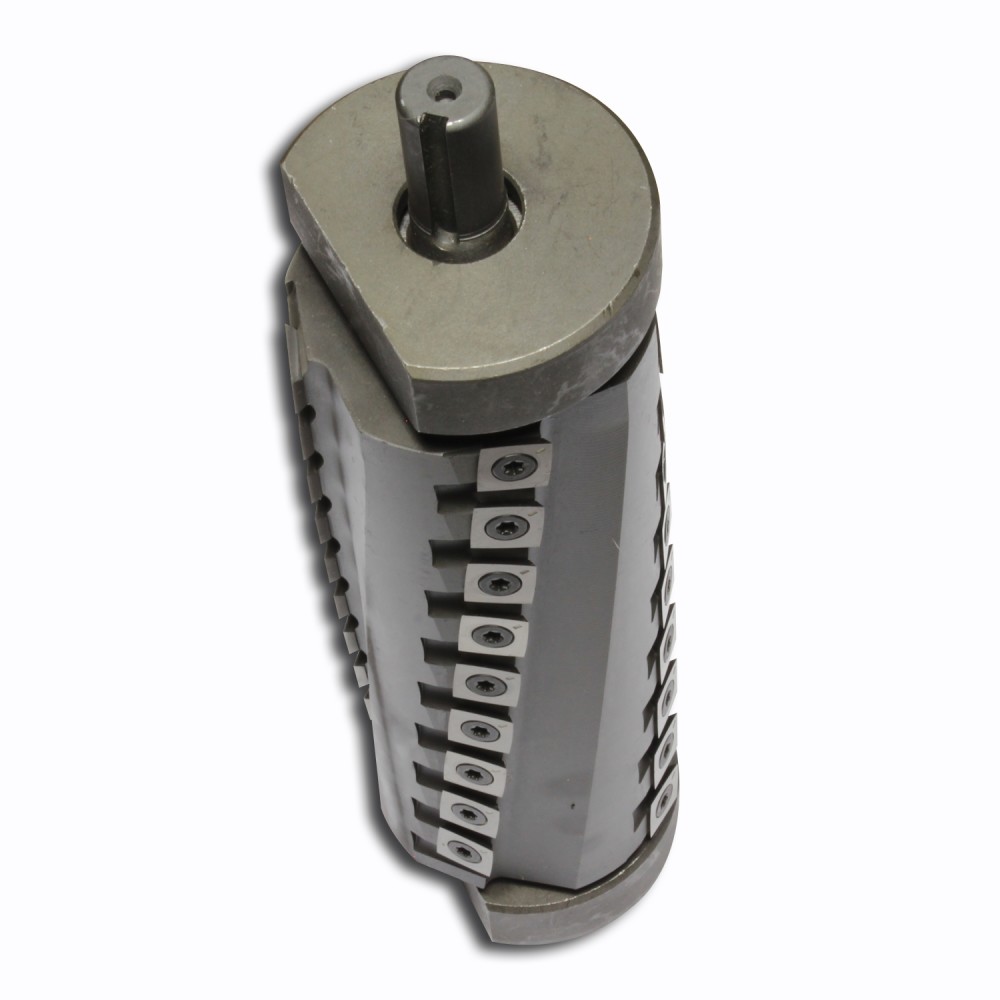

Runs on 220V 1 Phase power, so it will work almost anywhere, straight 4-row spiral cutter head (4 In. diameter) spins at 5500 Rpm
Extra-long 88 In. bed offers better work support for large pieces, built-in rabbeting ledge helps you easily make grooves down the sides of boards for edge joining

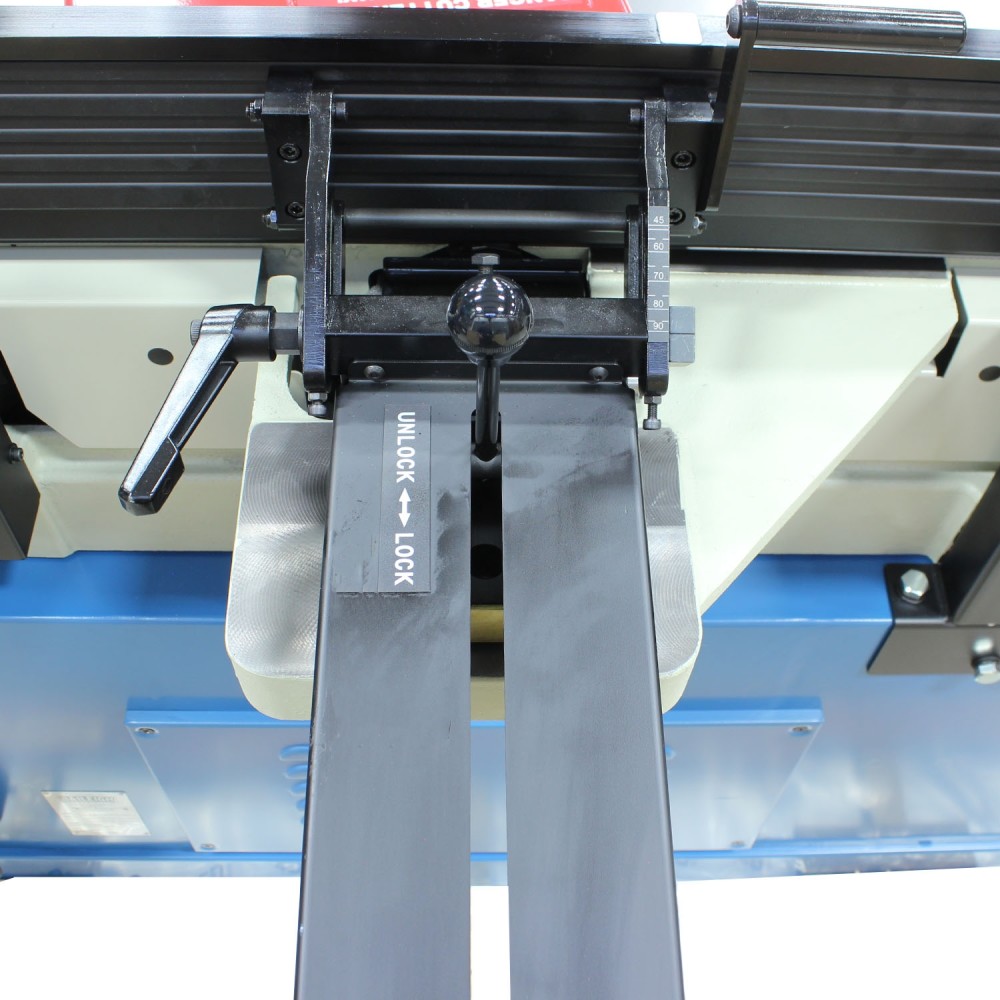

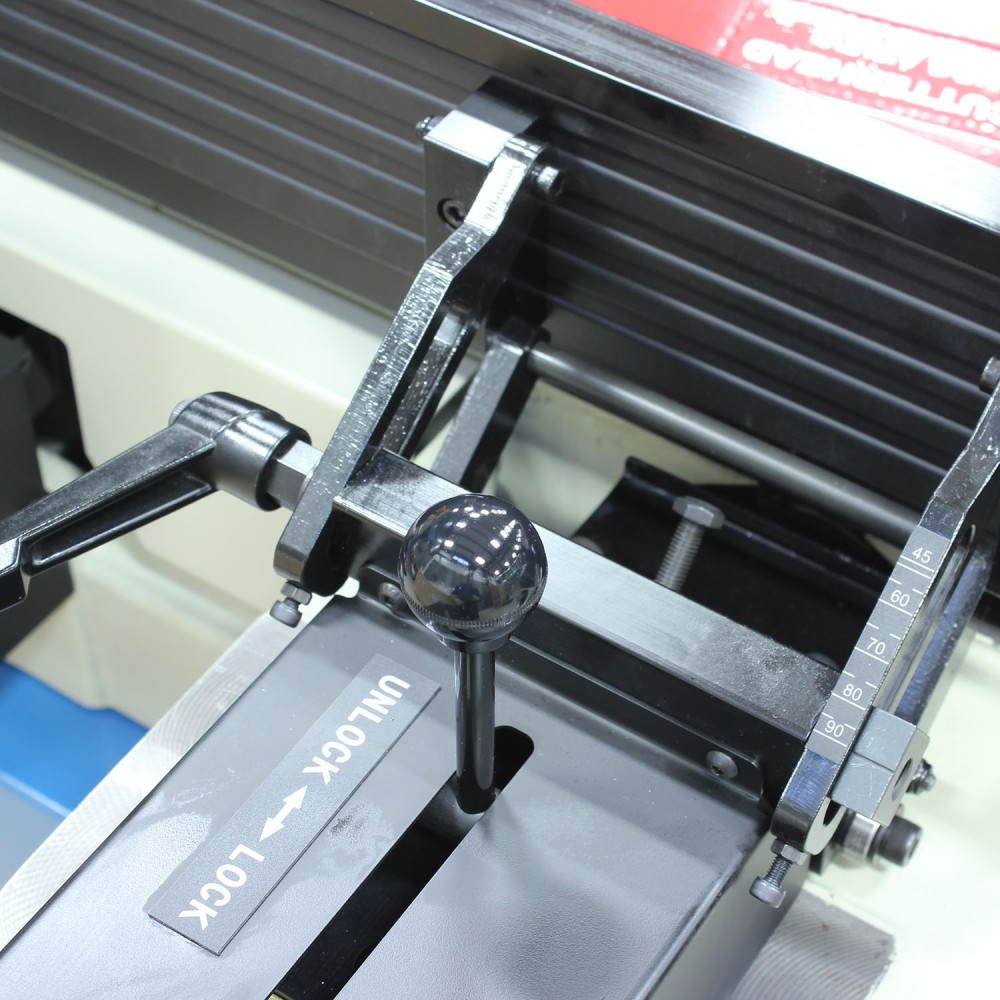

6 In. x 47 In. fence tilts in and out with stops at 90 Deg and 45 Deg for edge joining, non-mar insert in the fence prevents the table from scratching the surface during adjustments

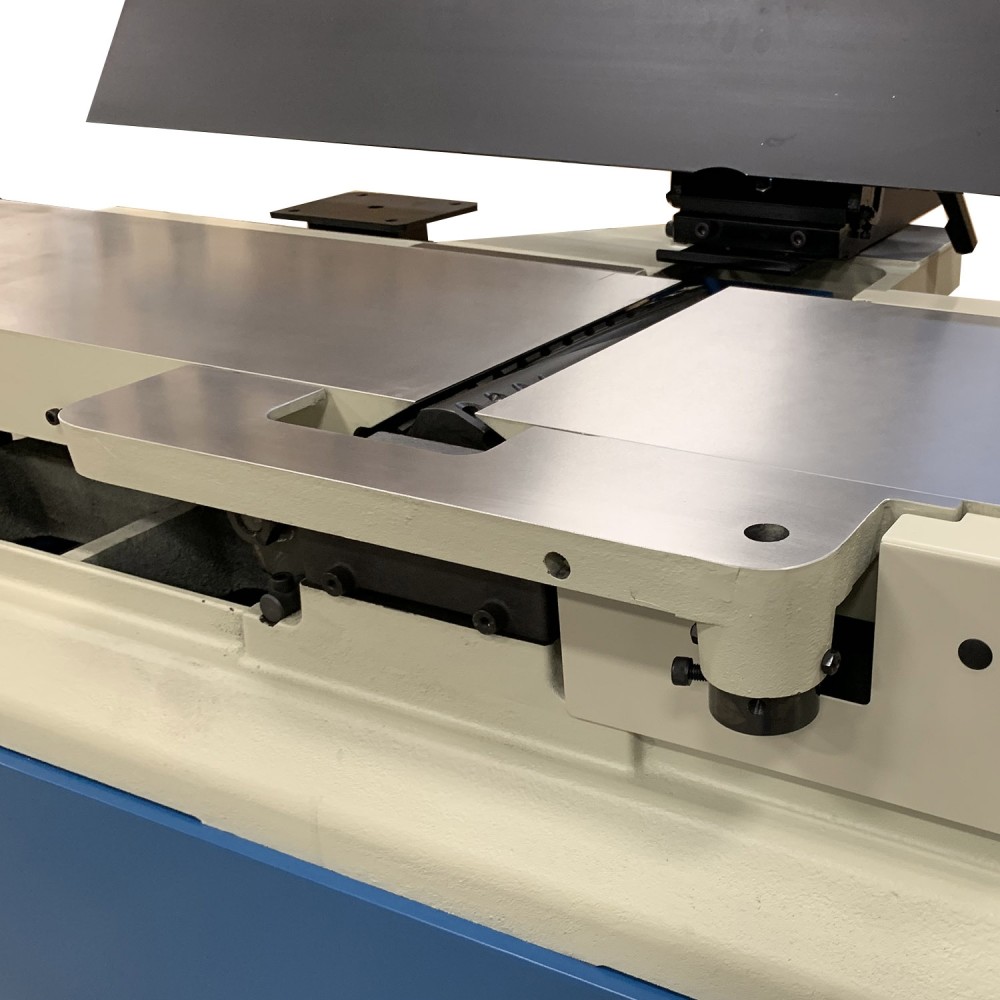

Parallelogram-style table stays close to the cutter and maintains a narrow, consistent gap, regardless of the cut depth
With a parallelogram jointer, your shop is less prone to dangerous accidents, you’re less likely to slip a board-or a hand-into the gap!
This design also improves your finished product and lets you adjust the depth of cut more quickly

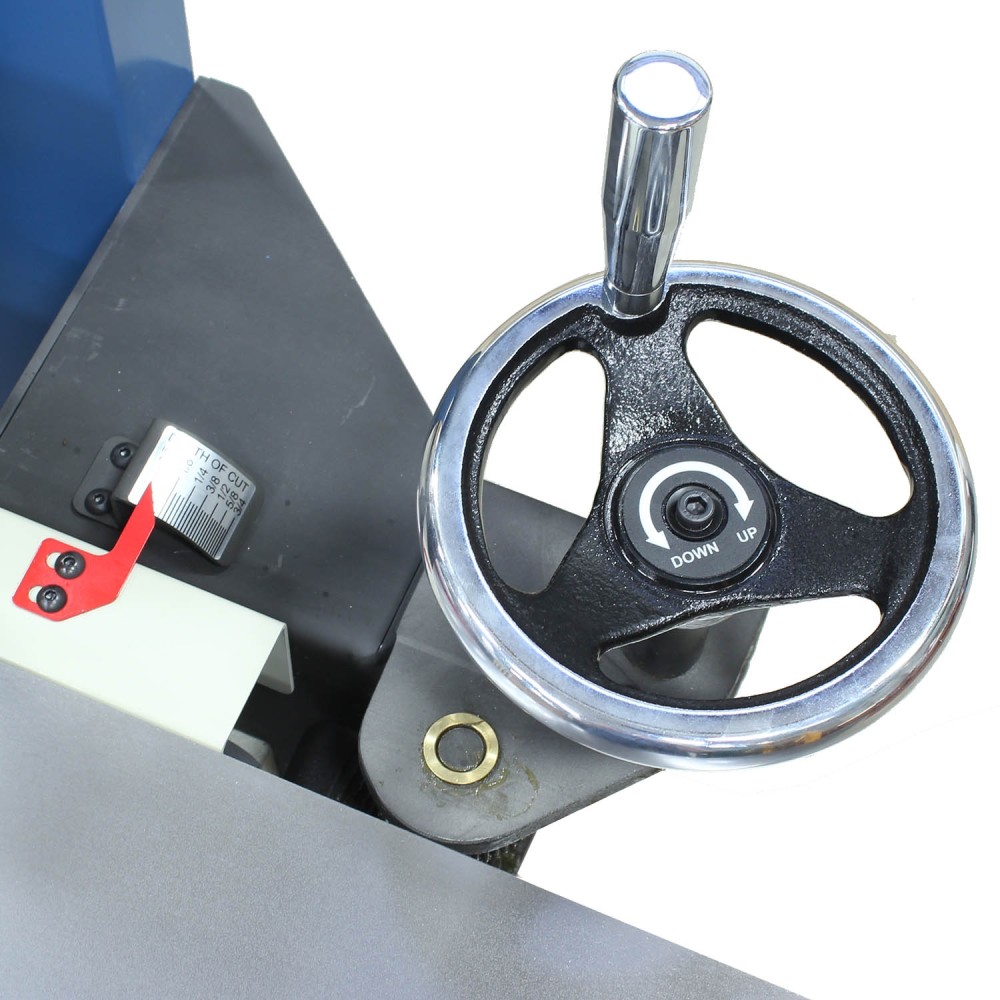

Table remains perfectly parallel, even after years of use, convenient handwheel lets you adjust the cut depth up to 1/8 In.

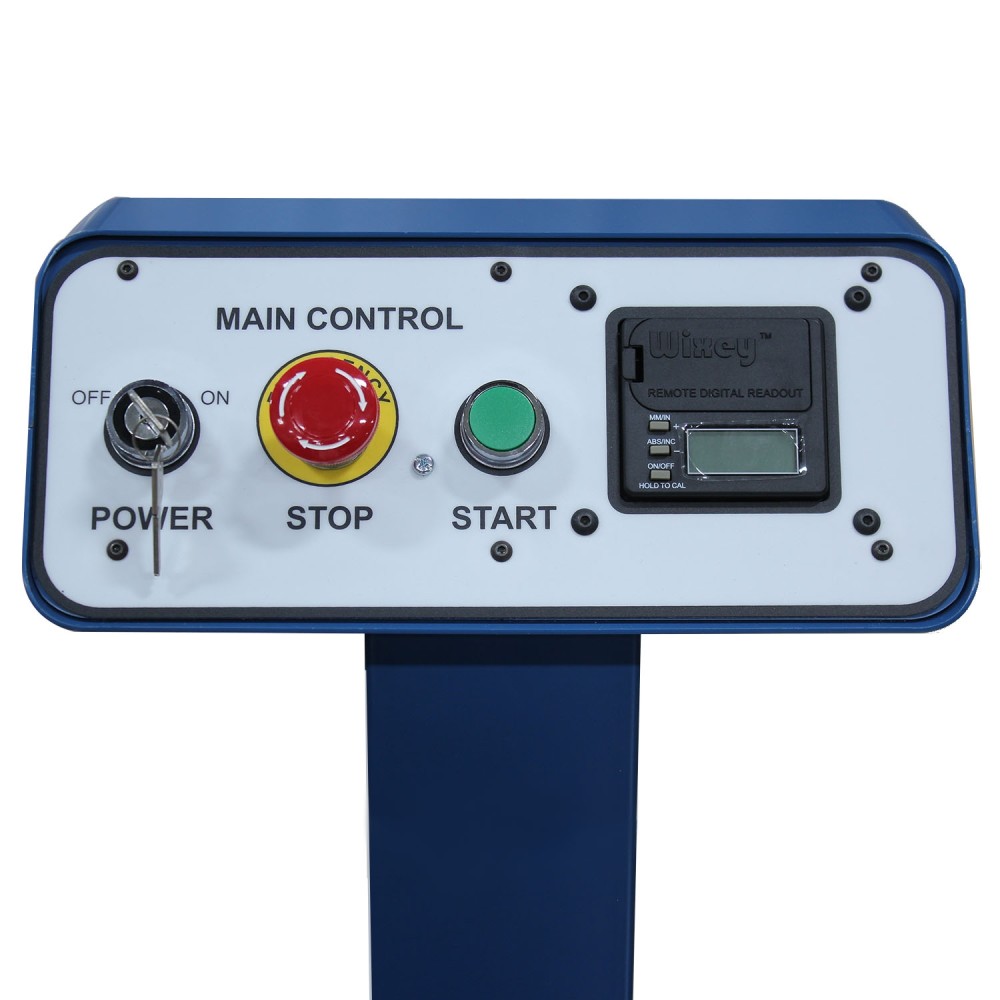

Digital read out for depth of cut, makes repeating cuts easy

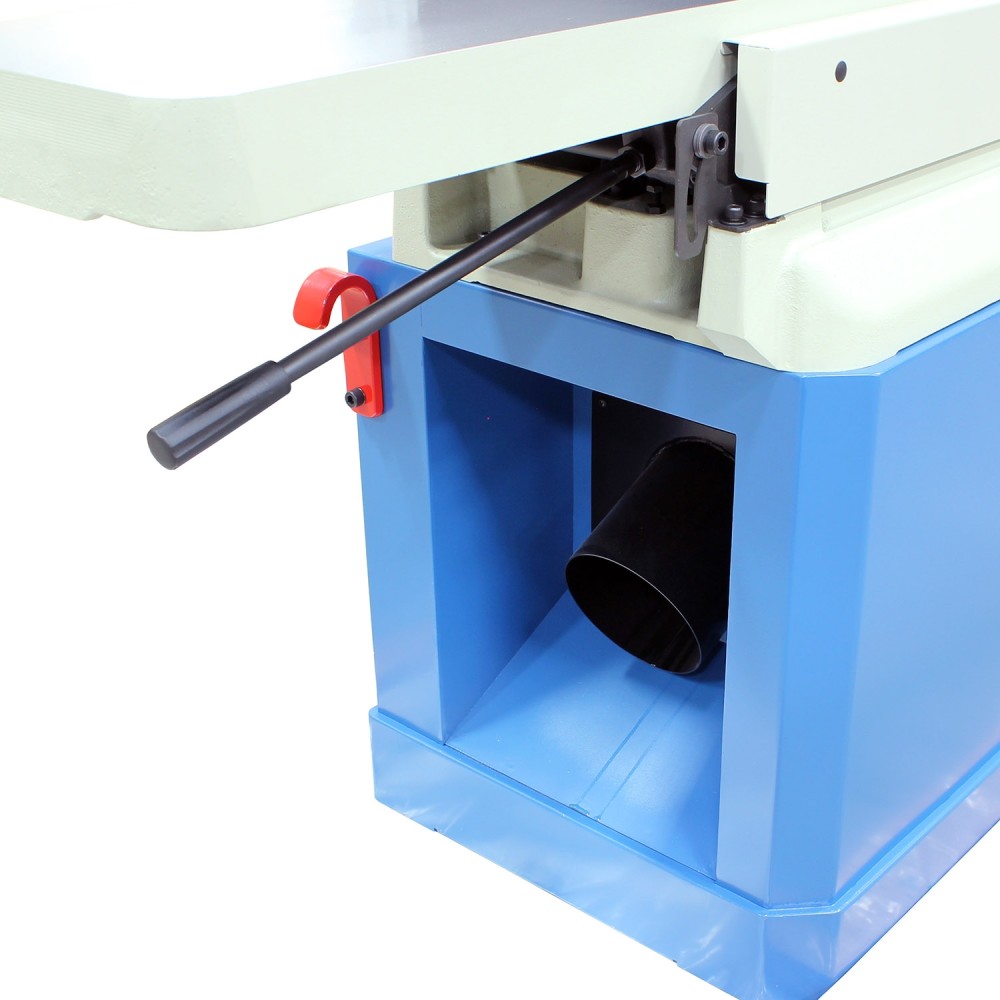

6 In. dust port connects to your dust collection system for a cleaner work area and more breathable air
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1020255
Amperage (A)
0-30
Assembled Weight (lbs)
880
Bench or Stationary
Stationary
Cord Length (ft)
25/50/100
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Helical
Dust Port
Yes
Dust Port Outside Diameter (in)
6
Electrical Cord Configuration
3-Wire
Fence Height (in)
6
Fence Length (in)
47
Fence Tilt
Yes
Fence Tilt Range
45 degree and 90 degree
globalTradeItemNumber (GTIN)
00400020002136
Helical Cutter Head
Yes
Integrated Rabbeting Edge
Yes
Maximum Cutting Depth (in)
0.125
Maximum RPM
5500
Maximum Speed (rpm)
5500
Motor Horsepower (hp)
5 HP
Package Contents
Long Bed Parallelogram Jointer with Helical Cutter Head
Package Depth
52
Package Height
96
Package Weight
880
Phase
1
Positive Stops
45 degree and 90 degree
Rabbeting Depth (in)
0.75
Set / Individual
Individual
Switch Type
Magnetic
Table Length (in)
88
Table Width (in)
12
UPC
400020002136
Variable Speed
No
Weight (lbs)
880
