Description

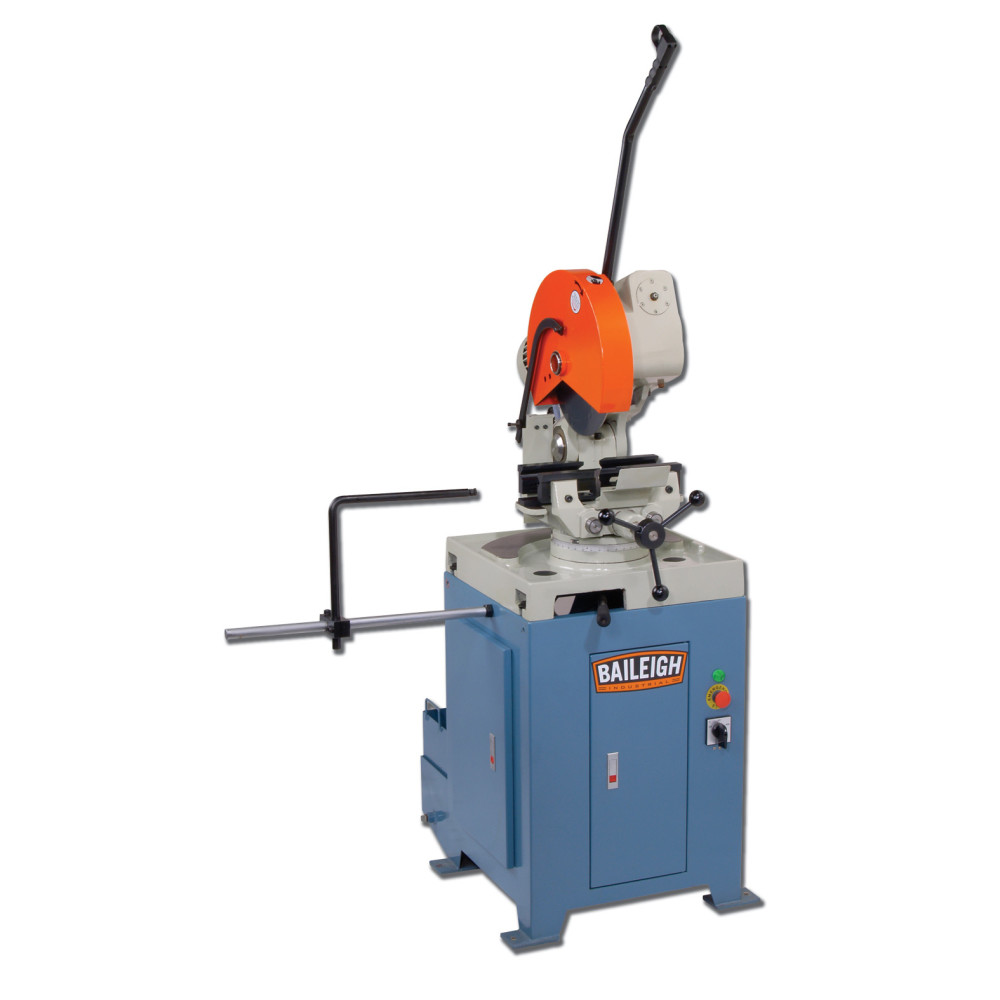

Baileigh CS-350M Circular Cold Saw American Style Vise

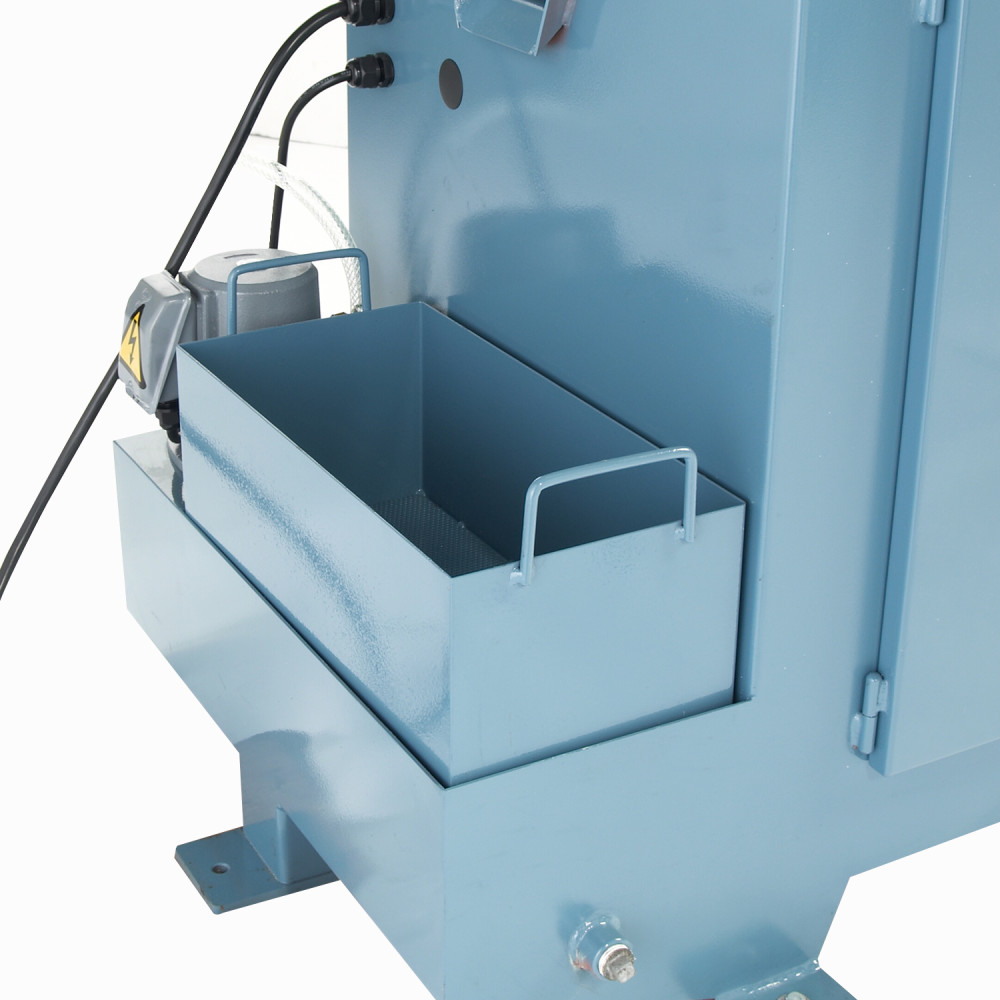

The CS-350M metal cutting saw is the best cold saw on the market for its price. It makes pristine cuts and includes features you won’t find on competing saws, like a self-centering vise and coolant system.
Features
Accepts a 14 In. blade
4.25 In. round tube capacity at 90 Deg

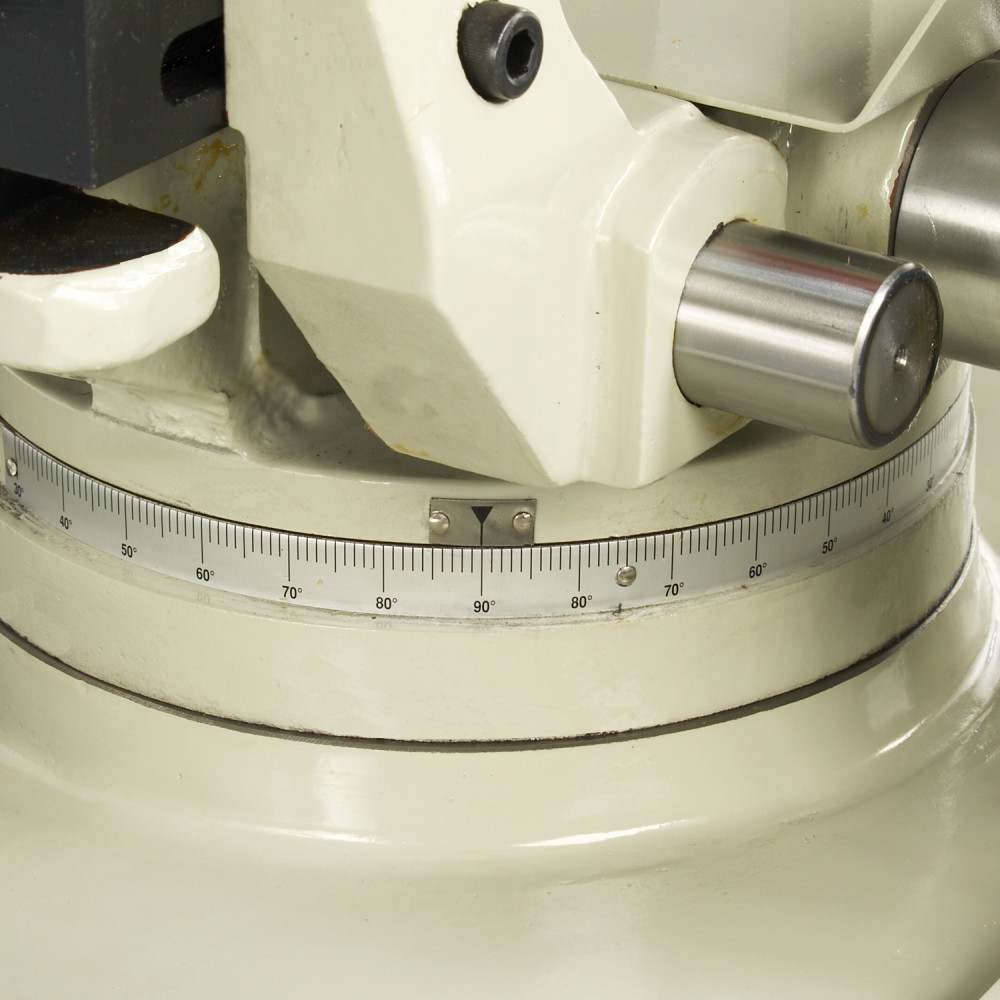

Miters 45 Deg right and 90 Deg left, perfect for slotting applications
2 Blade speeds – 26 and 52 Rpm, Switch between them to cut a variety of materials
Robust 4HP motor runs on 220V 3 Phase Power

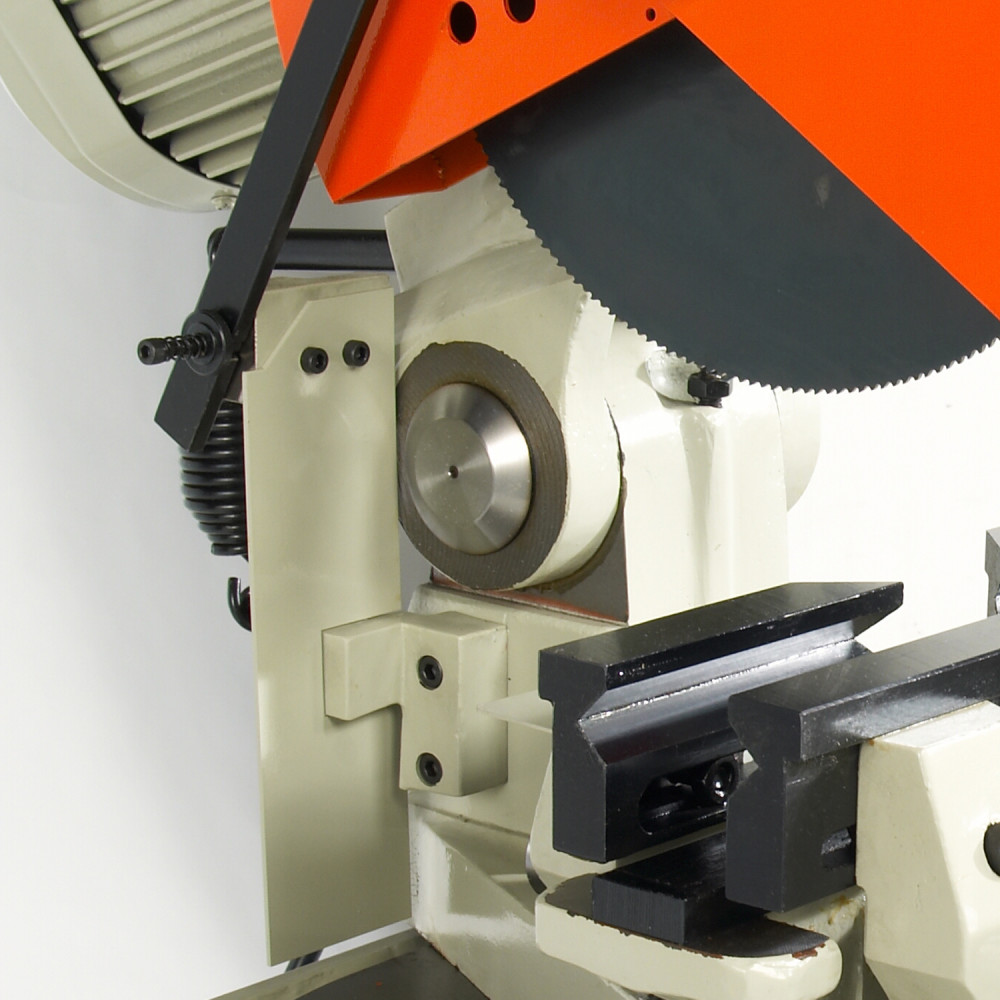

All-metal gears in direct-drive head are ground and hardened for reliability

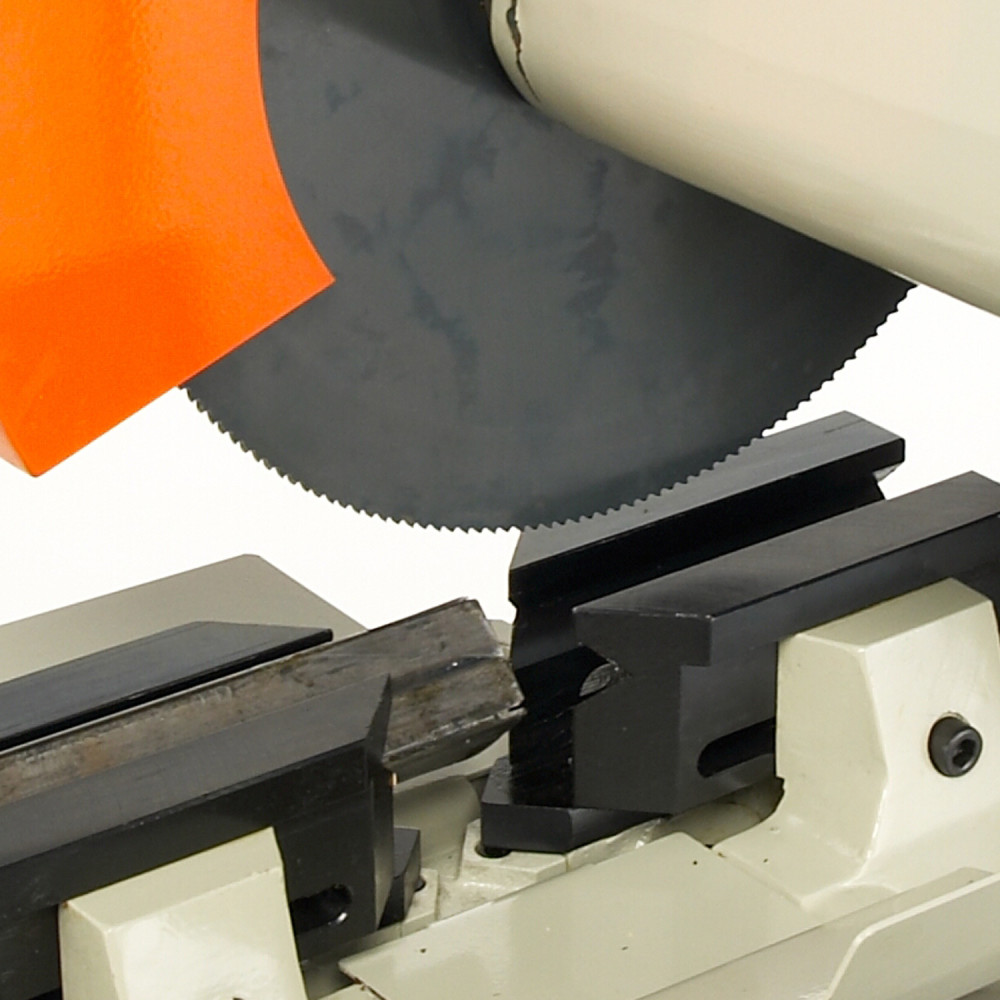

American-style vise keeps the material perfectly centered with the blade for clean, correct cuts
Backlash adjustment maintains tight tolerances and keeps “play” in the gearbox to a minimum
Rigid cast iron base keeps vibrations to a minimum so that the saw cuts accurately and reliably
Specifications
AC or DC Compatible
AC Only
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1002569
Amperage (A)
NA
Assembled Weight (lbs)
795
Blade Speed (rpm)
26 and 52
Cordless / Corded
Corded
Country of Origin
Taiwan
globalTradeItemNumber (GTIN)
00400002001850
Horsepower (hp)
4
Material
Rigid Cast Iron Base, Heavy Molded Steel Stand
Maximum RPM
52
Motor Size
4HP
Package Contents
Circular Cold Saw
Package Depth
77
Package Height
60
Package Weight
795
Phase
3
Speeds
2
UPC
400002001850
