Description

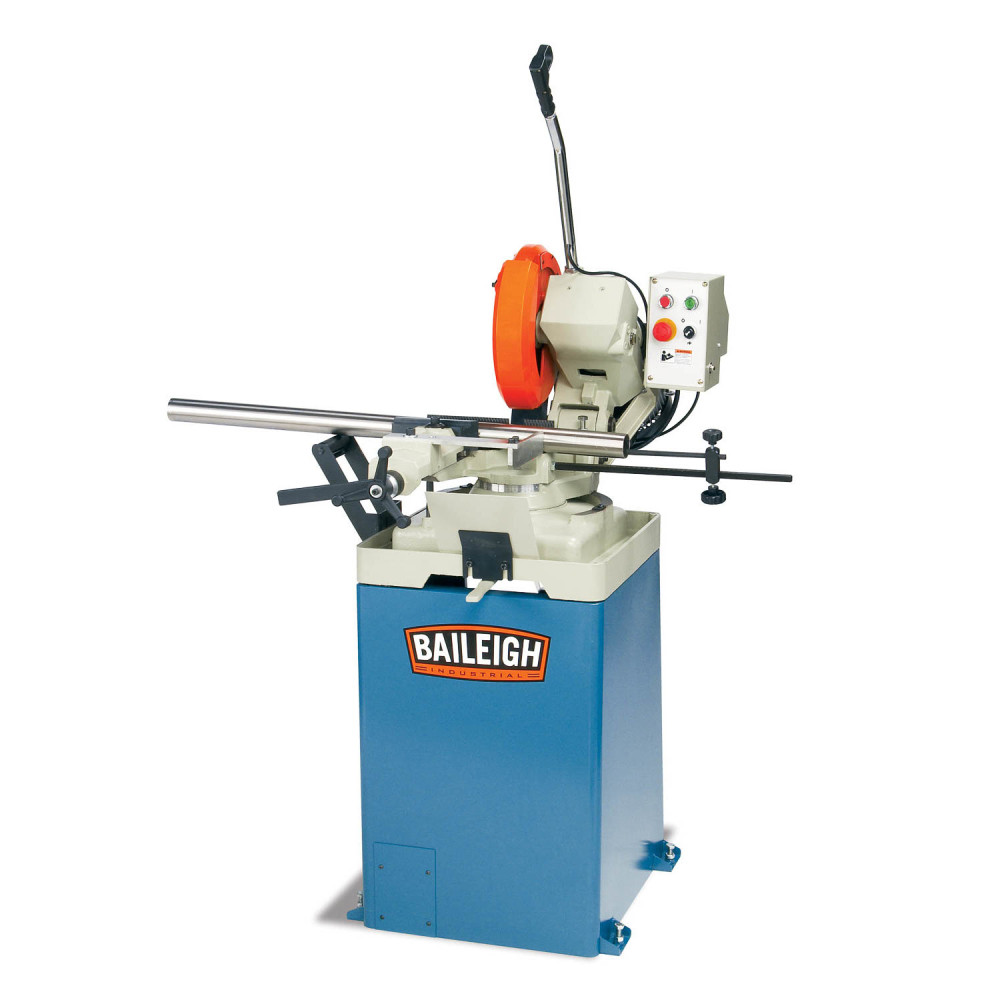

Baileigh CS-315EU Cold Saw European Style Vise Circular
Why is the manual CS-315EU our best-selling industrial cold saw? Because we designed it to make reliably perfect, mill-like cuts for many years at a price that won’t break the bank.
Features
Accepts a 12.5 In. blade
3.5 In. round tube capacity at 90 Deg
Miters 45 Deg to the left and right
Spins at 52 Rpm to cut through solids, tubing or pipe
Perfect for cutting mild steel, but can handle other material with the proper blade
Strong 2.5HP motor coupled with a direct-drive gearbox, lets the blade cut the material chatter-free, increasing blade life
Runs on 220V 60HZ 1 Phase power
Operate this manual saw by gradually pulling the blade head into the material and controlling it with your own strength

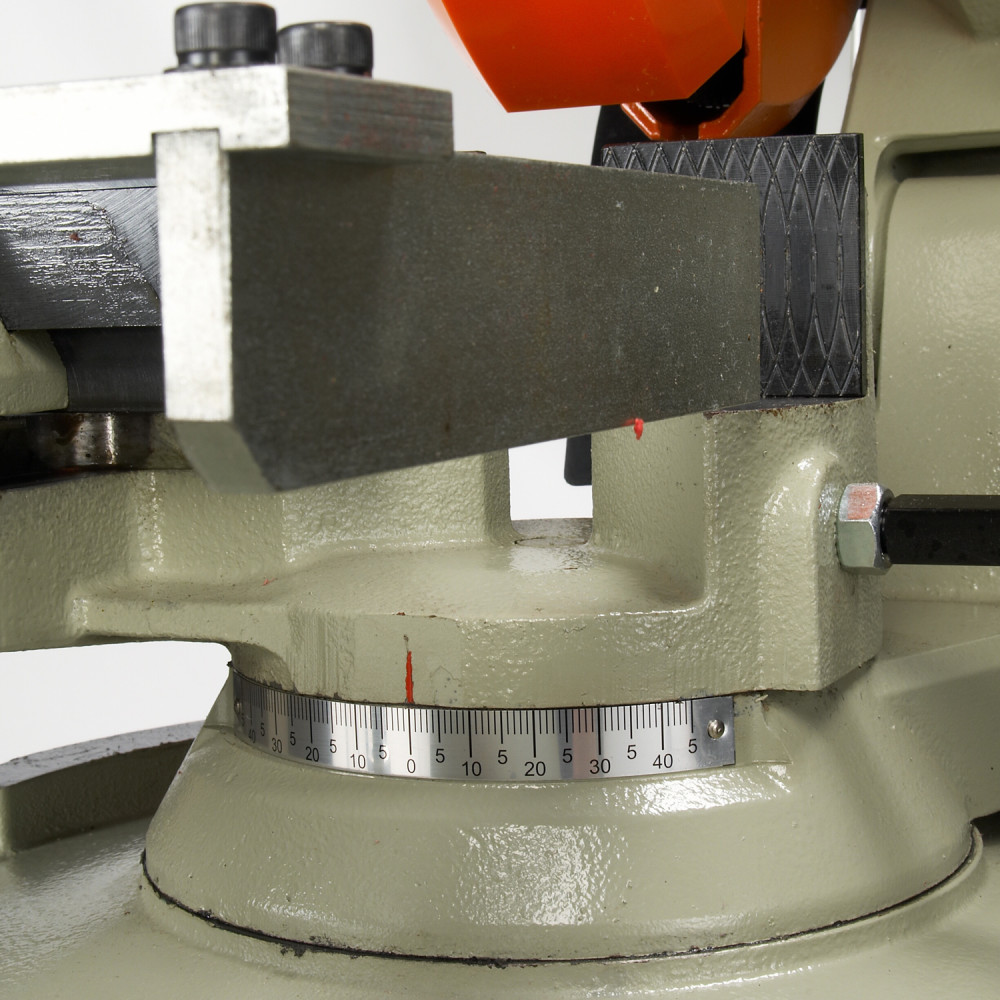

European-style vise has a taper lock system for fast clamping and unclamping to increase production
Specifications
AC or DC Compatible
AC Only
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1002450
Amperage (A)
NA
Assembled Weight (lbs)
440
Blade Speed (rpm)
52
Cordless / Corded
Corded
Country of Origin
Taiwan
globalTradeItemNumber (GTIN)
00400002001836
Horsepower (hp)
2.5
Material
Rigid Cast Iron Base, Heavy-Duty Molded Steel Stand
Motor Size
2.5HP
Package Depth
44
Package Height
48
Package Weight
440
Phase
1
Quick Lock Vise
Yes
UPC
731325402049
