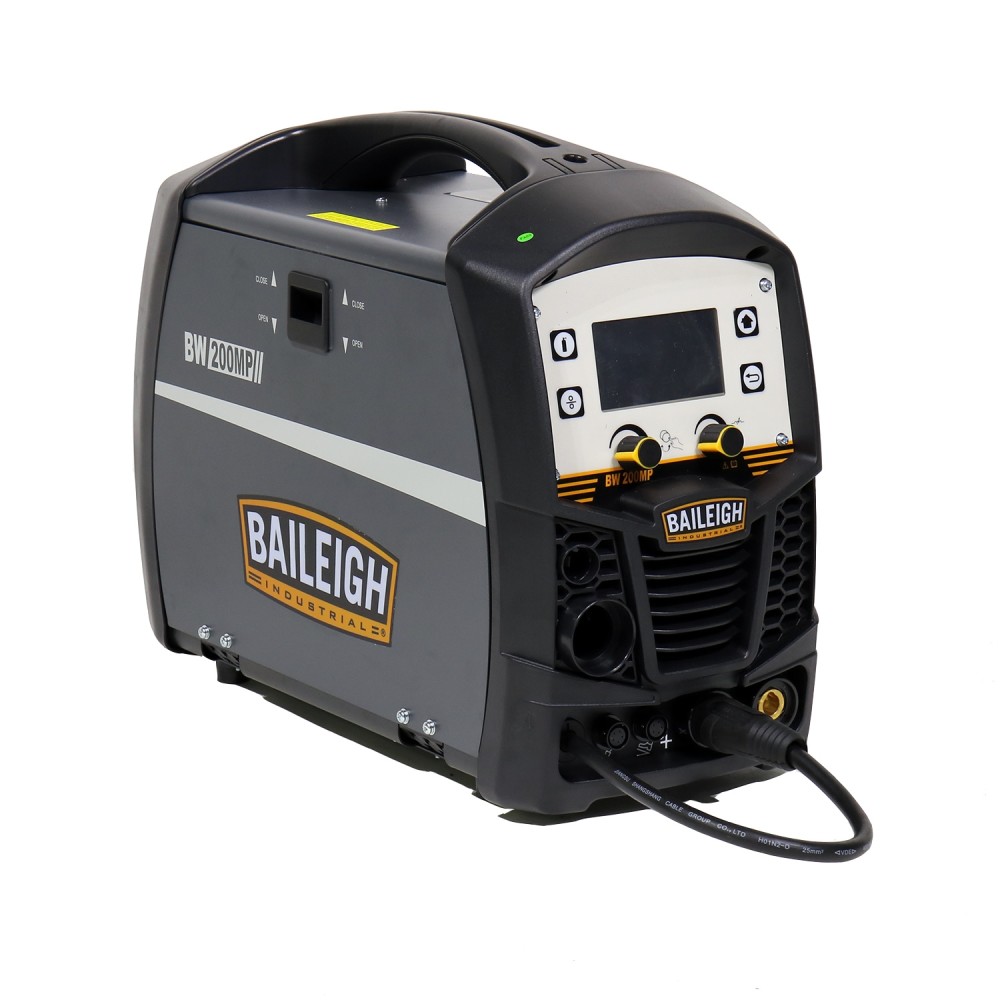

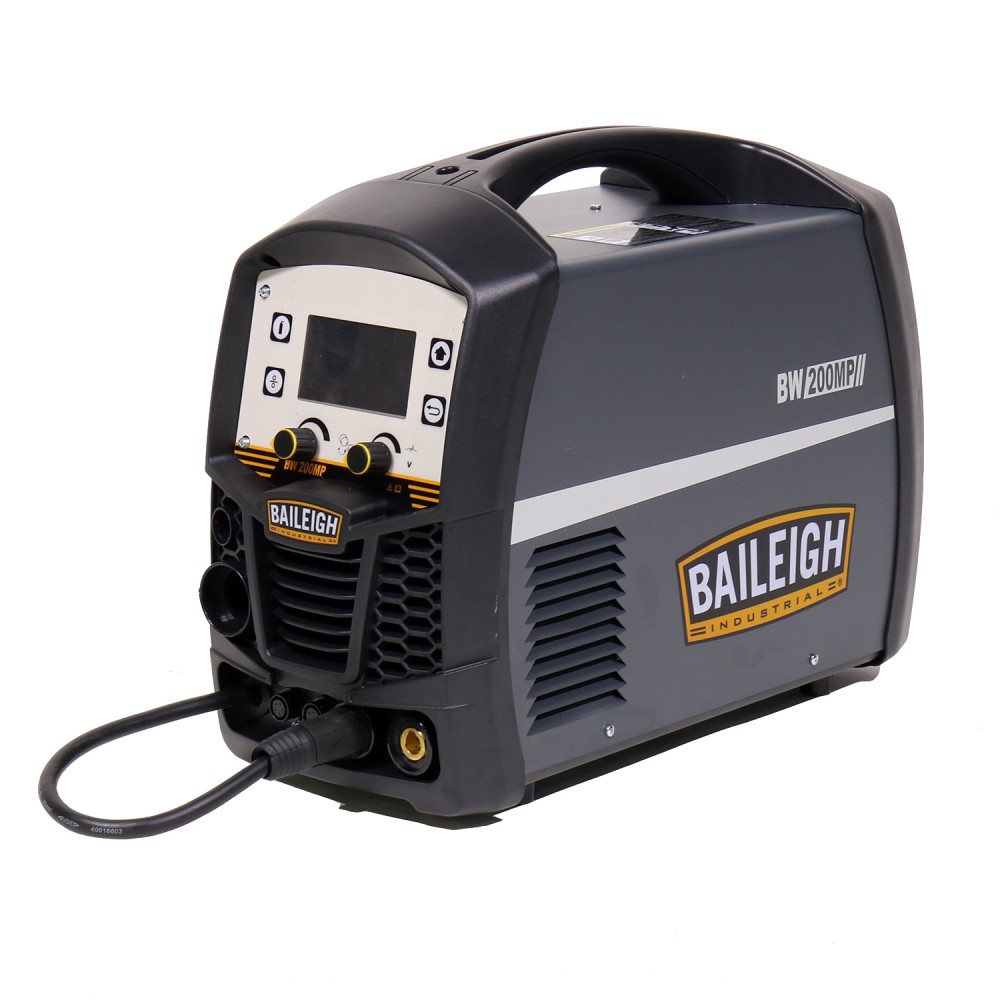

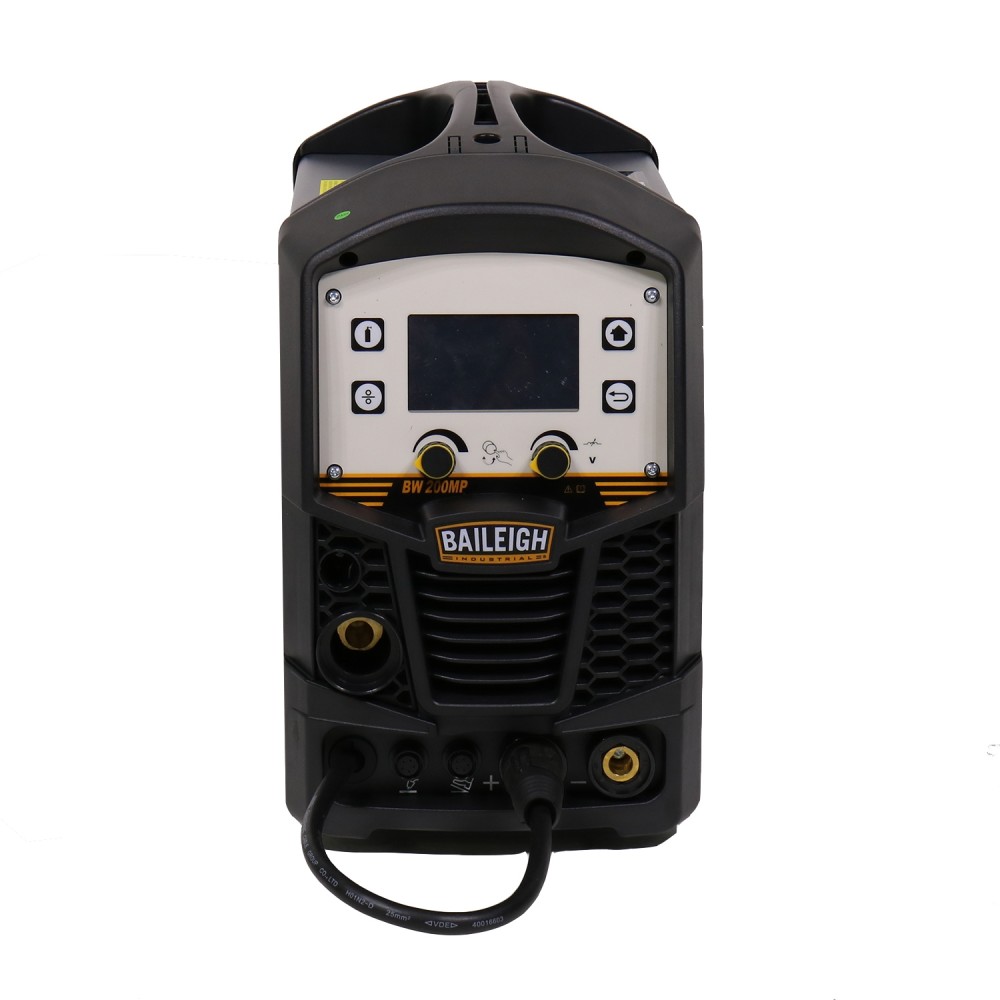

Baileigh BW-200MP Dual Voltage Inverter Multi Process Welder 200A
The Baileigh Industrial BW-200MP is a dual-voltage inverter-powered multi-process welder that features an LCD control screen that quickly and easily walks the user through setup. This 200A welder will accel in almost any environment and comes with the features that you demand.
Features
The BW 200 IGBT inverter technology requires 25% less input power and delivers consistent power output
Dual voltage can run on 120V or 230V 1 Phase power

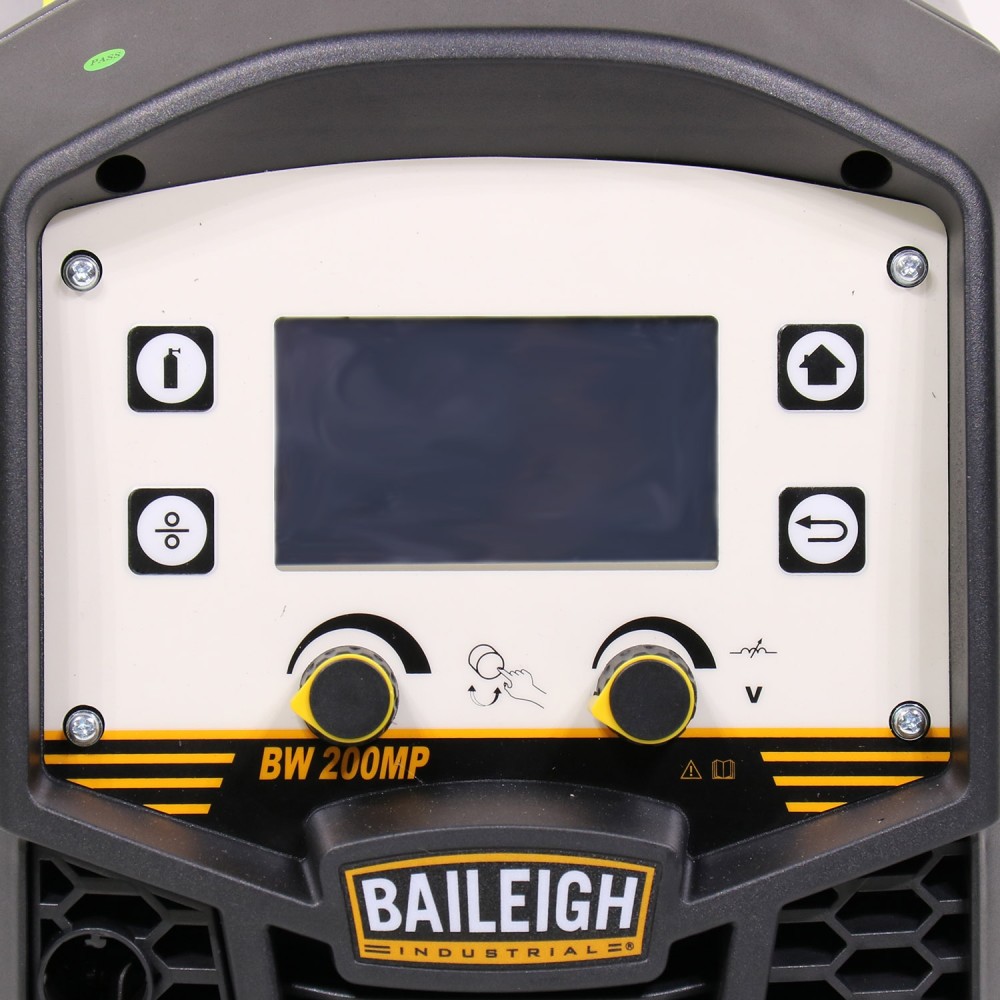

LCD control screen provides quick and easy setup with save for future setup mode
Performs MIG and Flux core welding 40-140A (120V) and 40-200A (230V), TIG welding upto 180A, stick welding upto 180A
Built-in, adjustable spot timer adds versatility
Synergic wire diameter and material thickness settings makes for easy work

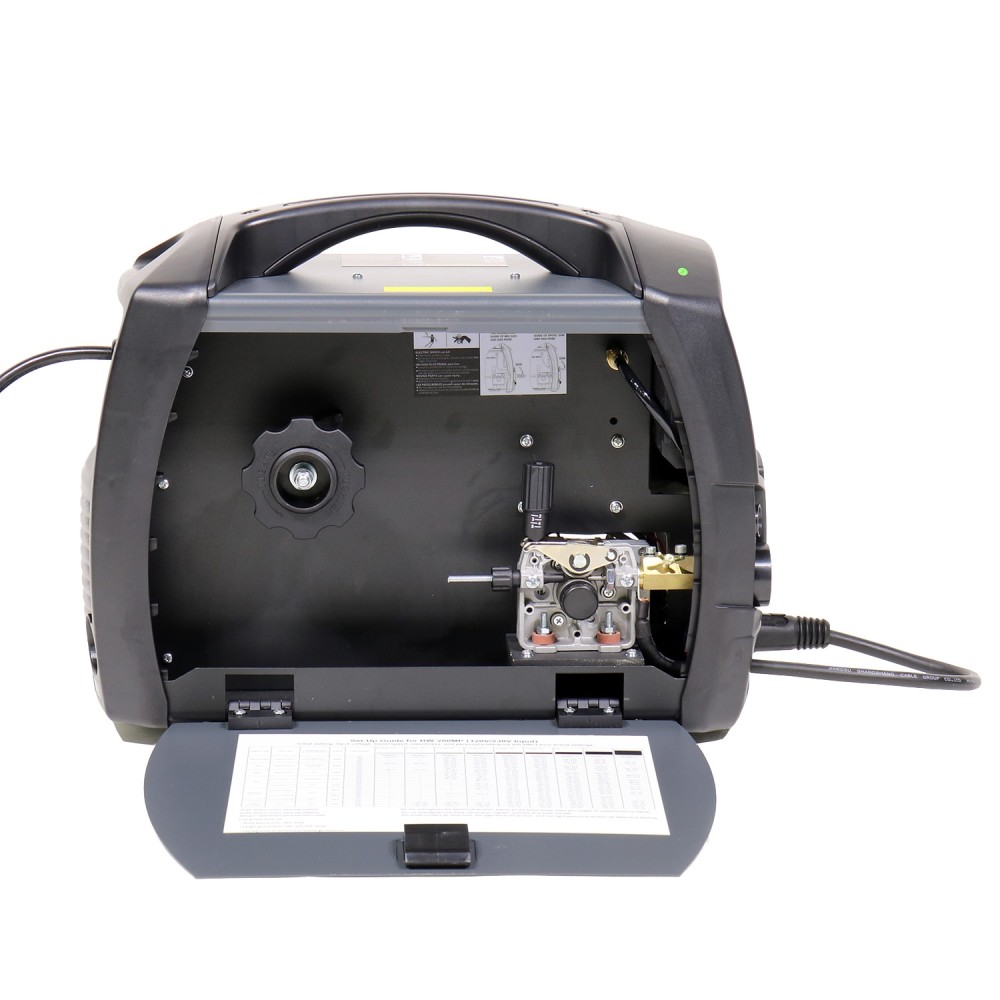

Infinite wire feed speed control allows user to adjust the voltage and current accurately
ARC force (MMA), Hot start (MMA)
2T/4T (trigger lock off/ trigger lock on), generator Safe, easily sourced consumables
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1021972
Additional Contents

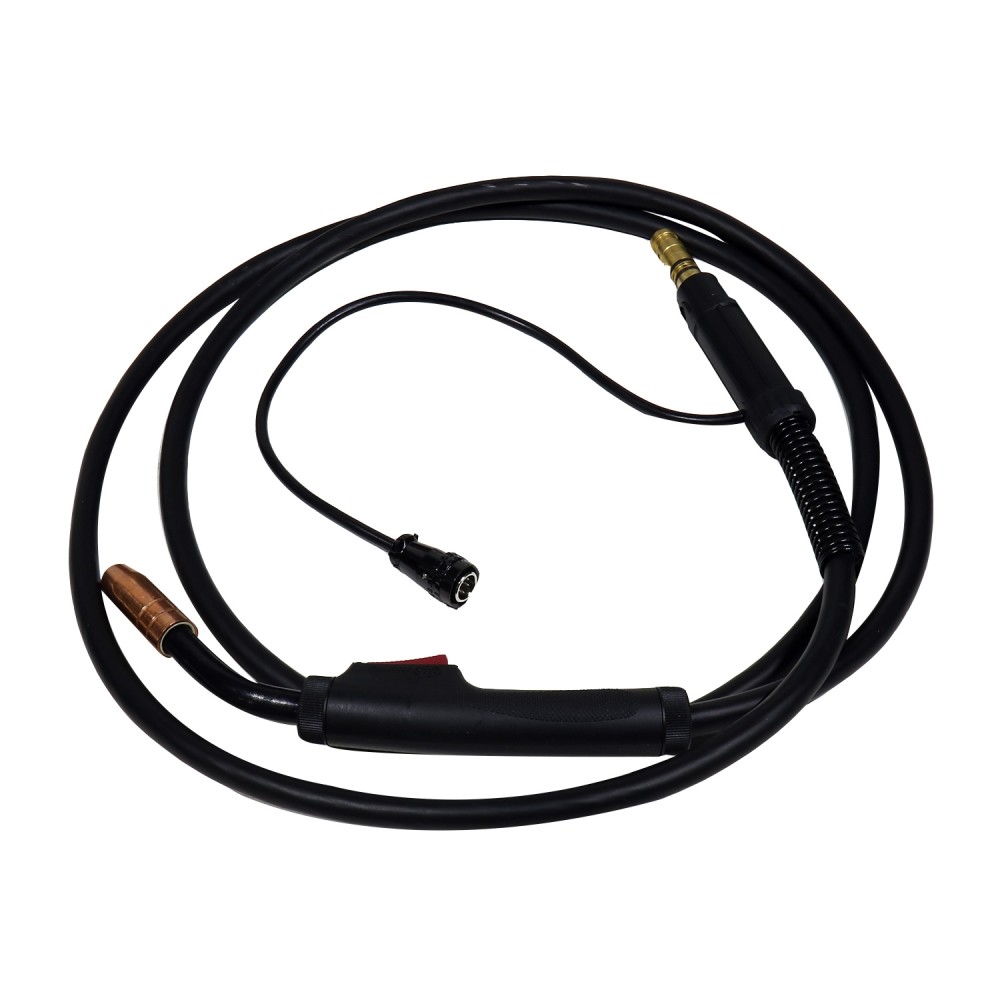

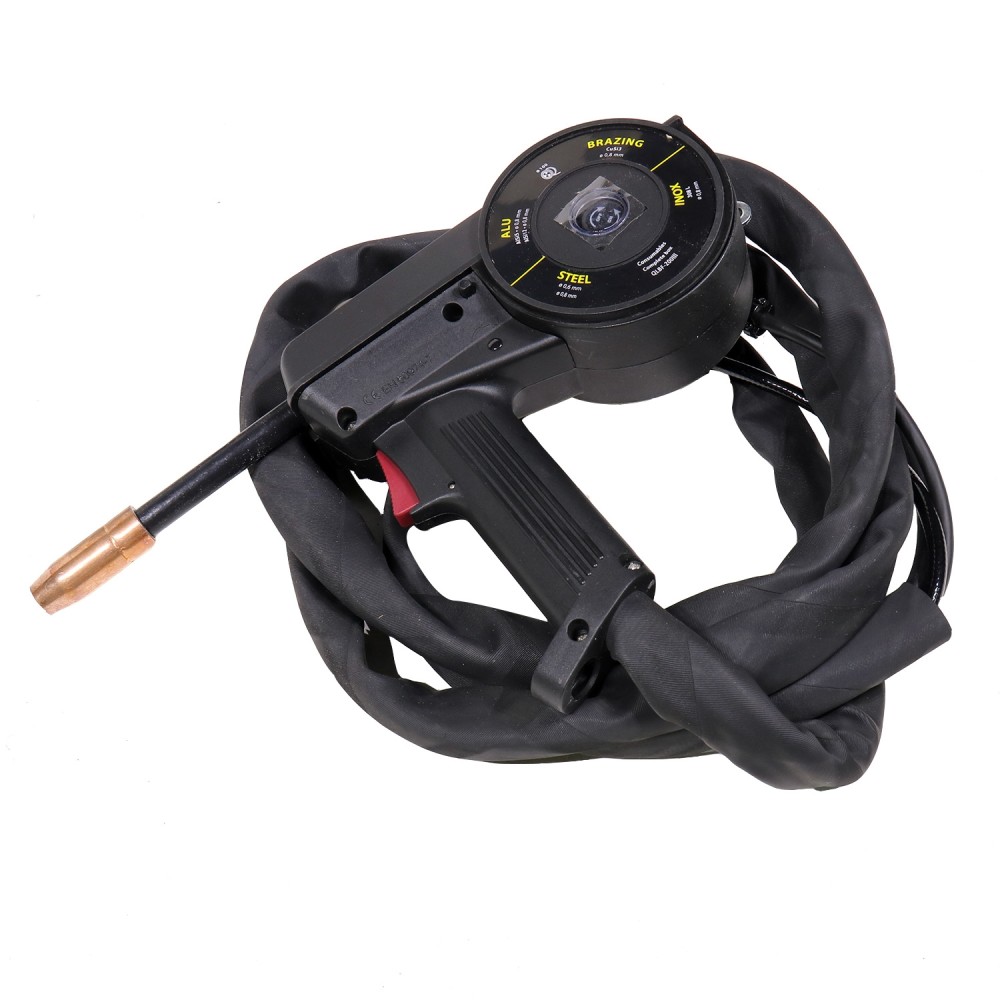

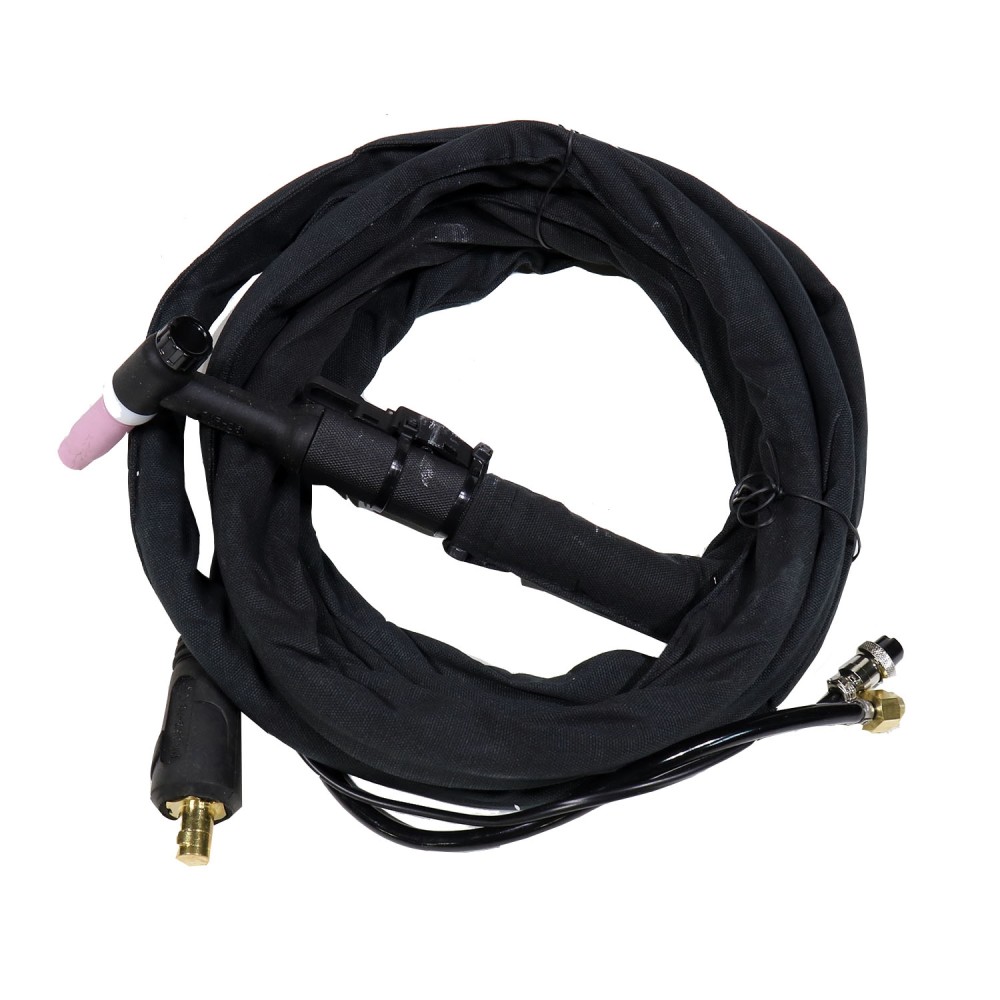

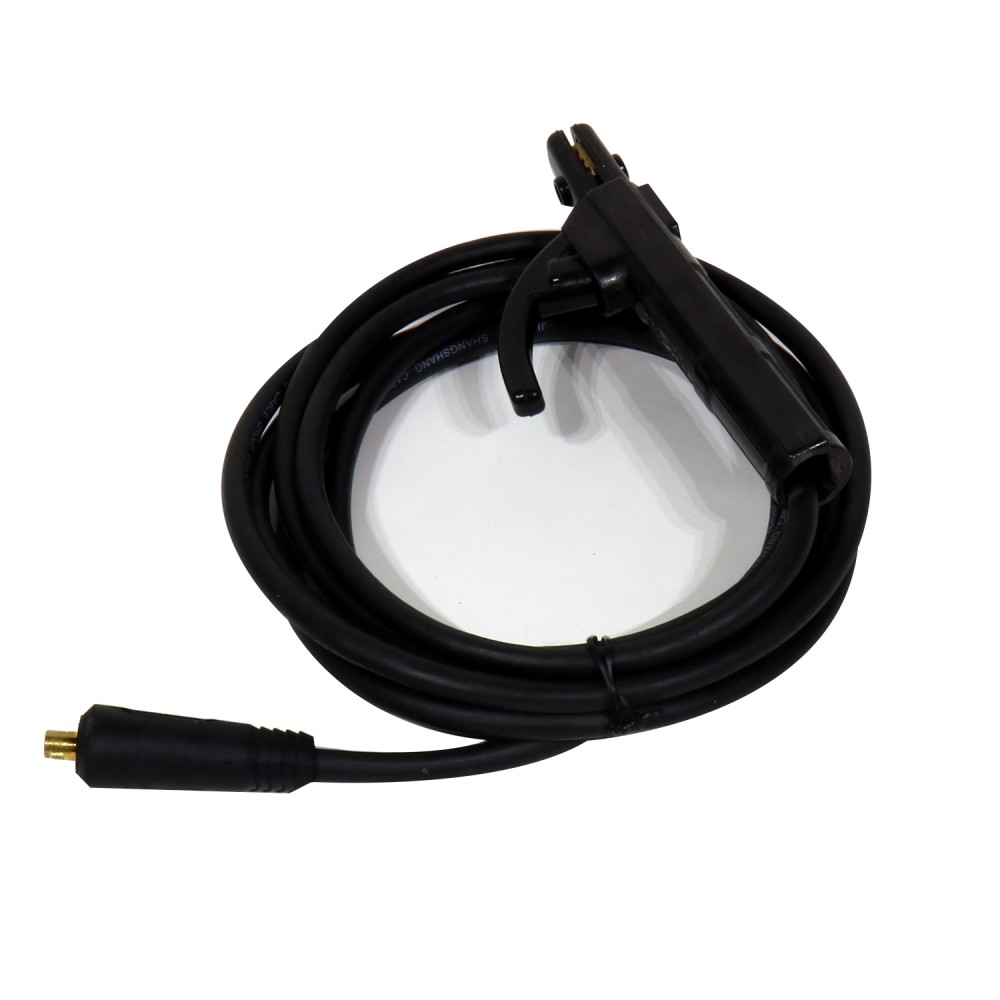

10 Ft. Spool Gun, Electrode Holder, TIG Torch, Foot Pedal, MIG Torch, Ground Clamp, Gas Regulator with Hoses, 6-50P 250V Plug, and Adaptor to 120V Plug
Assembled Weight (lbs)
71
Country of Origin
United States
CSA Certified
Yes
Current Rating (A)
200
Cutter Or Welder
Welder
Cylinder Included
No
Digital Display
Yes
ETL Listed
No
Flashback Arrestors Included
No
globalTradeItemNumber (GTIN)
00400021000711
Maximum Amperage (A)
200
Output Amps @ 100% Duty Cycle
57A @ 120V/89A @ 230V
Output Amps @ 20% Duty Cycle
89A @ 230V

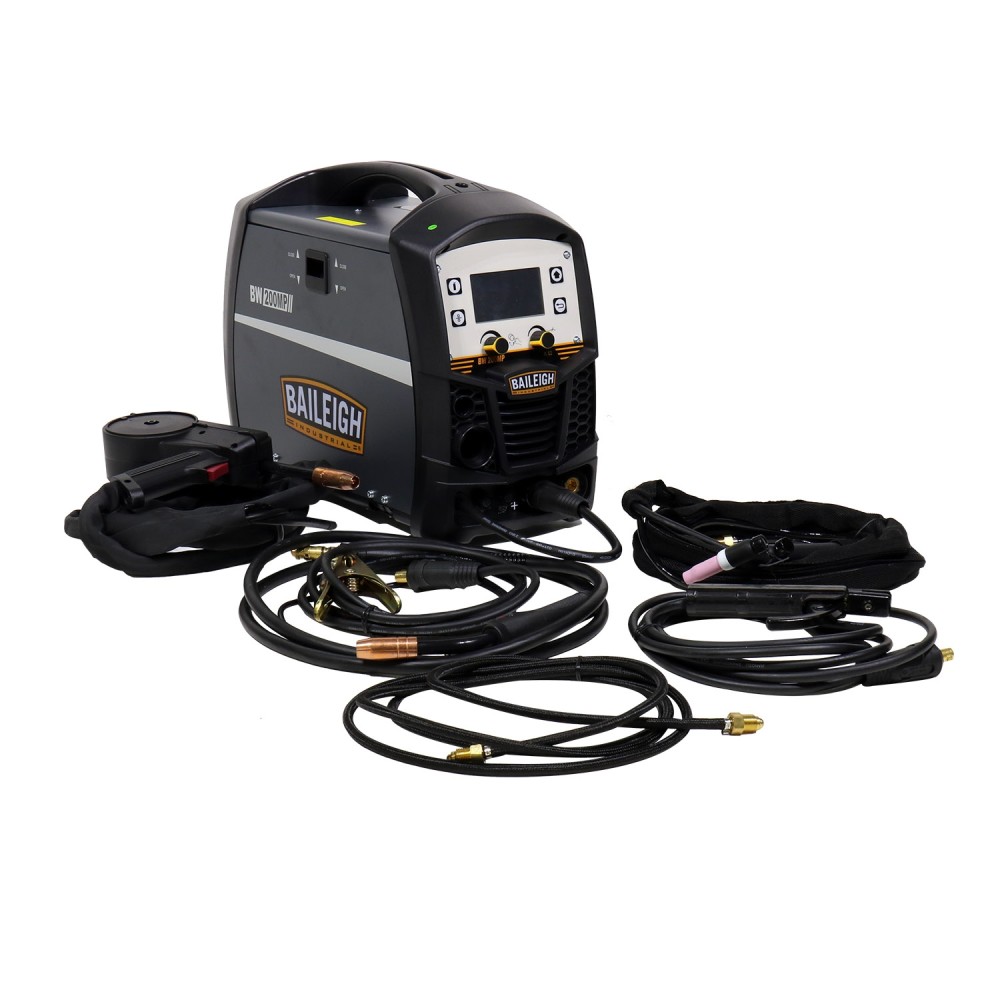

Package Contents
Multi-Process Welder, 10 Ft. Spool Gun, Electrode Holder, TIG Torch, Foot Pedal, MIG Torch, Ground Clamp, Gas Regulator with Hoses, 6-50P 250V Plug, and Adaptor to 120V Plug
Package Depth
18
Package Height
28
Package Weight
71
Portable
No

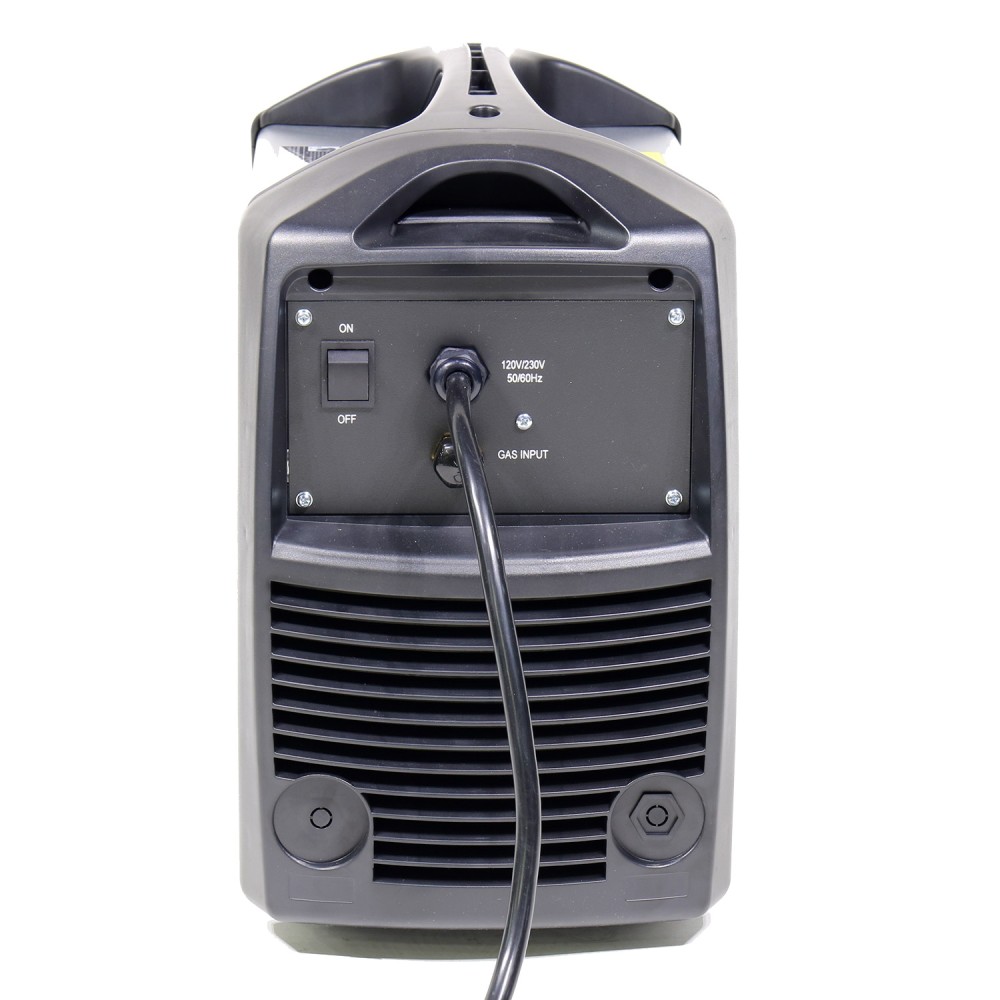

Power Requirements
120V/230V 1 Phase
Processes
MIG/Flux-Cored
Reverse Flow Check Valves Included
No
Switch Type
Trigger
Tips Included
No
Trigger
Yes
UL Listed
Yes
UPC
400021000711
Voltage
120/230
Voltage Rating
120/230 V
Welder / Cutter Type
Other
Work Cable Length (ft)
10
