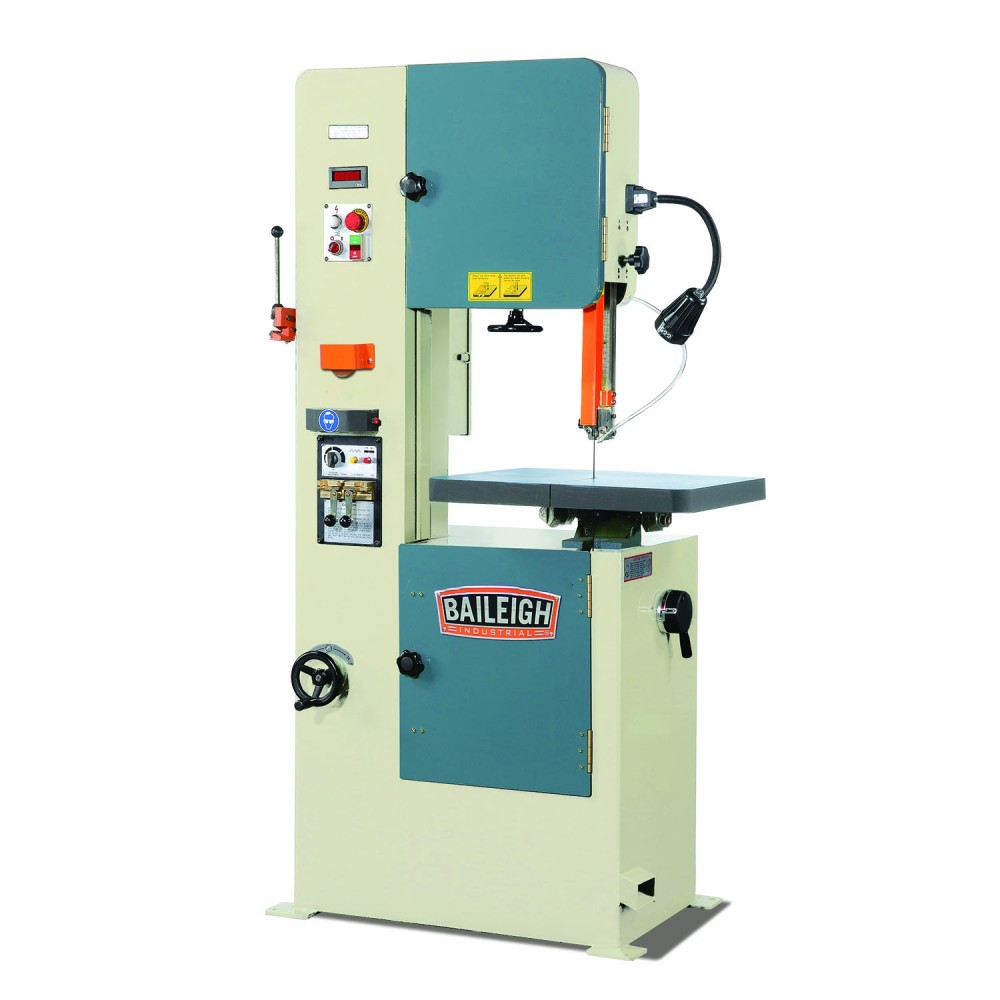

Baileigh BSV-20VS Vertical Band Saw 220V 60HZ 1 Phase

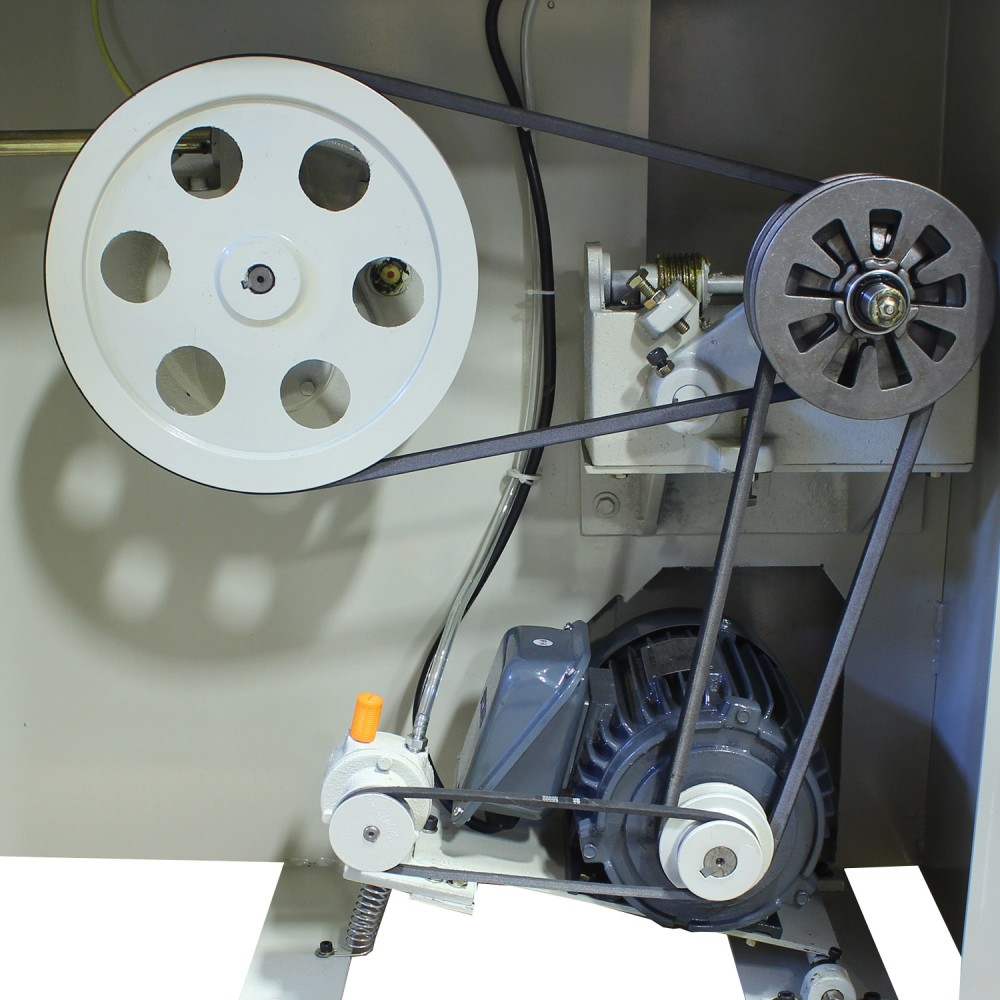

Within our lineup of vertical bandsaws, the BSV-20VS metal cutting band saw increases the capacity of our BSV-16 and adds a variable-speed pulley. Make straight and curved cuts with the vertical blade.
Features
2HP motor runs on 220V 1 Phase power, Wide 20.5 In. throat depth, 12.375 In. maximum cutting thickness, Accepts standard 0.25-0.75 In. blades

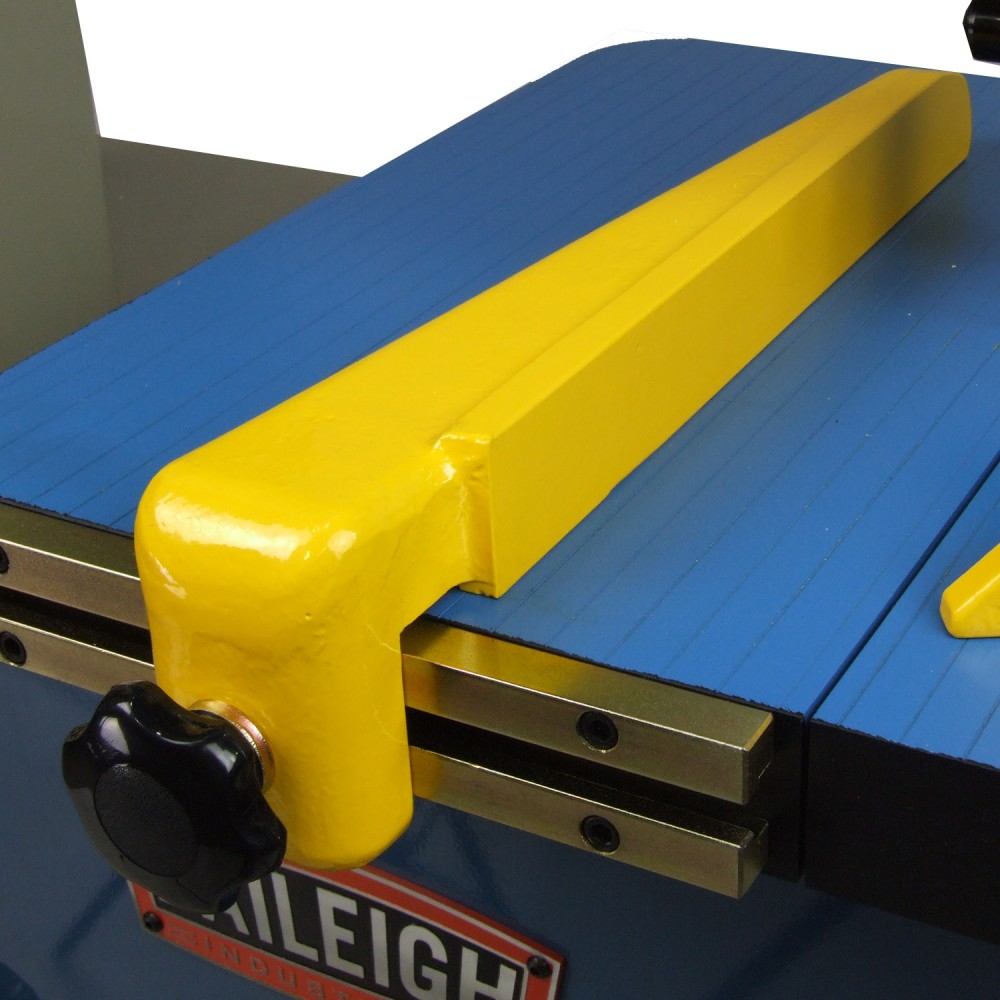

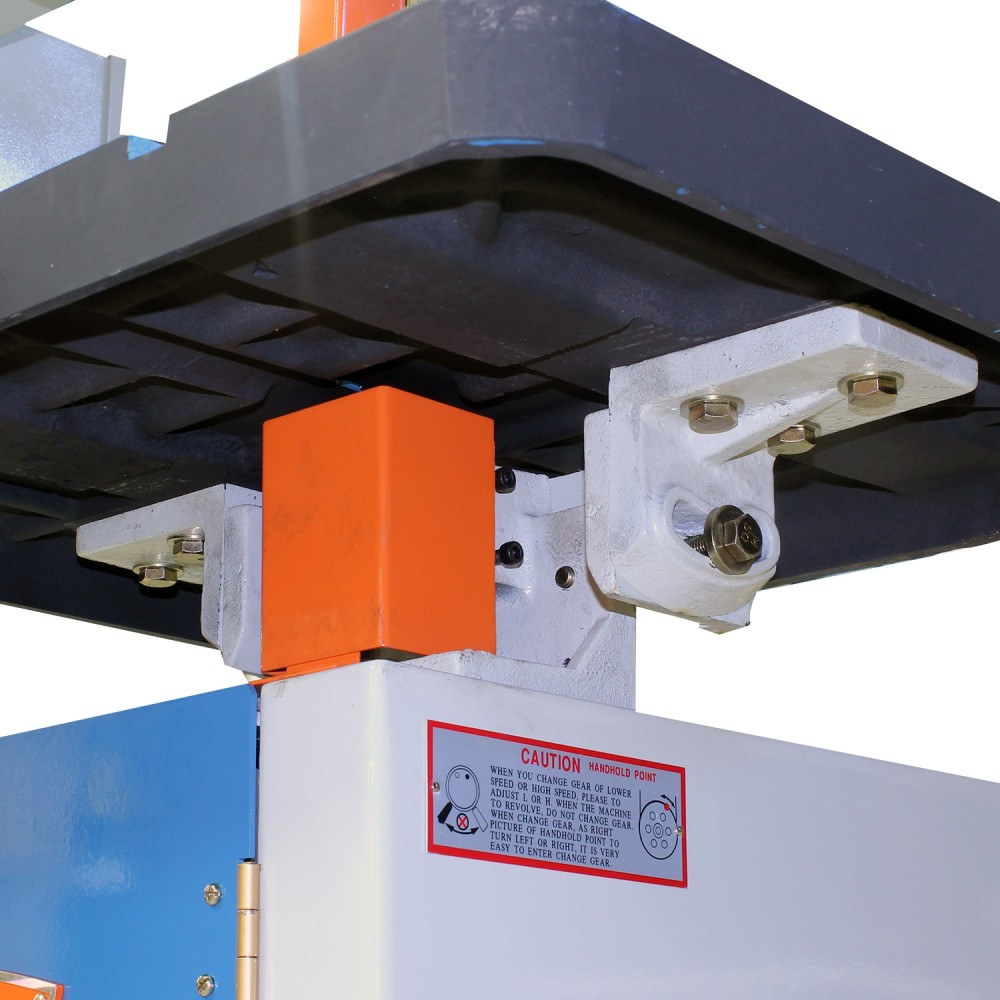

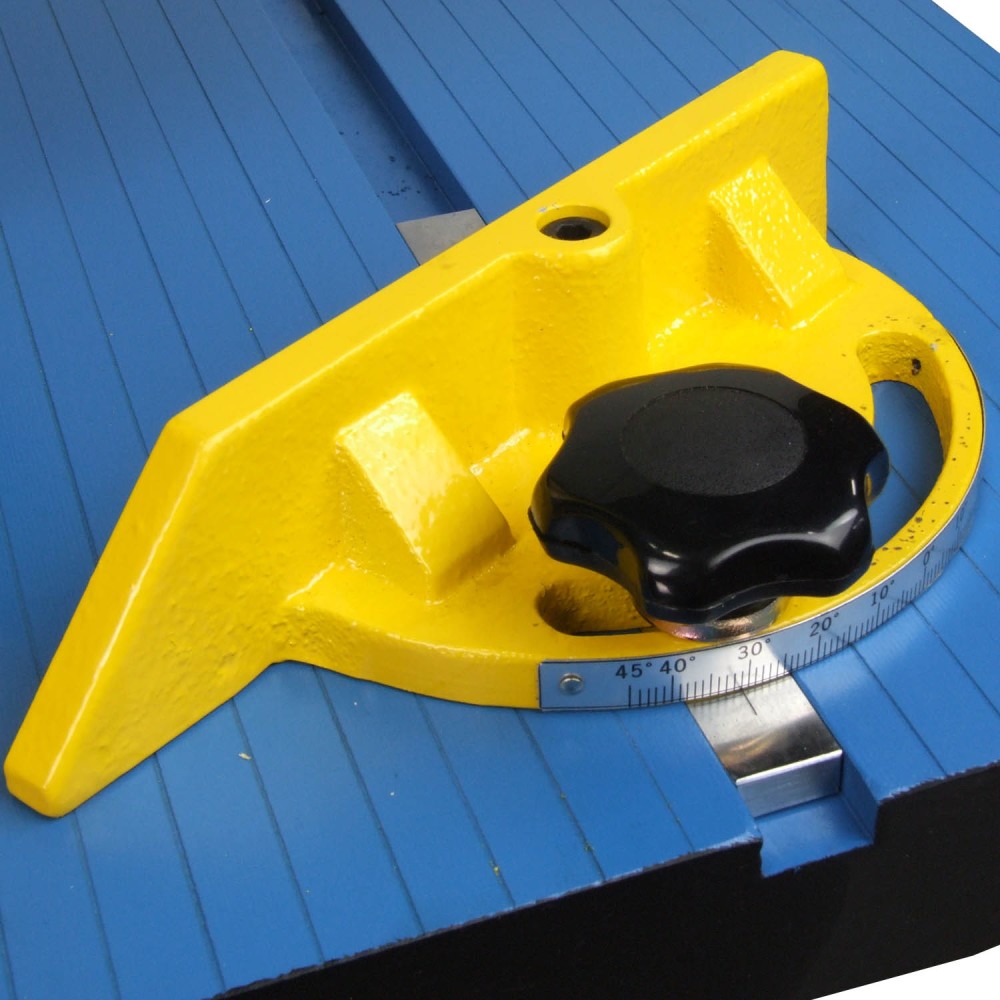

Cast iron table can pivot front to back and left to right, includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable

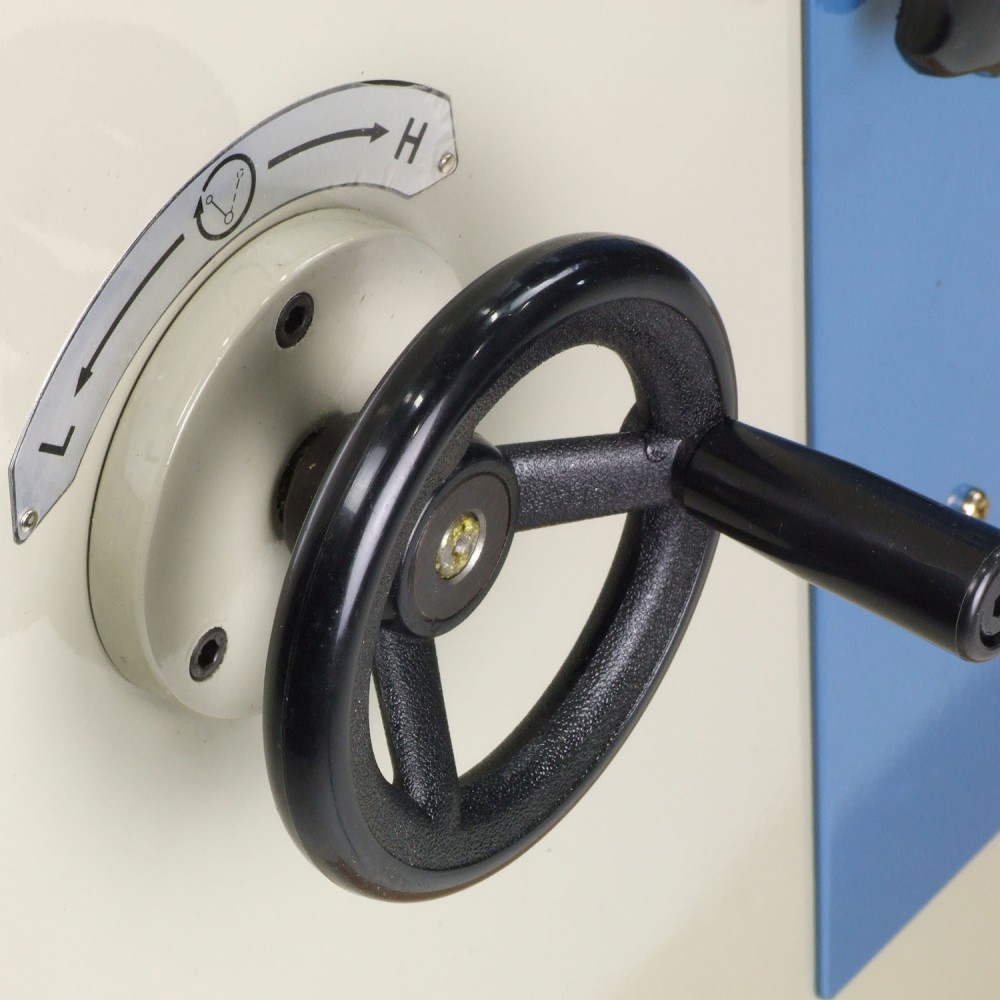

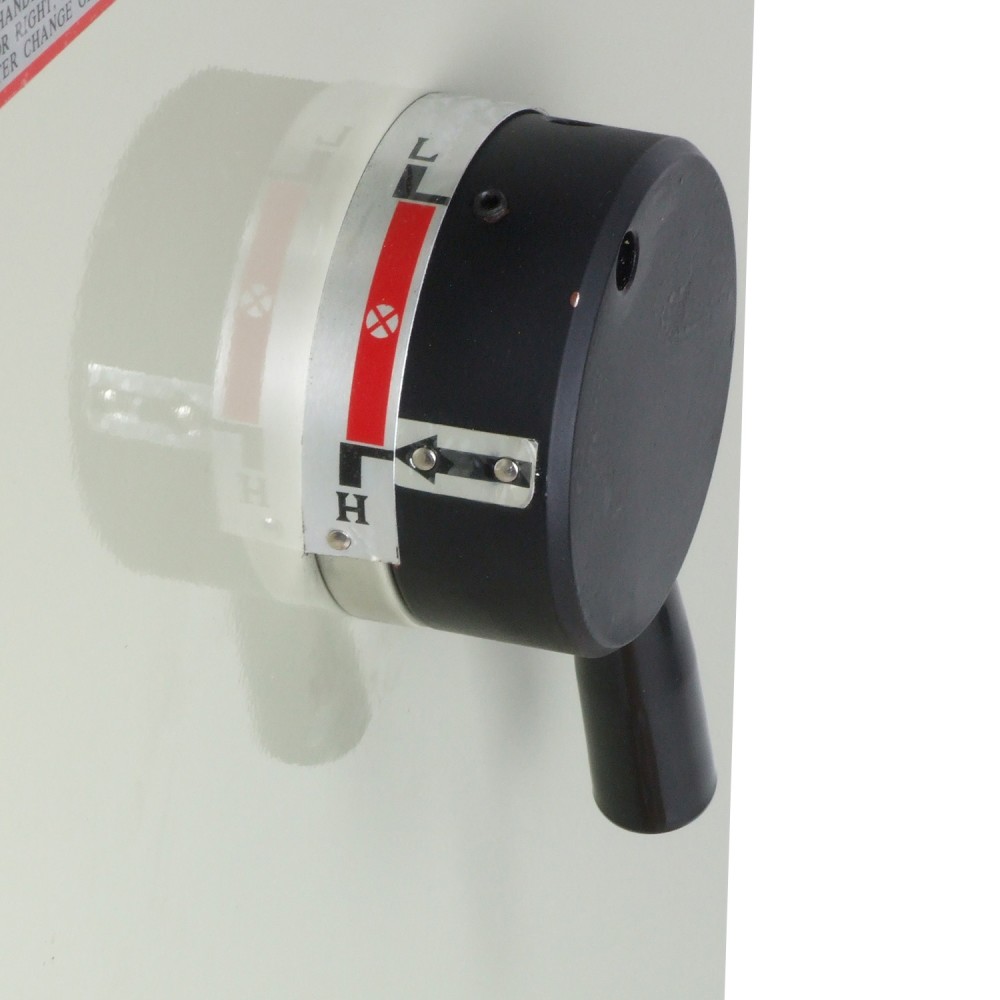

Variable speed from 65-1640 Fpm allows you to adjust the speed for cutting wood, metal, and even plastic, change the speed with the hand wheel (just turn right for higher speed, left for lower)

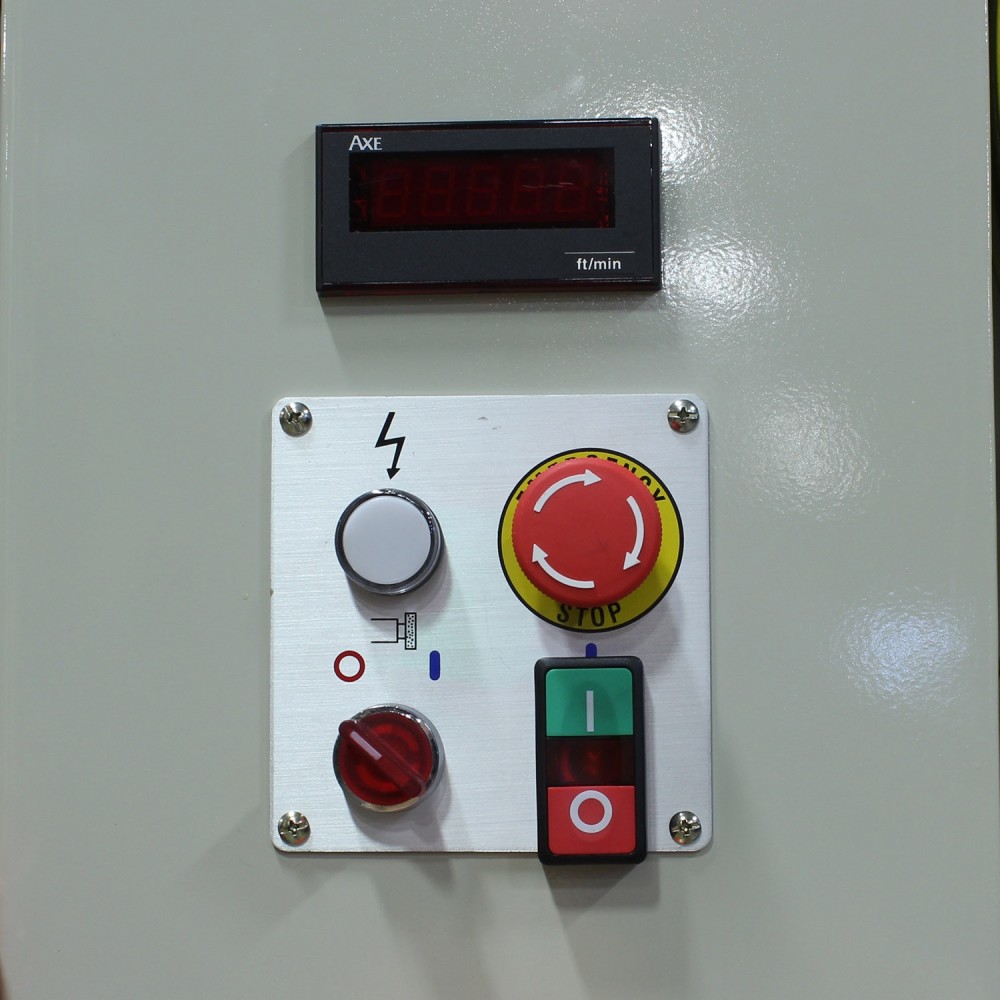

Digital readout lets you see the exact blade speed, so you can choose the right settings for your material and extend blade life
This band saw includes everything you need to cut out the center of the material without having to fix a cut through it

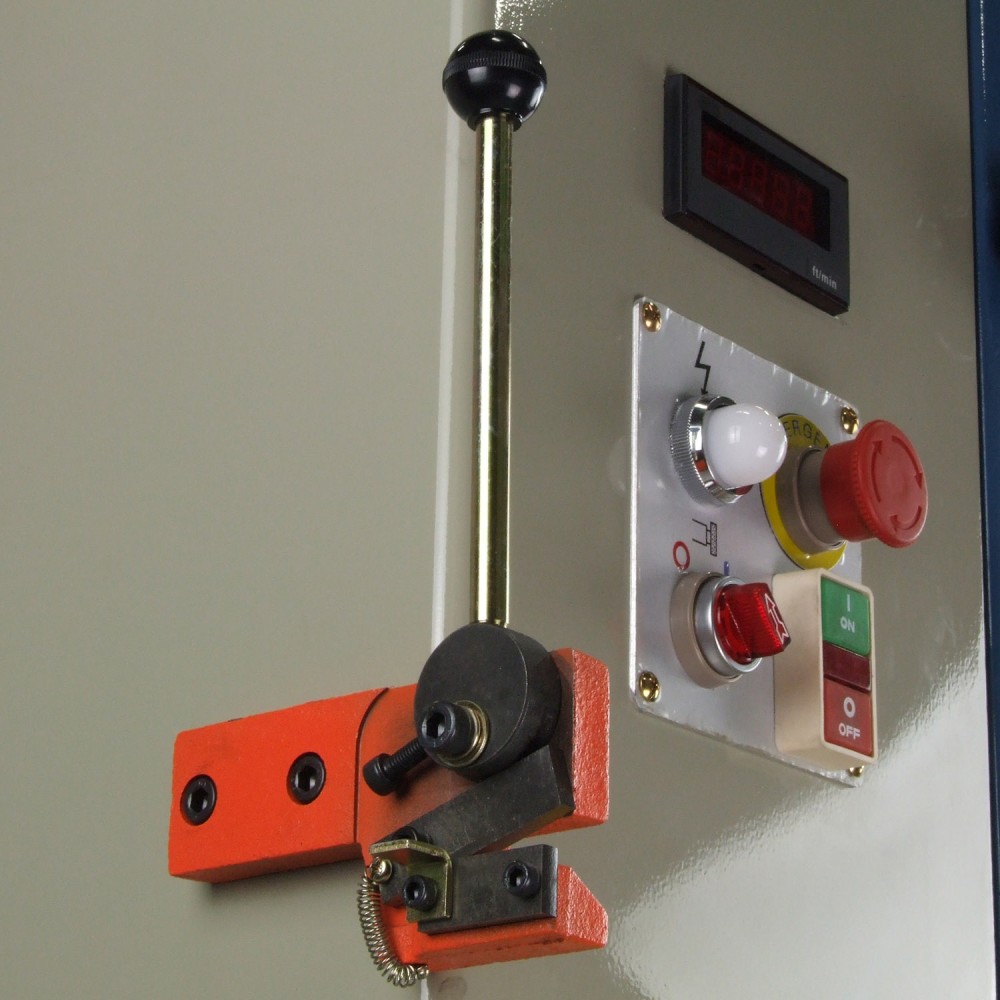

Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together
Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint-great for getting to the center of a cut or repairing blades
Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years

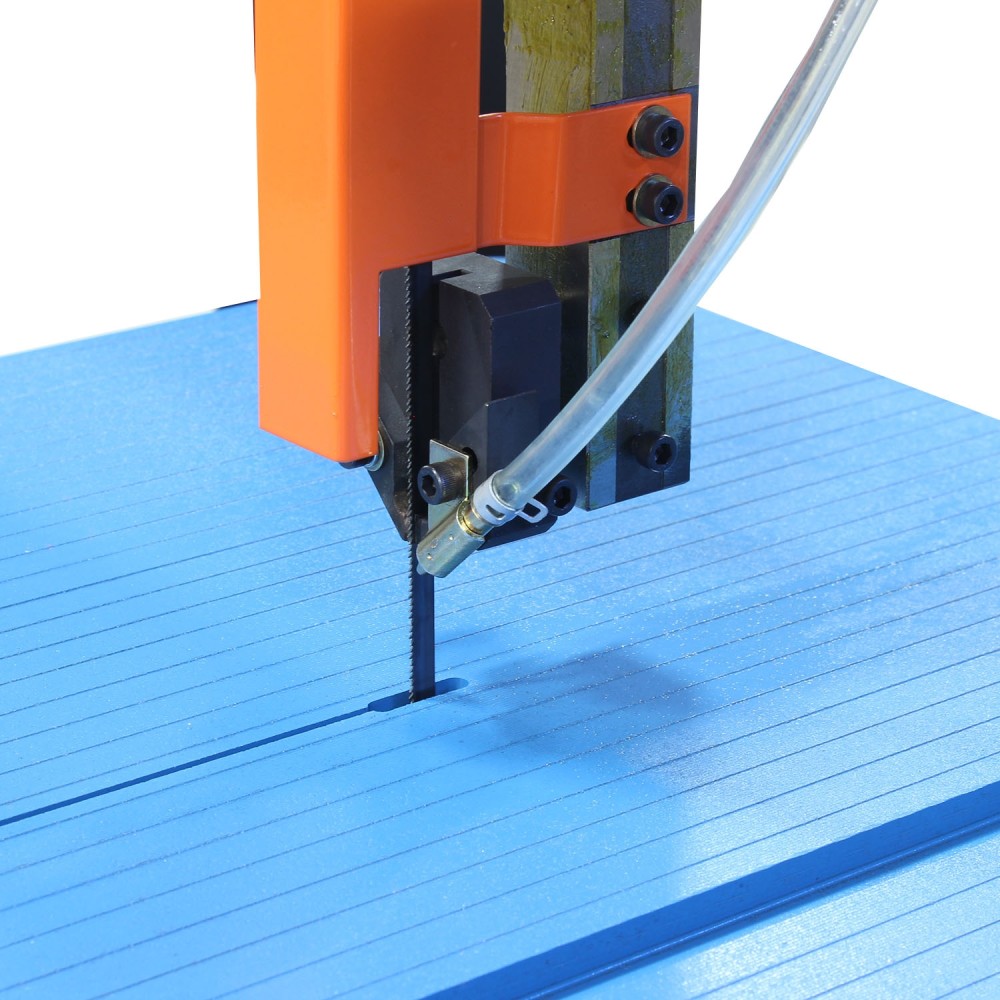

Air blowdown system cools the blade and keeps the saw clean from material chips and shavings, halogen work light lets you see what you’re cutting more clearly
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1230390
Assembled Weight (lbs)
1190
Band Saw Frame Material
Steel
Cordless / Corded
Corded
Country of Origin
Taiwan
Fence Included
Yes
globalTradeItemNumber (GTIN)
00400230000632
Horsepower (hp)
2
Material
Cast Iron
Maximum Blade Length (In)
153
Maximum Blade Width (In)
0.75
Maximum Feet Per Minute
1640
Minimum Feet Per Minute
65
Package Contents
Band Saw, Cast Iron Mitering System, Rip Fence, Protractor, Accessories
Package Depth
60
Package Height
92
Package Weight
1190
Phase
1
Stand Included
No
Table Length (in)
27.5
Table Material
Cast Iron
Table Tilt Left (Deg)
5
Table Tilt Right (Deg)
15
Table Width (in)
26
UPC
400230000632
Variable Speed
Yes
Work Light
Yes
