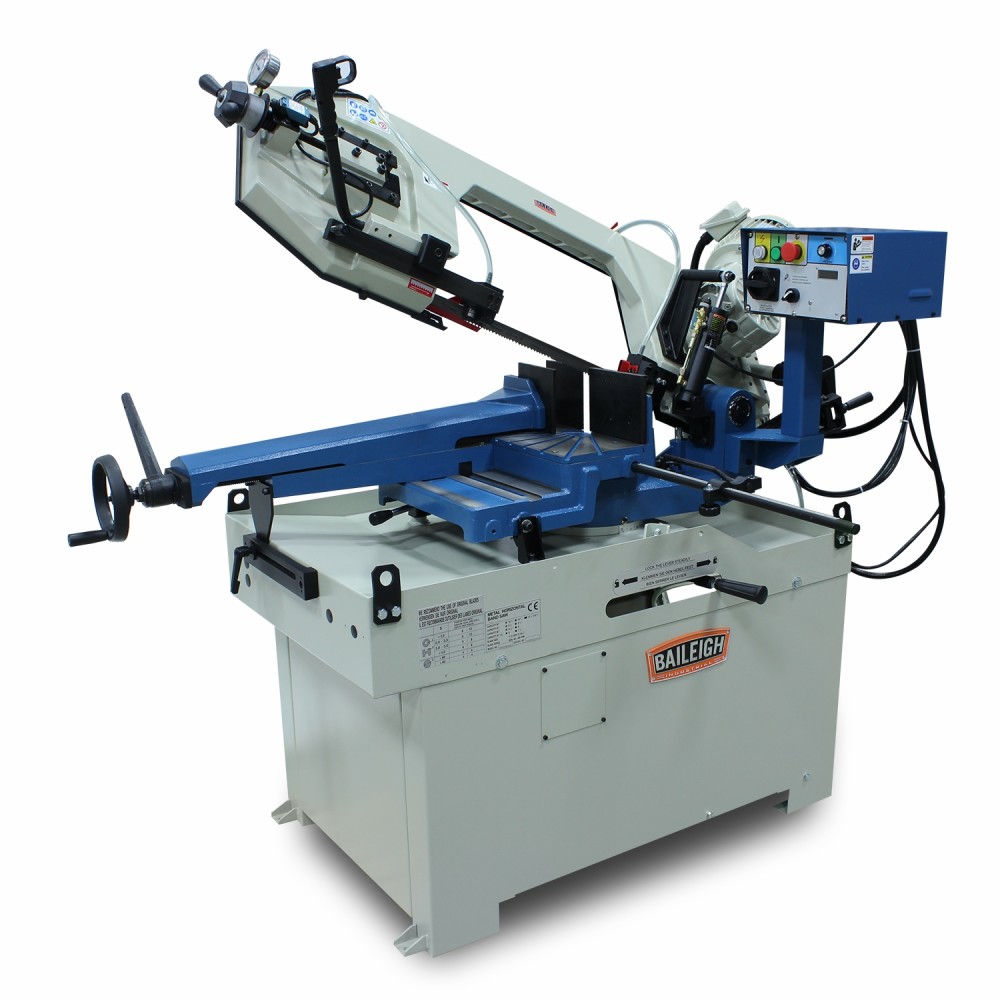

Baileigh BS-350M Band Saw Manual Dual Mitering 220V 1 Phase

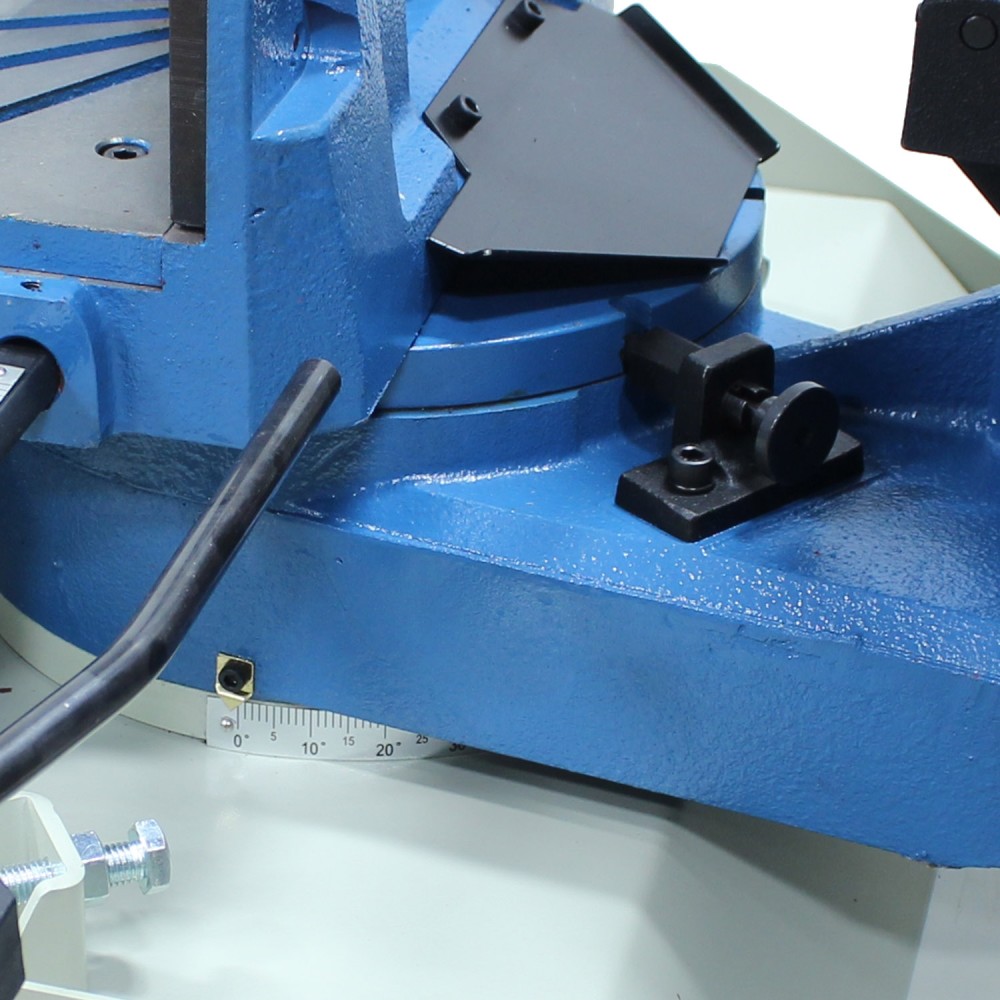

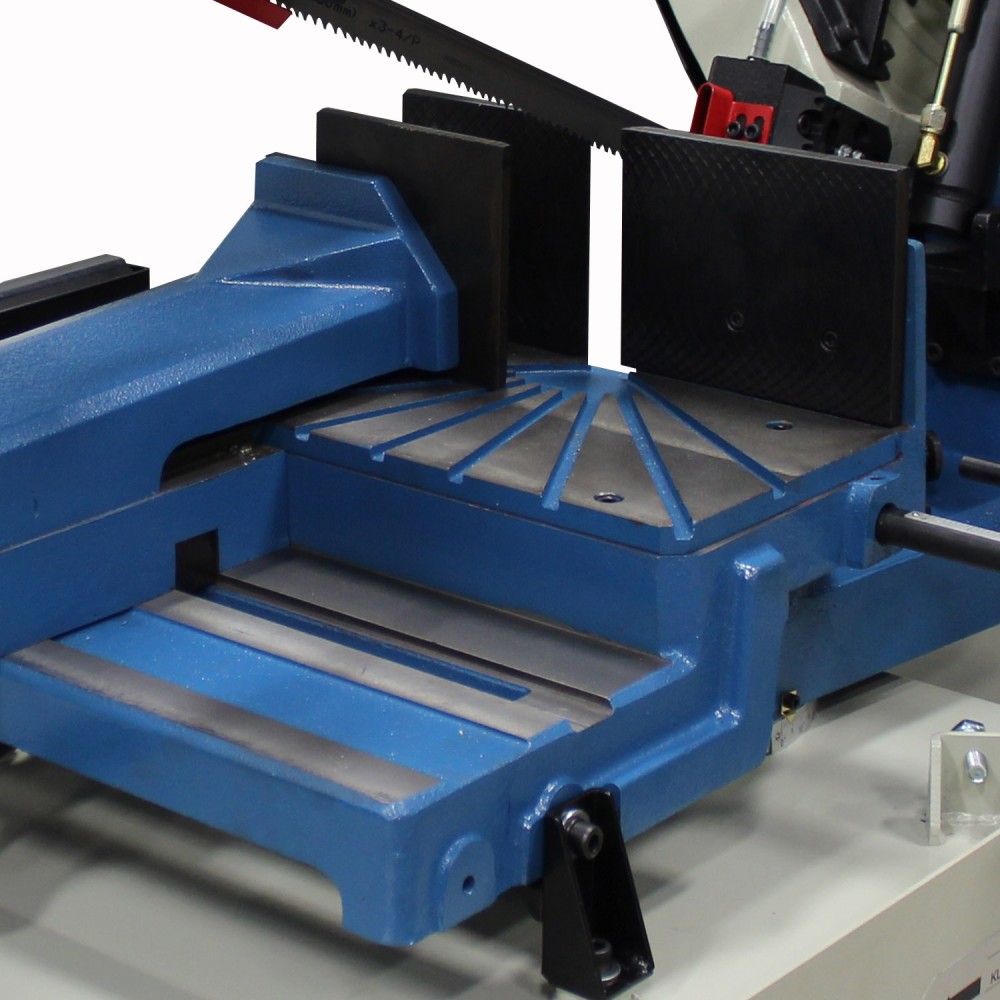

Need to cut at multiple angles in both directions? This dual-mitering band saw has a cast iron head and bow that can swivel 60 Deg right and 45 Deg left.
Features
10.5 In. round capacity at 90 Deg, runs on 220V 1 Phase power, you can use the dual miter band saw just about anywhere

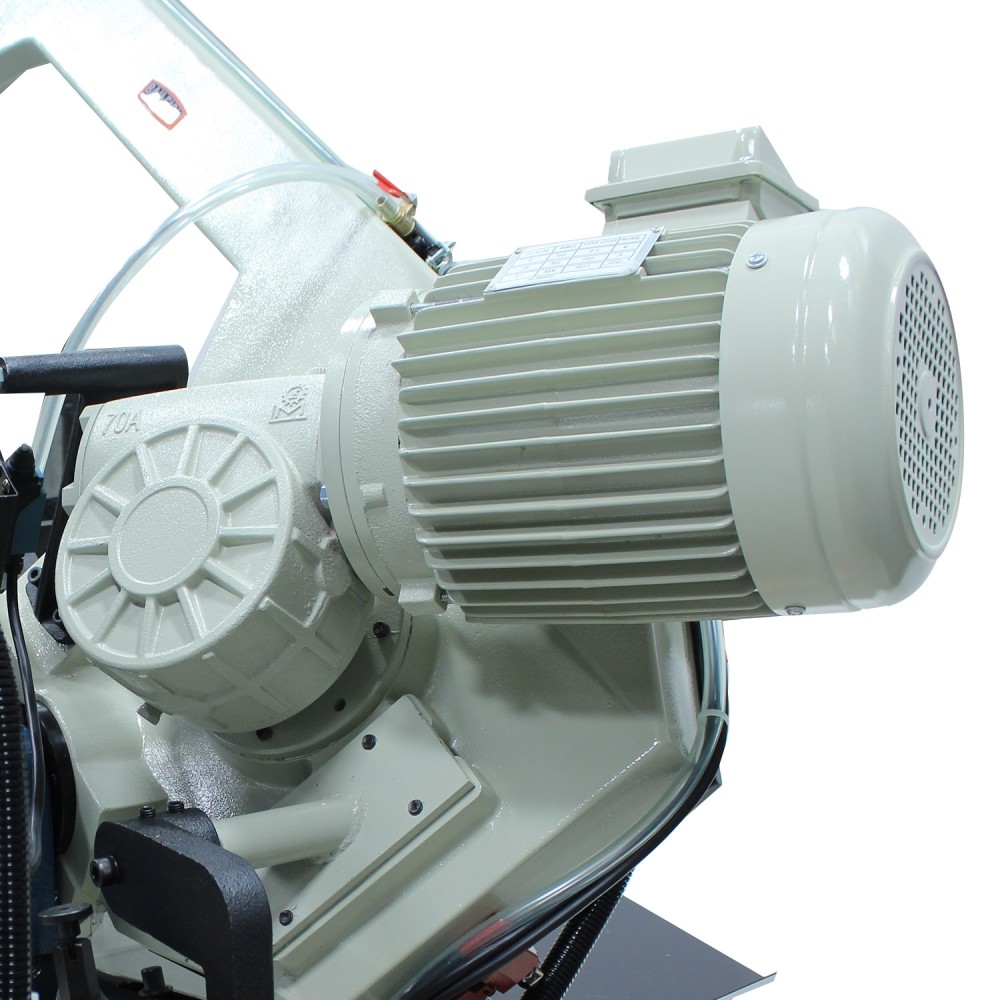

2HP motor, driven by an AC inverter, makes the machine reliable, direct-drive gearbox saves you the trouble of adjusting pulleys or replacing broken belts
Cast iron head and bow, machined to exacting tolerances, reduce vibration and deliver the straightest, highest quality cuts on the market, 1 In. blade width

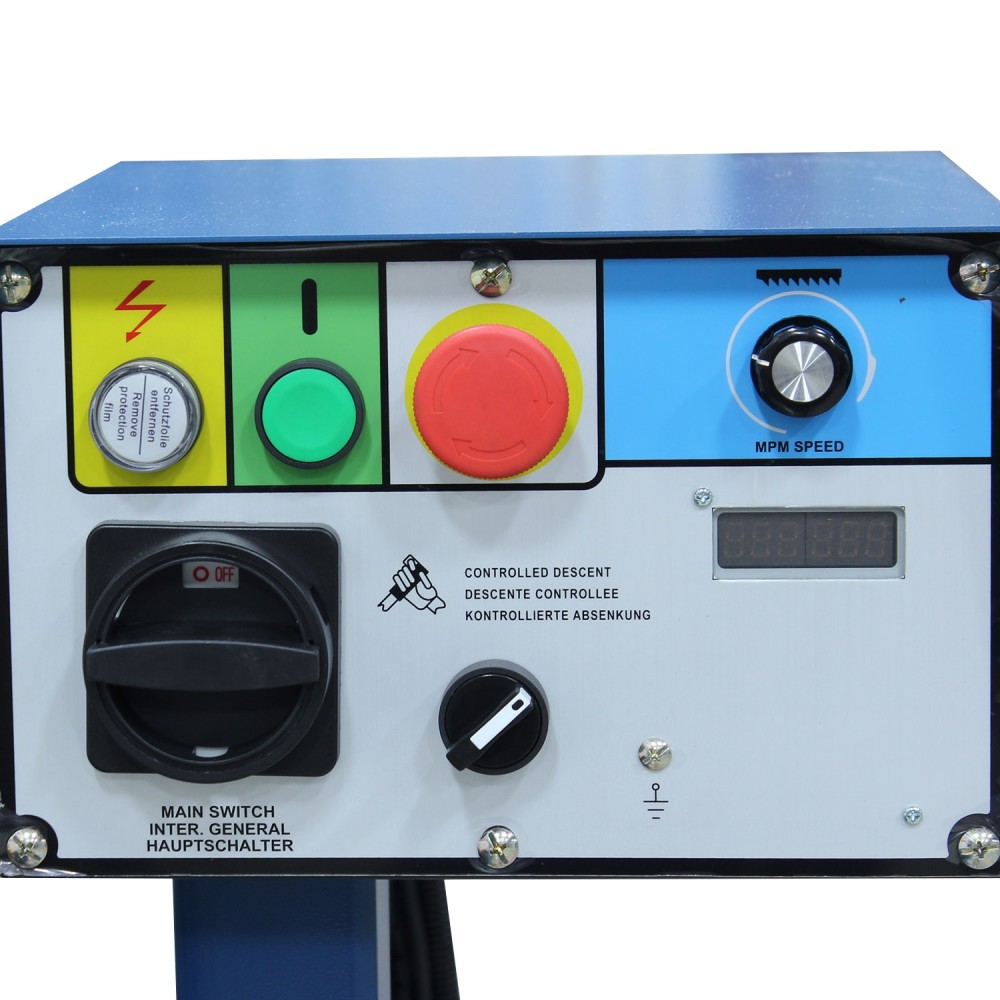

Variable speed control, from 66-280 fpm, lets you select the speed to suit your material and application

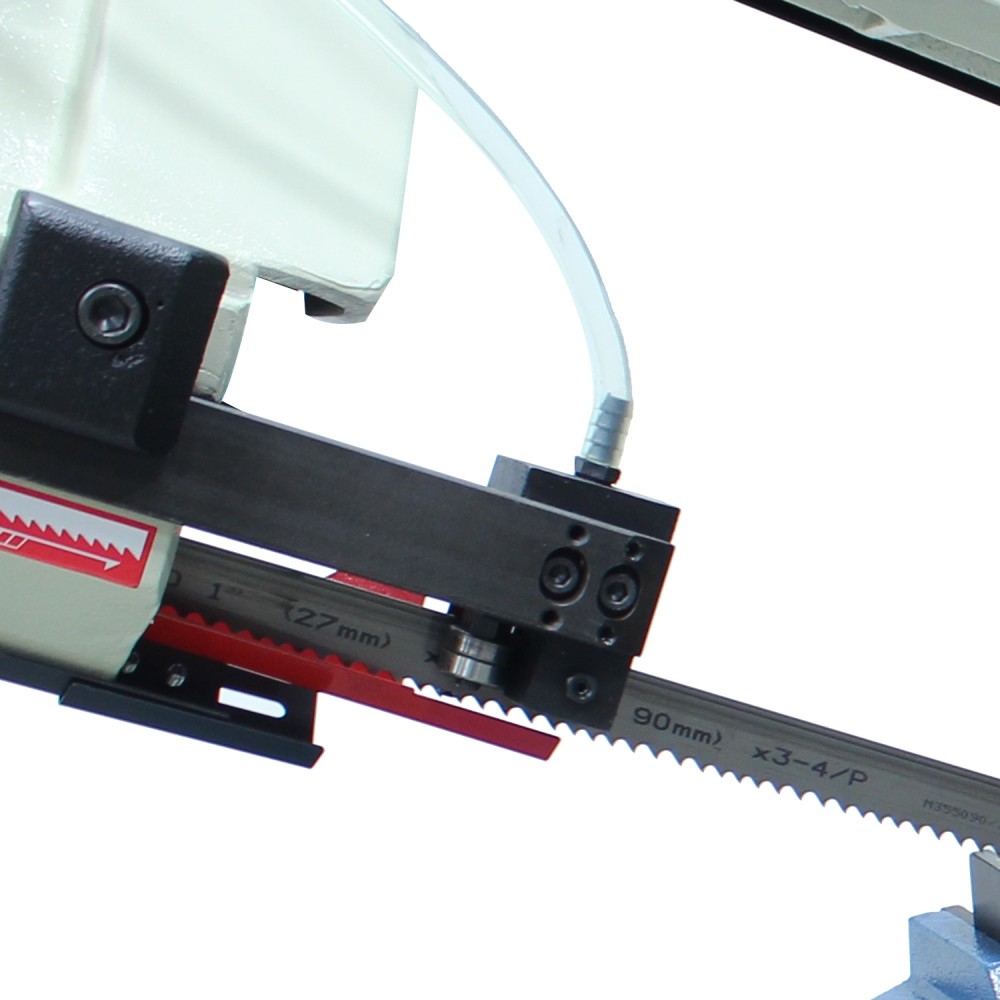

Ball bearing blade guides help you get the blade as close to the material as possible to make accurate cuts, ensuring long blade life

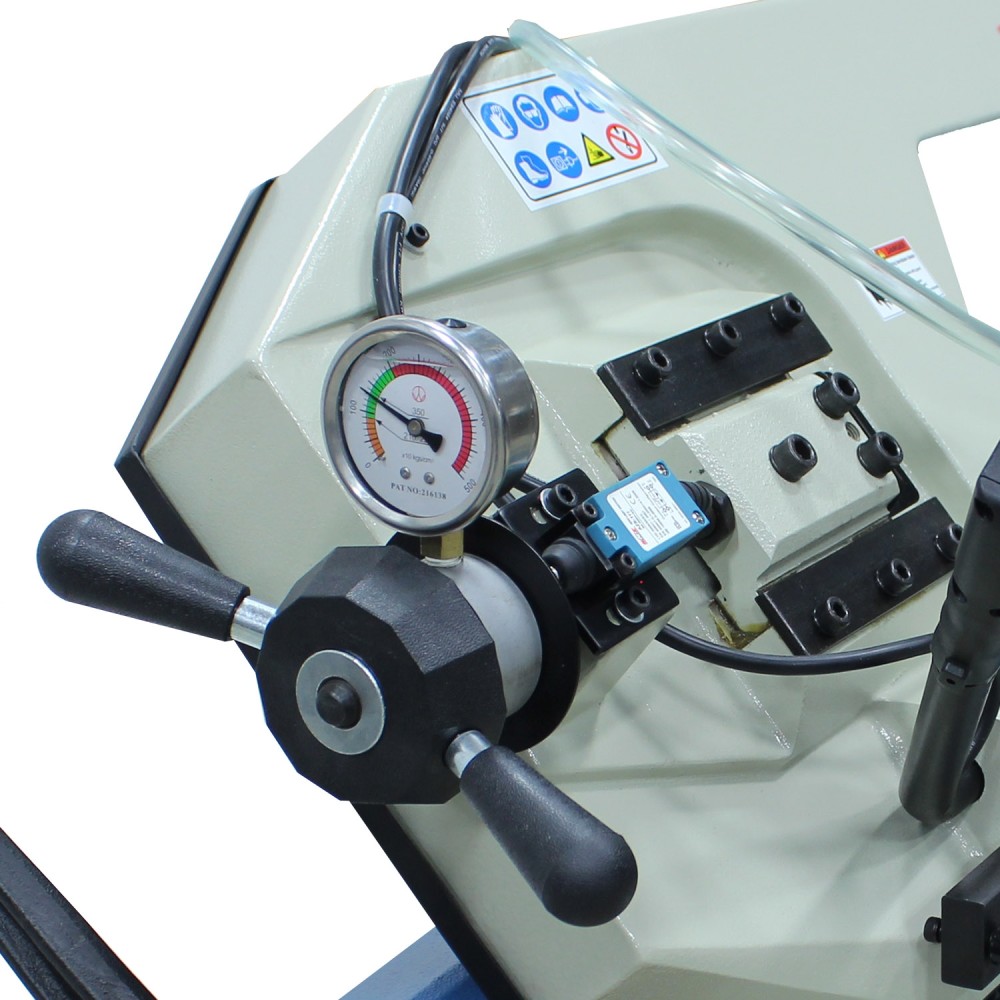

Patented blade tension device, a liquid-filled gauge, makes it easy to check and adjust the tension

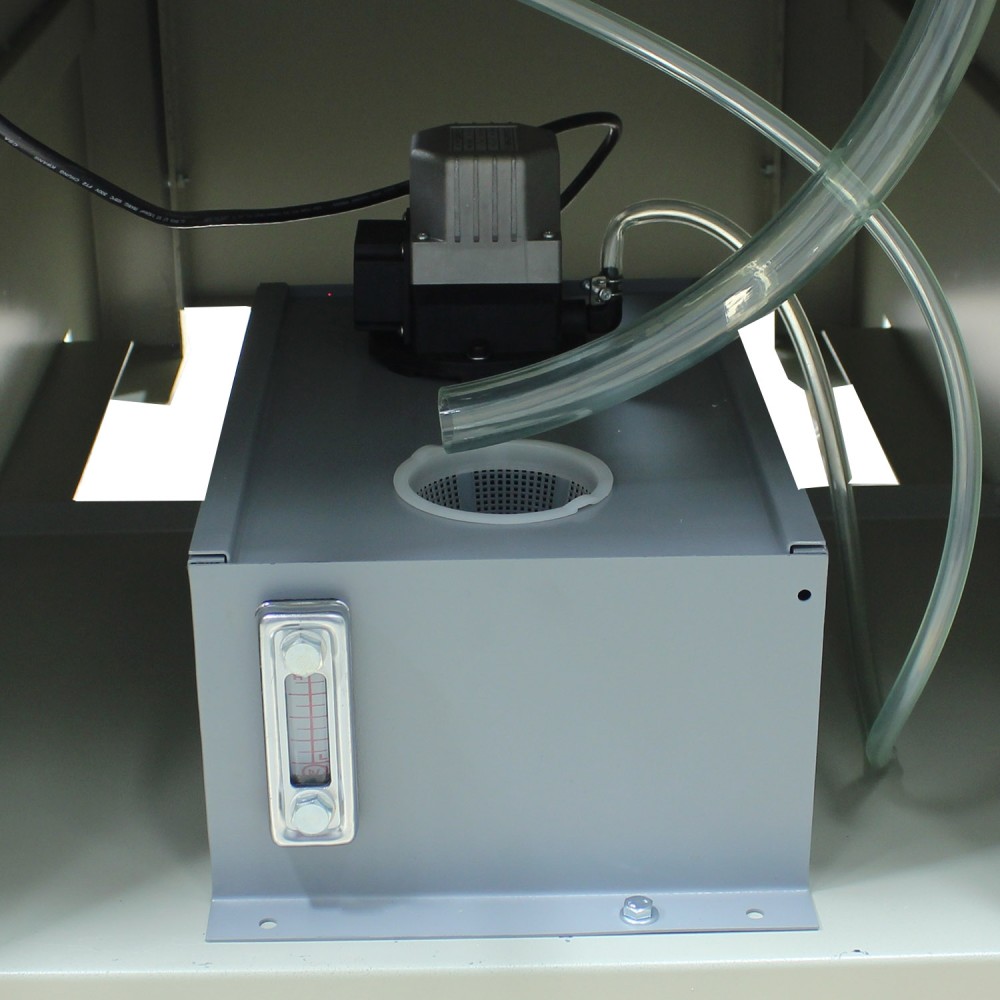

Comes standard with a flood coolant system to wash away metal chips and help blades last longer
Manual descent mode – for small production runs, perfect for small or medium sized fabricators’ needs, turn on the machine via a trigger switch in the descent handle, manually guide the band saw blade through the material

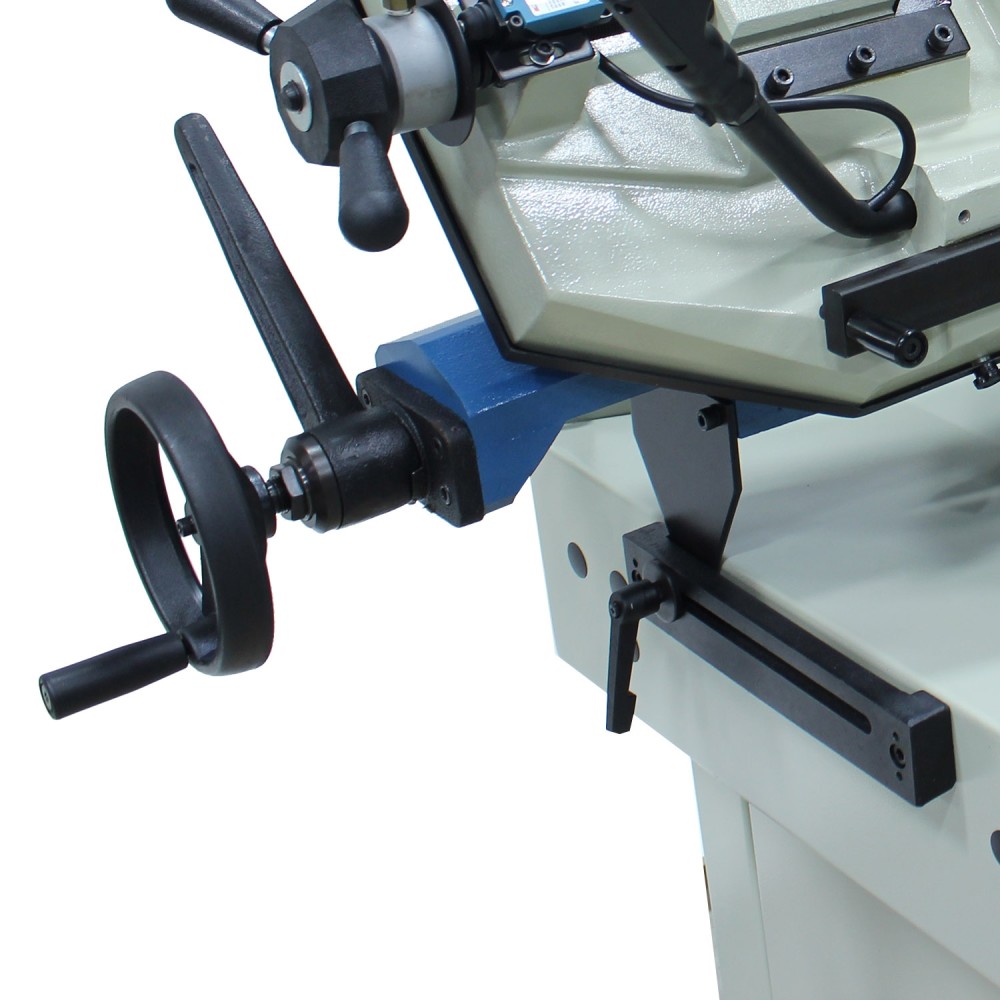

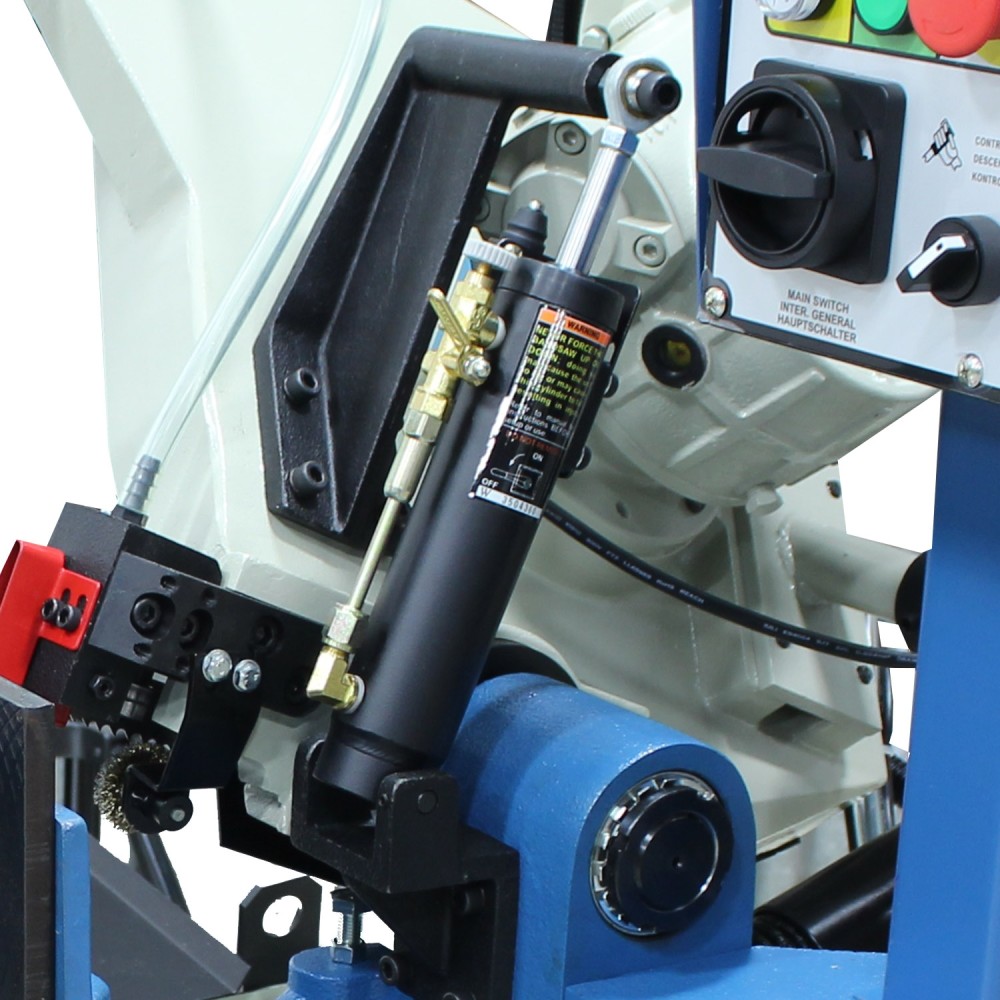

Hydraulic descent mode – for larger production runs, increases blade life and reduces operator fatigue, downfeed adjustment for feed pressure
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1001557
Assembled Weight (lbs)
865
Blade Guide Type
Bearings
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
Rectangular (90 Deg x 45 Deg x 45L Deg): 13.77 In. x 8.66 In. x 9.45 In. x 6.3 In. 7.3 In. x 4.33 In.; Round (90 Deg x 45 Deg x 60 Deg x 45L Deg): 10.63 In. x 9.45 In. x 6.3 In. x 8.28 In.; Square (90 Deg x 45 Deg x 60 Deg x 45L Deg): 10.24 In. x 8.66 In. x 5.9 In. x 7.09 In.
globalTradeItemNumber (GTIN)
00400001004708
Horsepower (hp)
2
Maximum Blade Length (In)
124.5
Maximum Blade Width (In)
1
Maximum Feet Per Minute
280
Minimum Feet Per Minute
66
Package Contents
Band Saw
Package Depth
69
Package Height
49
Package Weight
865
Phase
1
Stand Included
No
Table Height (in)
35
Table Height From Floor (In)
35
UPC
400001004708
Variable Speed
Yes
