Description

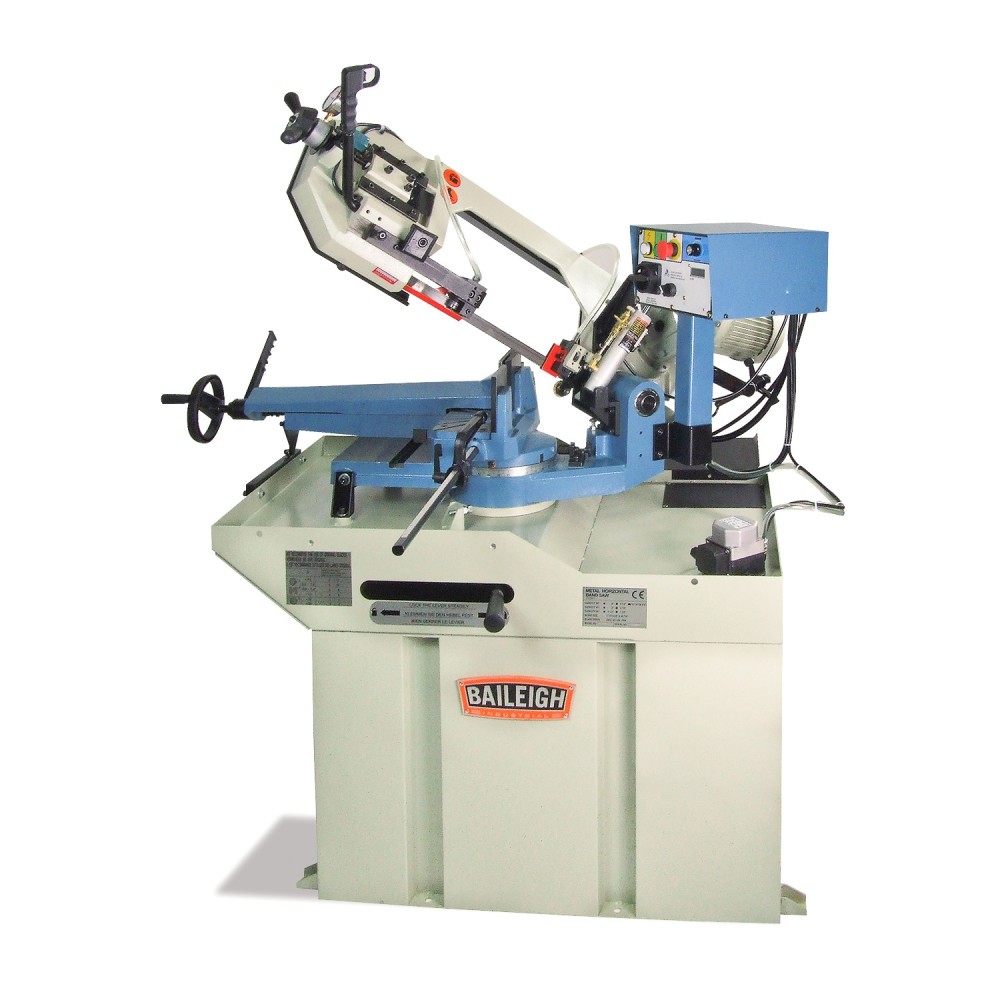

Baileigh BS-260M Band Saw Dual Mitering Gear Driven 220V 1 Phase
The gear-driven BS-260M industrial band saw is one of the most versatile saws on the market. An AC inverter for speed control runs on 220V 1 Phase power. Use it almost anywhere!.
Features

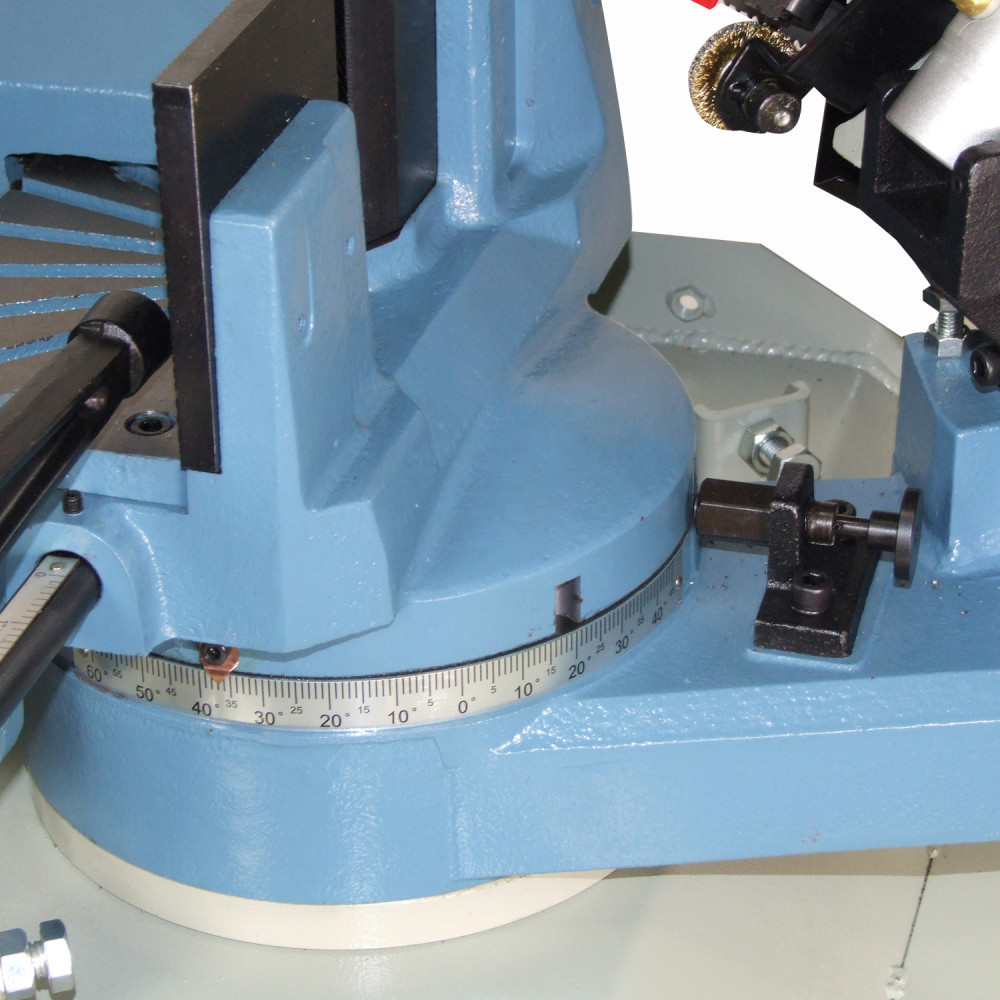

Capacity of 8.91 In. round at 90 Deg, dual-mitering head swivels up to 60 Deg to the right and up to 45 Deg to the left

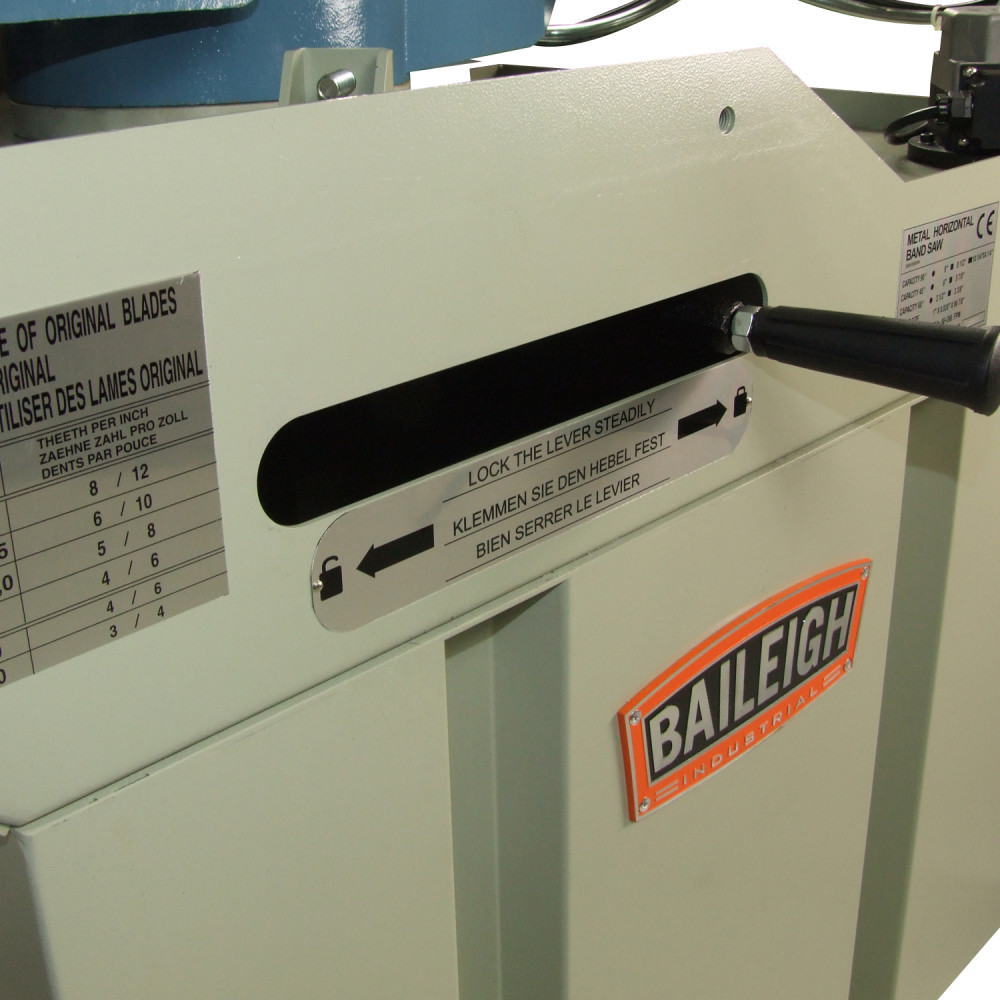

Change the miter angle in seconds with the quick-release head lock, solid cast iron saw bow and pivot ensure the straightest cuts with little to no vibration
Accepts standard 1 In. blades, 8 precision ball bearings keep the blade in line

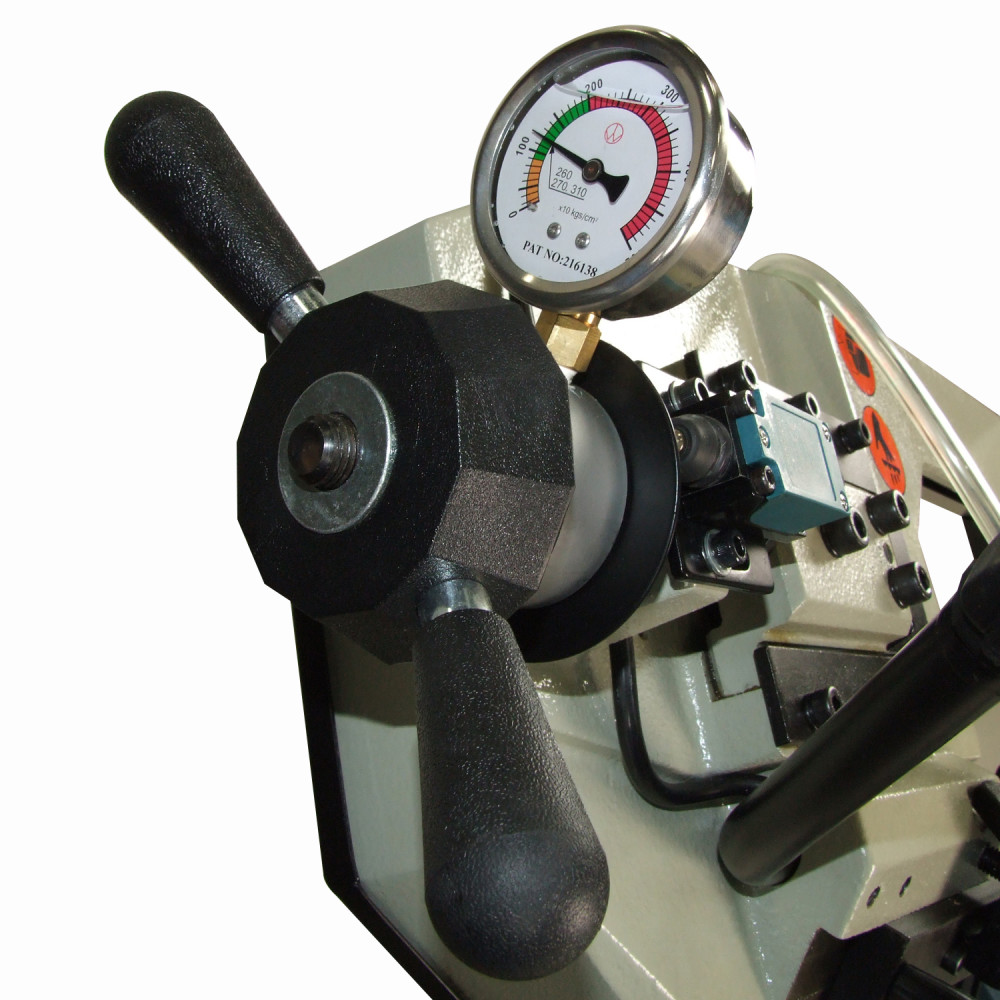

Patented blade tensioning device helps you check the tension and safely shuts down the machine if the blade breaks

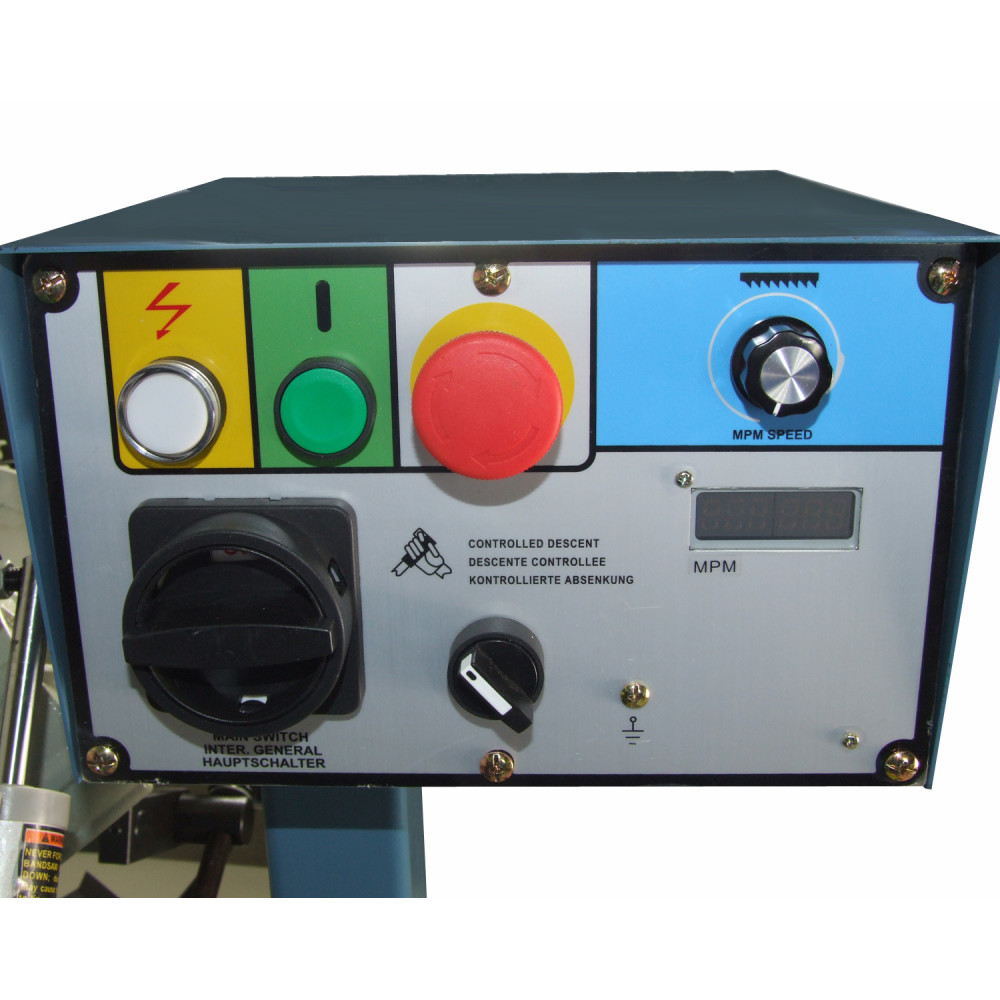

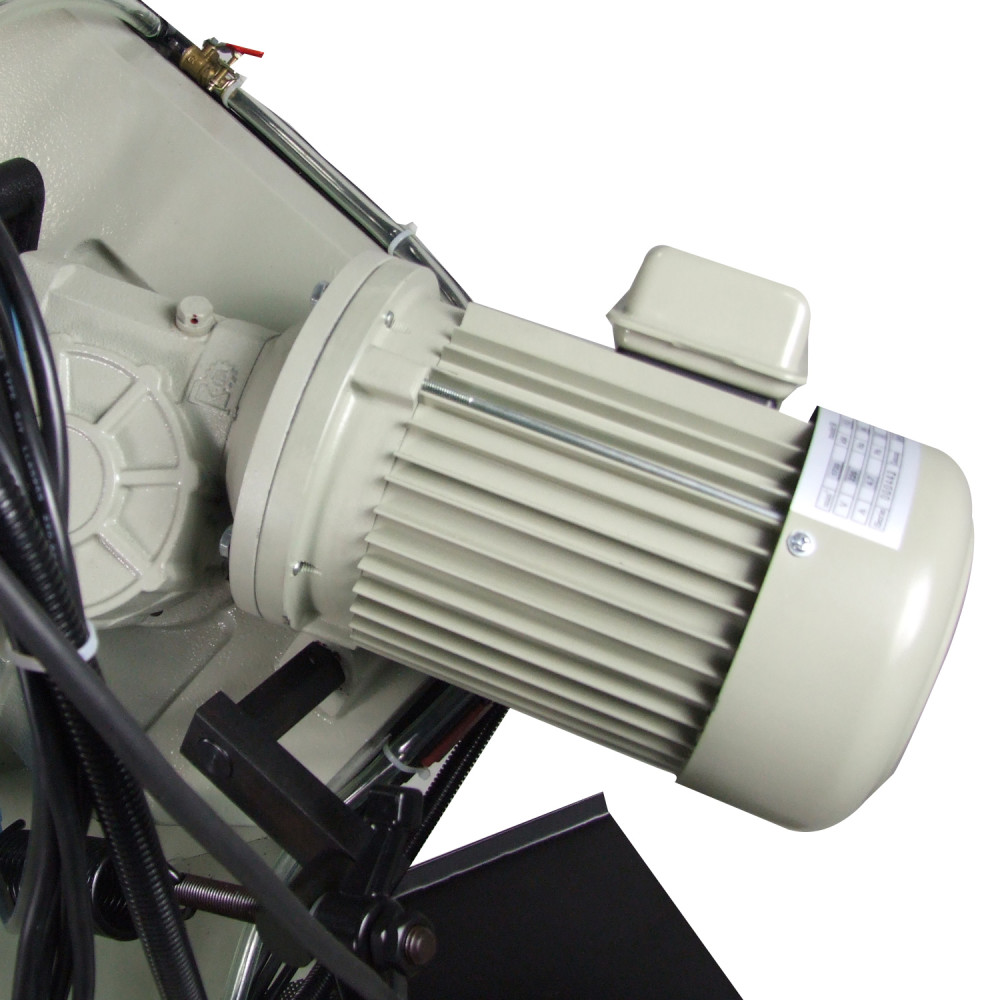

You can adjust the cutting speed from 66-280 Fpm to make high-quality cuts in a specific material, direct-drive gearbox design saves you time in the long run-no pulleys to adjust or belts to break!
Manual descent mode for small production runs – Turn on the machine via the trigger switch, then manually guide the material, perfect for small-to-medium-sized shops

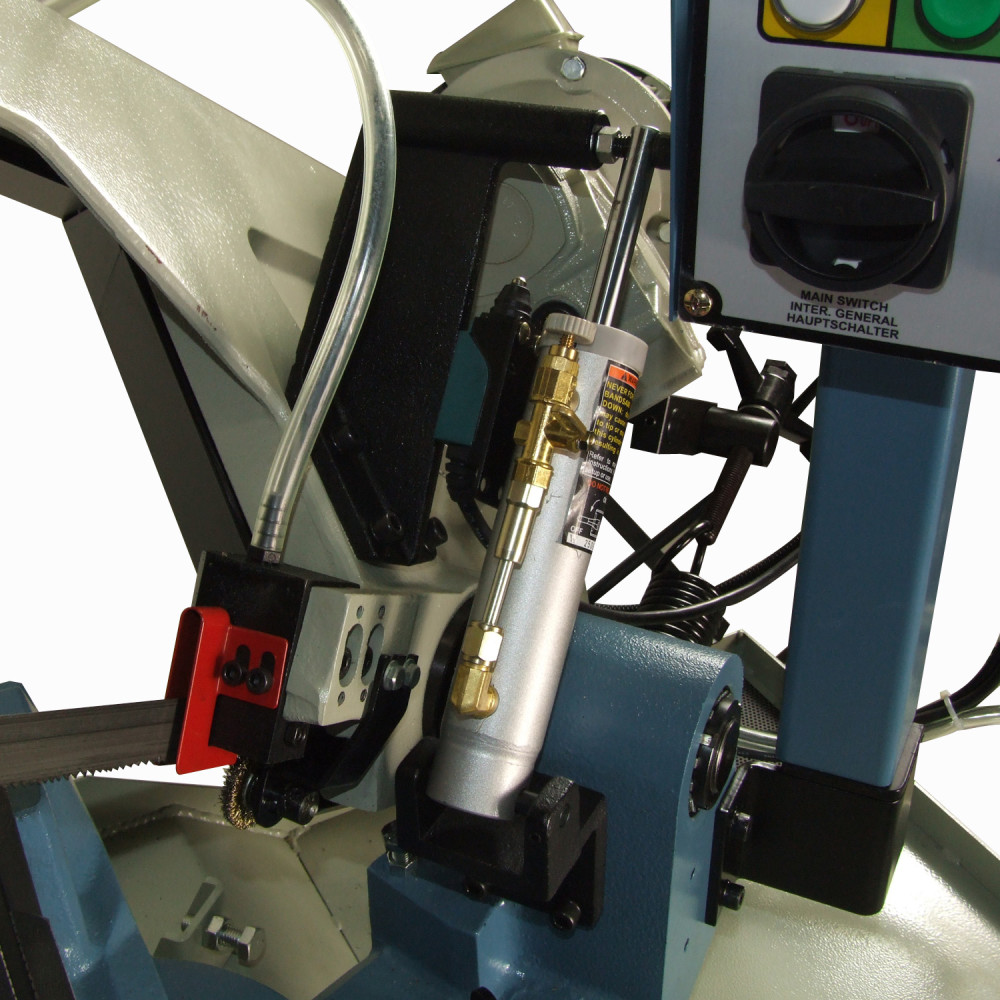

Hydraulic descent for larger production runs – Increases blade life and reduces operator fatigue, the hydraulic descent has a downfeed adjustment for feed pressure
Comes standard with a powerful flood coolant system that washes away metal chips, cools and lubricates the blade, and helps prolong blade life

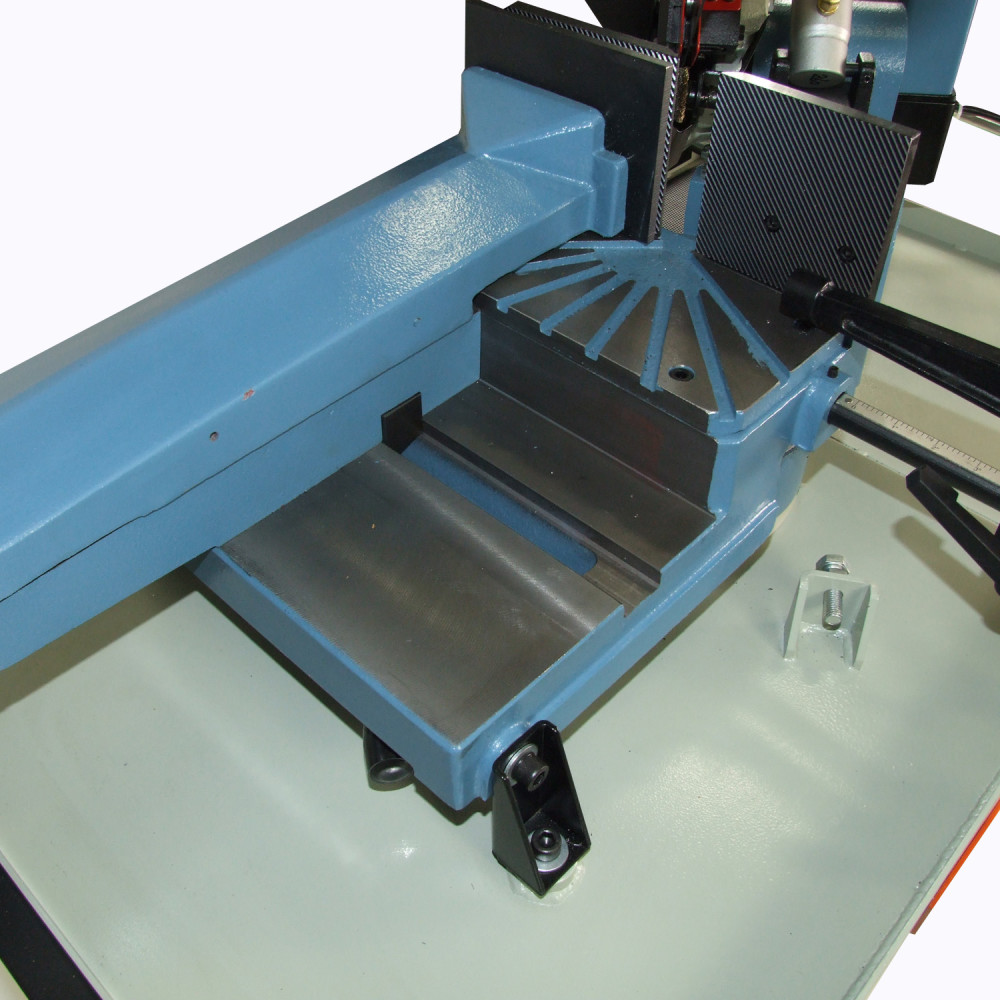

Fully-welded steel base stabilizes the saw, reduces vibrations, and helps to maintain accuracy for decades
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1001432
Assembled Weight (lbs)
745
Band Saw Frame Material
Steel
Blade Guide Type
Bearings
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
Rectangular (90 Deg x 45 Deg x 45L Deg): 10.59 In. x 4.33 In. x 7.87 In. x 4.92 In. 6.3 In. x 4.33 In.; Round (90 Deg x 45 Deg x 60 Deg x 45L Deg): 8.91 In. x 5.9 In. x 3.54 In. x 4.33 In.; Square (90 Deg x 45 Deg x 60 Deg x 45L Deg): 8.66 In. x 5.7 In. x 3.34 In. x 4.33 In.
globalTradeItemNumber (GTIN)
00400001004234
Horsepower (hp)
1.5
Maximum Blade Length (In)
96.85
Maximum Blade Width (In)
1
Maximum Feet Per Minute
280
Minimum Feet Per Minute
66
Package Contents
Band Saw
Package Depth
69
Package Height
45
Package Weight
745
Phase
1
Stand Included
No
Table Height (in)
35
Table Height From Floor (In)
35
UPC
400001004234
Variable Speed
Yes
