Description

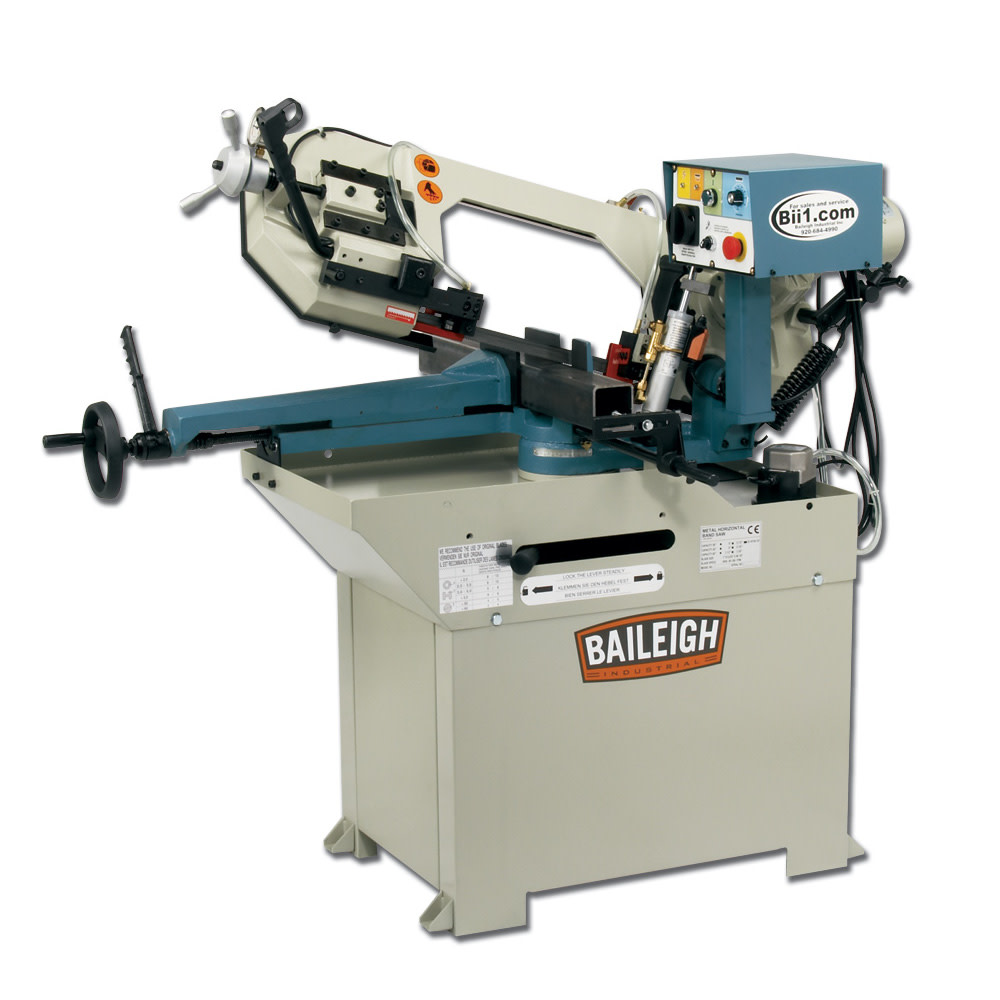

Baileigh BS-250M Horizontal Band Saw Single Mitering 110V 1 Phase
Does your mitering band saw cut a variety of materials and profiles? This single-miter horizontal band saw is a great investment. With a welded steel framework, the metal mitering band saw offers decades of precision.
Features
Runs on 110V 1 Phase power, so you can use it practically anywhere, cuts up to 8.93 In. round metal stock at 90 Deg

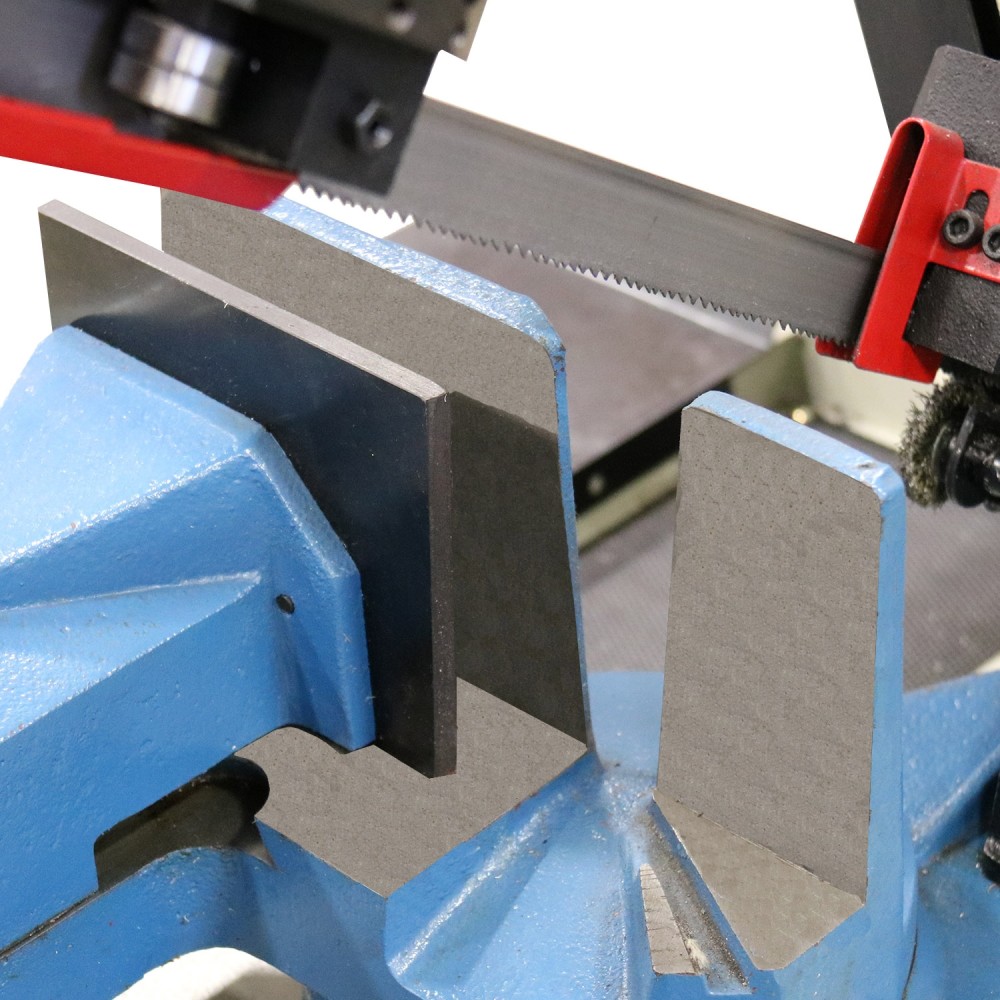

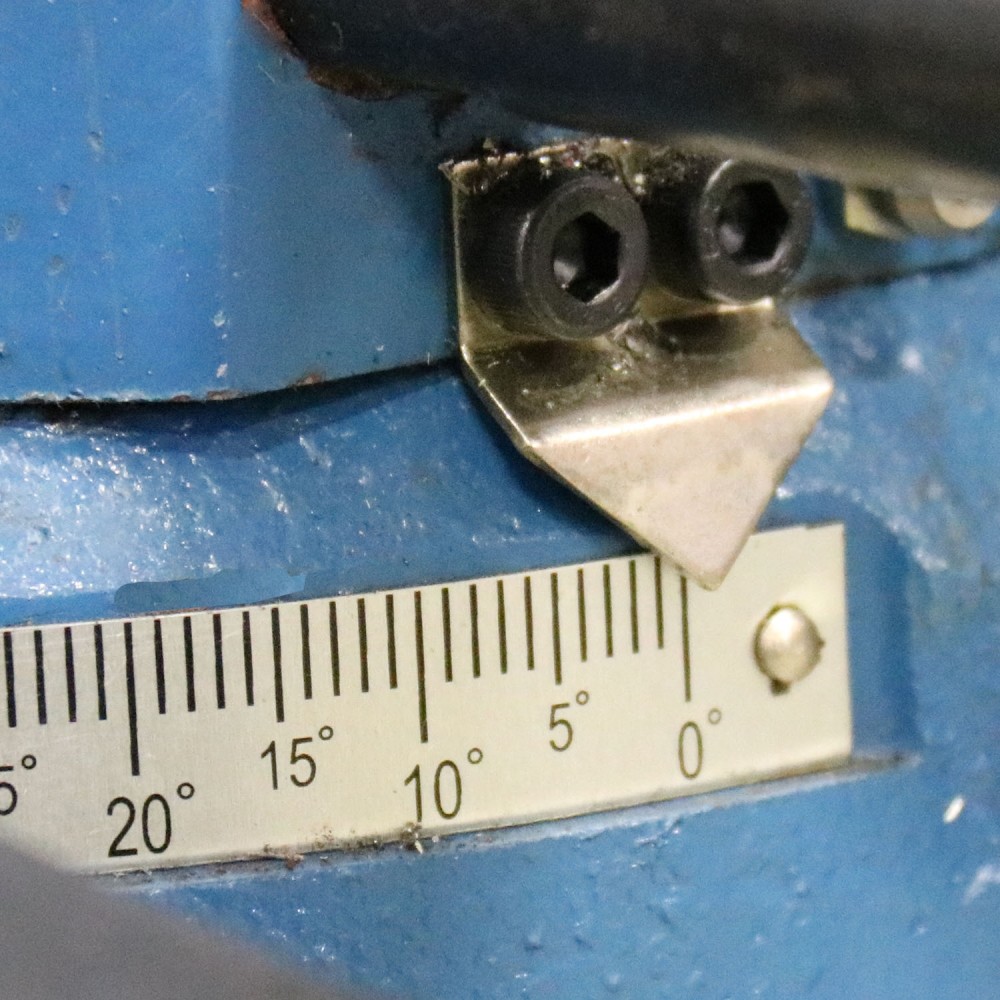

Swivel head miters up to 60 Deg, angle changes takes seconds-and the vise stays in place
Cast iron saw head and bow reduce vibrations and keep the saw accurate, accepts a standard 1 In. blade

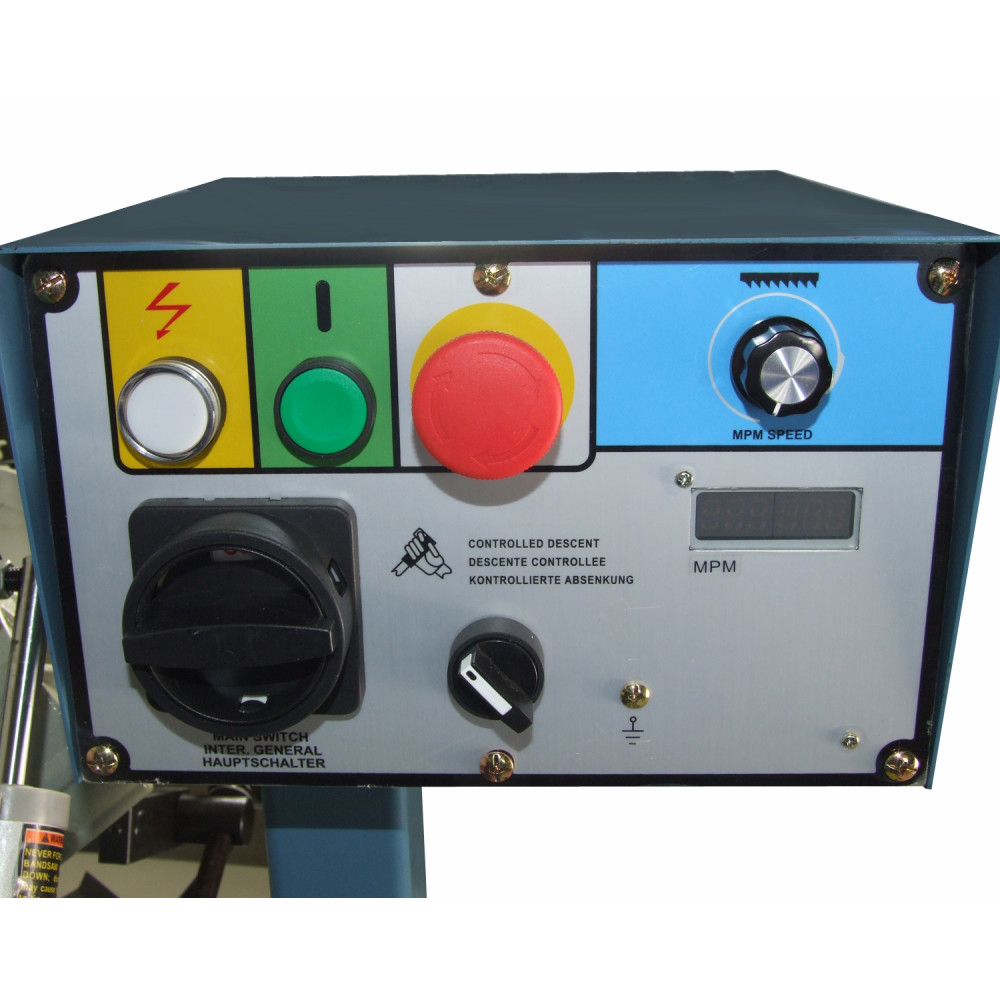

Adjustable speed from 66 to 280 Fpm for the blade and the material, increasing the blade life and decreasing costs
Patented blade tension device (a liquid-filled gauge) makes it easy to check the tension and correct it

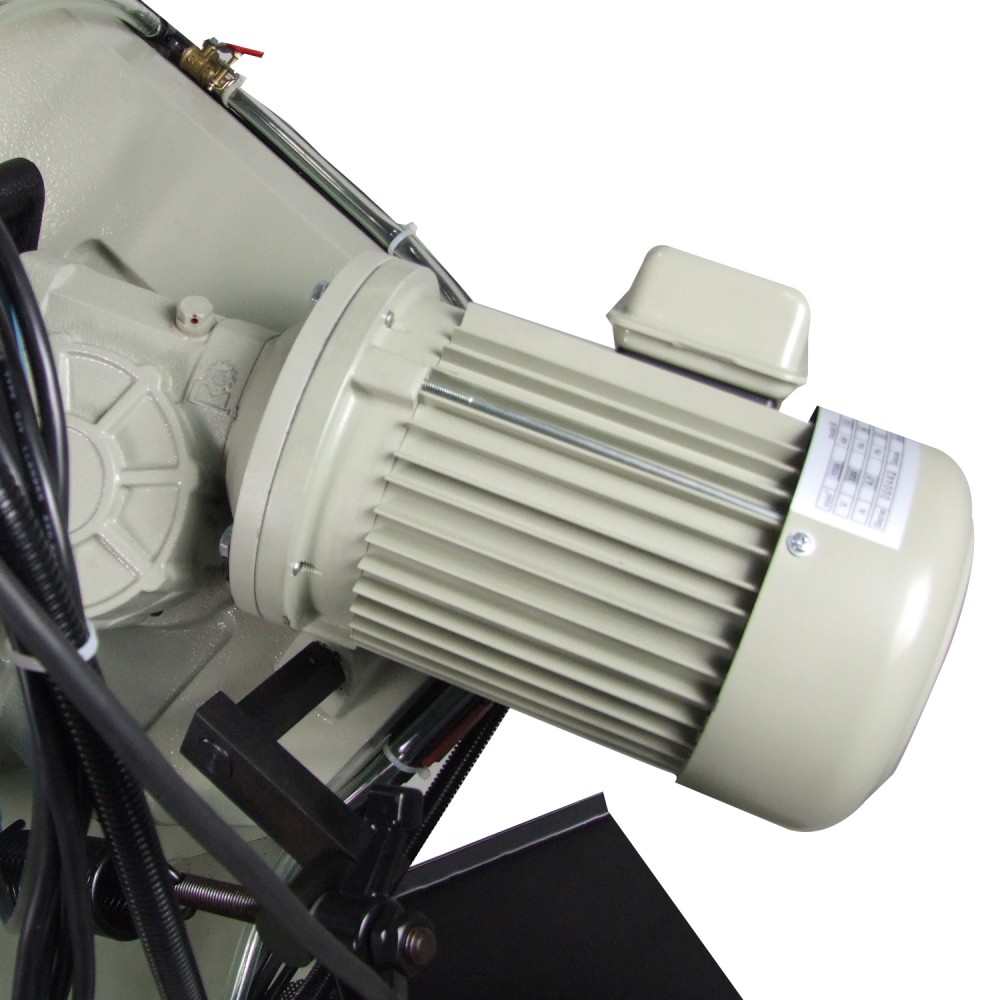

An inverter drives the 2HP motor through a gearbox, so there are no pulleys to adjust or belts to break!
2 ways to operate this metal band saw – Manual descent – Using the pull-down arm and trigger switch to activate the blade and coolant

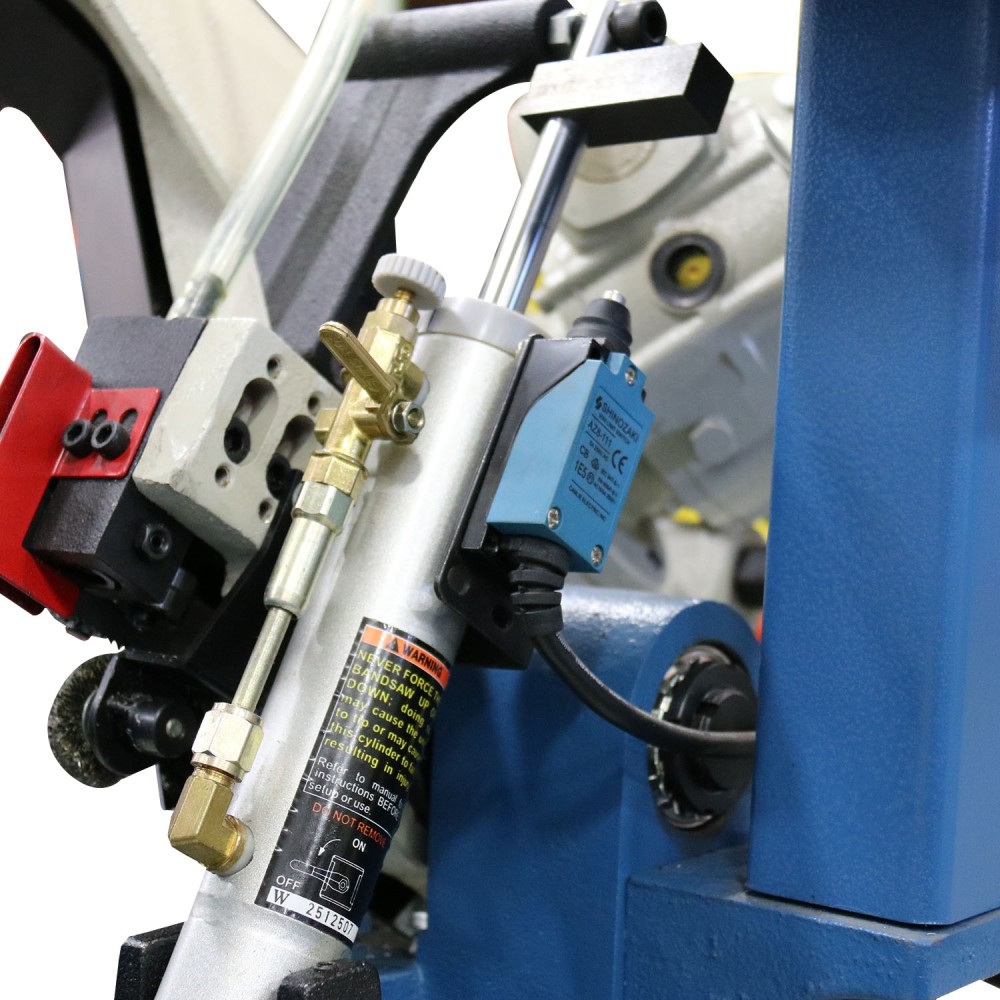

Hydraulic descent – for production runs, you can switch the machine over to cut using the pressure you input, it will automatically shut down the blade and coolant system when the cut is completed

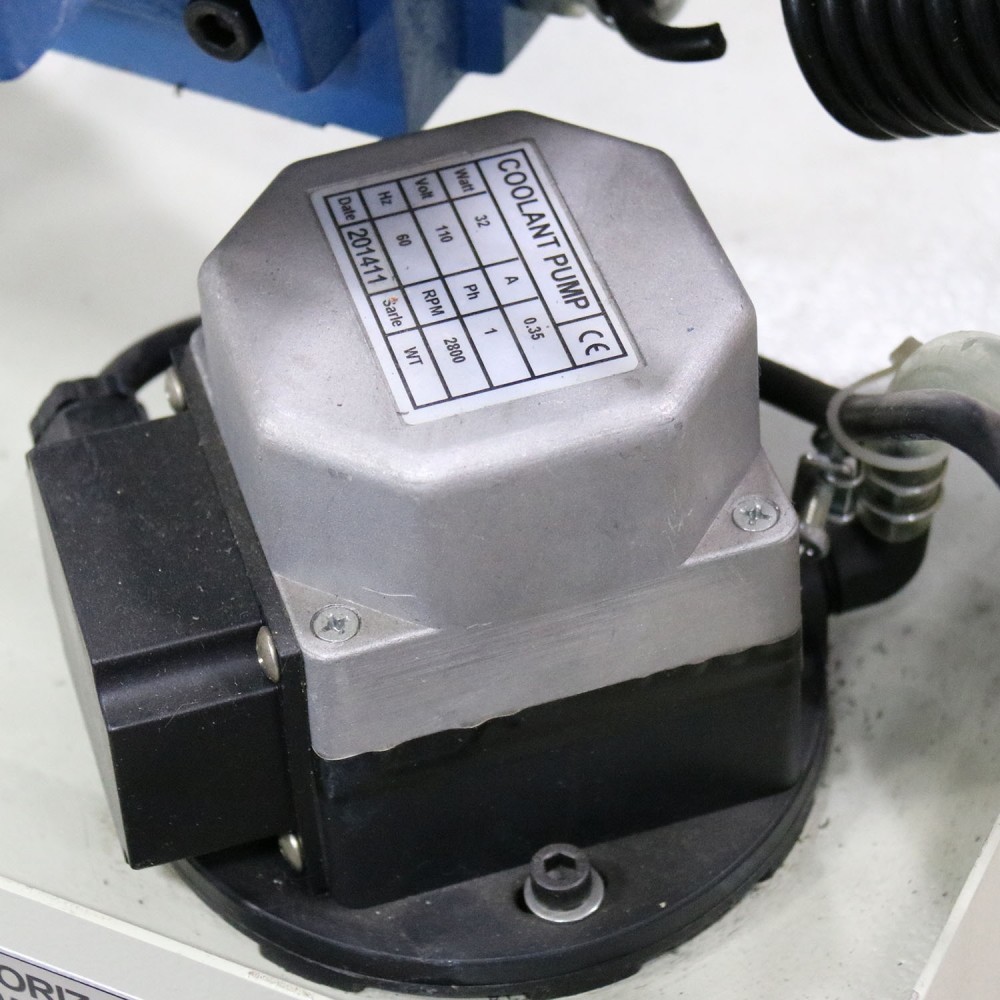

Includes a powerful coolant pump that washes away metal chips, cools the blade teeth, and lubricates the blade, helping it last longer
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1001396
Assembled Weight (lbs)
650
Band Saw Frame Material
Steel

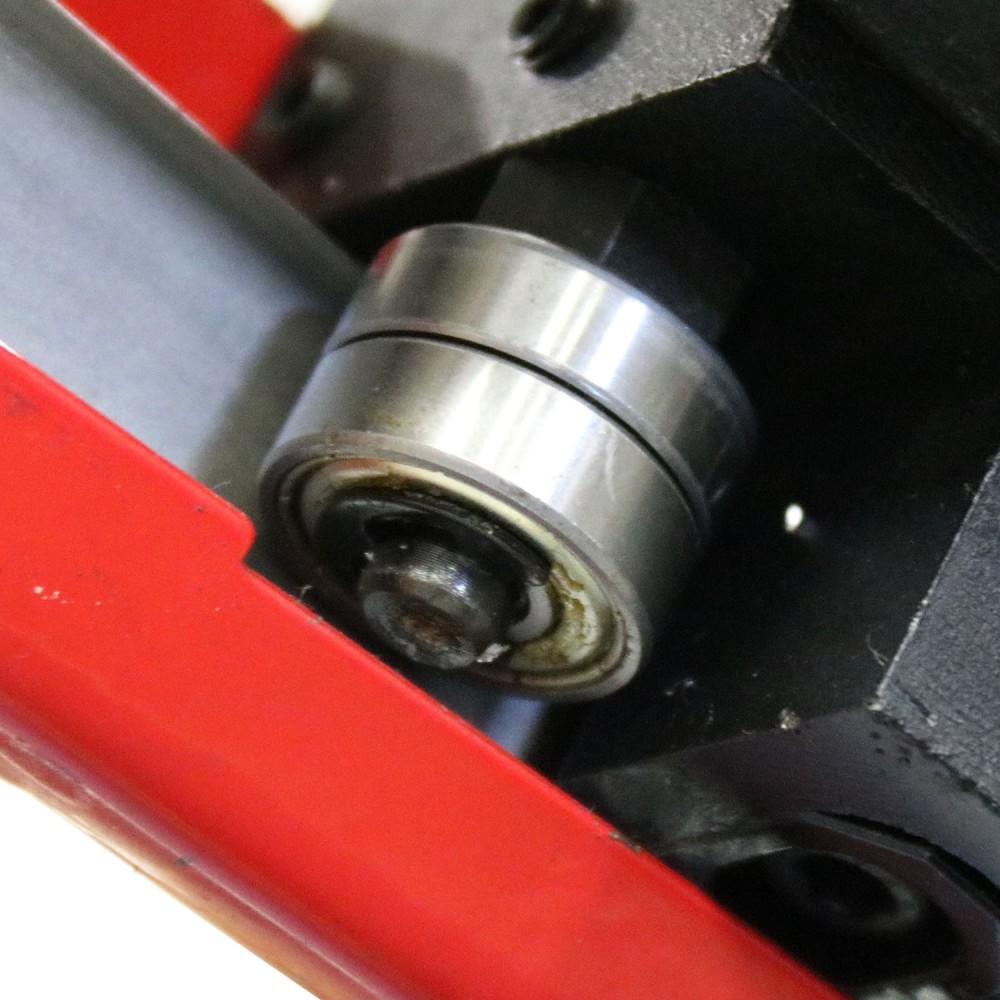

Blade Guide Type
Bearings
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
Rectangular (90 Deg x 45 Deg): 10.23 In. x 4.33 In.; Round (90 Deg x 45 Deg x 60 Deg): 8.93 In. x 5.9 In. x 3.54 In.; Square (90 Deg x 45 Deg x 60 Deg): 8.66 In. x 5.7 In. x 3.34 In.
globalTradeItemNumber (GTIN)
00400001004227
Horsepower (hp)
2
Maximum Blade Length (In)
96.85
Maximum Blade Width (In)
1
Maximum Feet Per Minute
280
Minimum Feet Per Minute
66
Package Contents
Band Saw, Accessories
Package Depth
69
Package Height
42
Package Weight
650
Phase
1
Stand Included
No
Table Height (in)
35
Table Height From Floor (In)
35
UPC
400001004227
Variable Speed
Yes
