Description

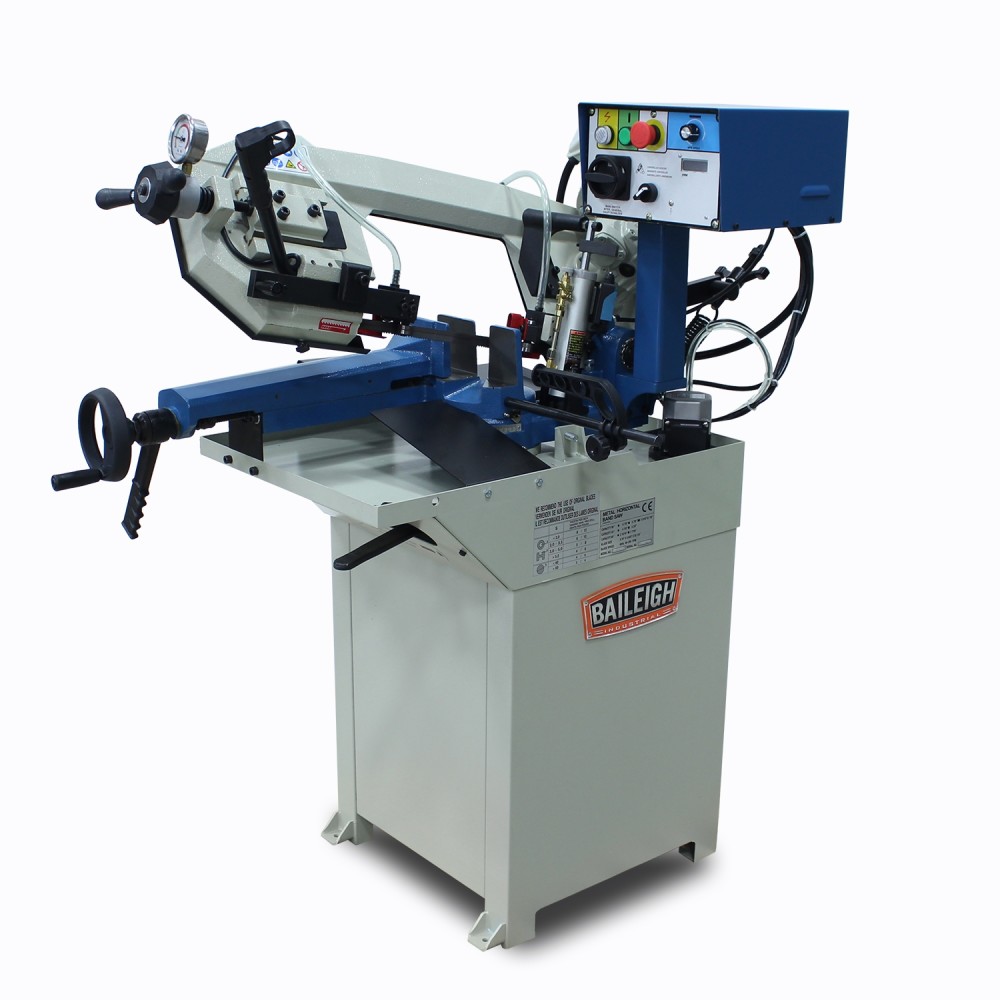

Baileigh BS-210M Horizontal Band Saw Hydraulic and Manual 110V
You can control the descent of the BS-210M horizontal band saw in 2 ways – manually (with a trigger switch) or with a hydraulic descent features-usually seen only on more expensive models. Order this industrial horizontal band saw today!.
Features
With a good mix of features at an economical price, this horizontal metal bandsaw is ideal for small-to-medium machine shops or even garage or home shops
1HP motor requires only 110V to run, so you can use it anywhere, 6.875 In. round maximum capacity at 90 Deg

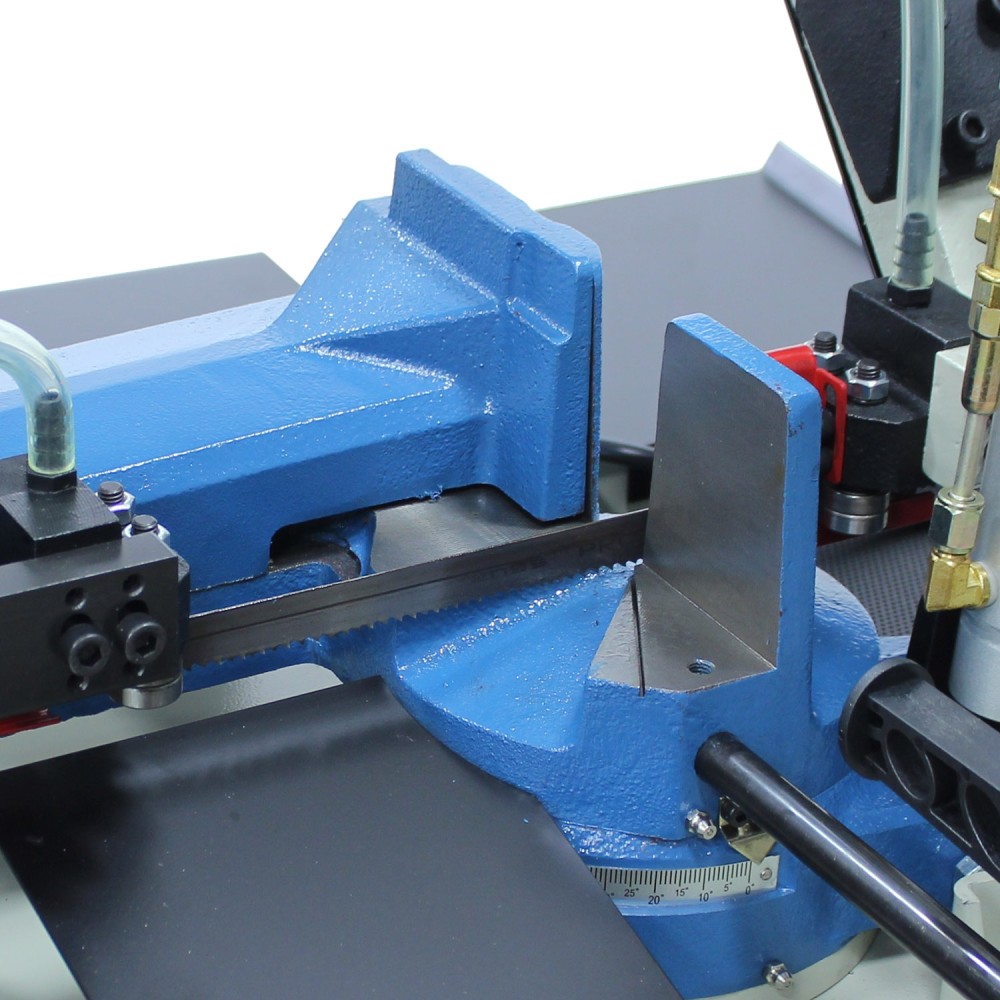

Swivel head miters up to 60 Deg and doesn’t compromise the holding power of the vise
Cast iron saw head and bow reduce vibrations and help to produce clean, accurate cuts, accepts standard 0.75 In. blades

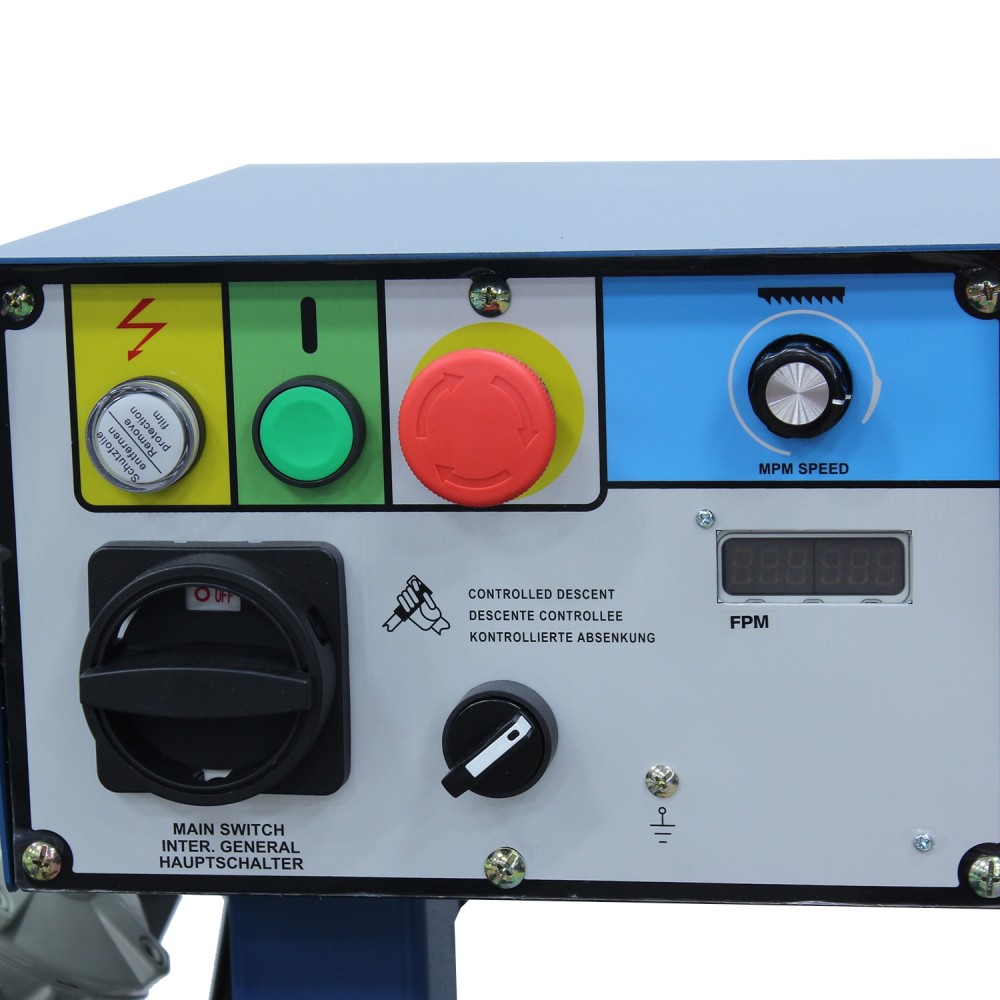

You can adjust the infinitely variable blade speed from 66-280 Fpm, controlled by an inverter, to produce quality cuts and prolong blade life

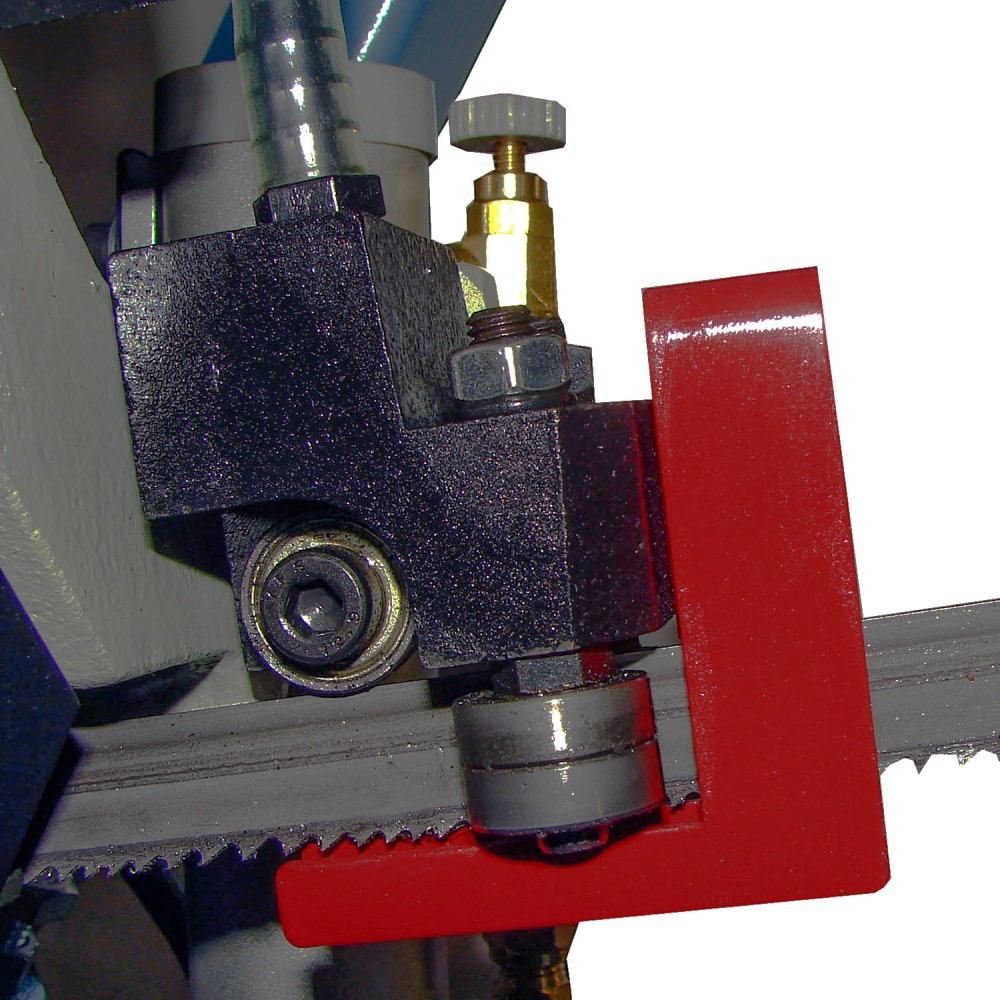

Adjustable blade guides, attached to sealed ball bearings, get as close to the material as possible to keep alignment straight and prolong blade life

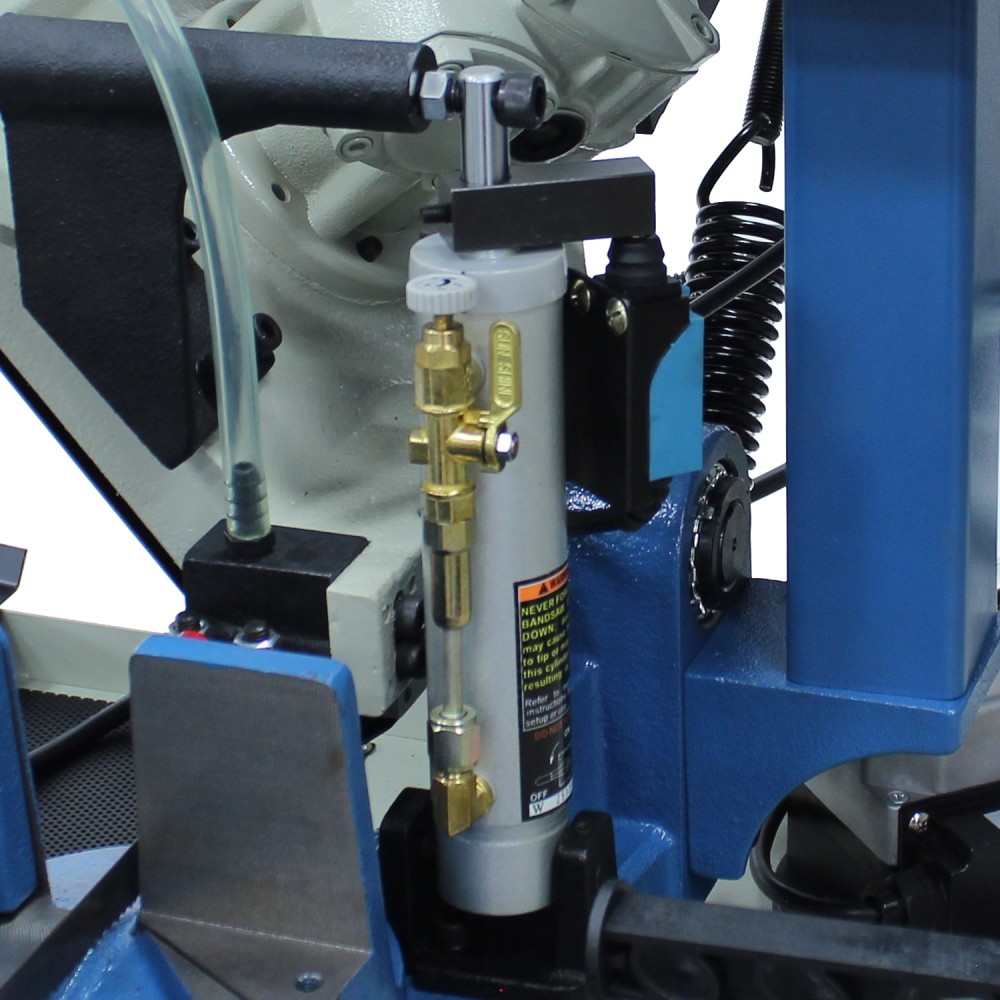

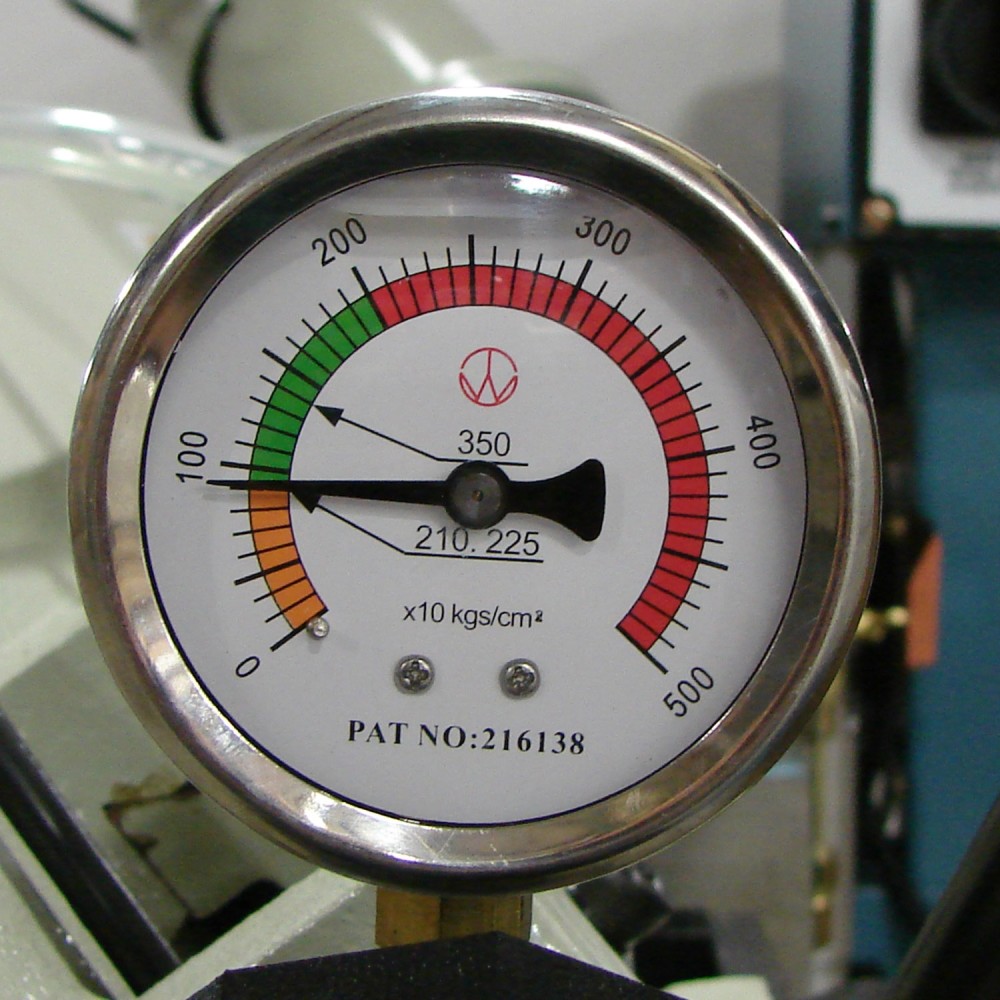

Control the hydraulic descent pressure and choose the right speed to make a perfect cut for a given application
No need to monitor the machine! You can walk away, the blade will automatically stop once it’s done cutting the metal
Fully-welded steel plate frame stabilizes the machine and gives it the structural strength to cut at maximum capacity without straining
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1001309
Assembled Weight (lbs)
545
Band Saw Frame Material
Steel
Blade Guide Type
Bearings
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
Rectangular (90 Deg x 45 Deg): 8.26 In. x 6.69 In.; Round (90 Deg x 45 Deg x 60 Deg): 6.875 In. x 4.72 In. x 2.75 In.; Square (90 Deg x 45 Deg x 60 Deg): 6.875 In. x 4.33 In. x 2.36 In.
globalTradeItemNumber (GTIN)
00400001004616
Horsepower (hp)
1
Maximum Blade Length (In)
83
Maximum Blade Width (In)
0.75
Maximum Feet Per Minute
280
Minimum Feet Per Minute
66
Package Contents
Band Saw, Accessories
Package Depth
60
Package Height
40
Package Weight
545
Stand Included
No
Table Height (in)
35
Table Height From Floor (In)
35
UPC
400001004616
Variable Speed
Yes
