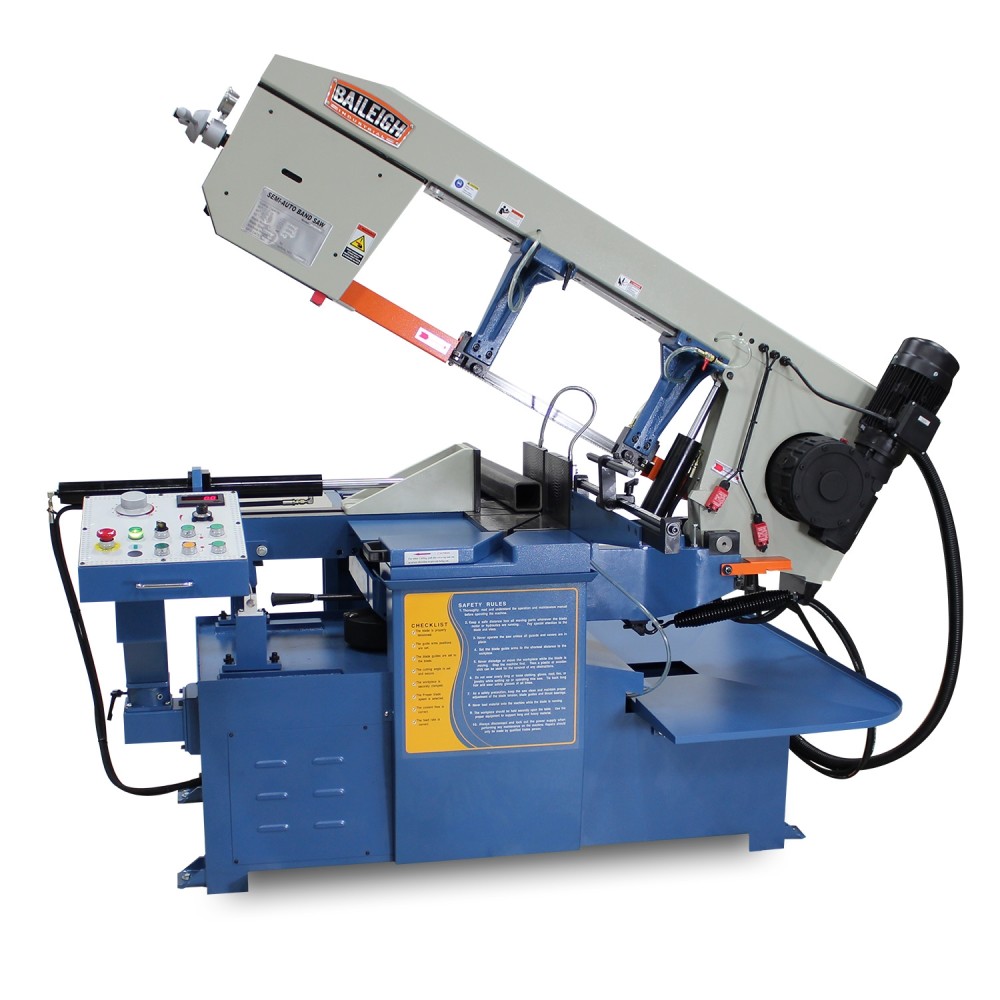

Baileigh BS-20SA-DM Band Saw Semi-Auto Dual Mitering 220V 3 Phase
We built this semi-automatic dual miter band saw with a cast iron bow and steel frame to offer decades of reliable quality. Its hydraulic system will speed up production and save you effort.
Features
Maximum capacity of 13 In. OD round at 90 Deg, accepts a 1.25 In. blade (included), the large size makes faster and more accurate cuts
Dual-mitering band saw can move 45 Deg left and 60 Deg right, just push or pull the head to the right angle

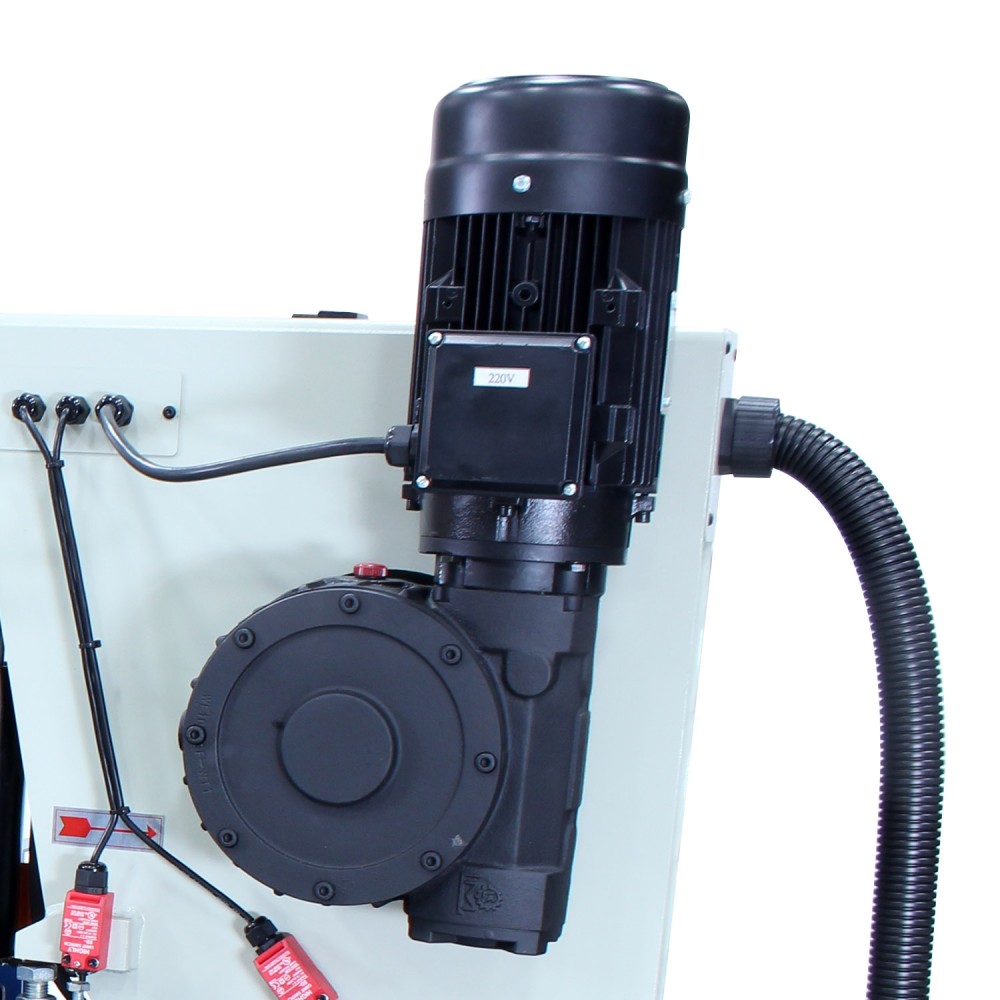

Inverter drive allows for infinite blade speed adjustments from 69-306 Fpm, you can fine-tune the speed for materials like mild steel, bronze, or aluminum

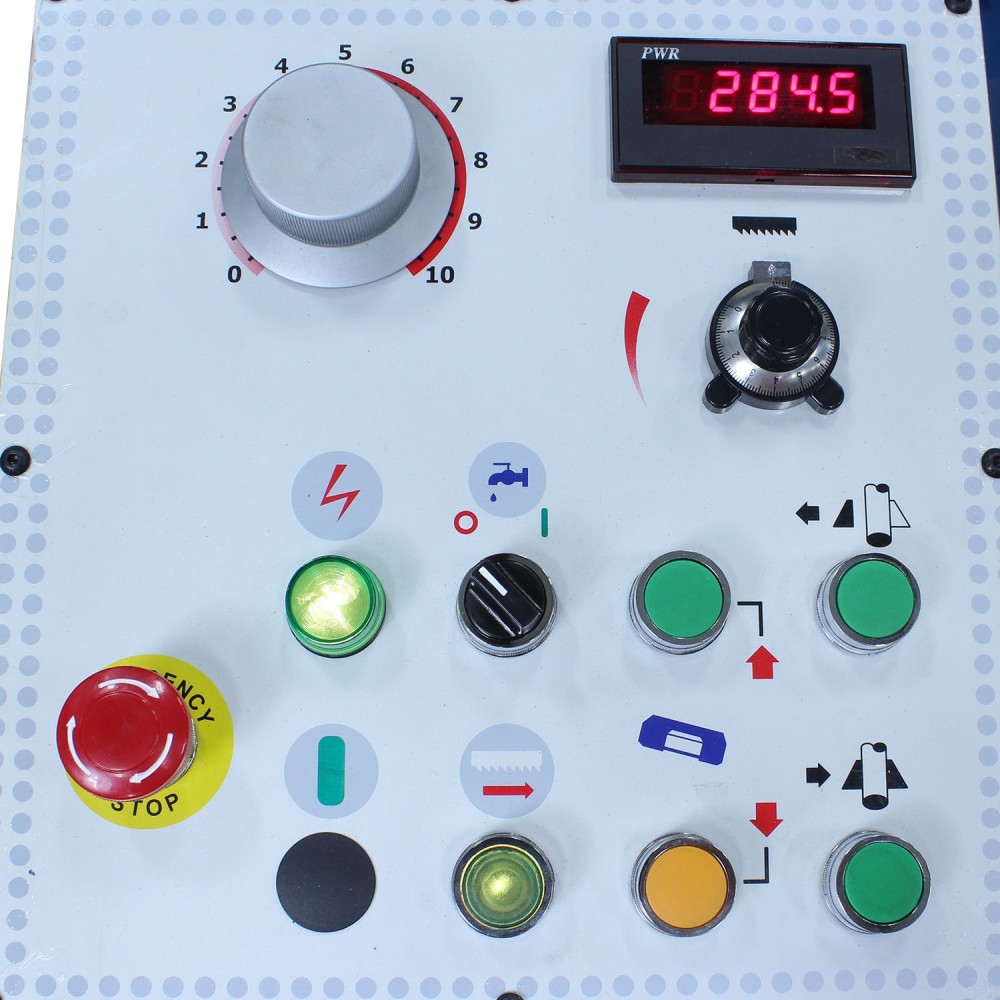

Digital readout (DRO) allows you to reproduce settings with ease, cast iron bow resists vibrations and helps to ensure a high-quality cut

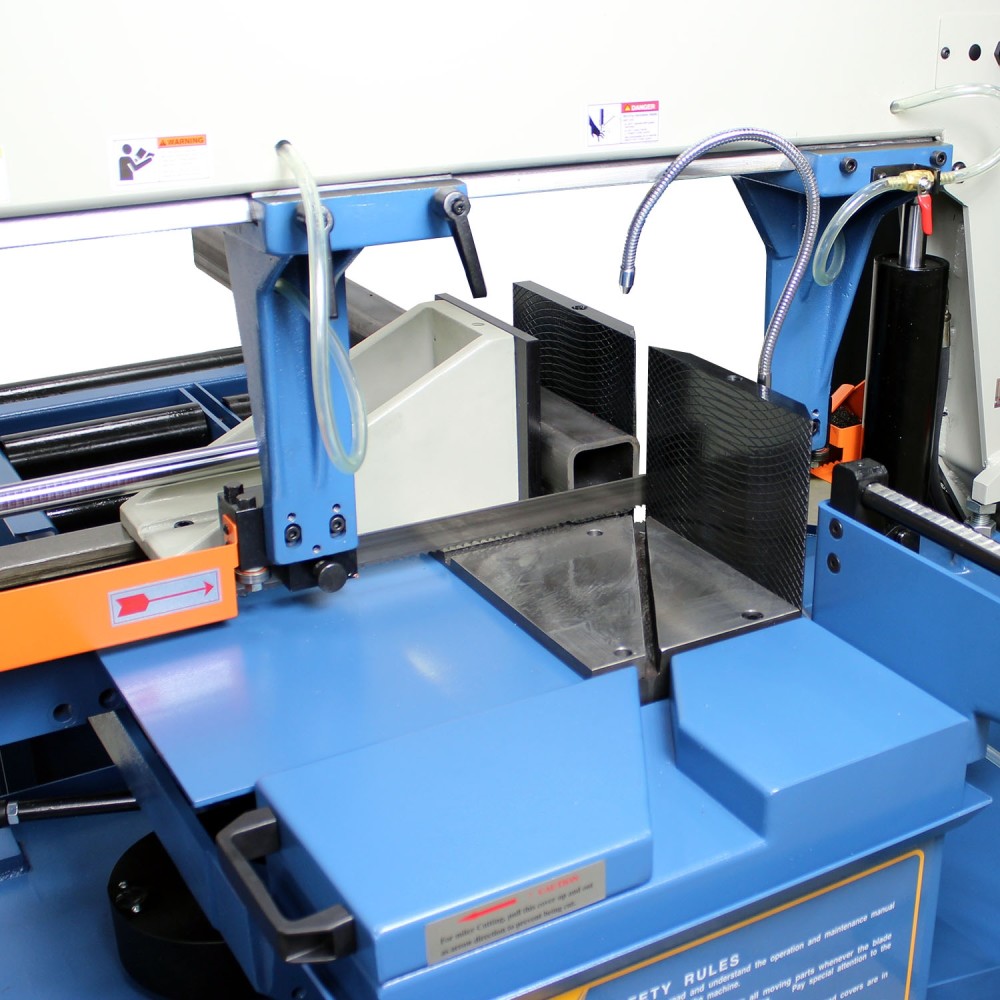

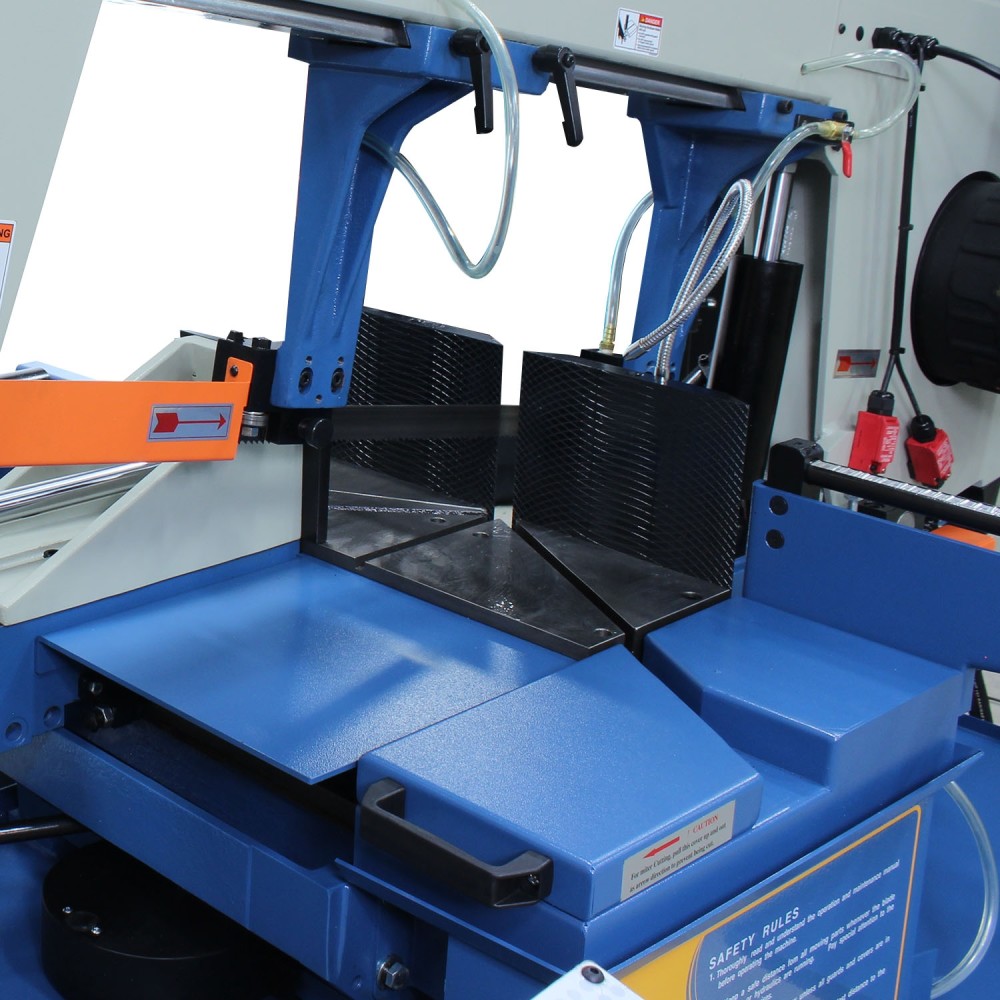

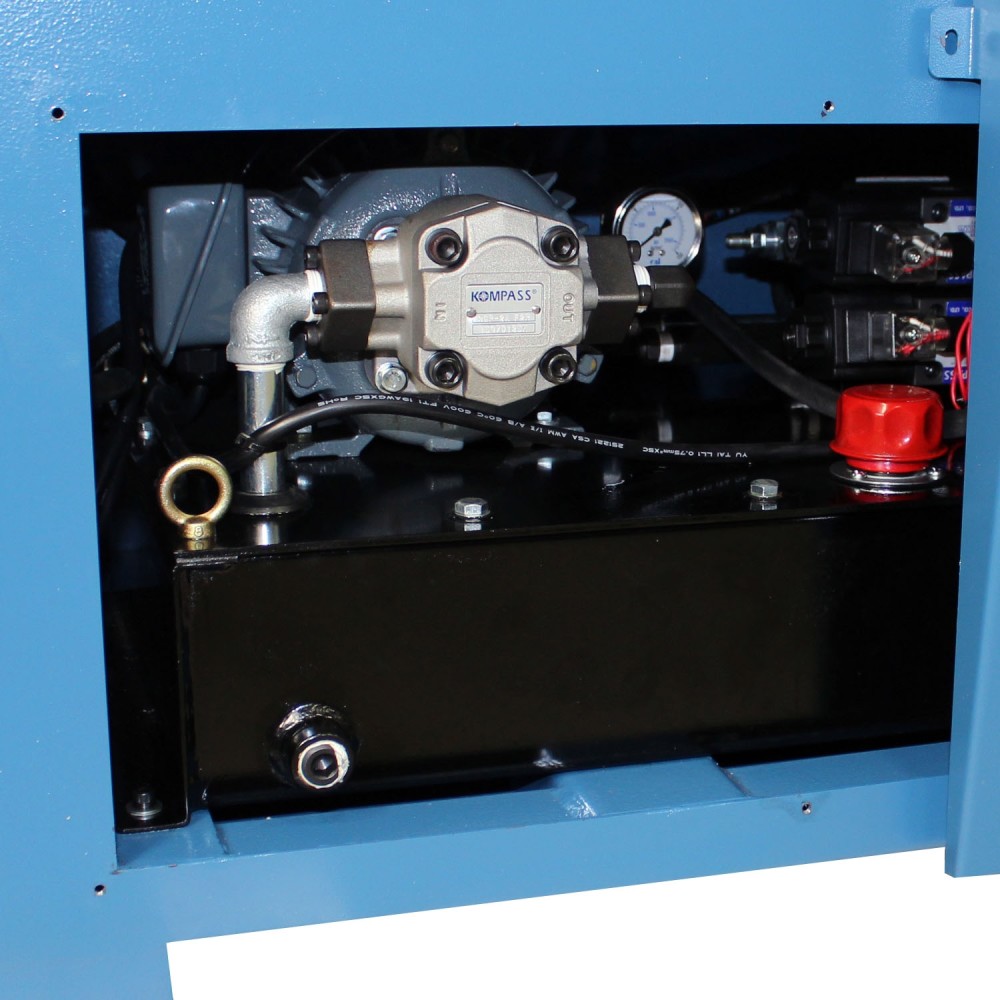

Hydraulic vise, downfeed, and bow return make production runs more efficient, set down the material, press start, and the saw will automatically handle the rest

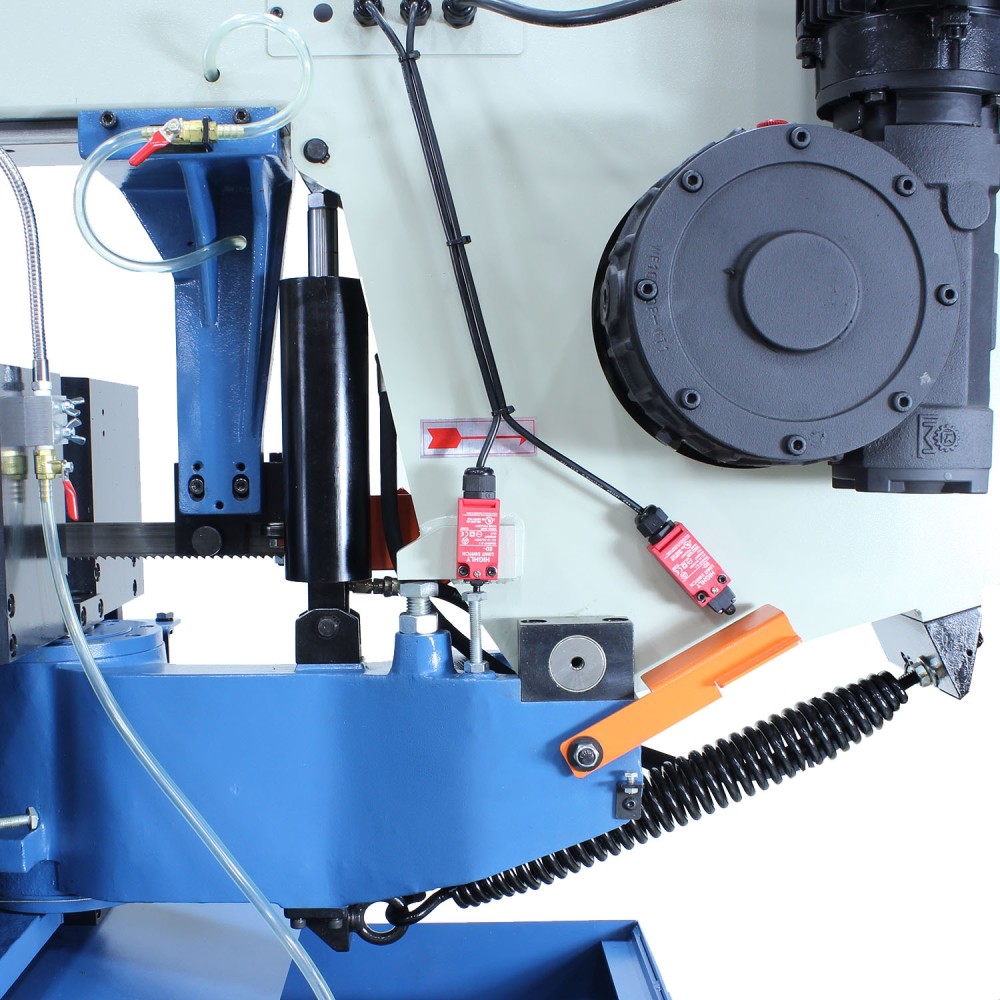

You can adjust the hydraulic descent pressure (depending on the material) to achieve faster cut times and longer blade life
Cutting head return position can be altered for faster cycle times between cuts on smaller pieces
Comes with heavy-duty infeed and outfeed tables for easier material handling
Our patented blade tension device lets you easily set the right tension, adjust until the black arrow lines up with the green liquid-filled gauge
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1001298
Assembled Weight (lbs)
2370
Band Saw Frame Material
Steel
Blade Guide Type
Bearings
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
Rectangular (90 Deg): 13 In. x 18 In./13 In. x 10.6 In./12.4 In. x 7.7 In.; Round (90 Deg x 45 Deg x 60 Deg): 13 In. x 12 In. x 8.5 In.; Square (90 Deg x 45 Deg x 60 Deg): 13 In. x 12 In. x 8.5 In.
globalTradeItemNumber (GTIN)
00400001004319
Horsepower (hp)
3
Maximum Blade Length (In)
162.6
Maximum Blade Width (In)
1.25
Maximum Feet Per Minute
306
Minimum Feet Per Minute
60
Package Contents
Band Saw, 1.25 In. Blade, Heavy-Duty Infeed and Outfeed Table
Package Depth
90
Package Height
66
Package Weight
2370
Phase
3
Stand Included
No
UPC
400001004319
Variable Speed
Yes
